Klein Tools, 93LCLGR, Laser Level, Self-Leveling; Green Cross-Line; Red Plumb; 165 ft Range; IP54 Dust/Water Resistant

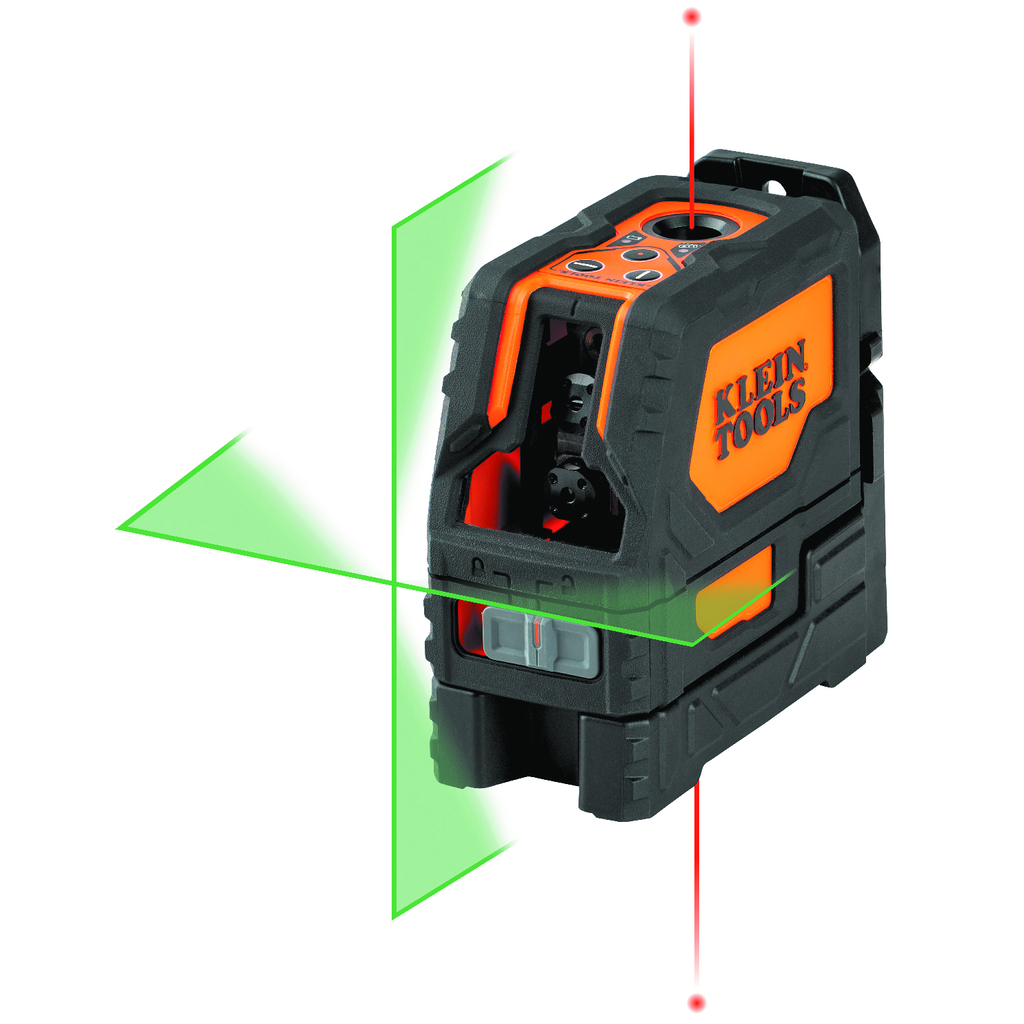

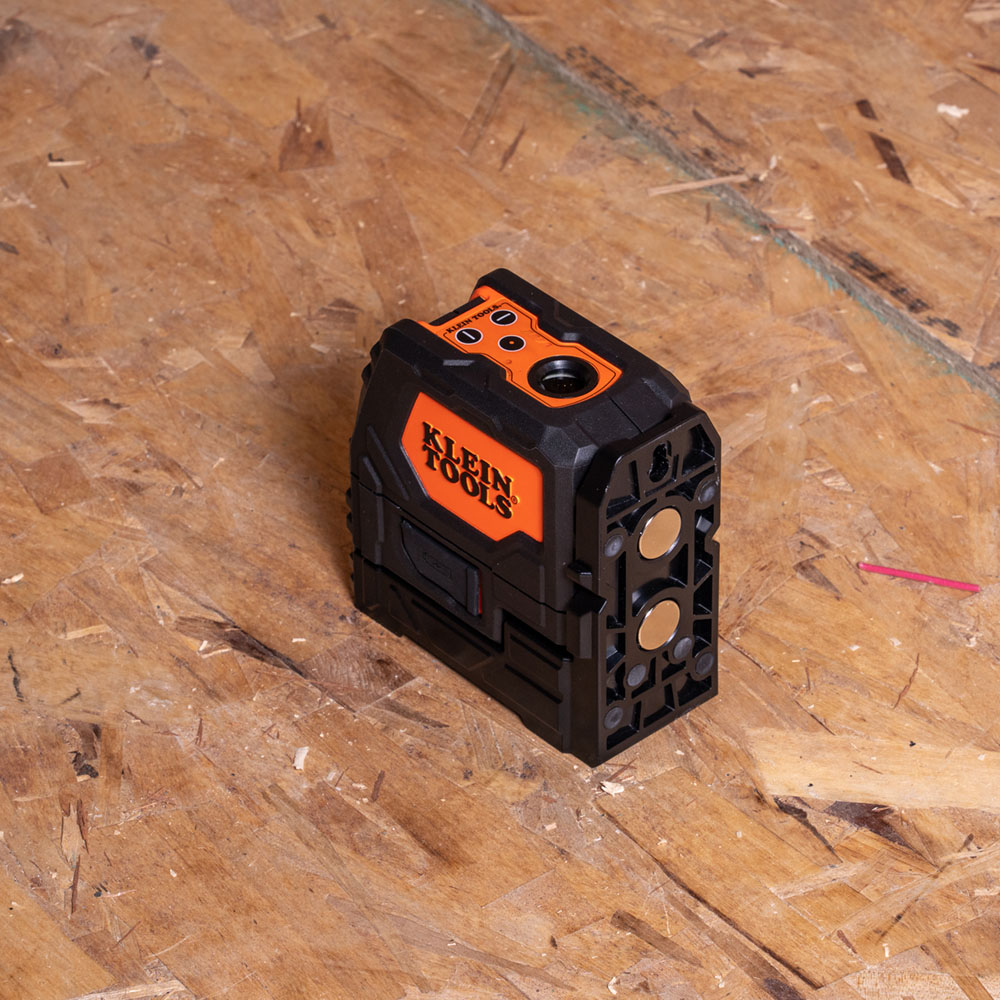

The Klein Tools Green Rechargeable Laser Level is a high-performance Class 2 (<= 1mW @ 510-530 nm) laser leveling and alignment tool for professionals with a rechargeable battery. This level provides a reliable pendulum self-leveling system with clear, bright green laser level lines, and red plumb up/down spots. Equipped with an integrated magnetic mount and an additional ceiling grid clamp , Klein's cross-line laser level enables a multitude of alignment and layout applications.

Features

• High capacity rechargeable Li-ion battery powers all lasers with more than 15 hours of run time

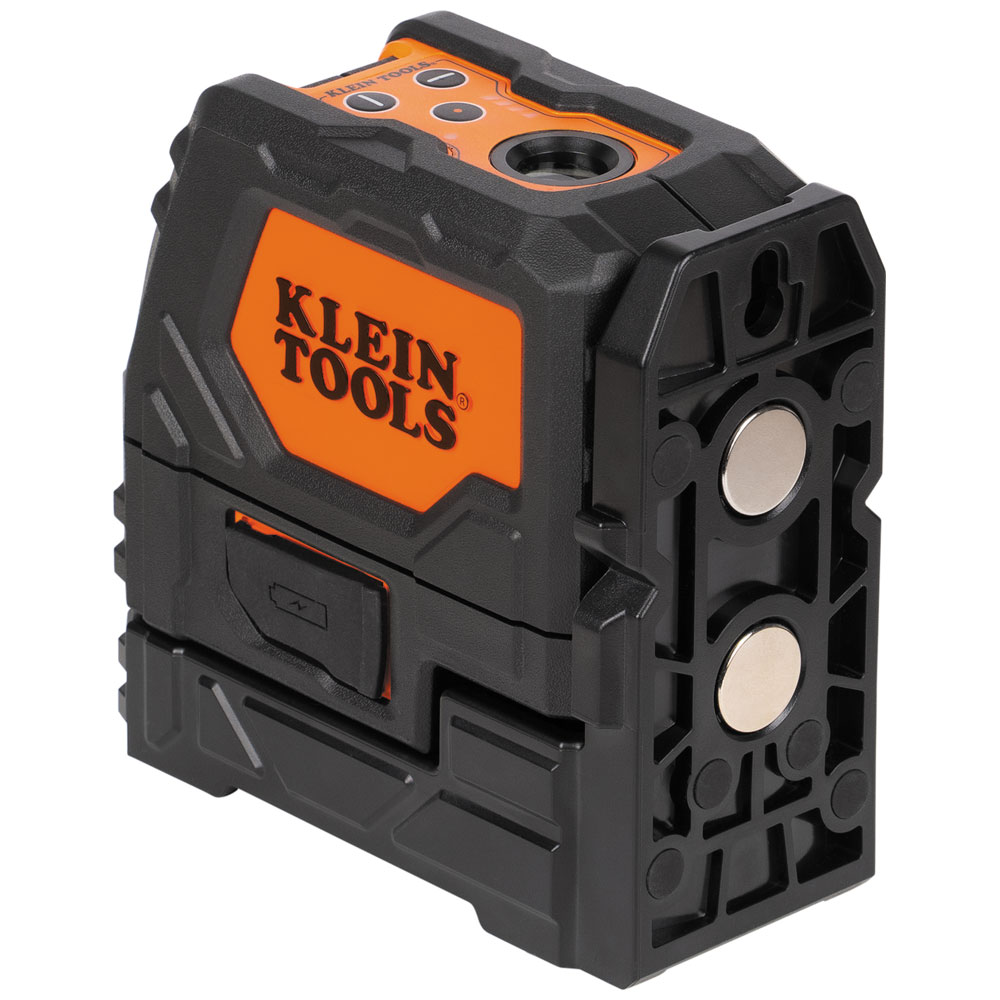

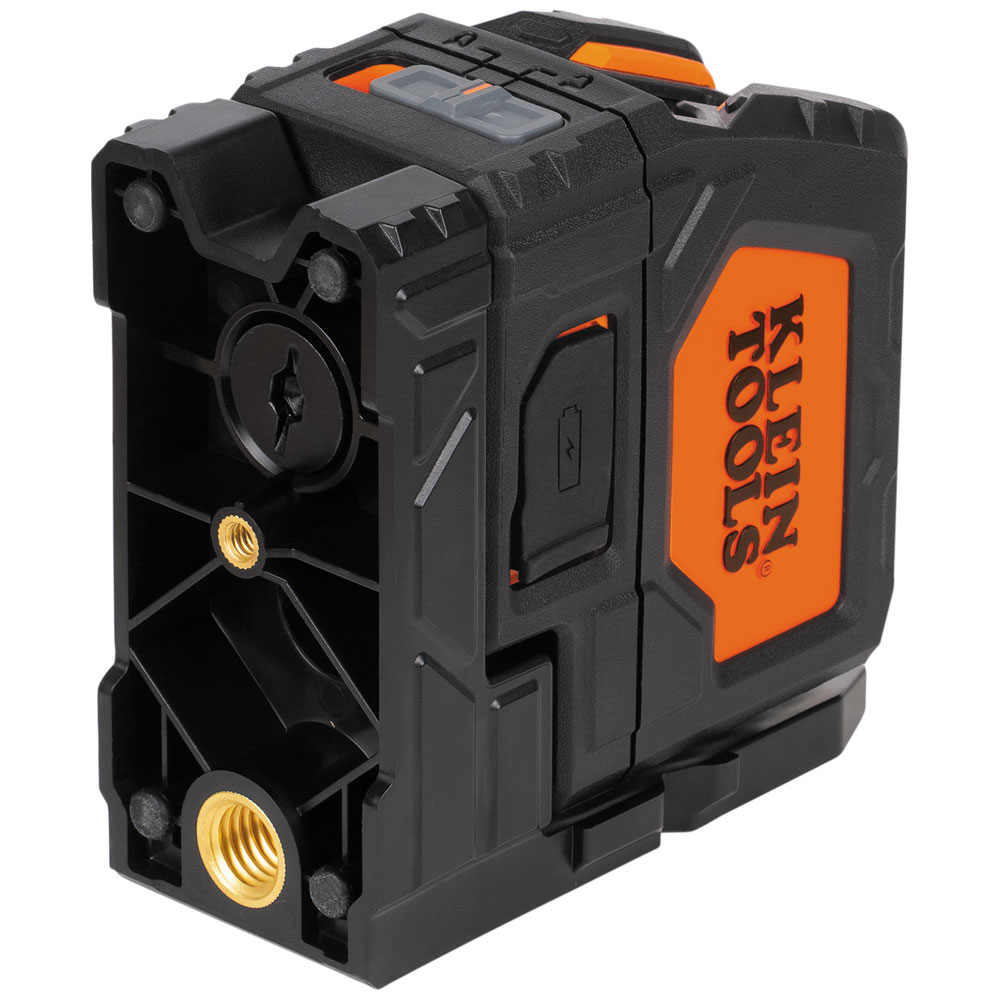

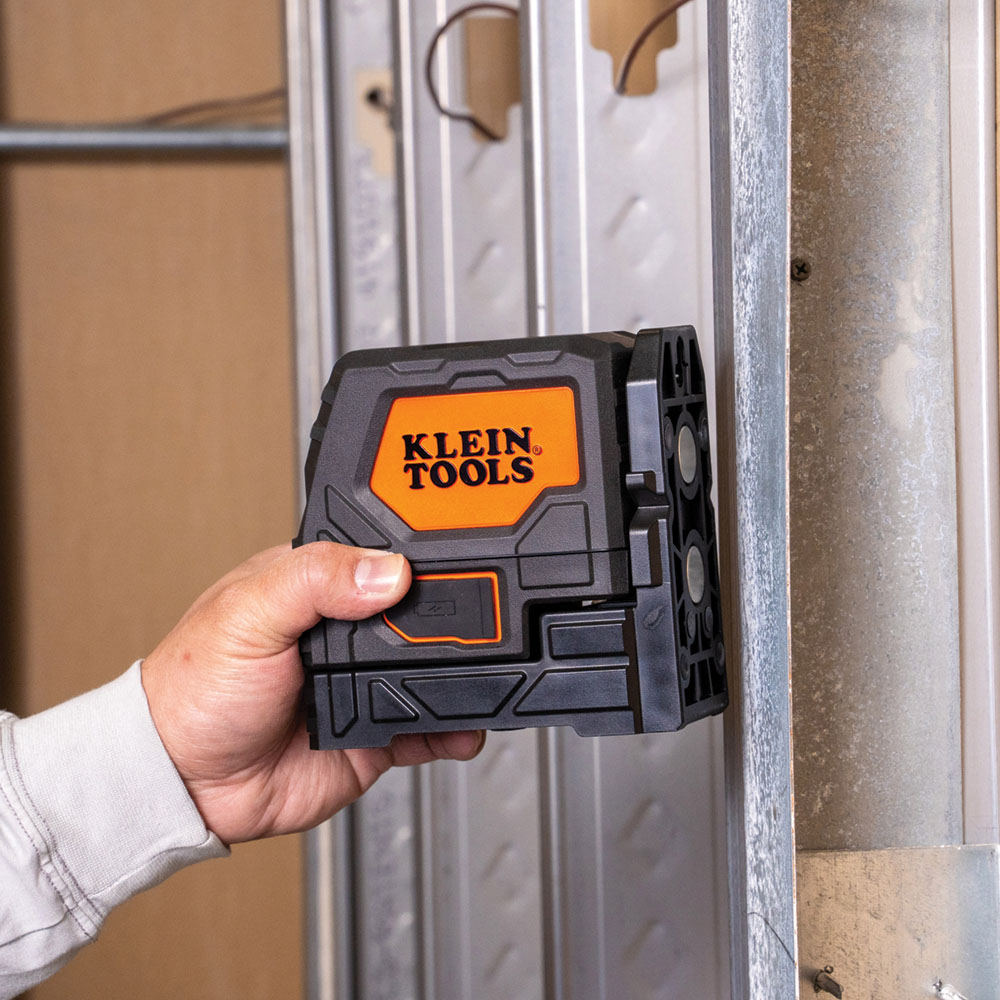

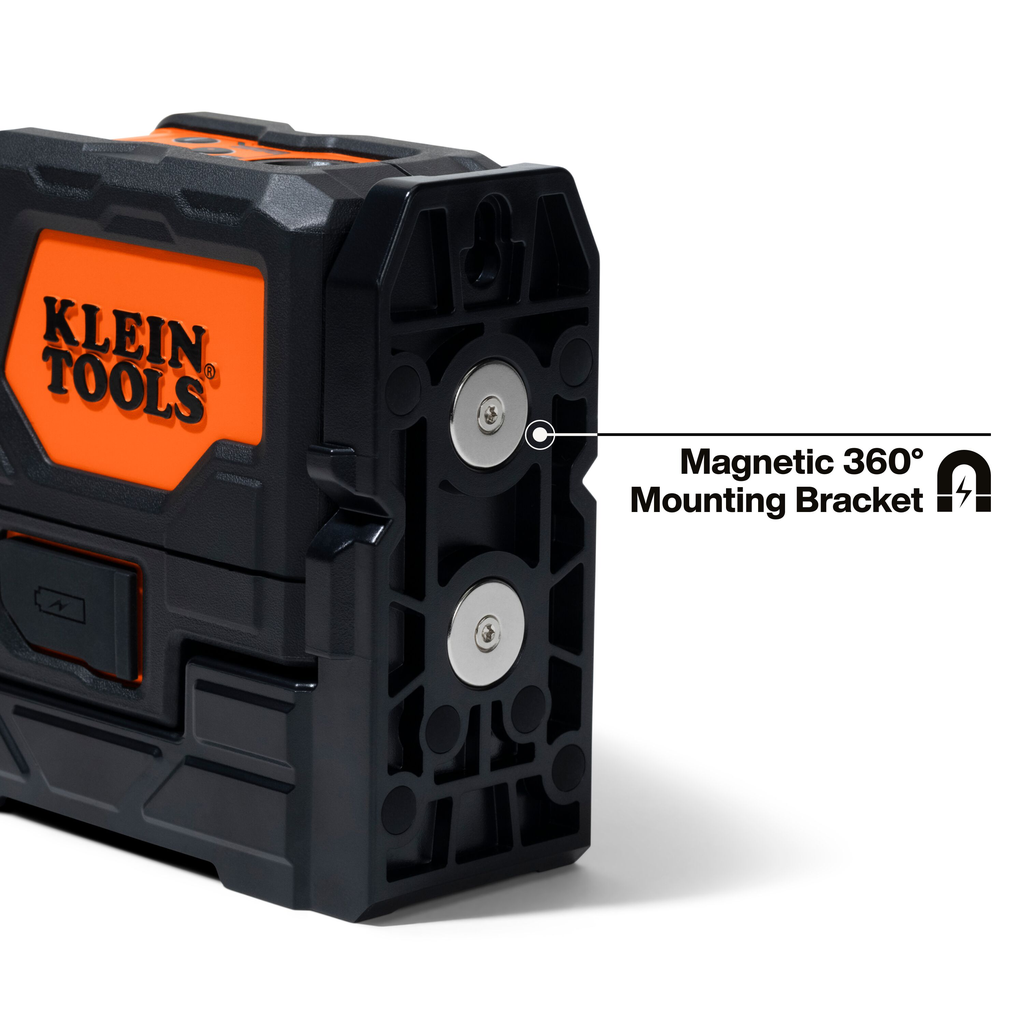

• Integrated magnetic 360-Degree mounting bracket with 1/4-Inch and 5/8-Inch tripod mounting threads facilitates attachment to ferromagnetic objects

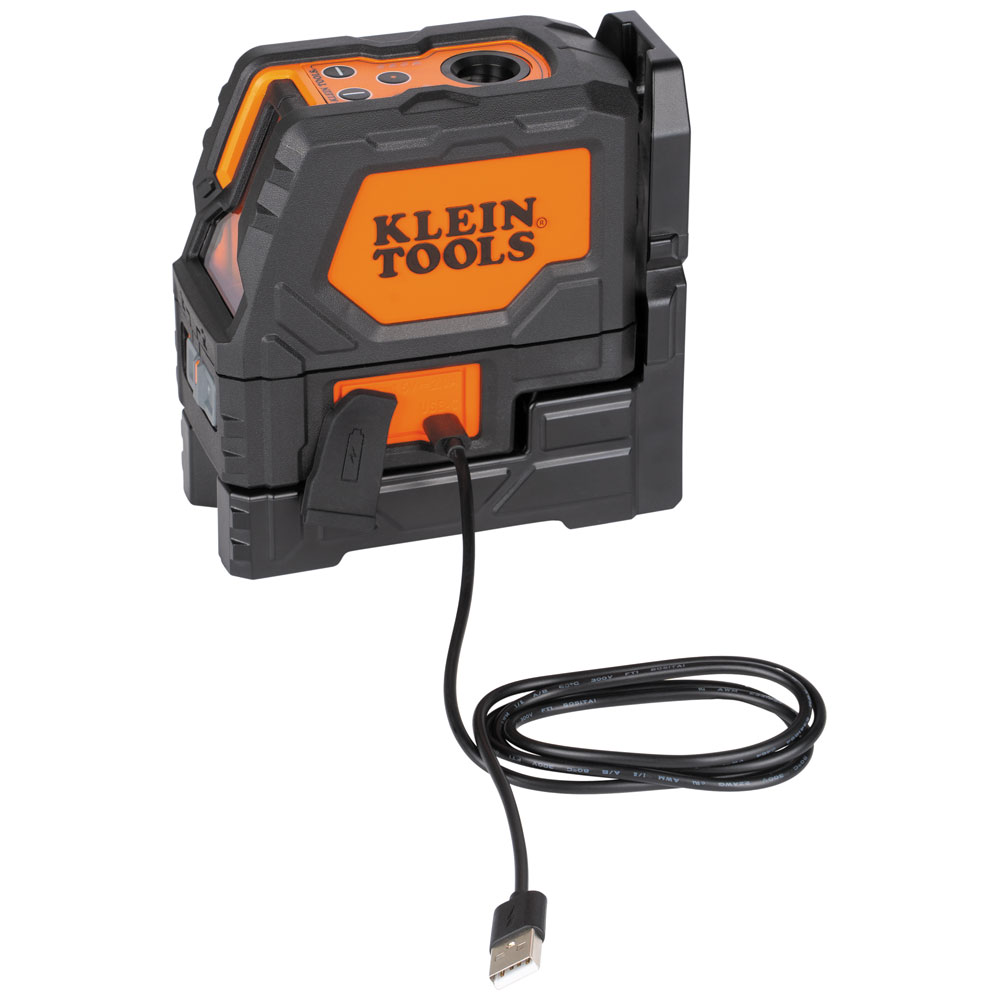

• Includes protective hard plastic carrying case, USB-A to USB-C charging cable, mounting clamp, and instruction manual
• This product is classified as a Class II laser product according to IEC/EN 60825-1:2014, (Power <=1mW @ 510-530 nm)

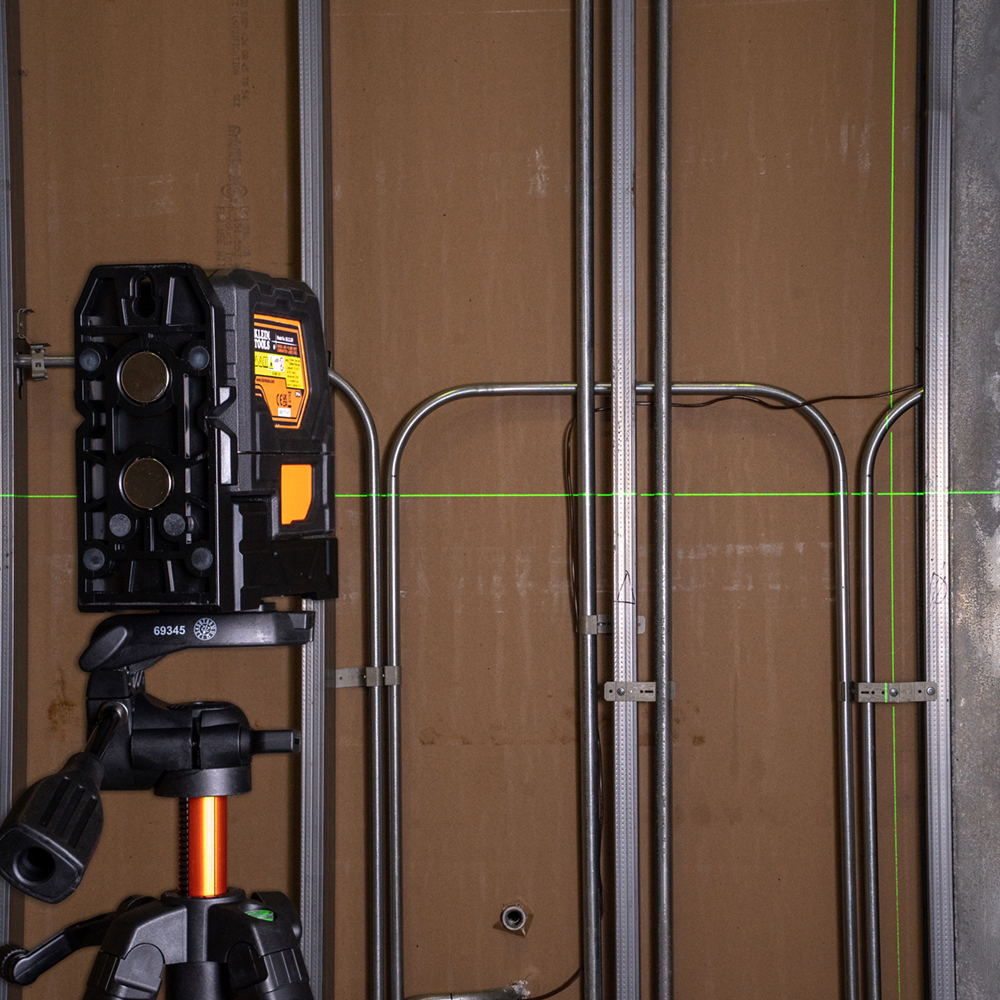

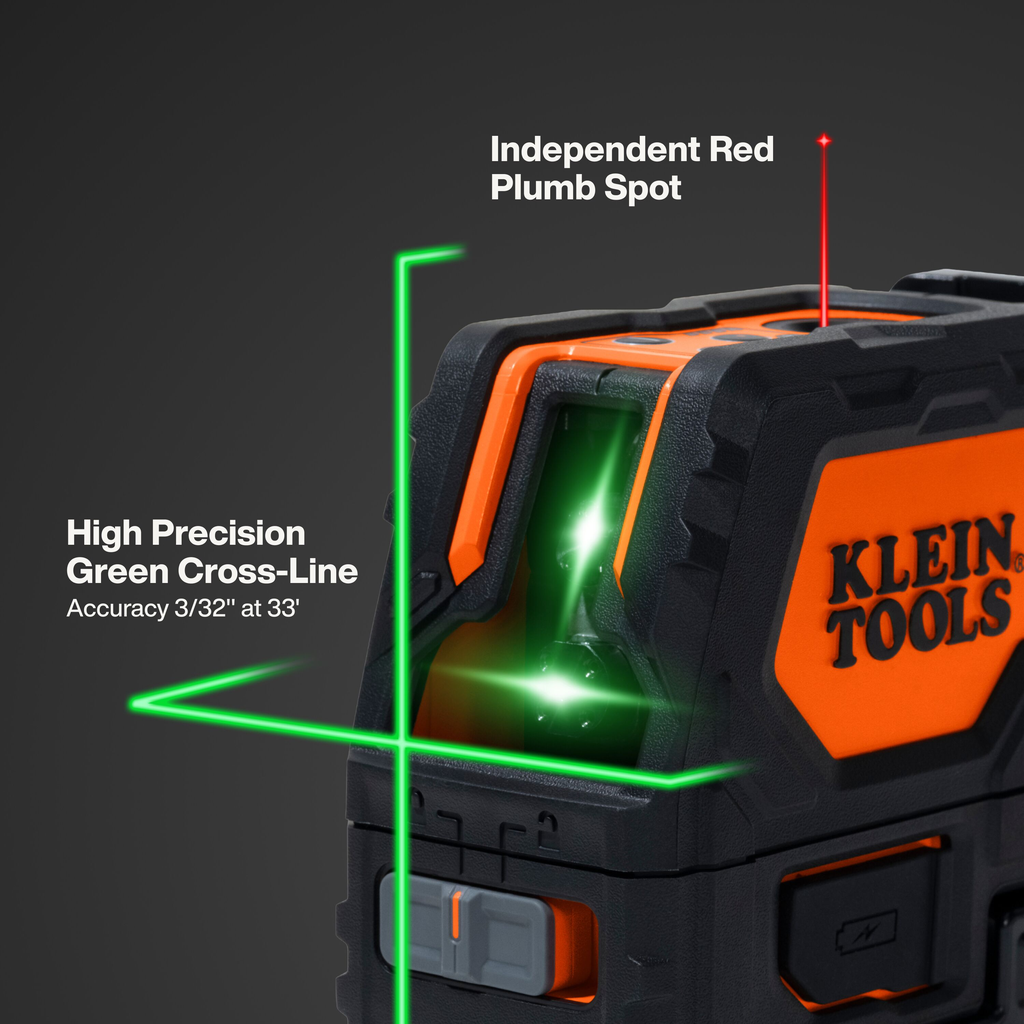

• Projects high precision horizontal and vertical lines and plumb up/down spots independently or together to address various alignment tasks with accuracy up to 3/32-Inch at 33 feet (10.1 m)

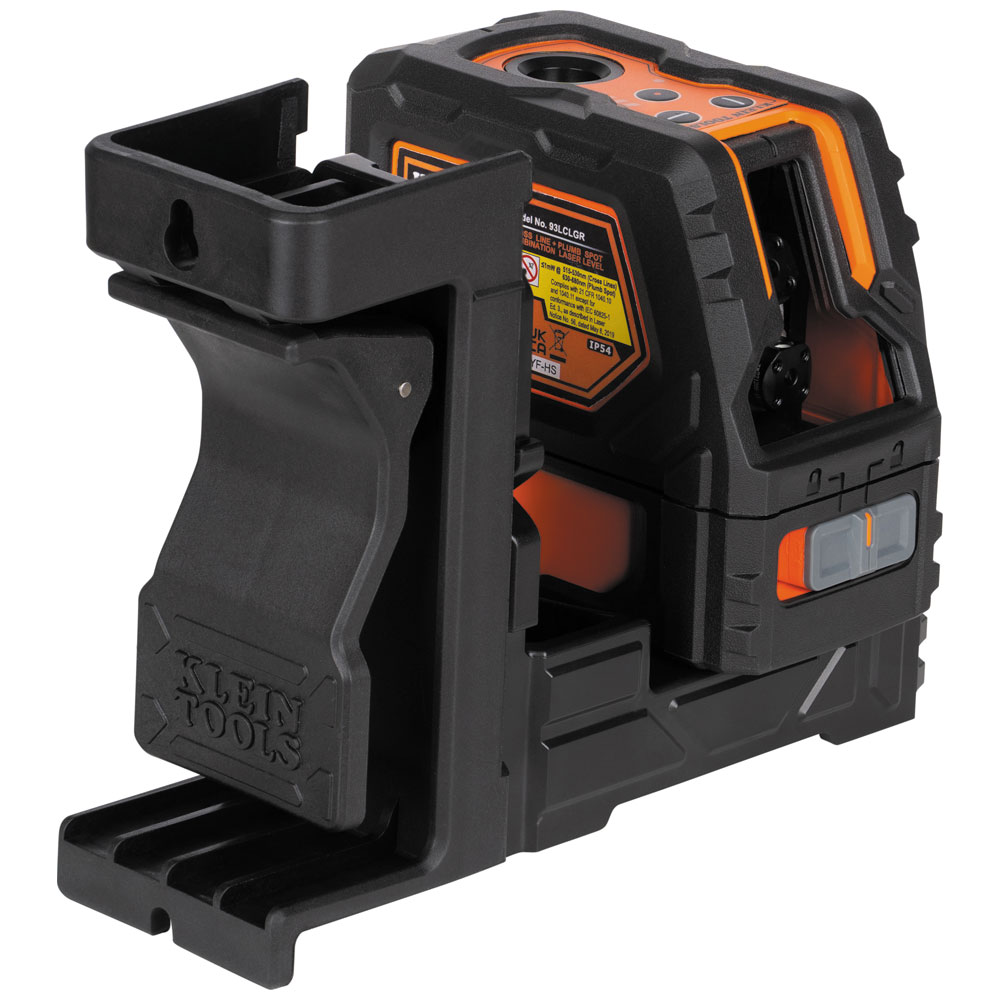

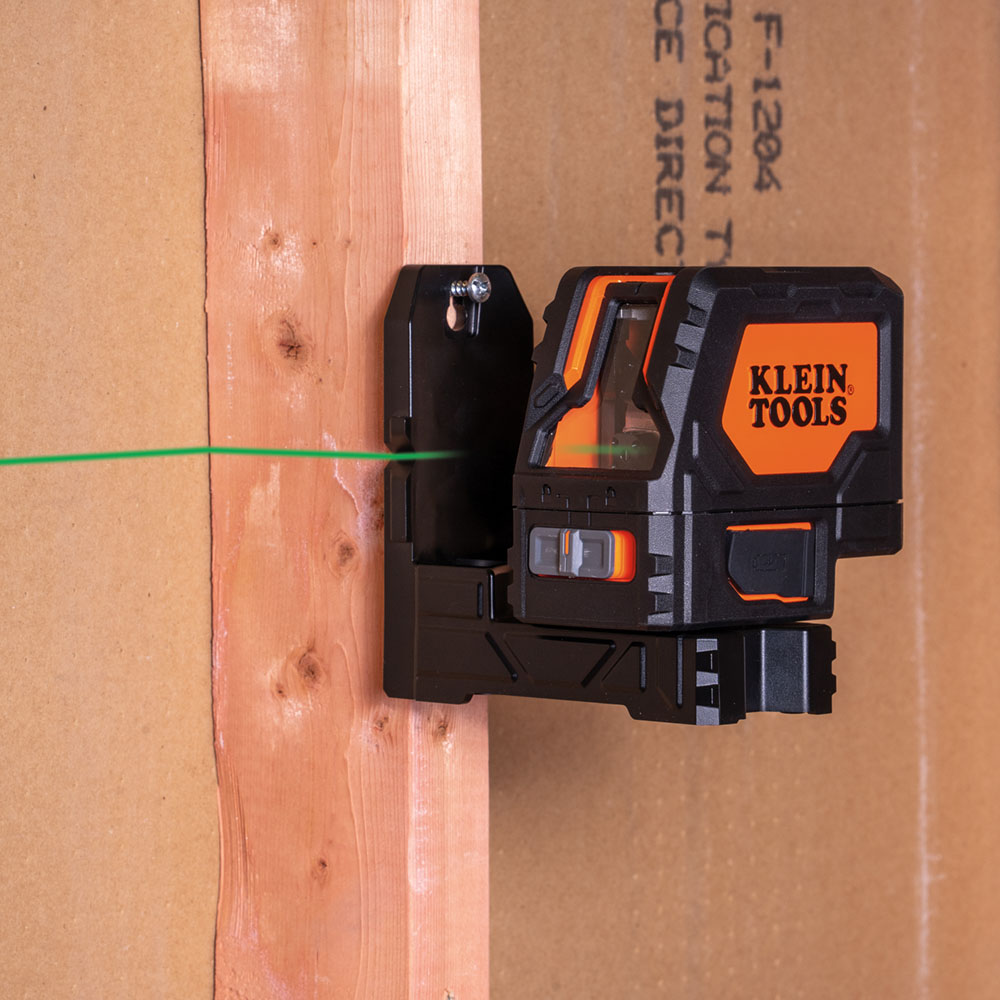

• Additional mounting clamp attachment for use on ceiling grid applications

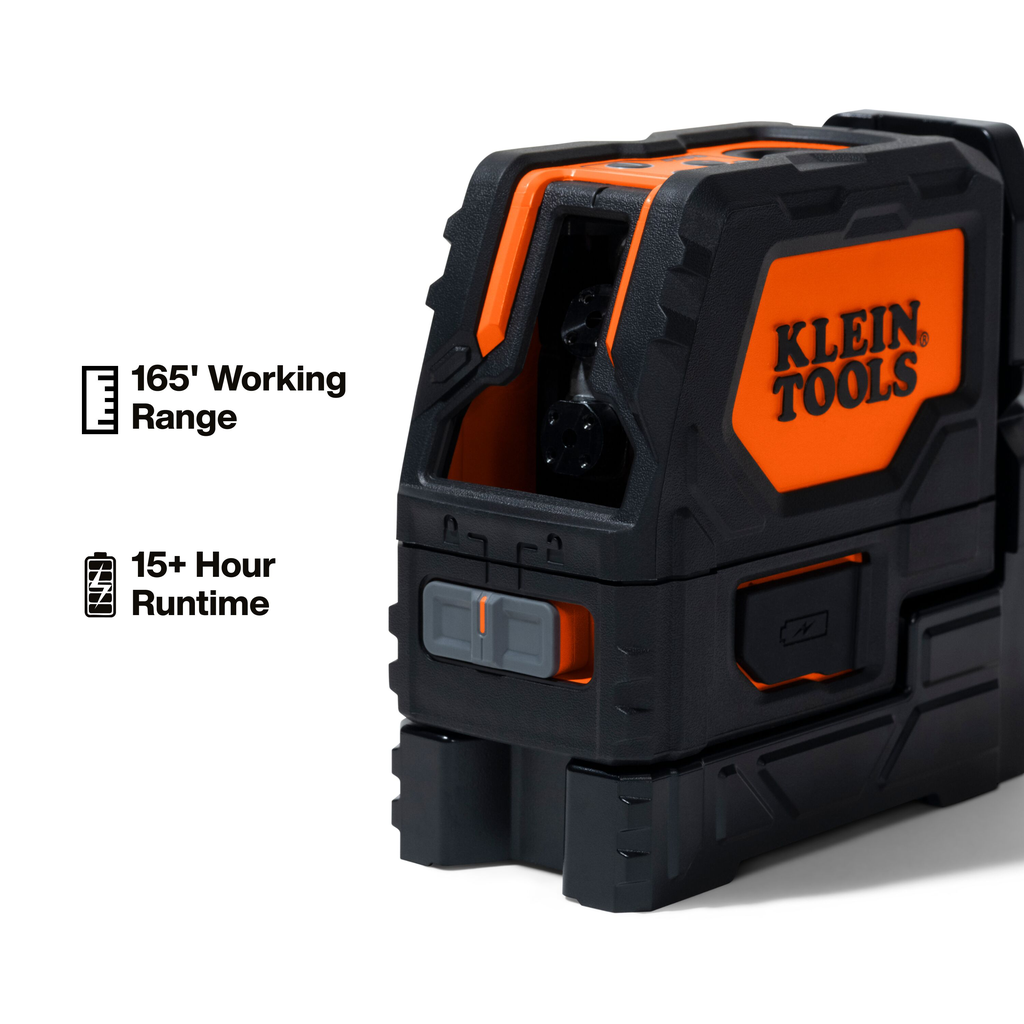

• Rechargeable self-leveling laser level is easy-to-read with high-visibility green horizontal and vertical laser lines and red plumb spot lasers with a working range of 165-Foot (50.3 m)
• Rugged body provides IP54 water and dust resistance for job site durability

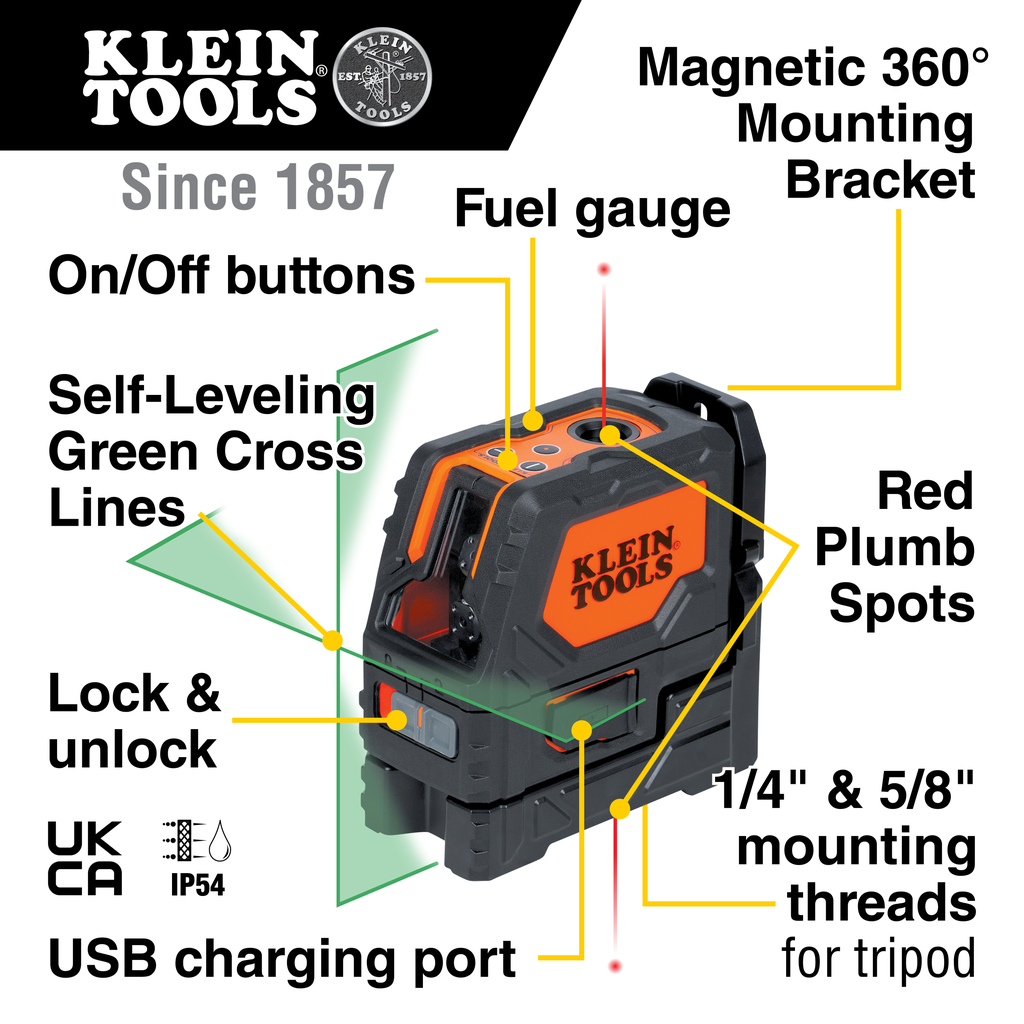

• Integrated Magnetic 360° Mounting Bracket with 1/4" and 5/8" Tripod Mounting Threads; Mounting Clamp Attachment; Excessive Tilt Indicator

Warnings

• Laser Radiation - Do Not Stare Into Beam.
• See instruction manual for additional warnings.
• Class II Laser Product.

• Maximum Distance: 165' (50.3 m)
• Accuracy: 9/32 in at 33 ft (10.1 m) vertical & horizontal; 1/8 in at 33 ft (10.1 m) plumb up; 5/32 in at 33 ft (10.1 m) plumb down
• Number of Beams: Four: Horizontal, Vertical, Plumb Up, Plumb Down
• Laser Color: Cross Line - Green; Plumb - Red
• Laser Class: Class 2 (1mW each beam)
• Laser Wavelength: 515-530 nm (cross-lines), 630-680 nm (plumb spots)
• Battery Type: Rechargeable Lithium-Ion
• Battery Life: More than 12 hours
• Mounting Type: Magnetic, Tripod (1/4-in and 5/8-in threads), Hang-hole, Ceiling grid clamp
• Permanent Magnet Type: Rare Earth
• Transit Locking Mechanism: Yes
• Out-of-Level Indicator: No
• Low Battery Alarm: Yes
• Low Battery Indicator: Yes
• Drop Protection: 3.3' (1 m)
• Ingress Protection: IP54 water and dust resistant
• Overall Length: 5.2 in (13.2 cm)
• Overall Width: 2.6 in (6.6 cm)
• Overall Height: 5.3 in (13.5 cm)
• Width: 2.56 in
• Depth: 5.29 in
• Height: 5.22 in
• Weight: 1.94 lbs
• Material: ABS housing and electronic components
• Standard Compliance: EN61326-1, EN60825-1, 21 CFR 1040.10, 1040.11
• Country of Origin: China
