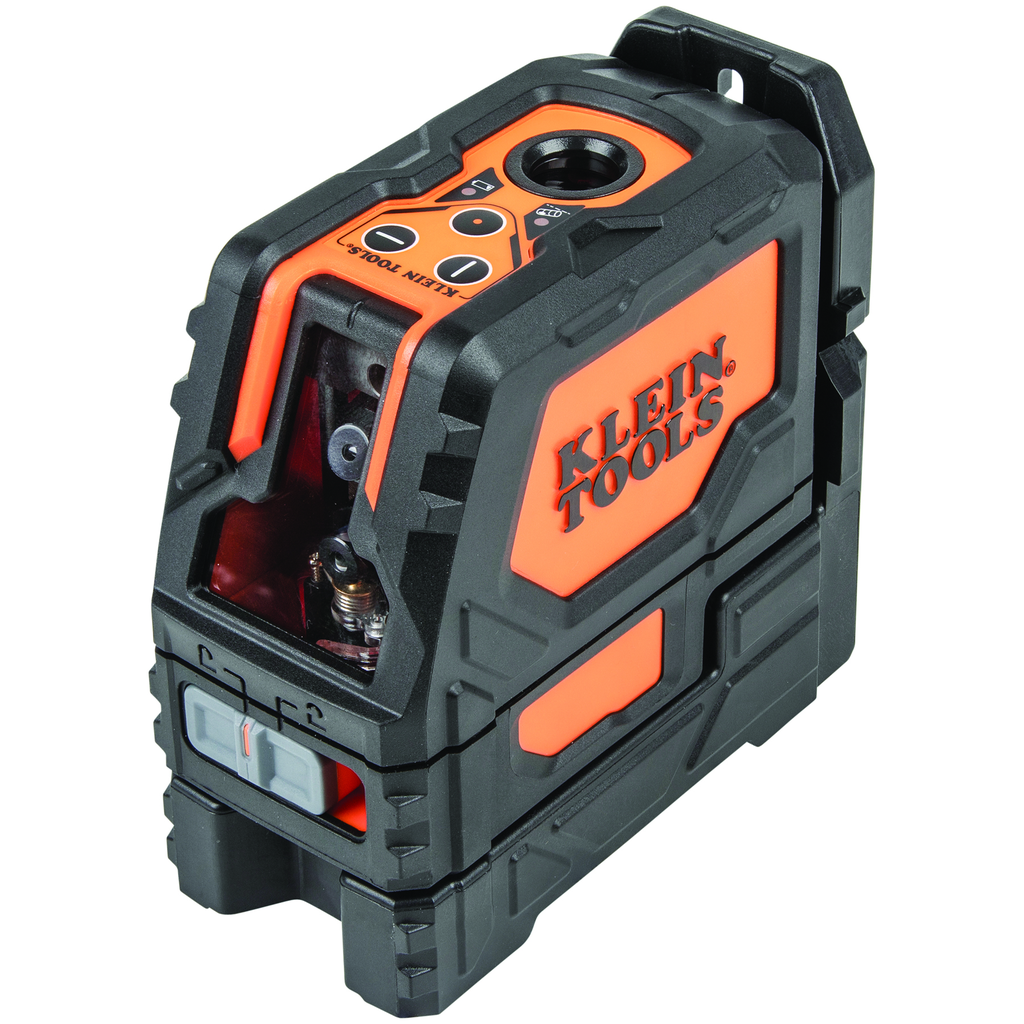

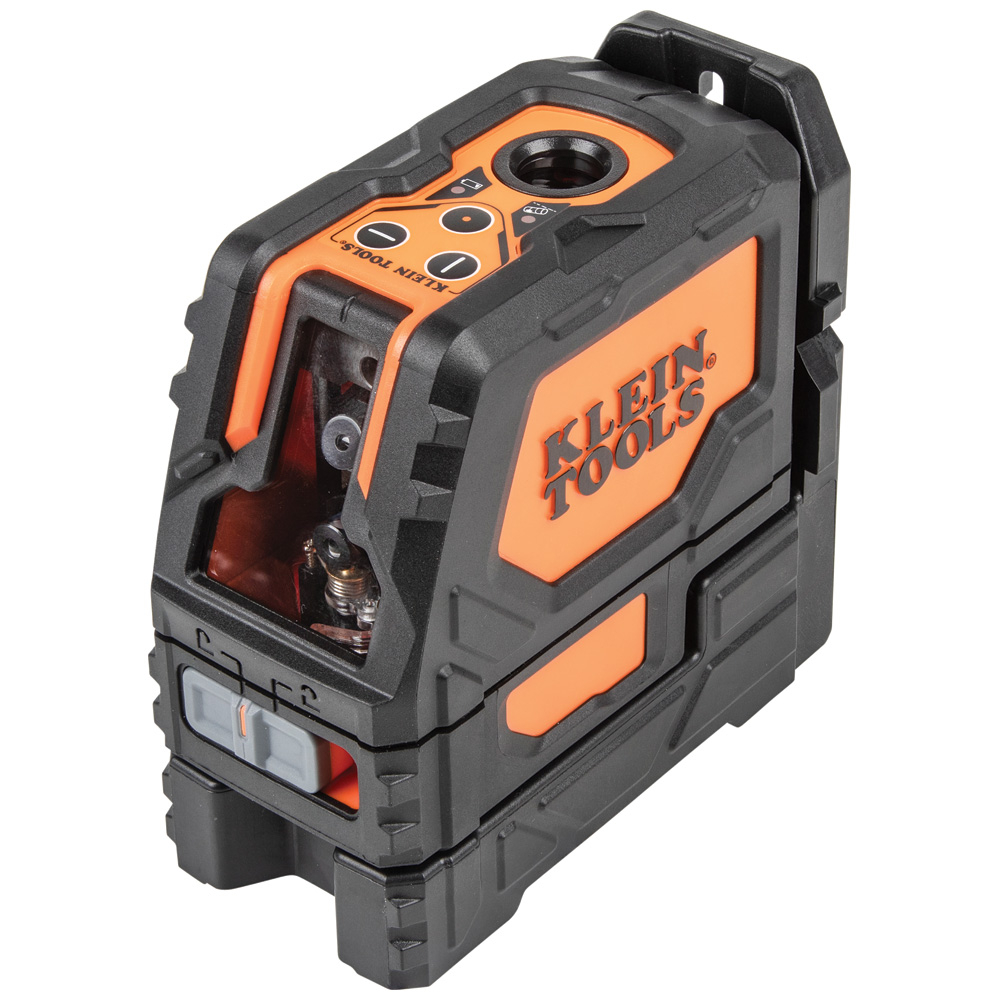

Klein Tools, 93LCLG, Laser Level, Self-Leveling, Green Cross-Line; Red Plumb Spot, 70' Range, IP54

The Klein Tools Self-Leveling Green Cross-Line Laser Level is a high-performance laser leveling and alignment tool for professionals. This level provides a reliable pendulum self-leveling system with clear, bright laser level lines, and a 90-degree vertical plumb spot feature. Equipped with an integrated magnetic mount and an additional ceiling clip mount, Klein’s cross-line level enables a multitude of alignment and layout applications.

Warnings

• See instruction manual for additional warnings
• Class II Laser Product
• Laser Radiation - Do Not Stare Into Beam

Features

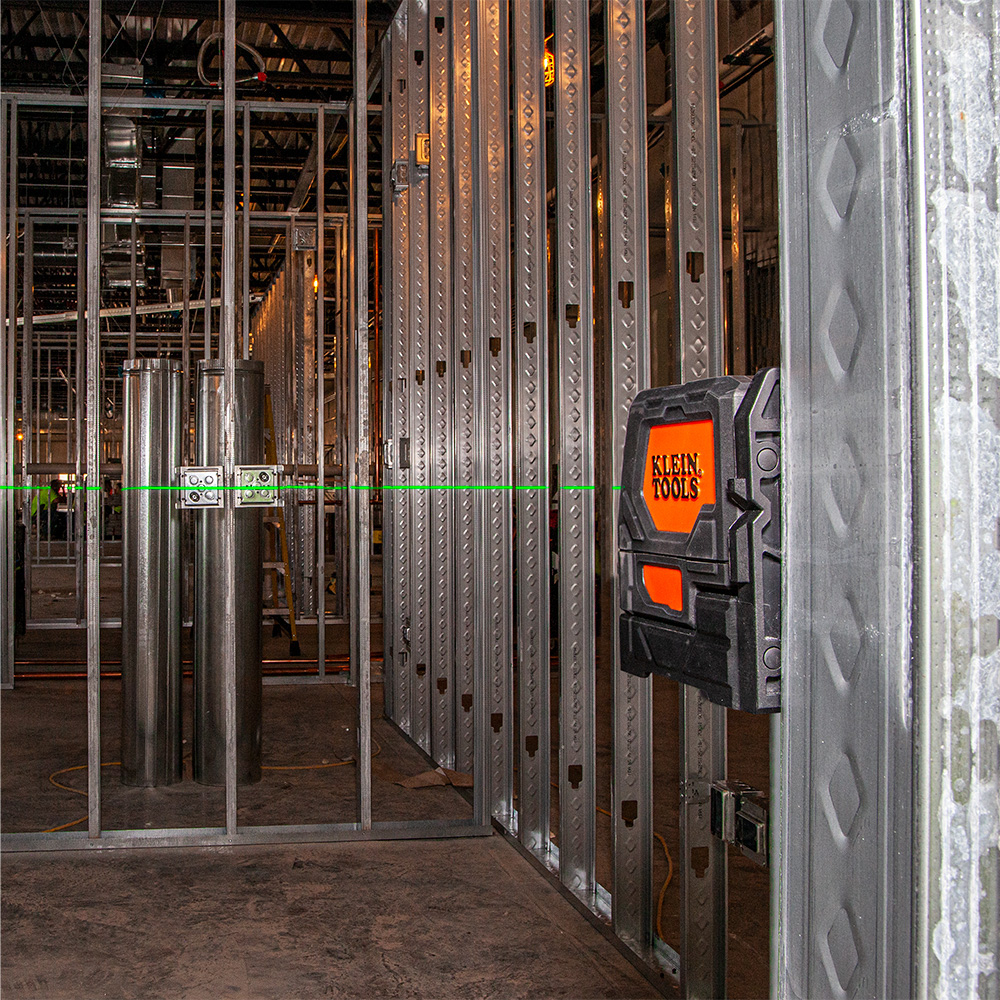

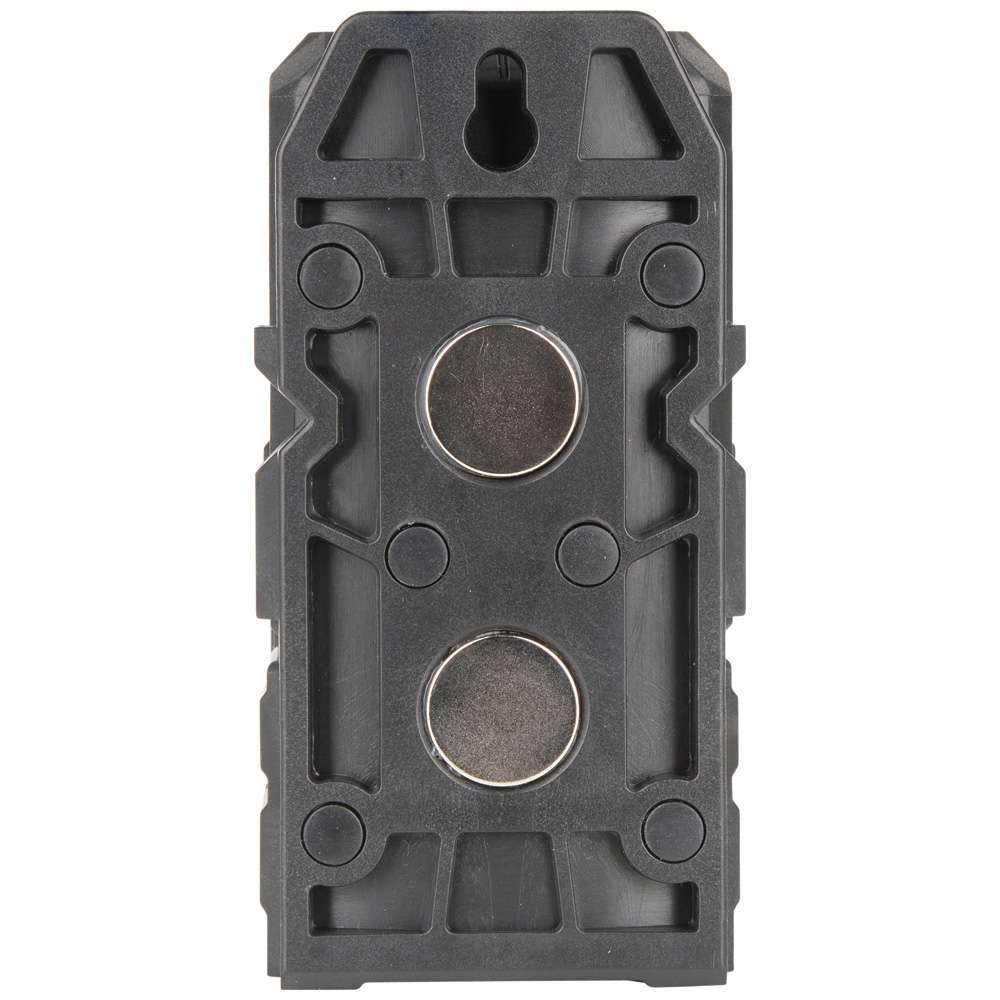

• Magnetic bracket facilitates attachment to ferromagnetic objects such as steel studs, doors, beams or electrical panels

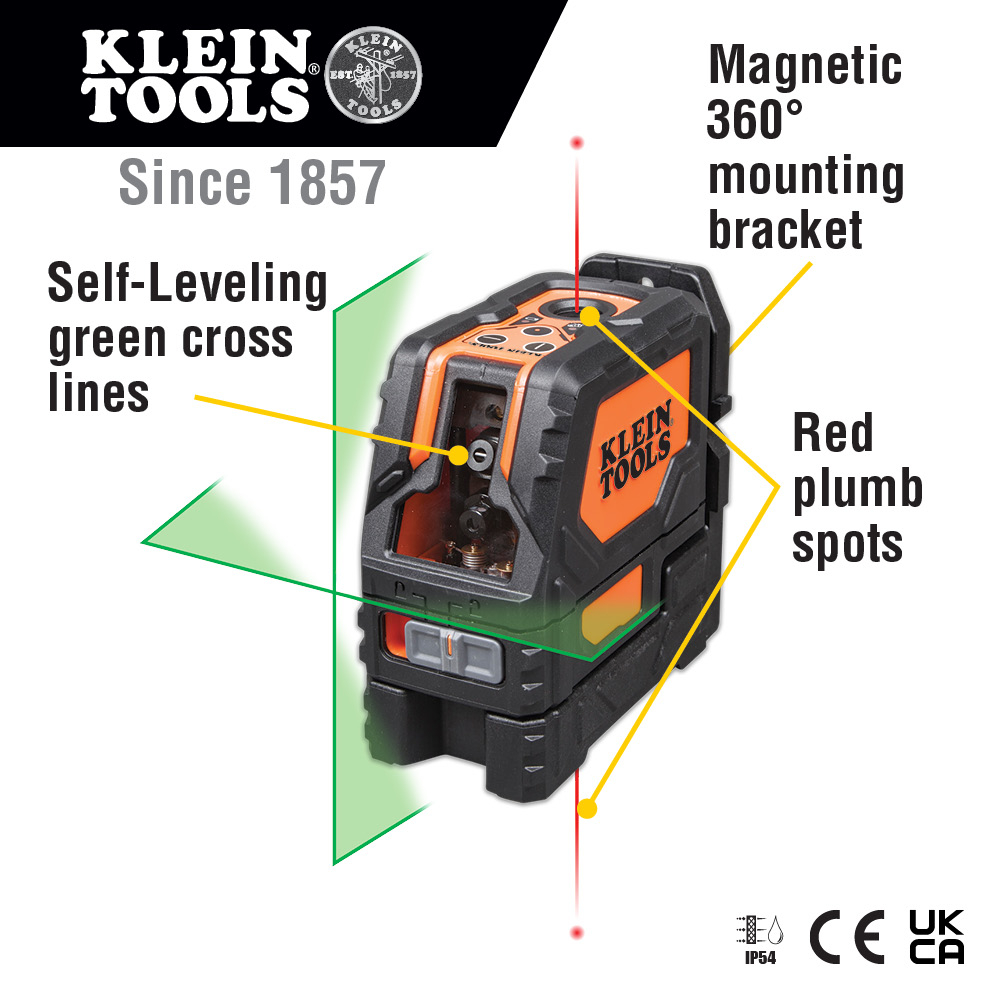

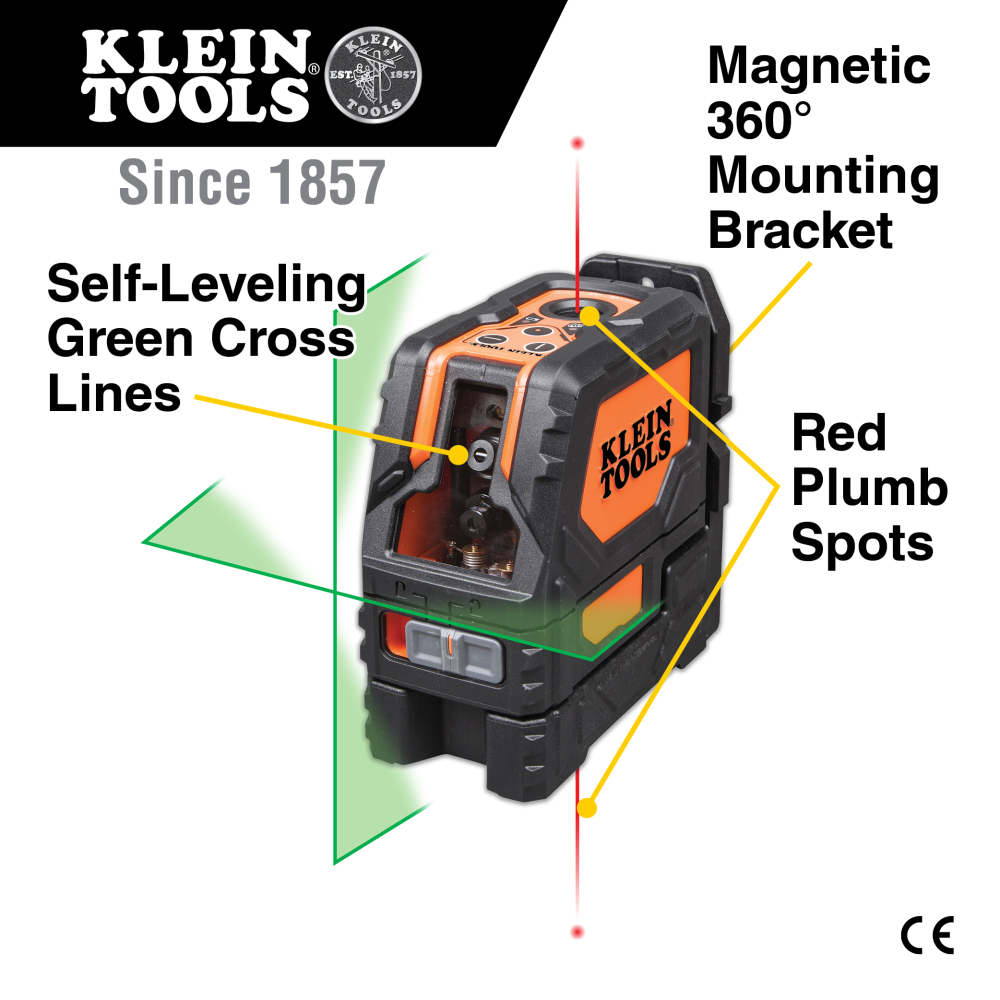

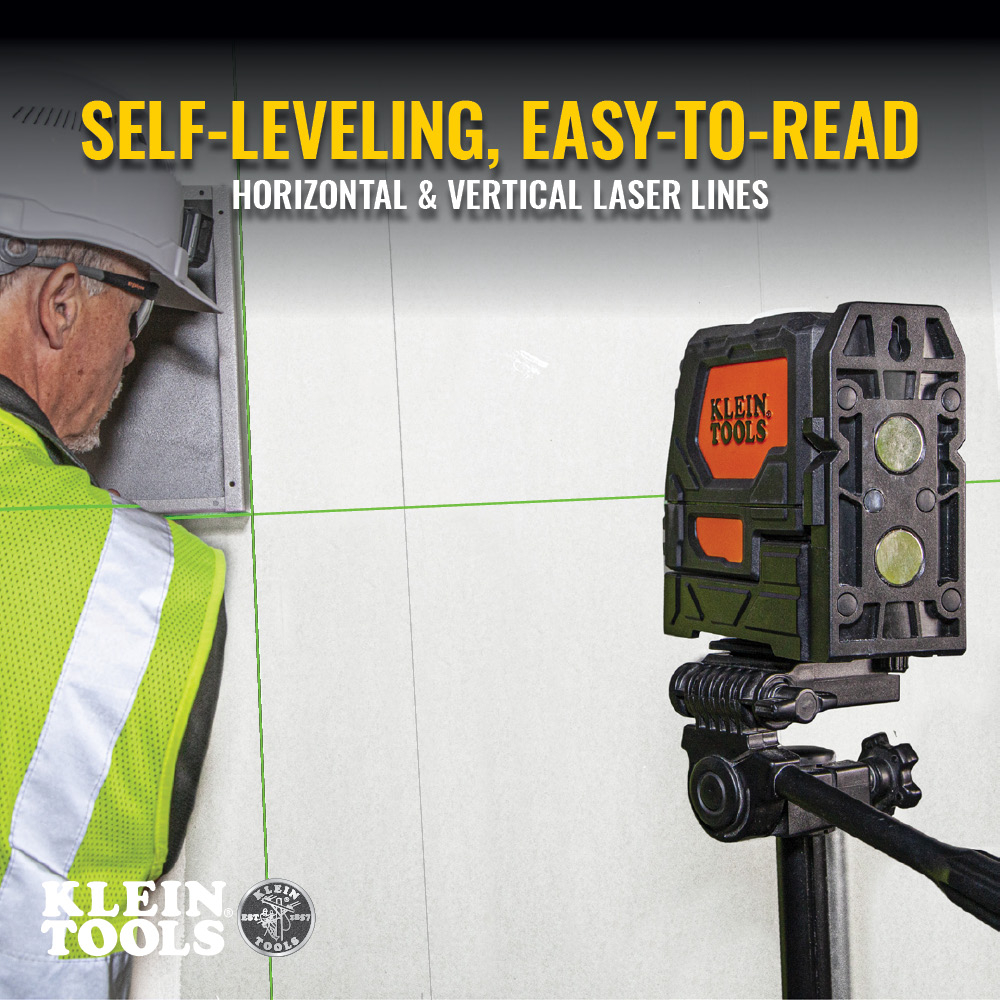

• Self-leveling laser level is easy-to-read with green horizontal and vertical laser lines and red plumb spot lasers

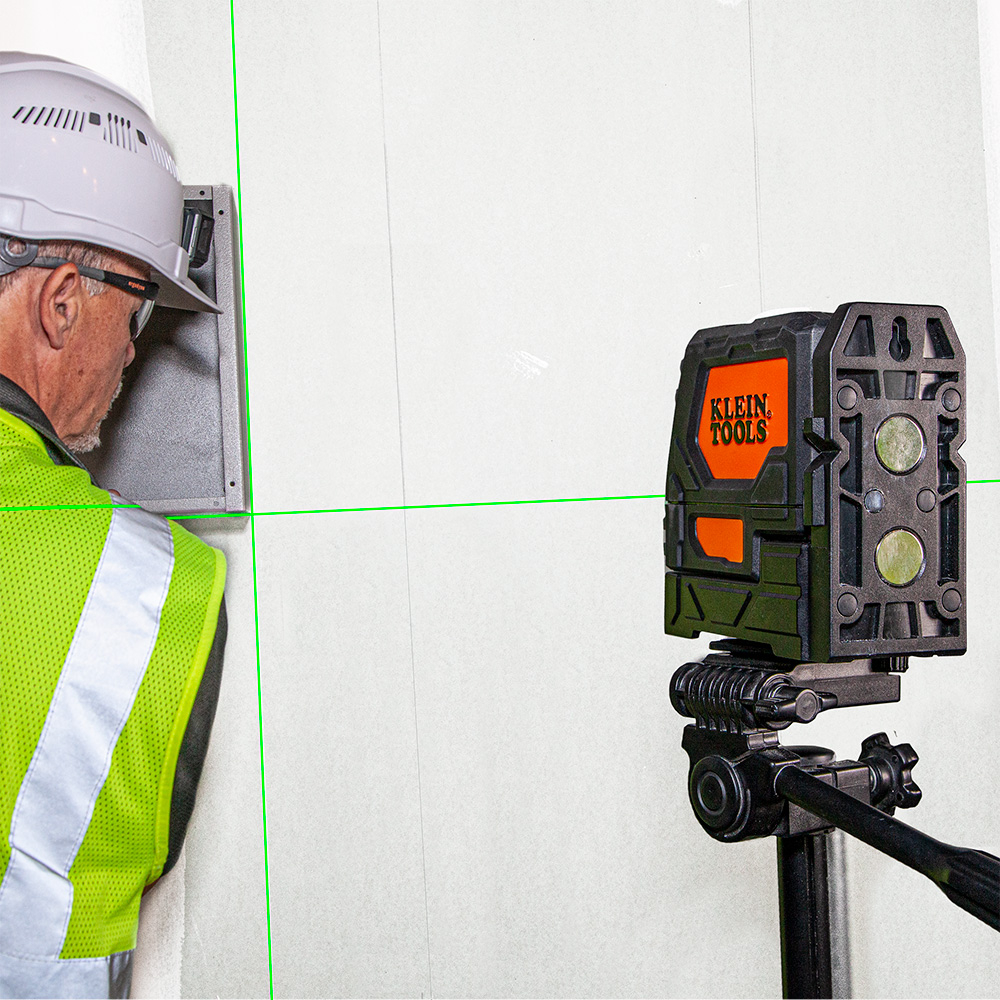

• Projects horizontal and vertical lines independently or together to address various alignment tasks
• Water and dust resistant (IP54)
• Self-leveling laser level is easy-to-read with high-visibility green horizontal and vertical laser lines and red plumb spot lasers
• Additional mounting clamp attachment for use on ceiling grid applications

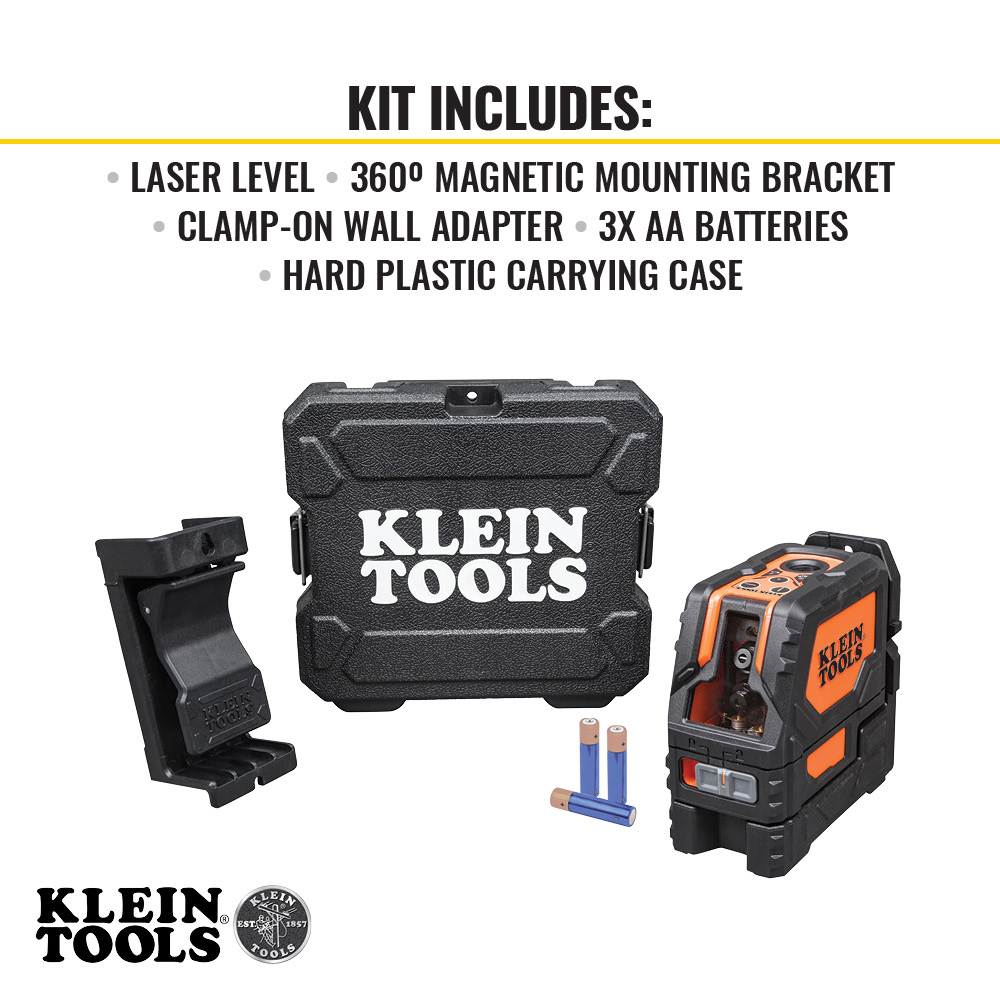

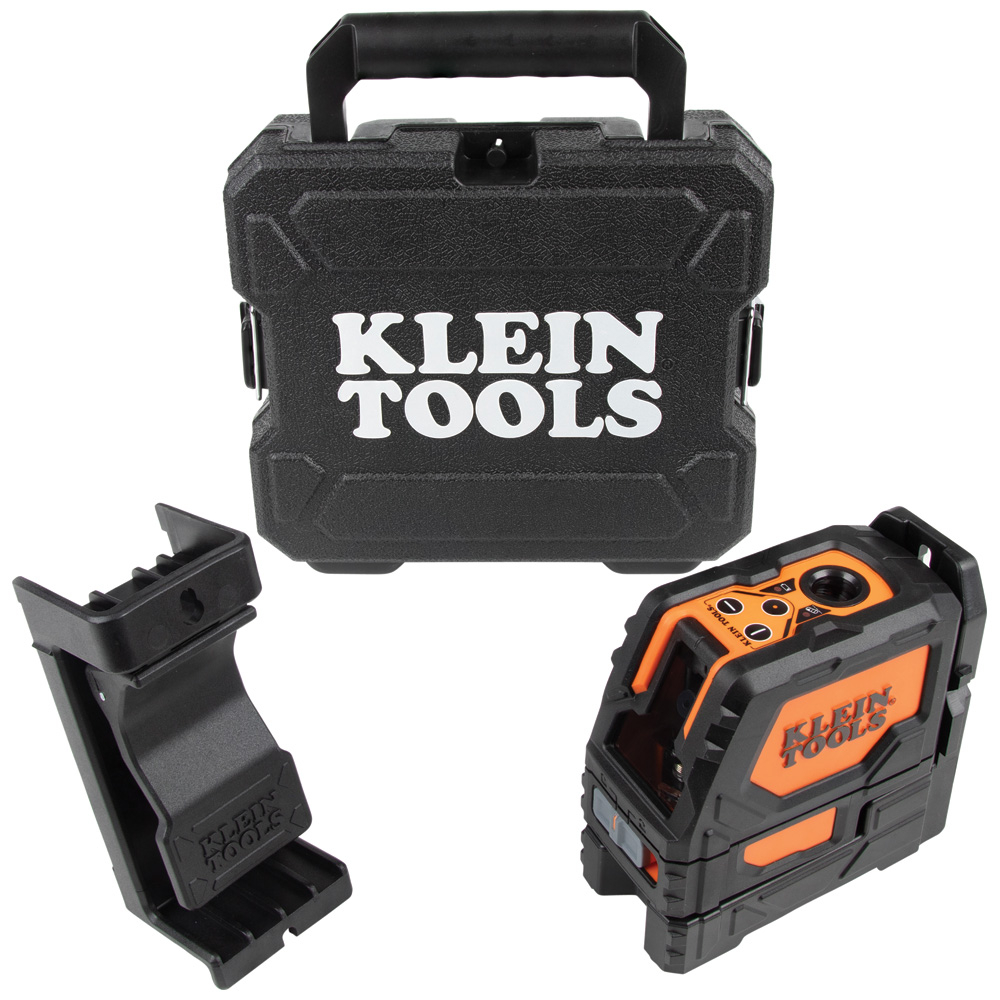

• Hard plastic carrying case included
• Rugged body provides IP54 water and dust resistance, hard plastic carrying case included

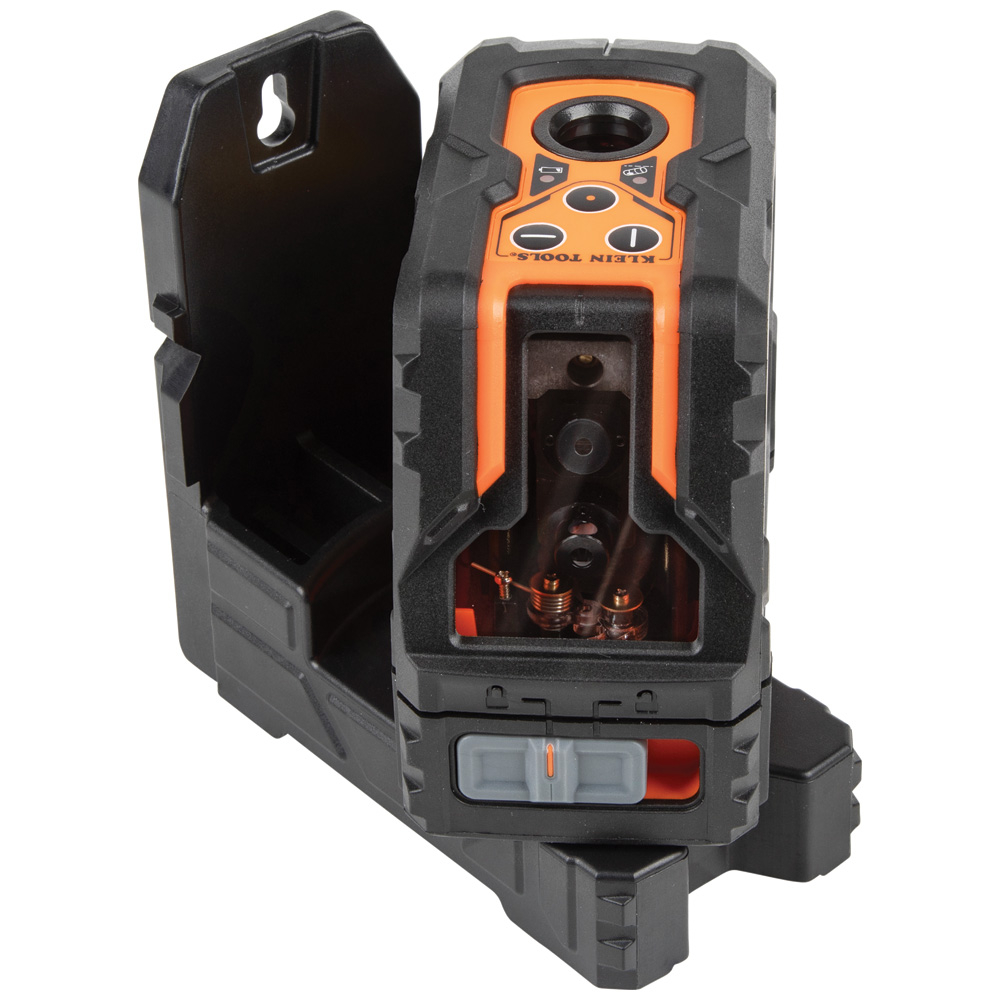

• Integrated Magnetic 360° Mounting Bracket with 1/4" and 5/8" Tripod Mounting Threads; Mounting Clamp Attachment; Excessive Tilt Indicator

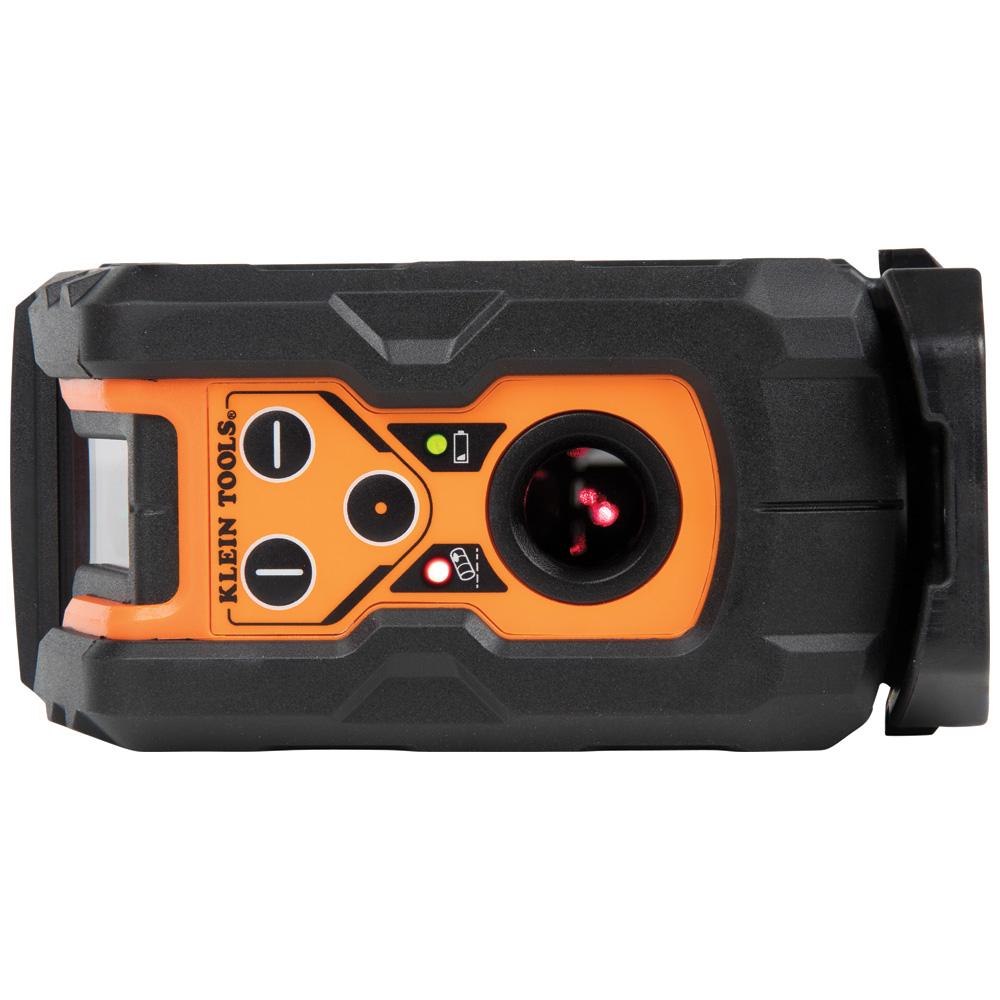

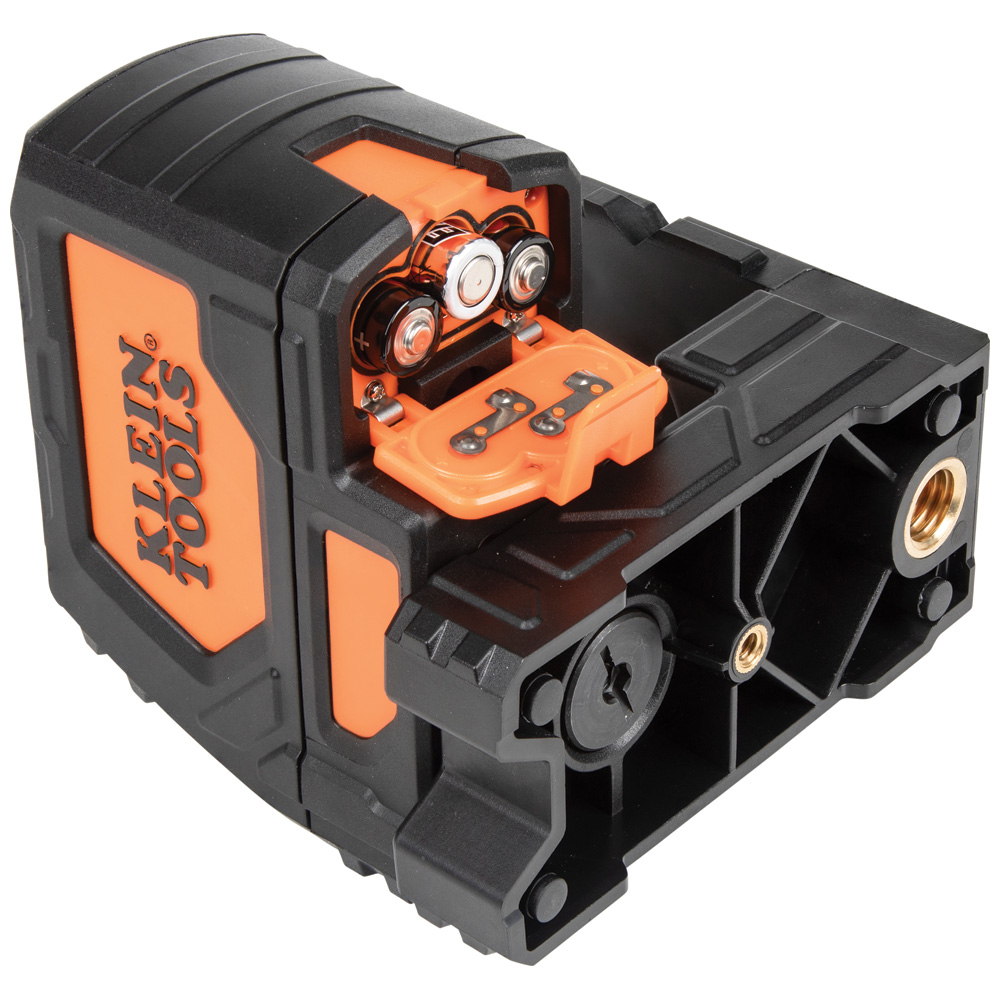

• Low battery indicator and easily accessible battery compartment
• Integrated magnetic 360-Degree mounting bracket with 1/4-Inch and 5/8-Inch tripod mounting threads

• Accuracy: ±3/32 in. per 33 ft. (±2 mm per 10 m) Horizontal & Vertical, ±1 1/8 in. per 33 ft. (±3 mm per 10 m) Plumb Up, ±5/32 in. per 33 ft. (±4 mm per 10 m) Plumb Down
• Maximum Distance: 70 ft. (21 m)
• Type: Laser
• Laser Wavelength: 515-530 nm (Cross-Lines), 630-680 nm (Plumb Spots)
• Laser Color: Green horizontal and vertical, Red plumb spots

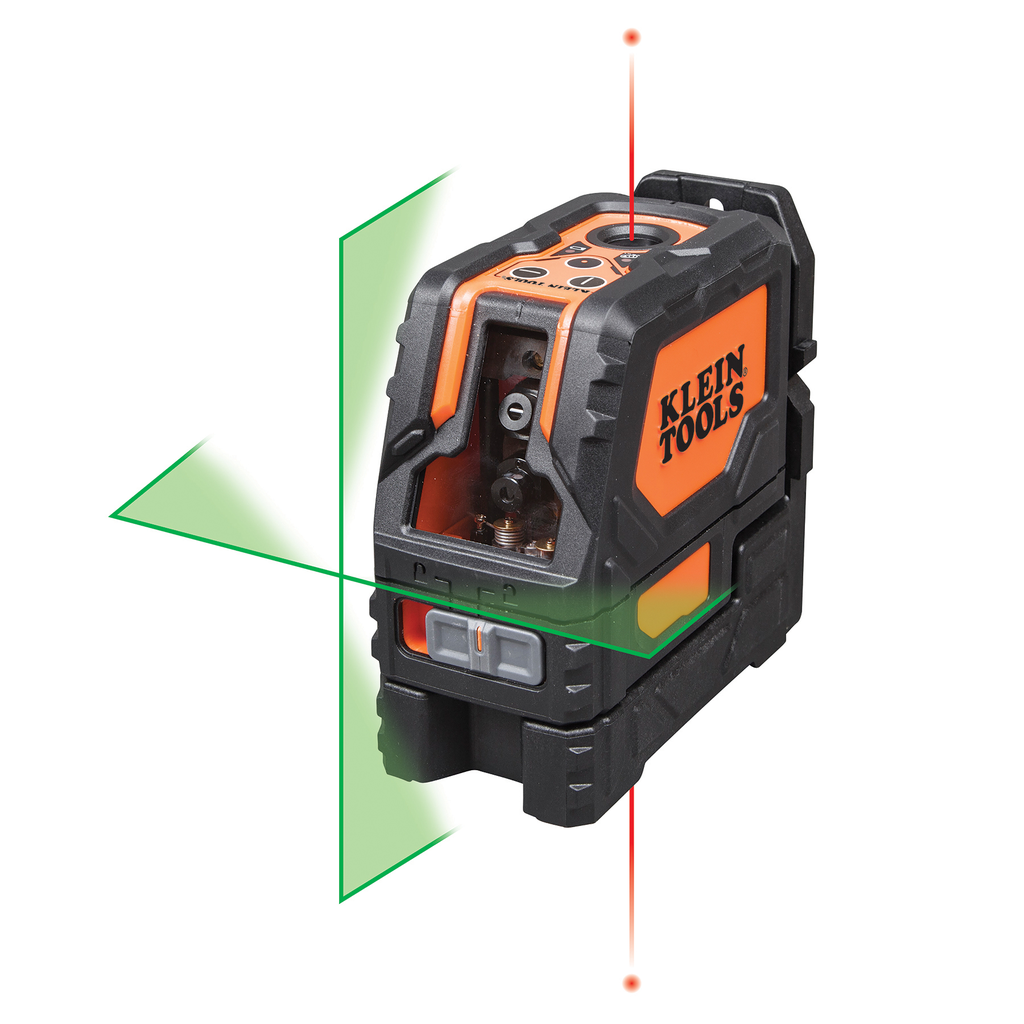

• Number of Beams: Four Horizontal, Vertical, Plumb Up, Plumb Down
• Self-Leveling: Yes, pendulum system
• Plumb Spot Feature: 90-degree vertical plumb spot laser
• Low Battery Indicator: Yes
• Excessive Tilt Indicator: Yes
• Voltage: 3 x AA alkaline batteries
• Material: ABS housing and electronic components
• Magnet Type: Permanent Rare Earth
• Ingress Protection: IP54 water and dust resistant
• Dimensions: 2.6 in x 5.3 in x 5.0 in (6.6 cm x 13.5 cm x 12.7 cm)
• Weight: 1.5 lbs
• Drop Protection: Drop resistant to 3.3 ft. (2 m)

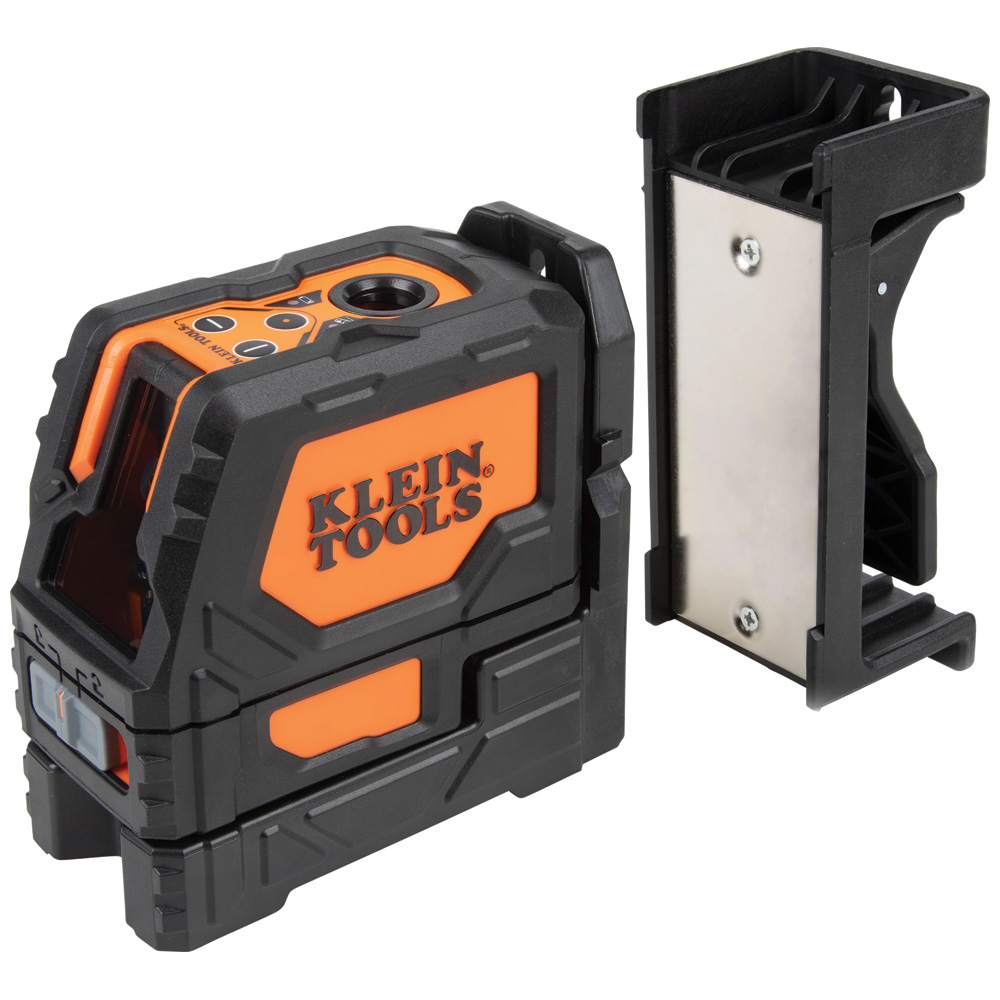

• Mounting Bracket: Integrated magnetic 360-degree

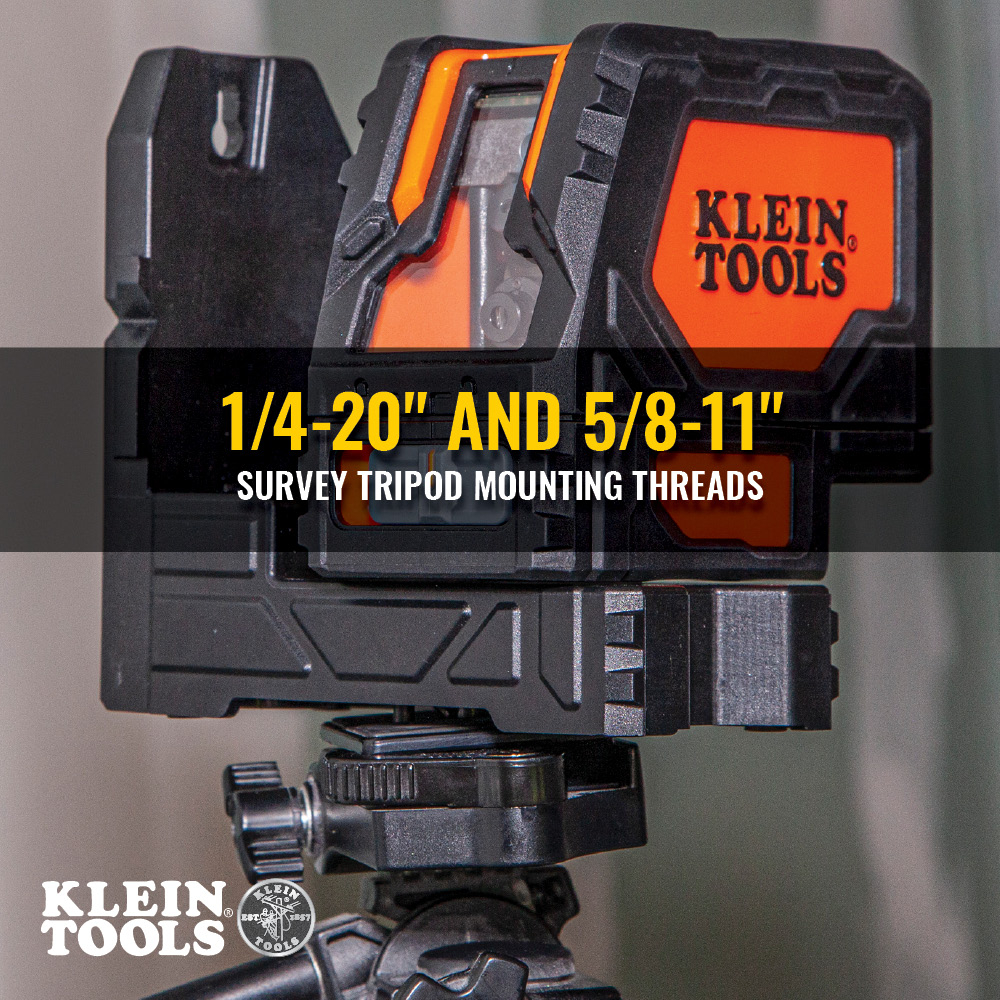

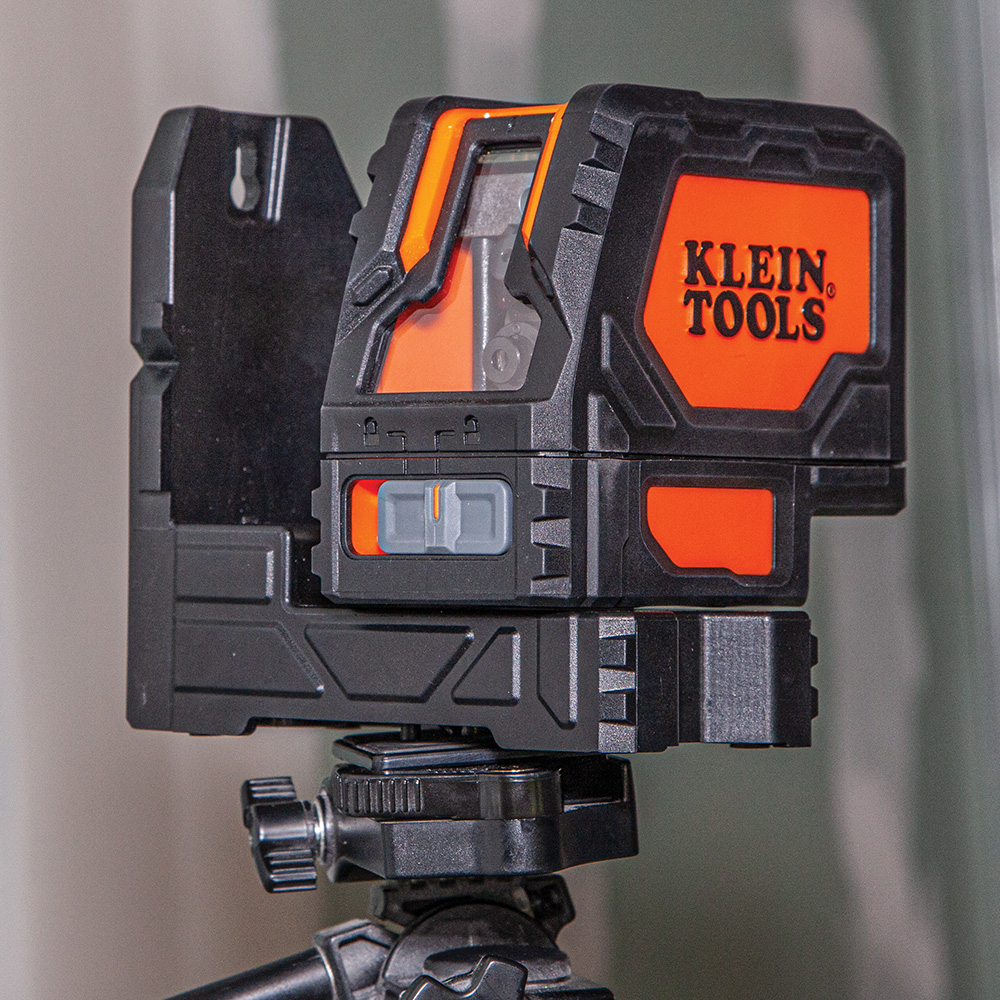

• Tripod Threads: 1/4 in. and 5/8 in.
• Additional Mounting: Clamp-on wall adapter for ceiling grids
• Country of Origin: China
• Laser Class: Class II
• Standard: EN61326-1, EN60825-1, 21 CFR 1040.10/1040.11
