Klein Tools, 69149P, Electrical Test Kit, Multimeter; Non-Contact Voltage Tester; Receptacle Tester; CAT III 600V; CAT IV 1000V; Polymer Body

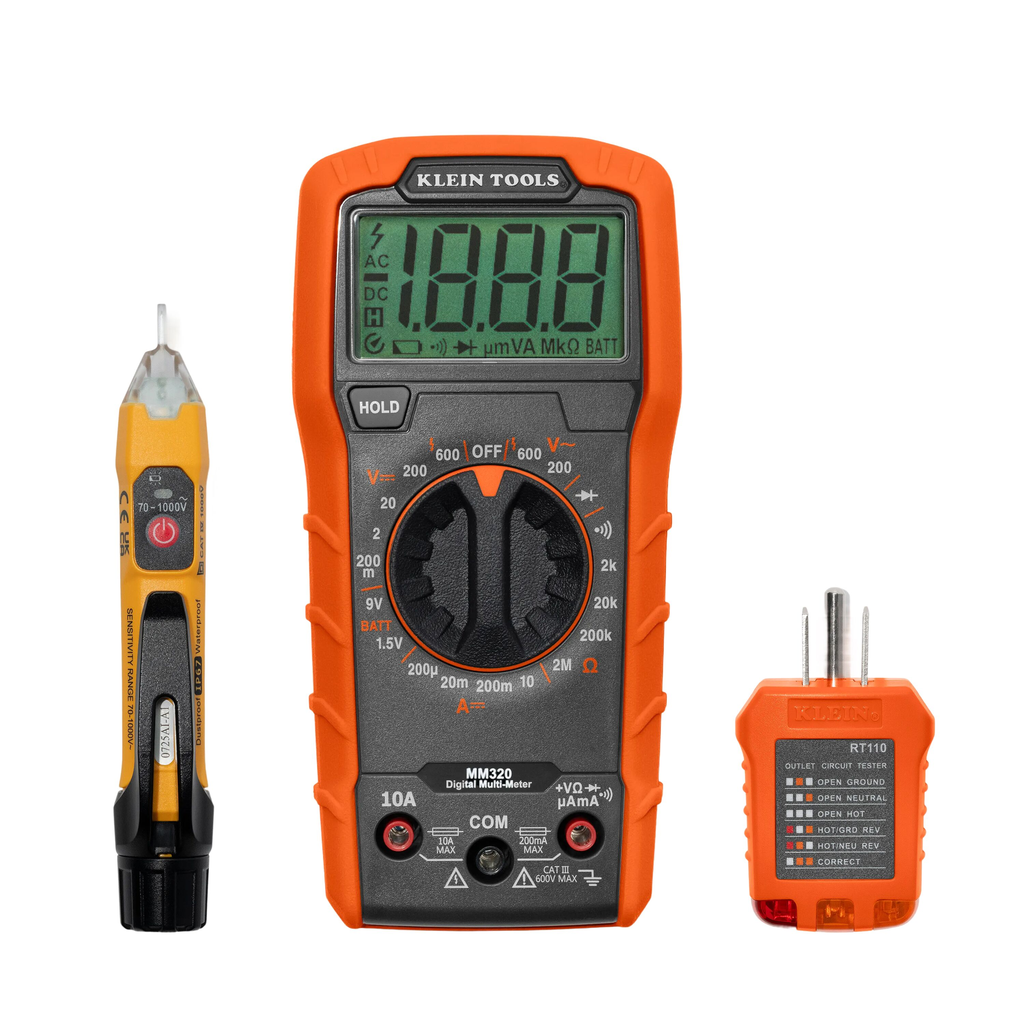

Klein Tools Multimeter Test Kit contains Cat. No. MM320 (Digital Multimeter), Cat. No. NCVT1XT (Non-Contact Voltage Tester) and Cat. No. RT110 (Receptacle Tester). The MM320 measures DC current, AC/DC voltage and resistance. The NCVT1XT automatically detects standard voltage in cables, cords, circuit breakers, lighting fixtures, switches, outlets, and wires. The RT110 detects the most common wiring problems in standard receptacles.

Warnings

• Do not use equipment during electrical storms or in wet weather, and do not use if equipment appears to be damaged.
• Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
• Do not attempt to measure resistance or continuity on live circuits.
• Before each use verify meter operation by measuring a known voltage or current.

Features

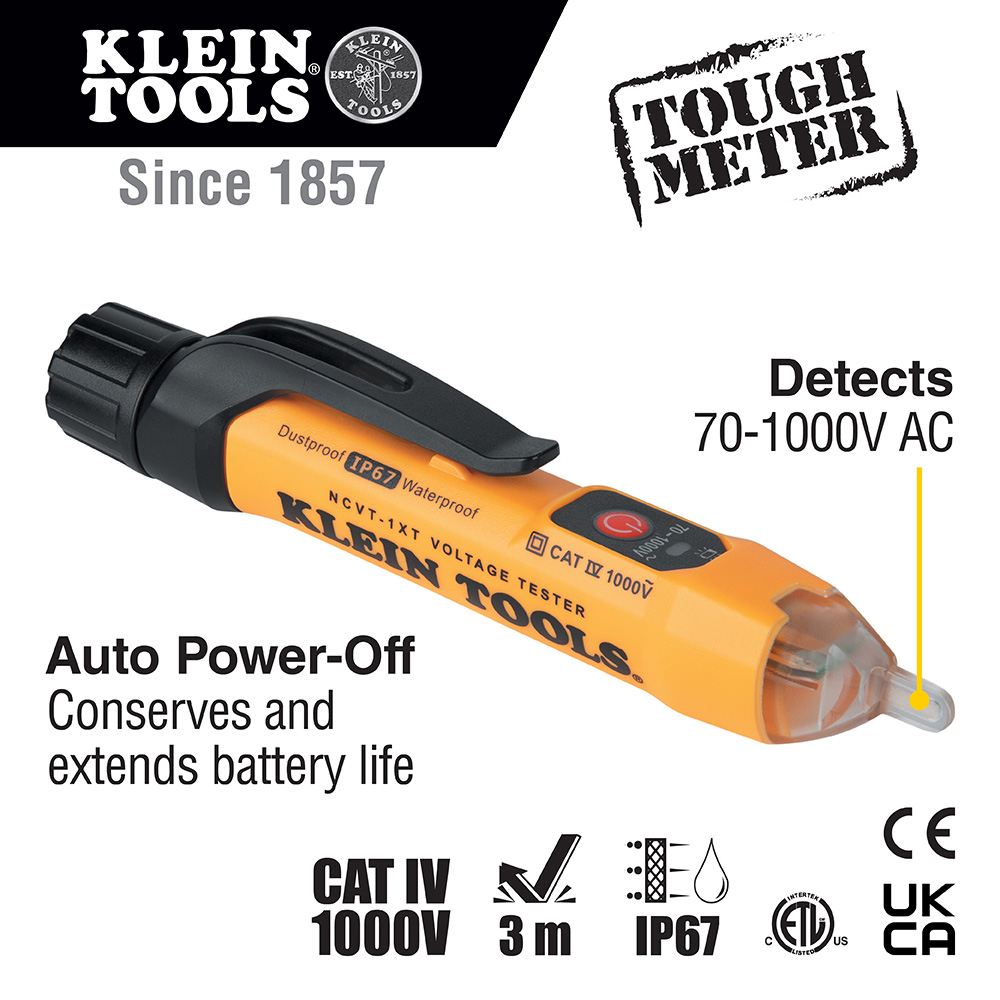

• NCVT1XT has a high intensity, bright red LED that illuminates and an audible tone when voltage is detected from 50 to 1000 VAC power operating range
• Non-Contact Voltage Tester Cat. No. NCVT1XT has a bright green LED to indicate the tester is working; it changes to red and audible tones sound when voltage is detected

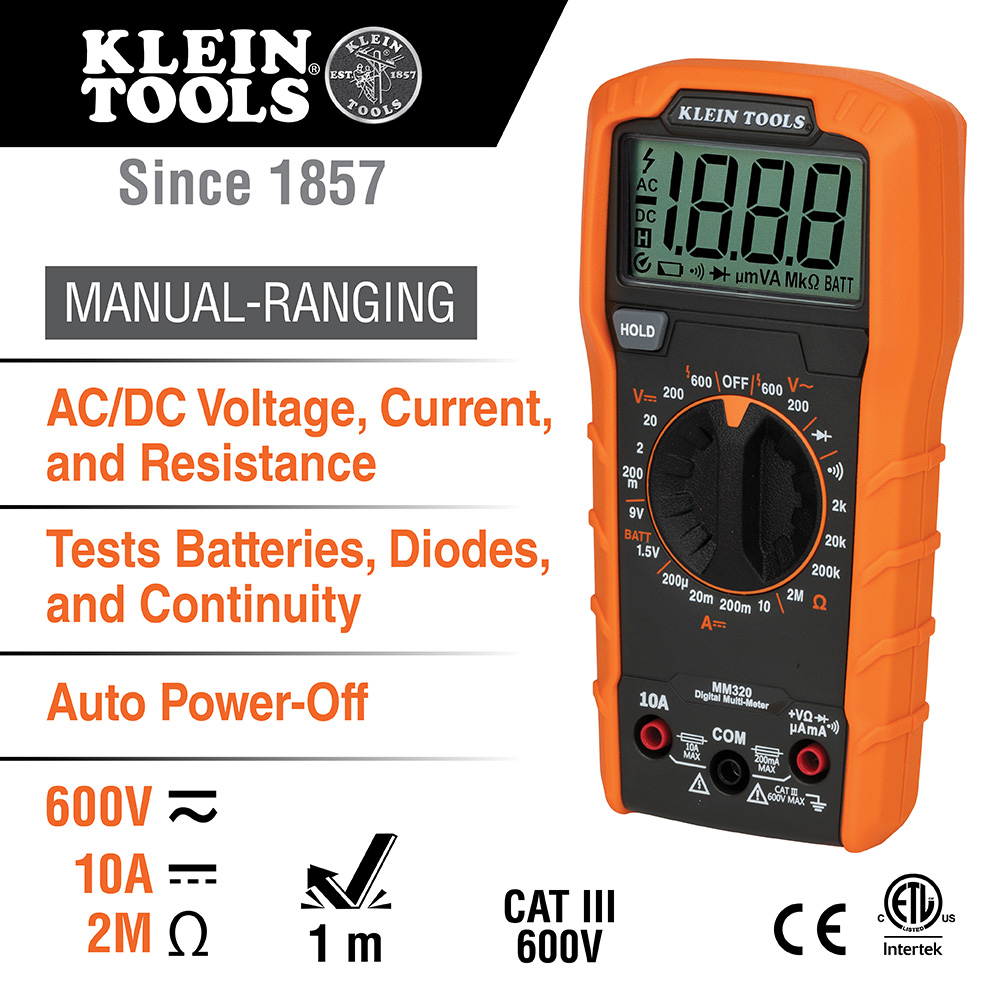

• Multimeter measures up to 600V AC/DC voltage, 10A DC current and 2MOhms resistance
• MM320 multimeter tests continuity with visual and audible continuity indicators
• Test leads included for Cat. No. MM320; batteries included for Cat. Nos. NCVT1XT and MM320

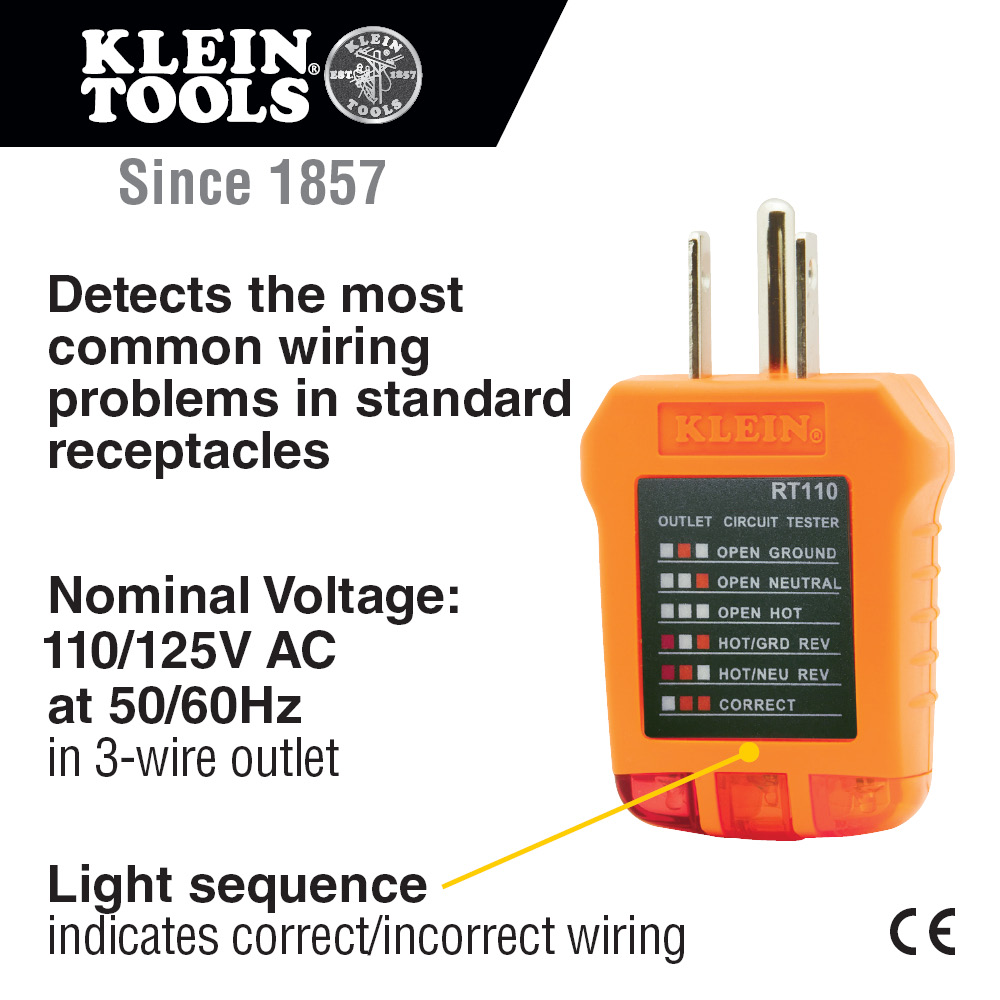

• Receptacle tester Cat. No. RT110 detects wiring configurations and indicates correct wiring, and identifies common wiring faults
• Identifies open ground, open hot, open neutral, hot/ground reversed; it does not indicate quality of ground, multiple hot wires, or a combination of defects
• MM320: Low Battery Indicator; NCVT1XT: Pocket Clip

• Voltage: AC 600V, DC 600V
• DC Current: 10A
• Resistance: 2 Ma9
• Voltage Detection Range: 50 to 1000 VAC
• Drop Protection: 3.3 ft (1 m)
• Overall Length: 6 in. (15.2 cm)
• Height: 6 in.
• Overall Height: 1.78 in. (4.5 cm)
• Overall Width: 3.16 in. (8 cm)
• Width: 0.9 in.
• Depth: 3.5 in.
• Weight: 0.944 lbs
• Material: Polymer Body and Electronic Components
• Standard: MM300: CAT III 600V; NCVT1P: CAT IV 1000V
