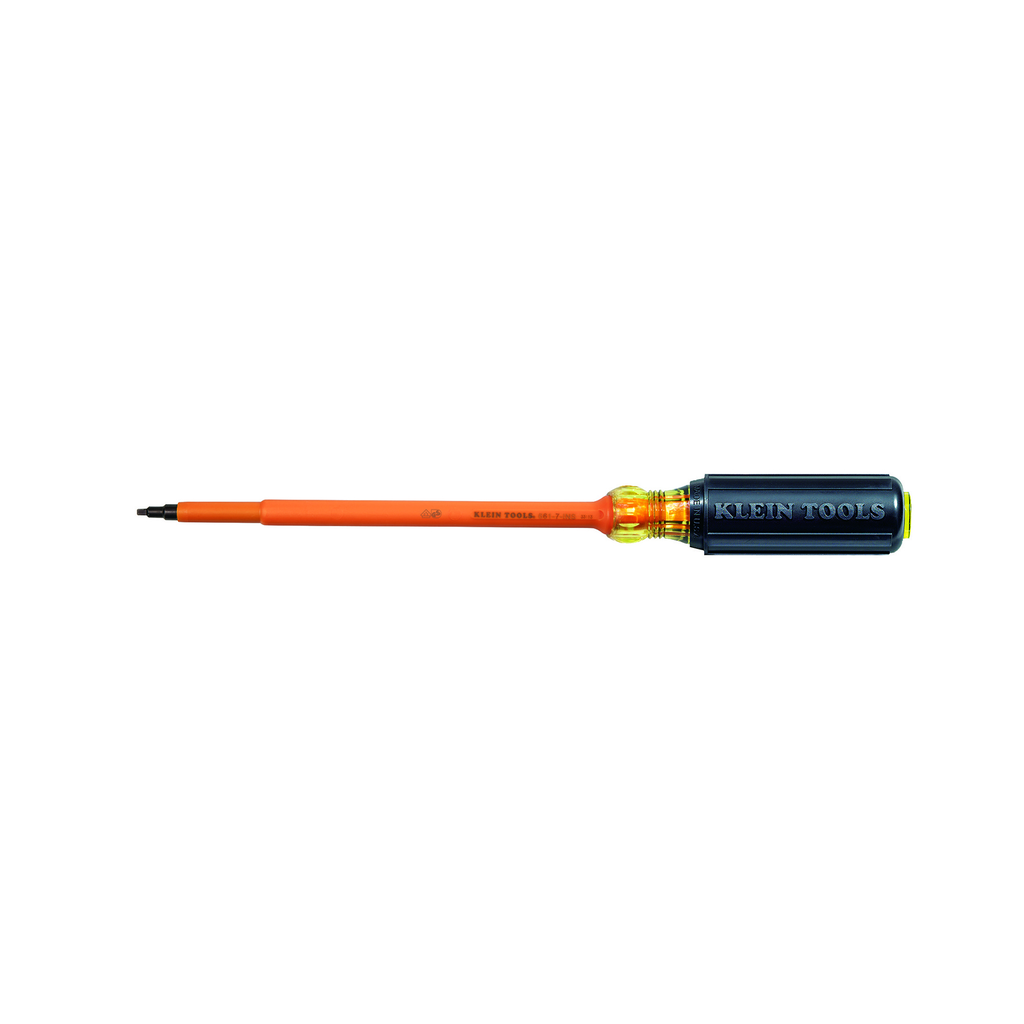

Klein Tools, 661-7-INS, Insulated Screwdriver, #1 Square Recess Tip; 7-Inch Shank; IEC 60900, ASTM F1505, 1000V Rated

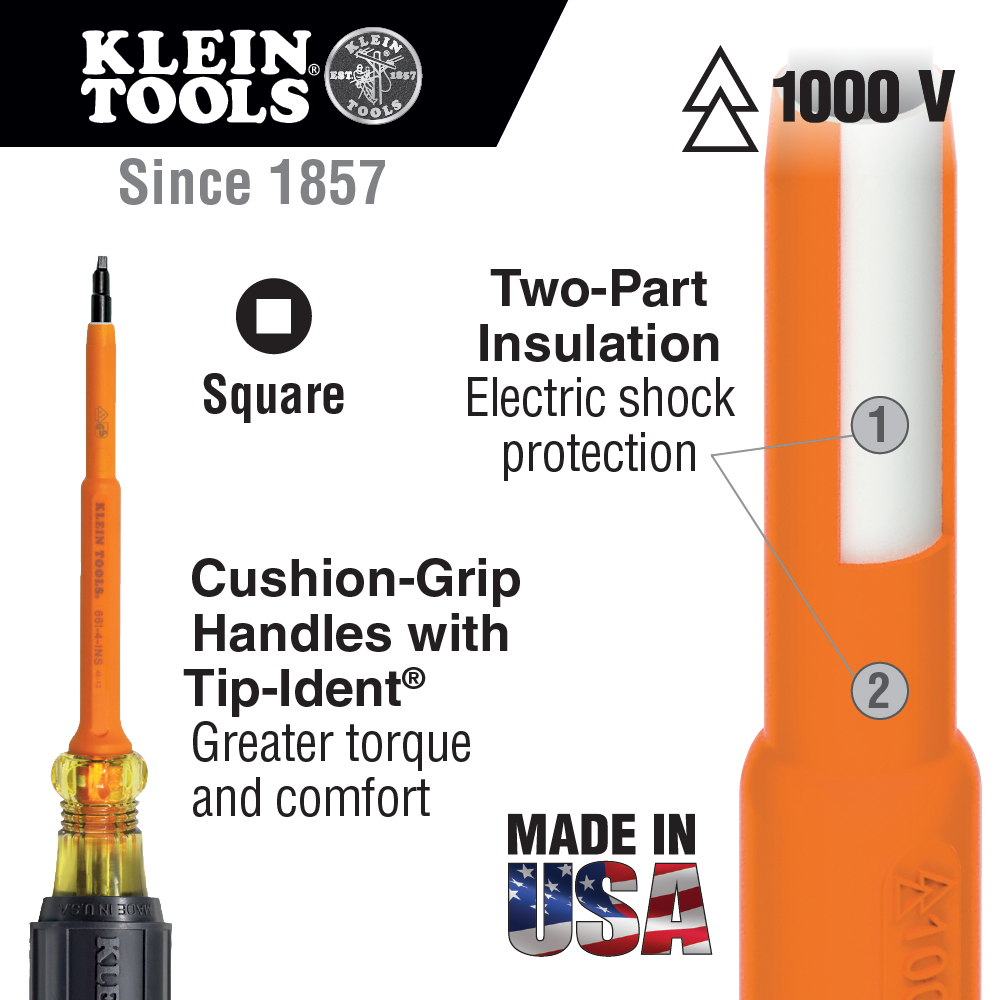

Klein insulated tools combine excellent functionality along with reduction of risk of injury where a tool might make contact with an energized source with voltage up to 1000 volts. Two layers of insulation provide protection against electric shock. Clearly marked with the official 1000-volt rating symbol.

Features

• Durable two-layer, molded insulation to meet or exceed all ASTM and IEC standards for insulated tools
• Made in USA
• Round shank with square-recess tip
• Screwdriver is 1000V Rated for safety
• Flame Retardant and Impact Resistant Handle
• Cushion-Grip™ handle for greater torque and comfort
• Overall length: 11-5/16-Inch

Warnings

• Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
• Wear approved eye protection.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
• Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
• Do NOT use to pry or chisel.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.

• Voltage Rating: 1000V
• Insulated: Yes
• Tip Type: Square
• Tip Size: #1
• Shank Length: 7 in (17.8 cm)
• Overall Length: 11.313 in (28.7 cm)
• Weight: 0.2 lbs (3.2 oz)
• Shank Type: Round
• Material: Induction Hardened Steel
• Handle Material: High-Dielectric Plastic
• Handle Color: Black
• Color Code: Green
• Standard: IEC 60900, ASTM F1505
• Magnetic: No
• Country of Origin: United States
