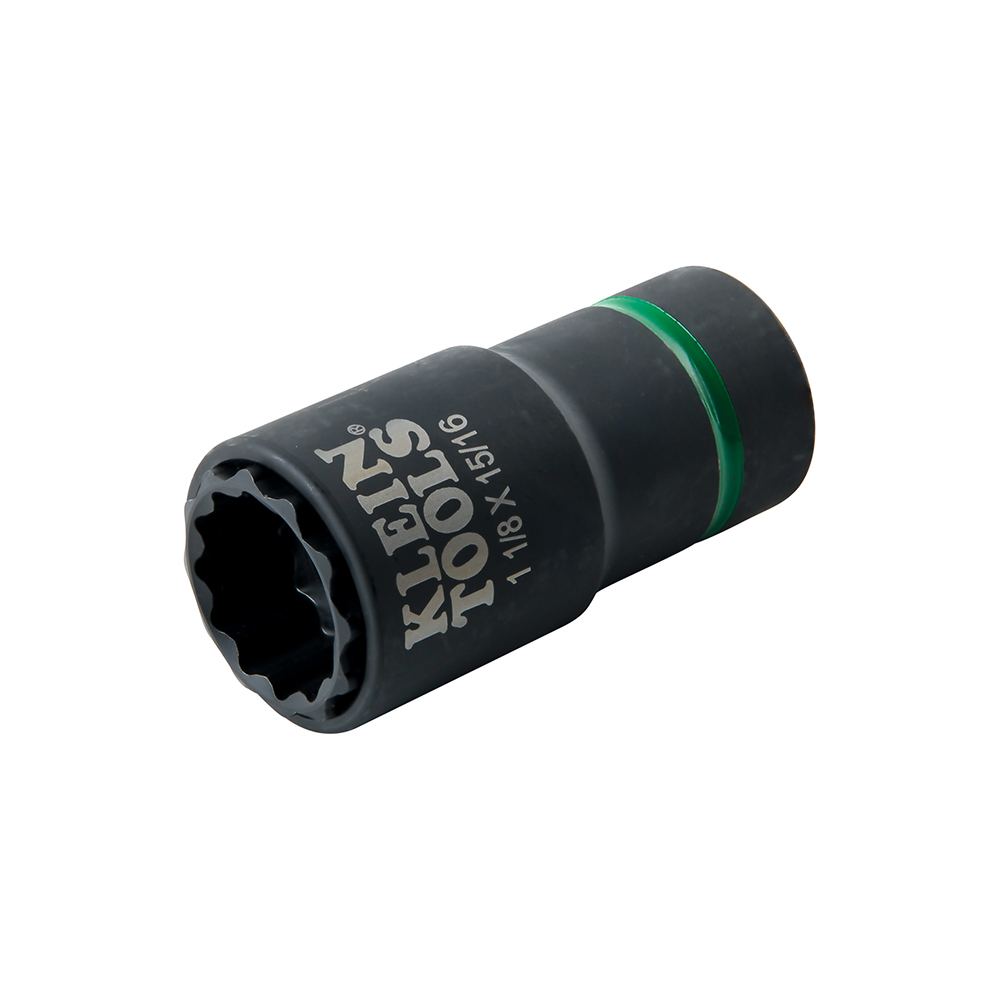

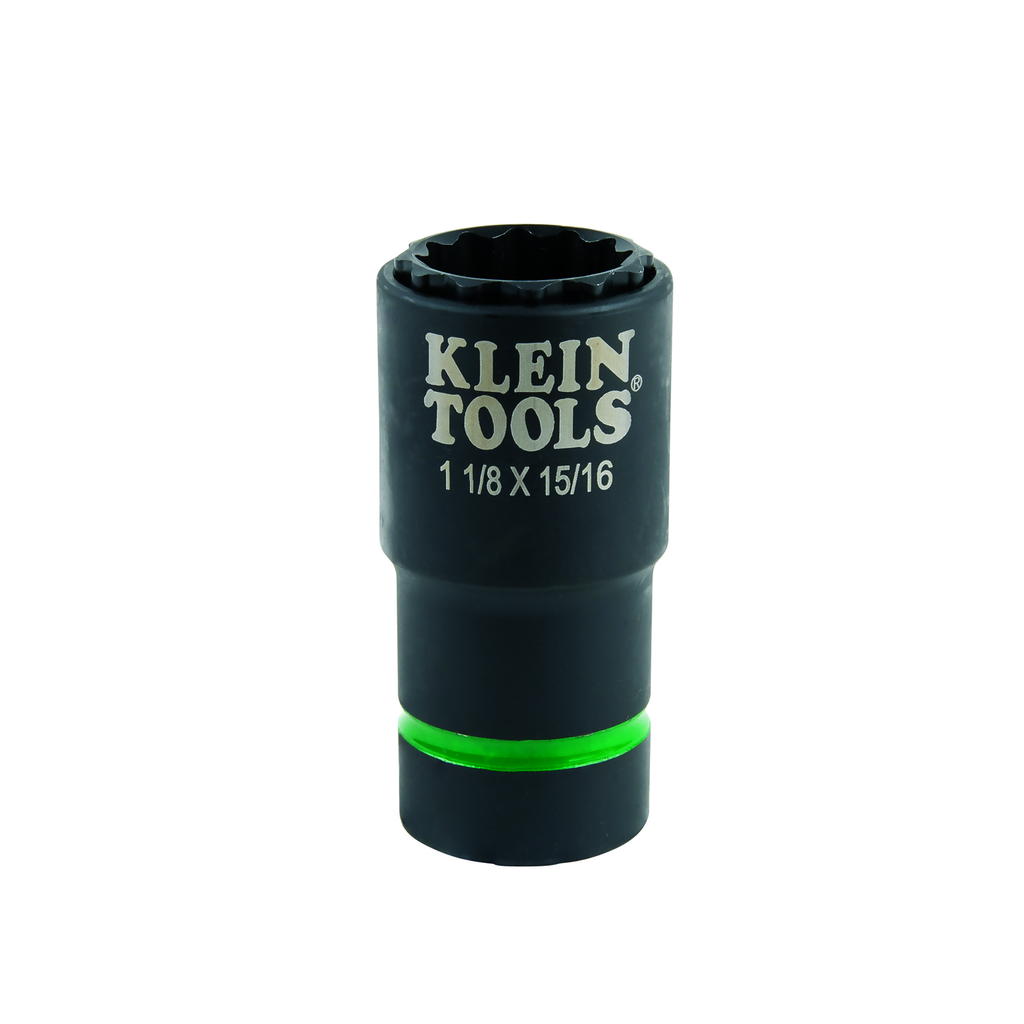

Klein Tools, 66016, Impact Socket, 1/2 in Drive; 1-1/8 in & 15/16 in; 12-Point, 4140 Steel

Single-ended impact socket with hands-free adjustment between 1-1/8-Inch and 15/16-Inch hex sizes. Deep socket with a 1/2-Inch drive is great for general electrical and construction work. The high-torque, 12-Point design is easier to position and works with square fasteners.

Features

• Two coaxial spring-loaded 1-1/8-Inch and 15/16-Inch hex socket sizes in one tool
• Socket is color coded to quickly identify size
• Hands-Free Adjustment
• Single-ended impact socket with hands-free adjustment between socket sizes
• High-torque, 12-Point design is easier to position and works with square fasteners
• Engineered for use with impact drivers including Klein's 1/2-Inch Compact Impact Wrench (Cat. Nos. BAT20CW and BAT20CW1)
• Deep socket with a 1/2-Inch drive works great for hardware installation and removal
• Cross hole design to prevent unintentional separation of adapter and socket

Warnings

• Always wear approved eye protection.

• Socket Size: 1-1/8 in., 15/16 in.
• Drive Size: 1/2 in.
• Number of Points: 12
• Type: Impact Rated
• Material: 4140 Steel
• Overall Length: 3.1 in. (7.9 cm)
• Depth: 3.1 in.
• Overall Width: 1.5 in. (3.81 cm)
• Overall Height: 1.5 in. (3.81 cm)
• Width: 0.87 in.
• Height: 0.87 in.
• Weight: 0.3 lbs
• Standard: ASME B107.2

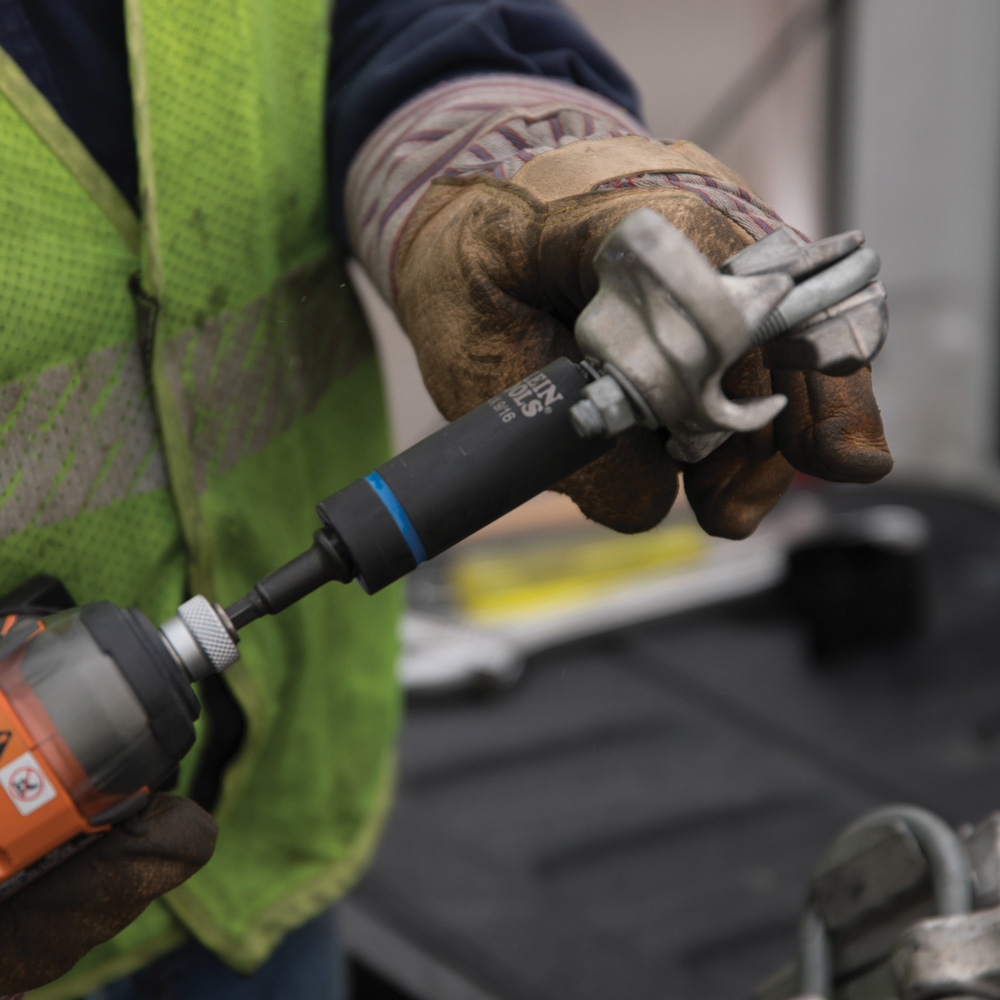

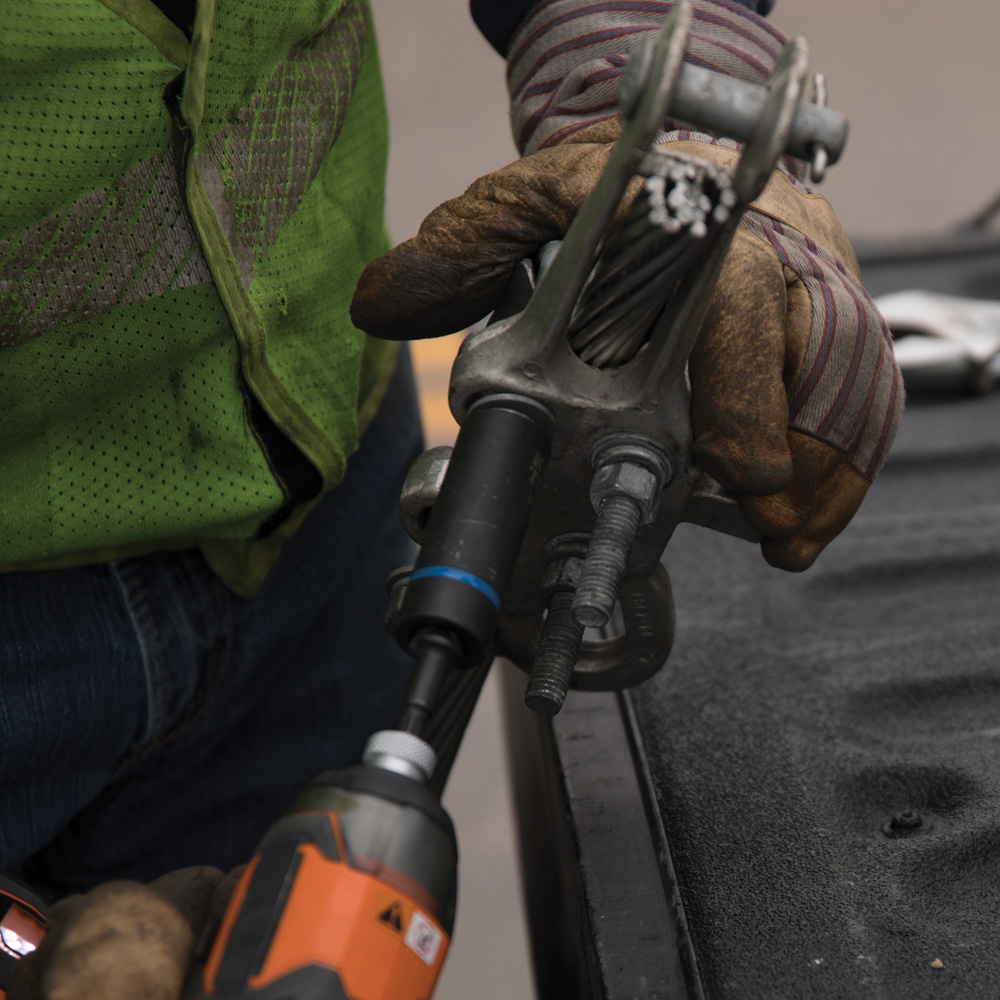

• Application: Pole Hardware Installation and Removal
