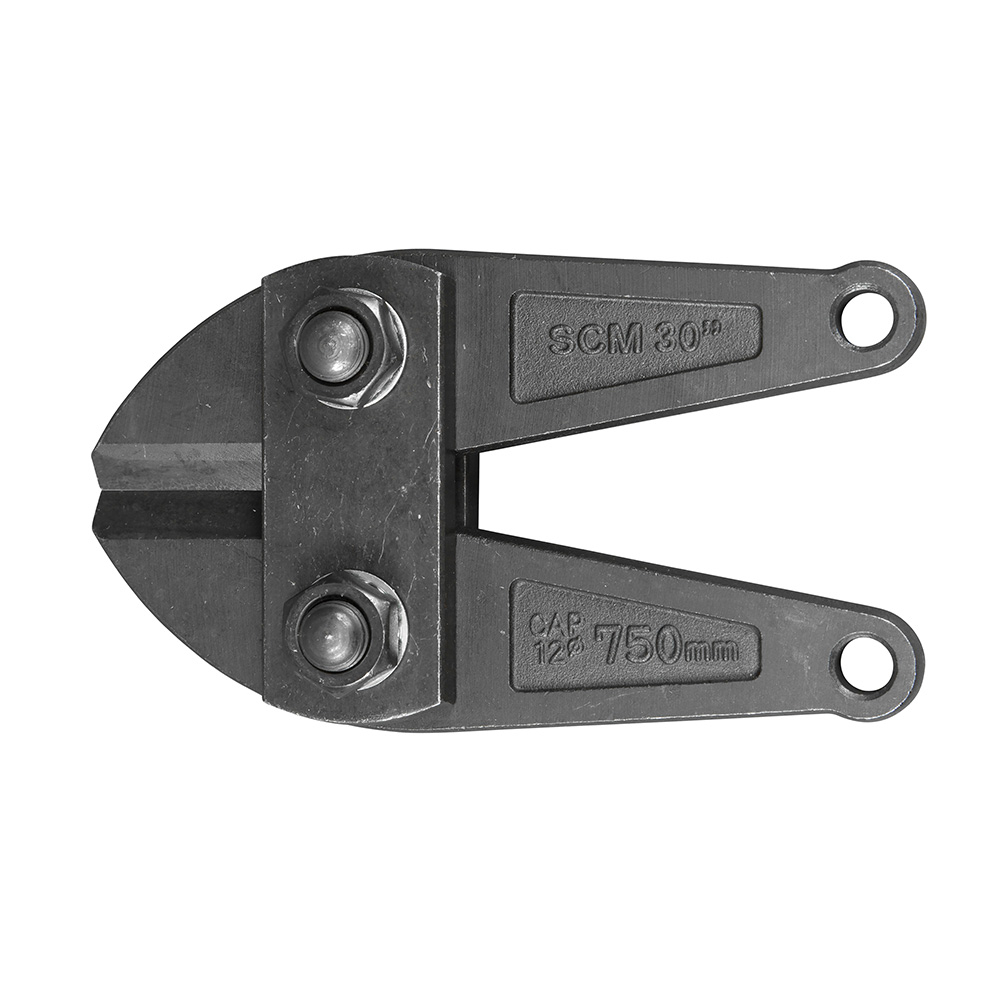

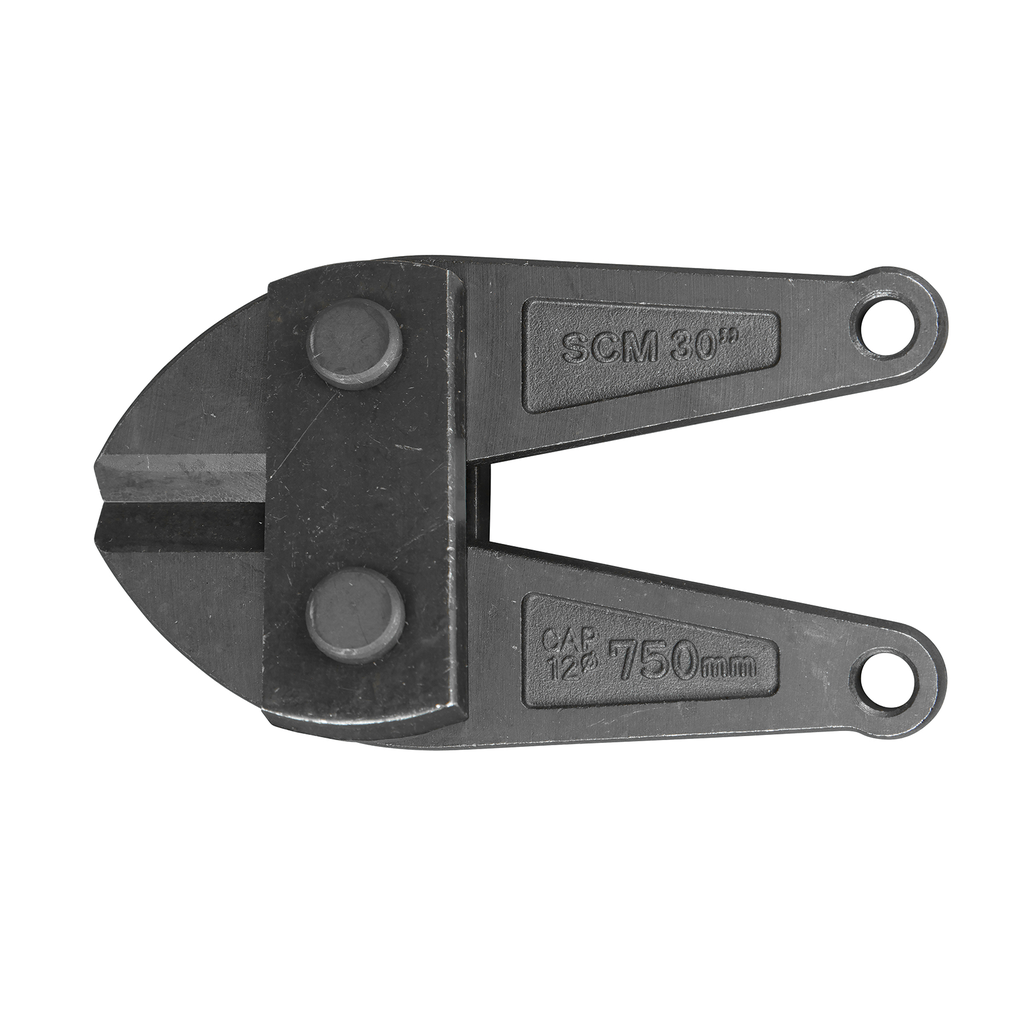

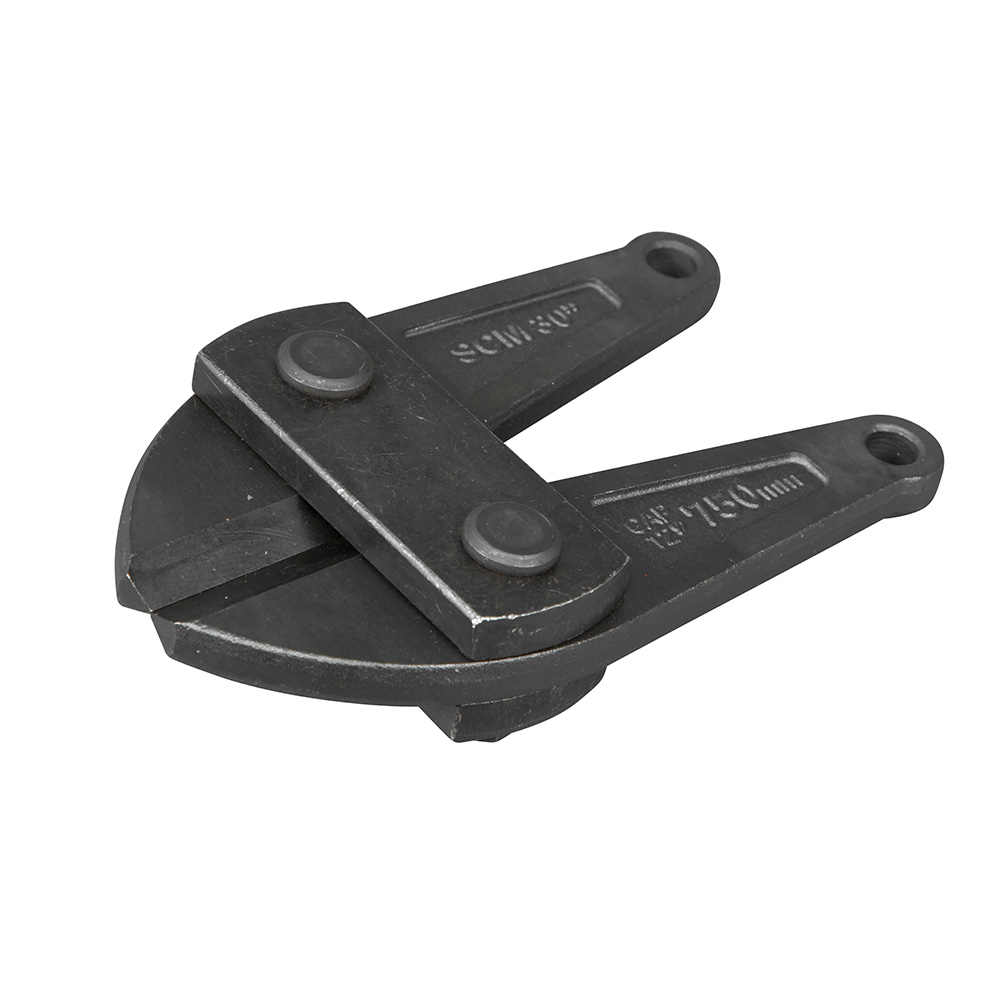

Klein Tools, 63930, Replacement Head, Steel, Soft & Medium Capacity 1/2 in, Hard Capacity 3/8 in, For 30-1/2 in Bolt Cutter

This replacement head for Klein's 30-Inch Fiberglass-Handled Bolt Cutter (Cat. No. 63130) includes the blade, bolts, screws and associated parts. The forged, alloy tool steel jaws are precision ground for sure, efficient cutting and long life. The cutting capacity for soft/medium materials is up to Brinell 300, Rockwell C31 and up to Brinell 400, Rockwell C42 for hard materials. One adjustment realigns cutting edges. NOT designed for cutting cable.

Warnings

• NOT insulated. Will NOT protect against electrical shock.
• NOT for cutting cable.
• Always wear approved eye protection.

Features

• Soft and medium material cutting capacity of up to Brinell 300, Rockwell C31
• Replacement head for the 30-1/2 inch Fiberglass-Handled Bolt Cutter (Cat. No. 63130)

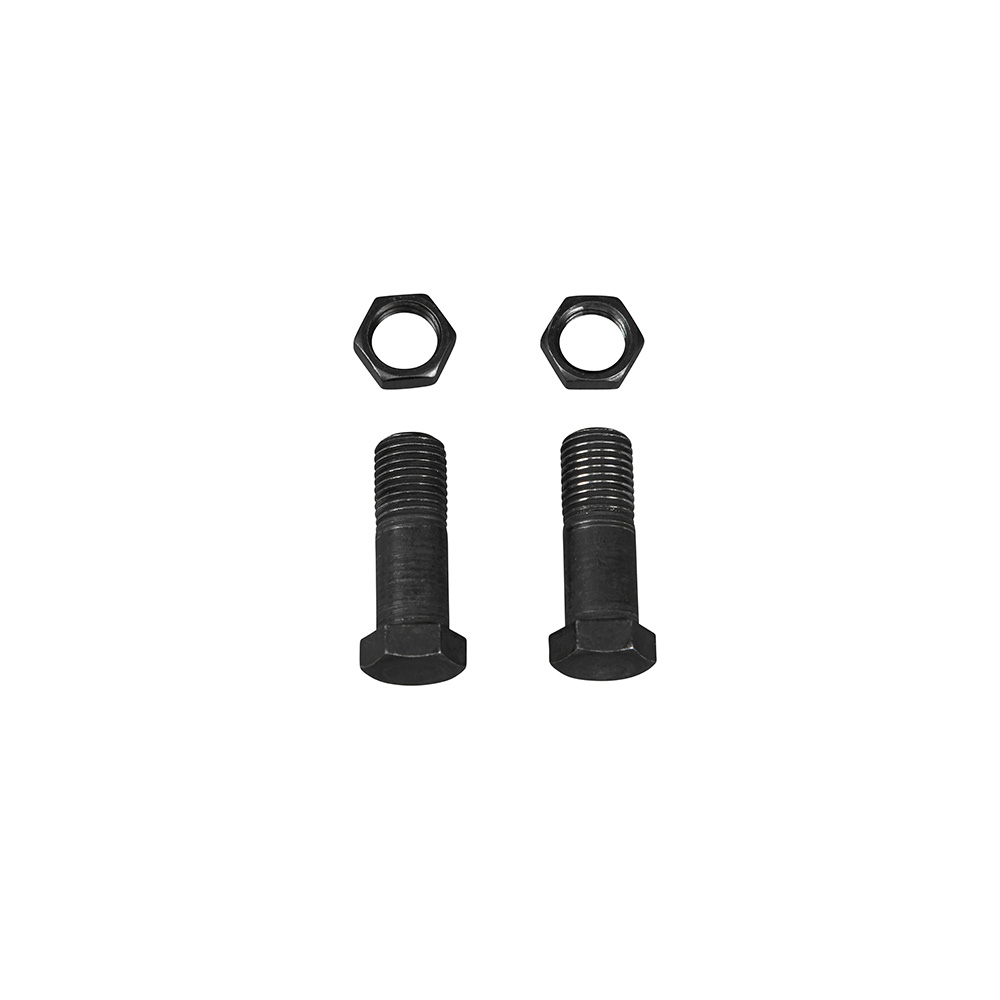

• Includes the Blade, Bolts, Screws and Associated Parts
• Includes the blade, bolts, screws and associated parts
• NOT for cutting cable
• All-purpose, center-cut jaws for soft, medium, and hard metals
• Hard material cutting capacity of up to Brinell 400, Rockwell C42
• Forged, alloy tool steel jaws are precision ground for sure, efficient cutting and long life

• Soft & Medium Cutting Max Capacity: 1/2 in. (1.3 cm)
• Hard Material Cutting Max Capacity: 3/8 in. (1 cm)
• Overall Width: 2 in. (5.1 cm)
• Depth: 3.75 in.
• Overall Height: 6.75 in. (17.2 cm)
• Overall Length: 3.75 in. (9.5 cm)
• Weight: 3.25 lbs
• Material: Steel, Forged alloy tool steel
• Cutting Edge: Pinch Cut
• Type: Replacement Head
• For Use With: 30-1/2 in. Fiberglass-Handled Bolt Cutter (Cat. No. 63130)
• Jaw Material: Steel
• Application: Replacement Head for Cat. No. 63130 Bolt Cutter
• Country of Origin: Taiwan
