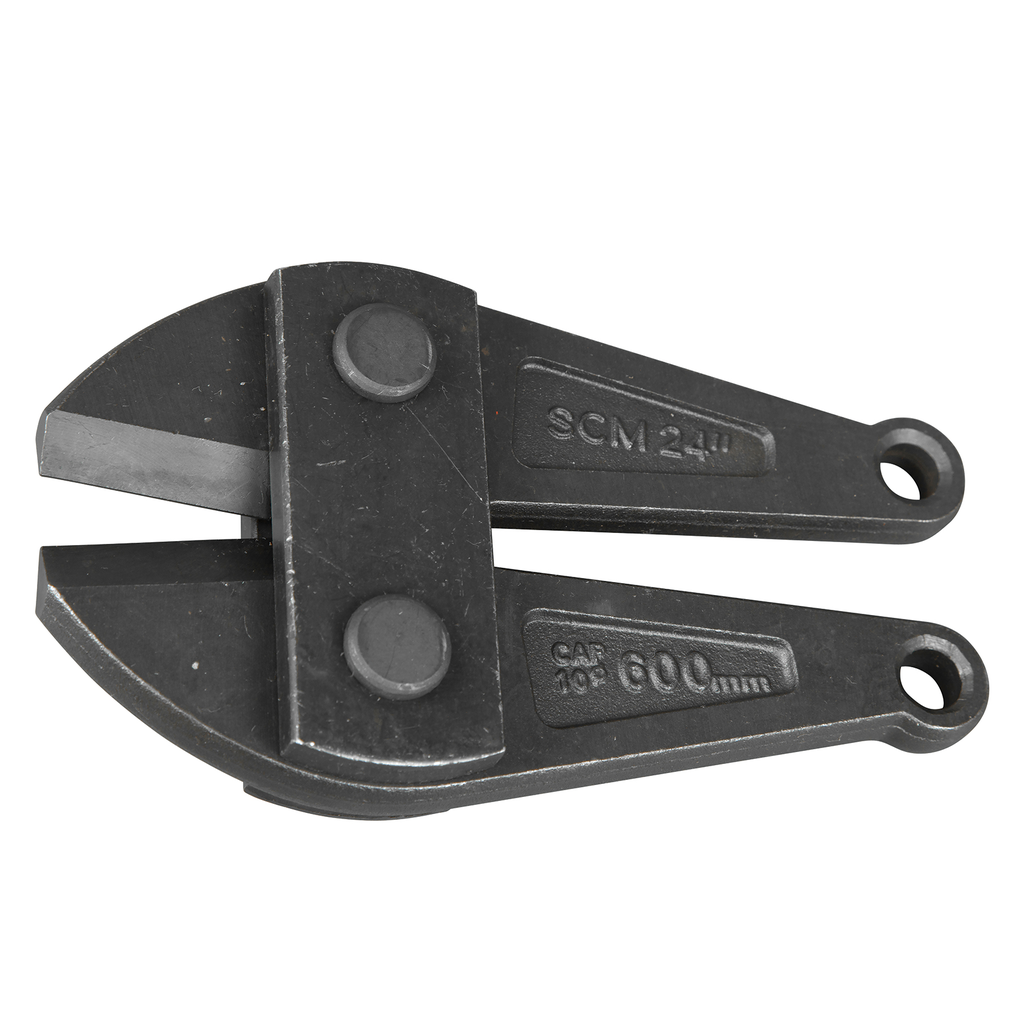

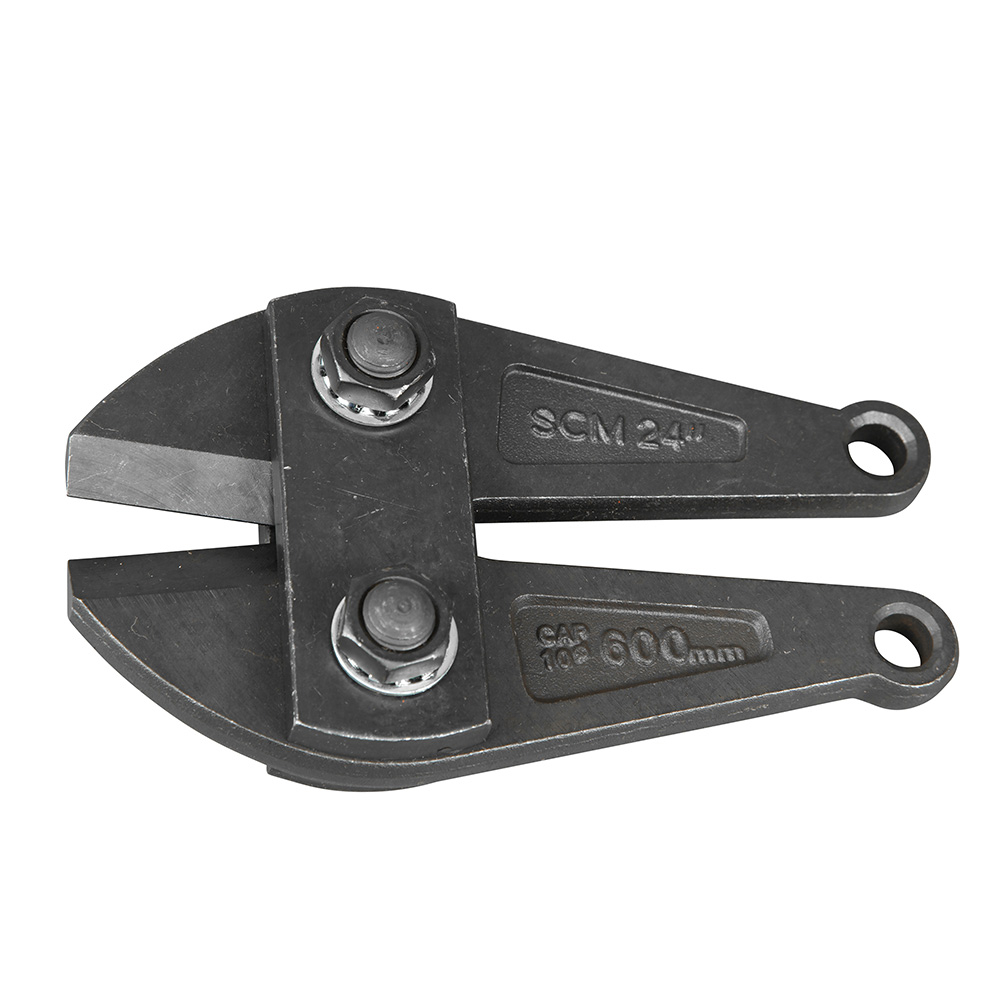

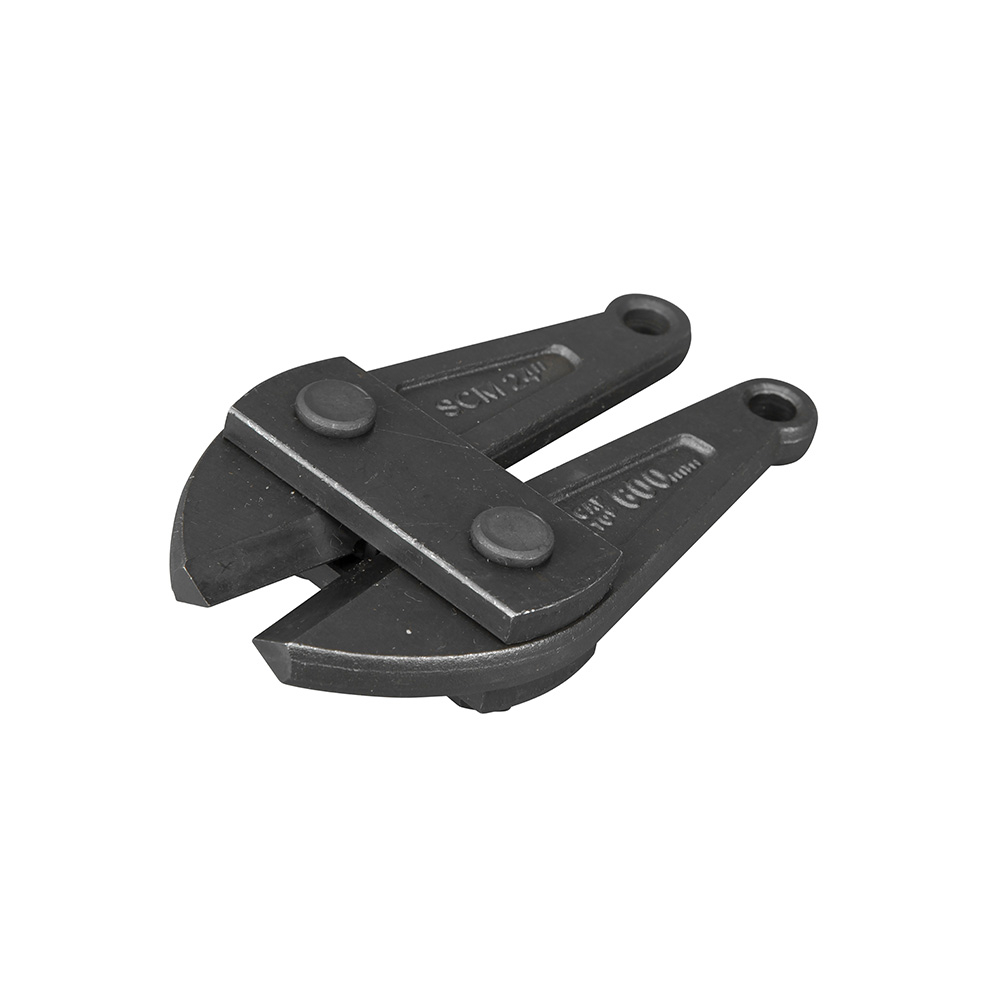

Klein Tools, 63924, Replacement Bolt Cutter Head, Steel, 7/16 in Soft/Medium Capacity, 5/16 in Hard Capacity

This replacement head for Klein's 24-1/2-Inch Fiberglass-Handled Bolt Cutter (Cat. No. 63124) includes the blade, bolts, screws and associated parts. The forged, alloy tool steel jaws are precision ground for sure, efficient cutting and long life. The cutting capacity for soft/medium materials is up to Brinell 300, Rockwell C31 and up to Brinell 400, Rockwell C42 for hard materials. One adjustment realigns cutting edges. NOT designed for cutting cable.

Features

• Forged, alloy tool steel jaws are precision ground for sure, efficient cutting and long life

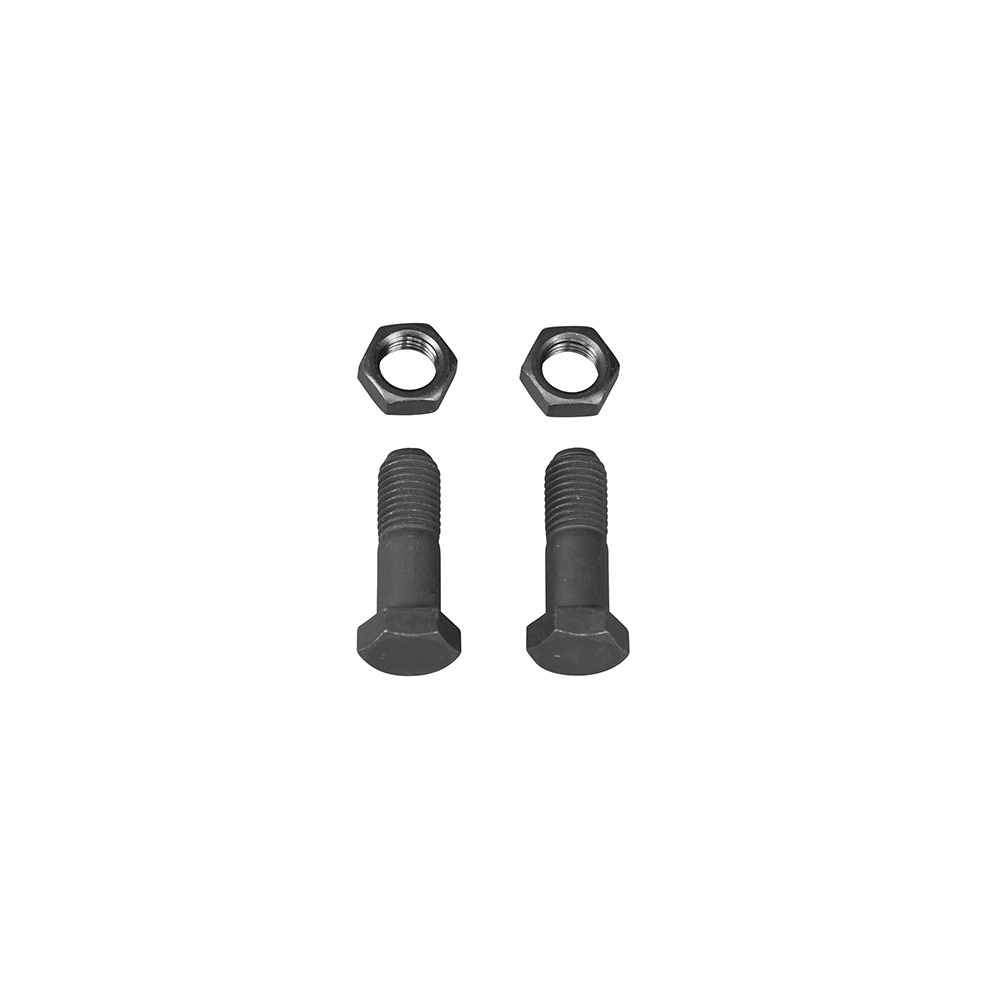

• Includes the blade, bolts, screws and associated parts
• All-purpose, center-cut jaws for soft, medium, and hard metals
• Soft and medium material cutting capacity of up to Brinell 300, Rockwell C31
• NOT for cutting cable
• Includes the Blade, Bolts, Screws and Associated Parts
• Hard material cutting capacity of up to Brinell 400, Rockwell C42
• Replacement head for the 24-1/2-Inch Fiberglass-Handled Bolt Cutter (Cat. No. 63124)

Warnings

• NOT for cutting cable.
• NOT insulated. Will NOT protect against electrical shock.
• Always wear approved eye protection.

• Application: Replacement Head for Cat. No. 63124 Bolt Cutter
• For Use With: 24-1/2 in Fiberglass-Handled Bolt Cutter (Cat. No. 63124)
• Overall Length: 3.25 in (8.3 cm)
• Overall Height: 6 in (15.2 cm)
• Overall Width: 1.75 in (4.5 cm)
• Width: 1.75 in
• Depth: 3.25 in
• Weight: 2.19 lbs
• Jaw Material: Steel
• Material: Steel
• Cutting Edge: Pinch Cut
• Hard Material Cutting Max Capacity: 5/16 in (8 mm)
• Soft & Medium Cutting Max Capacity: 7/16 in (11 mm)
• Country of Origin: Taiwan
