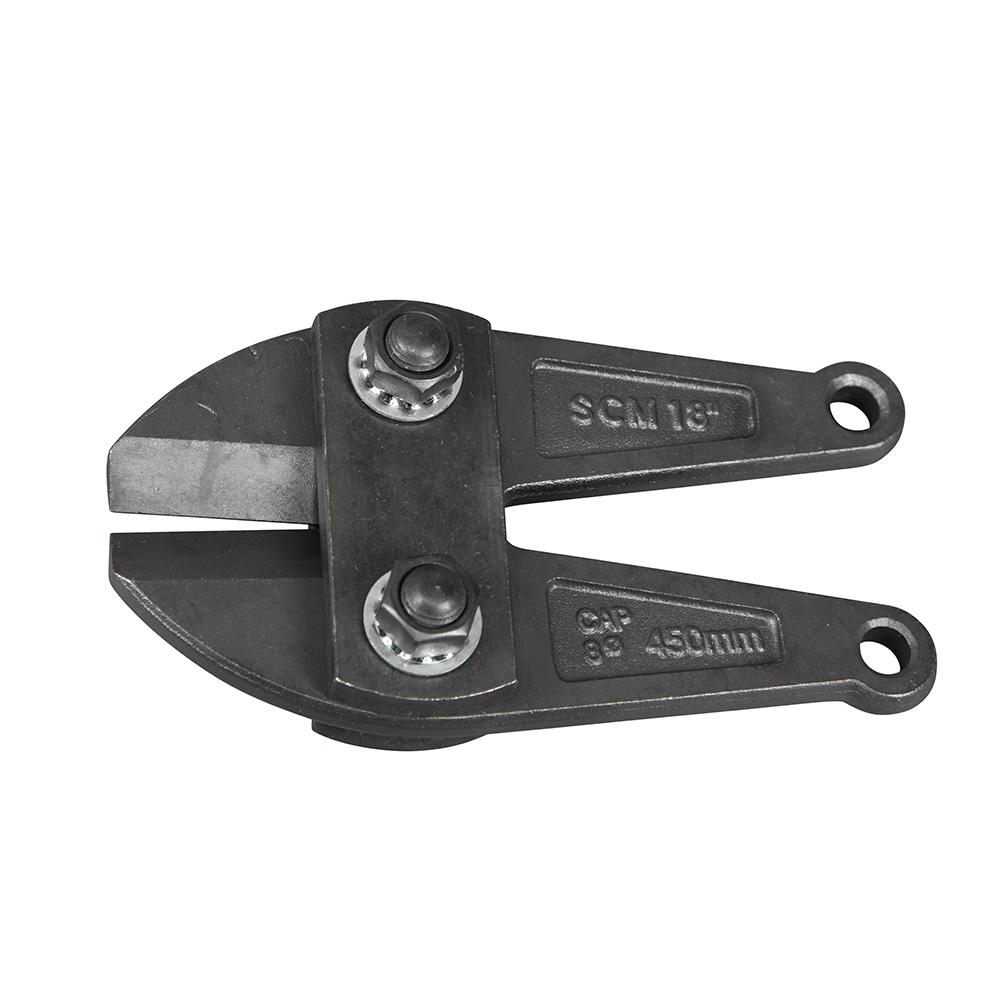

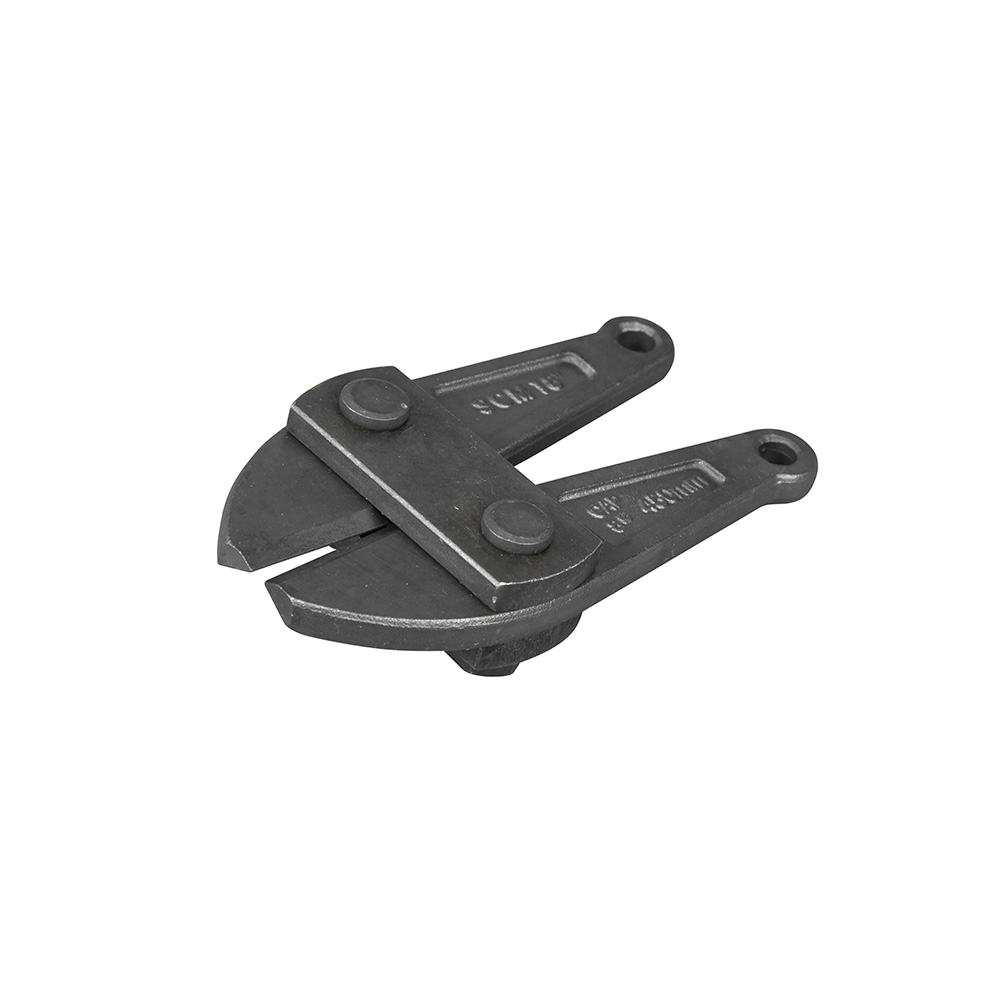

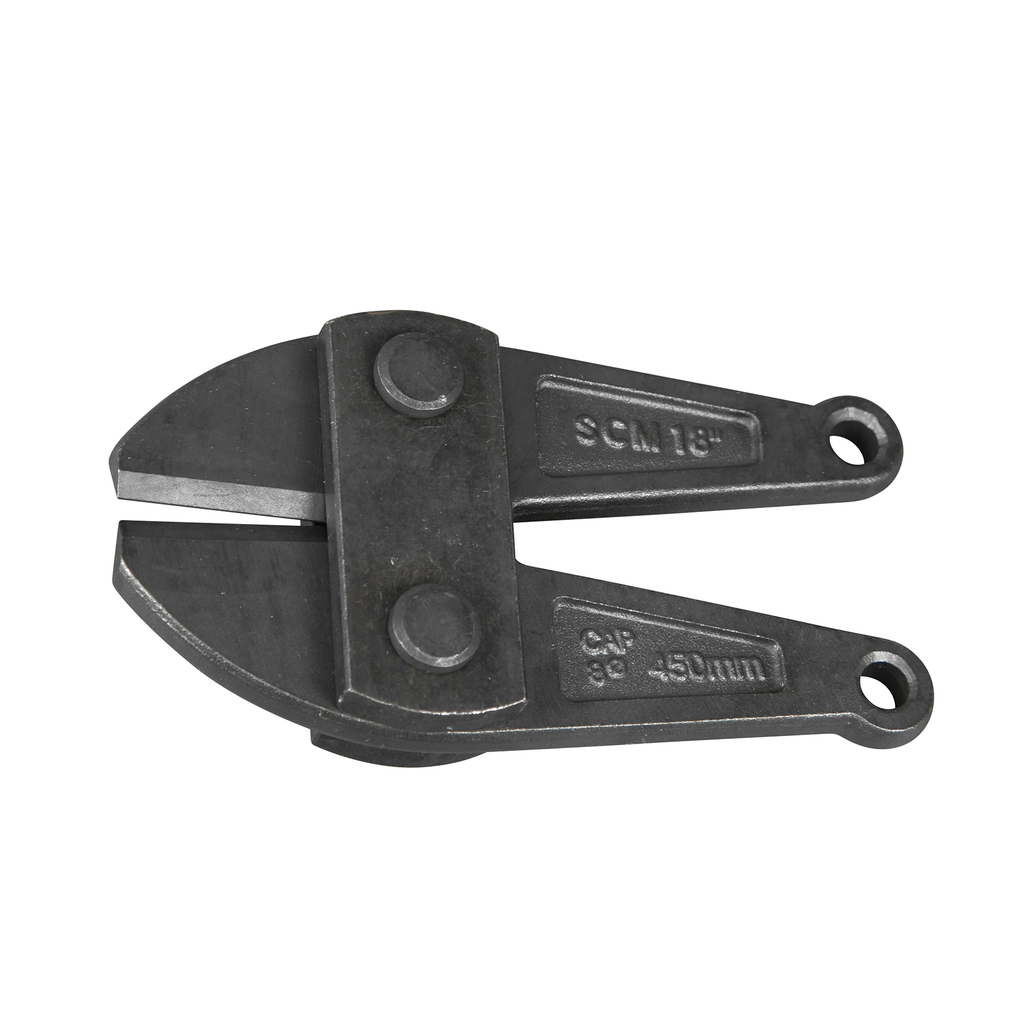

Klein Tools, 63918, Replacement Bolt Cutter Head, For 18-1/4 in Bolt Cutter (Cat. No. 63118), Steel, Hard Material Cutting Max Capacity 1/4 in, Soft & Medium Cutting Max Capacity 3/8 in

This replacement head for Klein's 18-1/4-Inch Bolt Cutter (Cat. No. 63118) includes the blade, bolts, screws and associated parts. The forged, alloy tool steel jaws are precision ground for sure, efficient cutting and long life. All-purpose, center-cut jaws for soft, medium and hard metals. The cutting capacity for soft/medium materials is up to Brinell 300, Rockwell C31 and up to Brinell 400, Rockwell C42 for hard materials. One adjustment realigns cutting edges. NOT designed for cutting cable.

Features

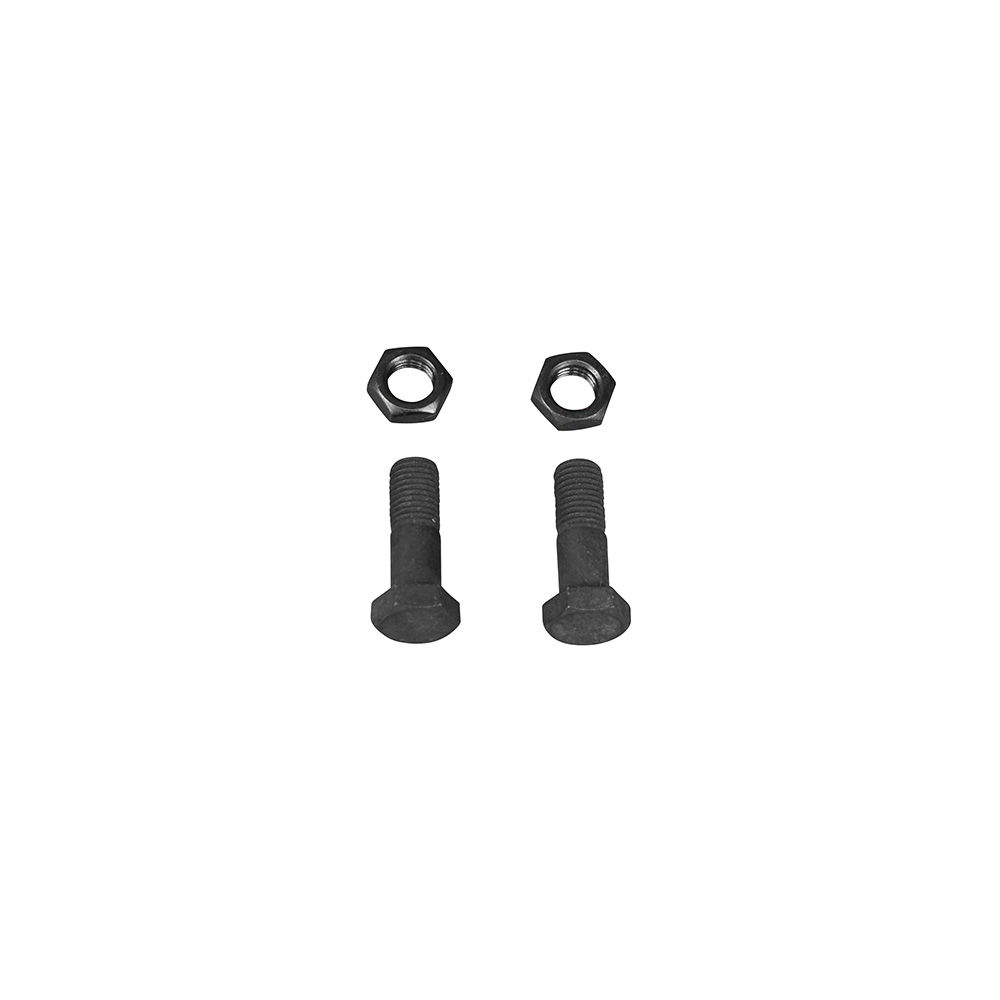

• Includes the blade, bolts, screws and associated parts
• Forged, alloy tool steel jaws are precision ground for sure, efficient cutting and long life
• All-purpose, center-cut jaws for soft, medium, and hard metals
• Includes the Blade, Bolts, Screws and Associated Parts
• Replacement head for the 18-1/4-Inch Fiberglass-Handled Bolt Cutter (Cat. No. 63118)
• Hard material cutting capacity of up to Brinell 400, Rockwell C42
• Soft and medium material cutting capacity of up to Brinell 300, Rockwell C31

Warnings

• NOT for cutting cable
• NOT insulated. Will NOT protect against electrical shock.
• Always wear approved eye protection.

• For Use With: 18-1/4 in Fiberglass-Handled Bolt Cutter (Cat. No. 63118)
• Soft & Medium Cutting Max Capacity: 3/8 in (1 cm), Up to Brinell 300, Rockwell C31
• Hard Material Cutting Max Capacity: 1/4 in (0.6 cm), Up to Brinell 400, Rockwell C42
• Cutting Edge: Pinch Cut
• Jaw Style: Center-Cut
• Material: Steel, Alloy Tool Steel
• Overall Height: 5 in (12.7 cm)
• Depth: 2.75 in
• Width: 1.5 in
• Overall Length: 2.25 in (5.7 cm)
• Weight: 1.31 lbs
• Electrical Protection: Not insulated, no shock protection
• Country of Origin: Taiwan
