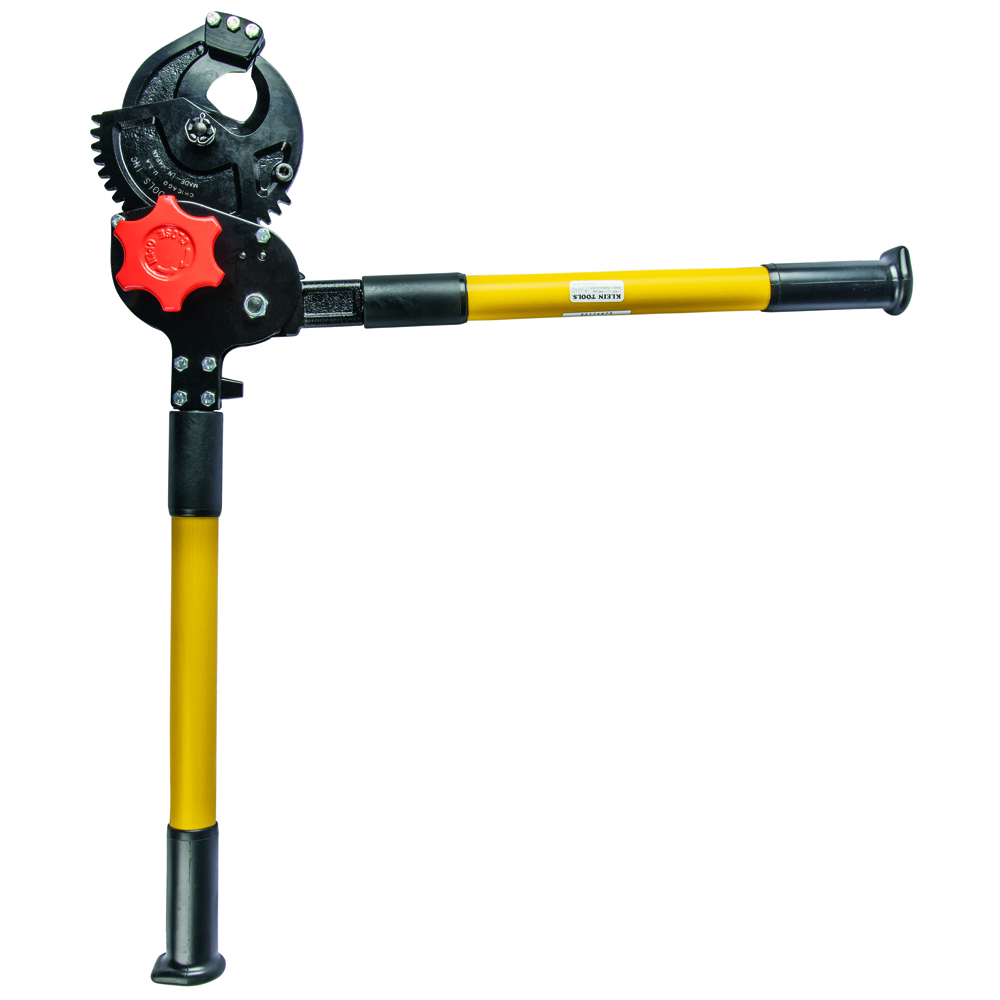

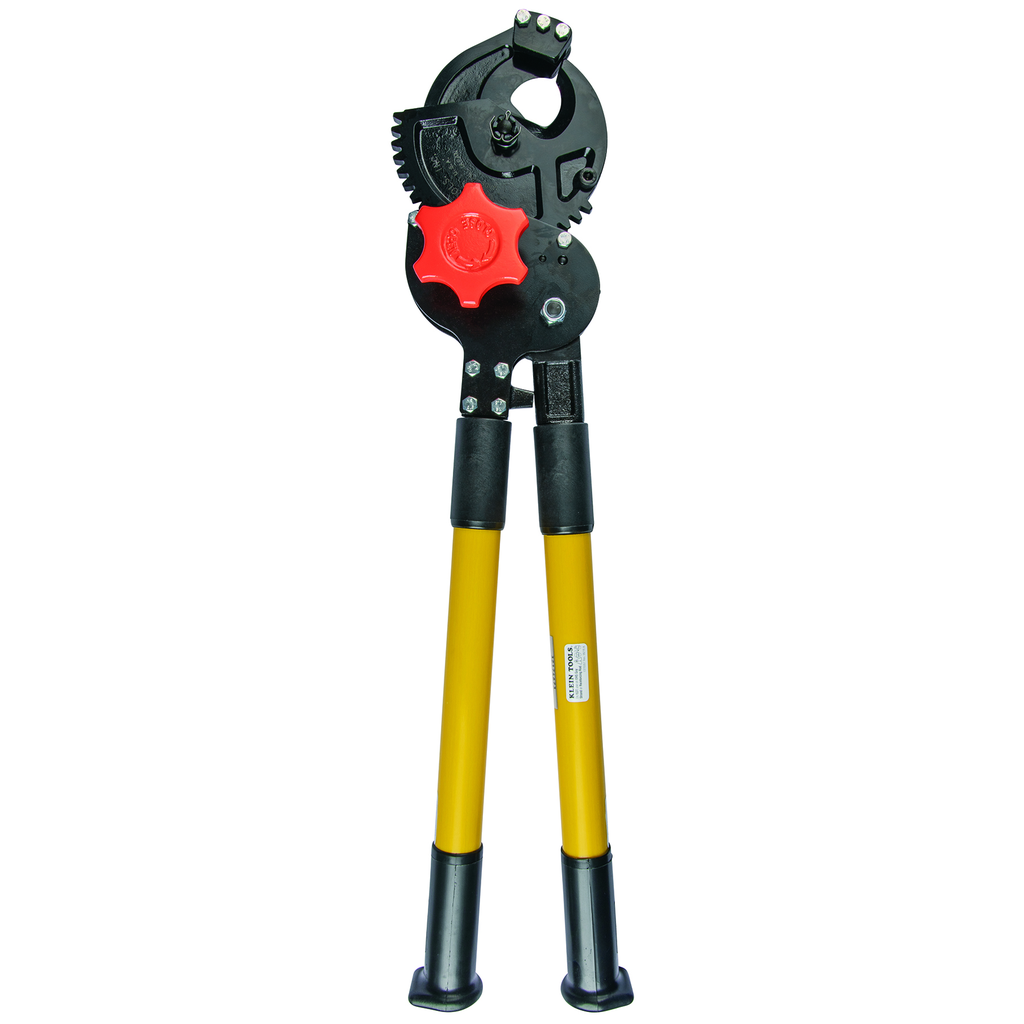

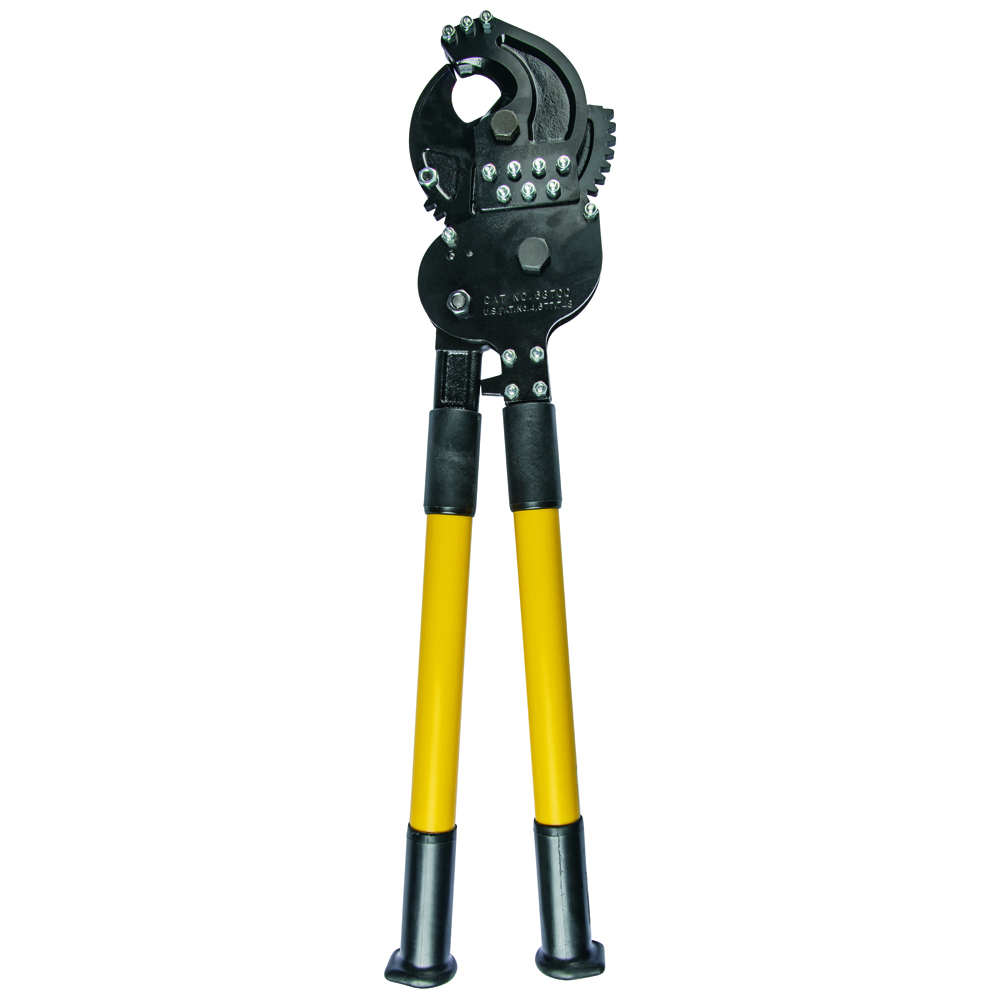

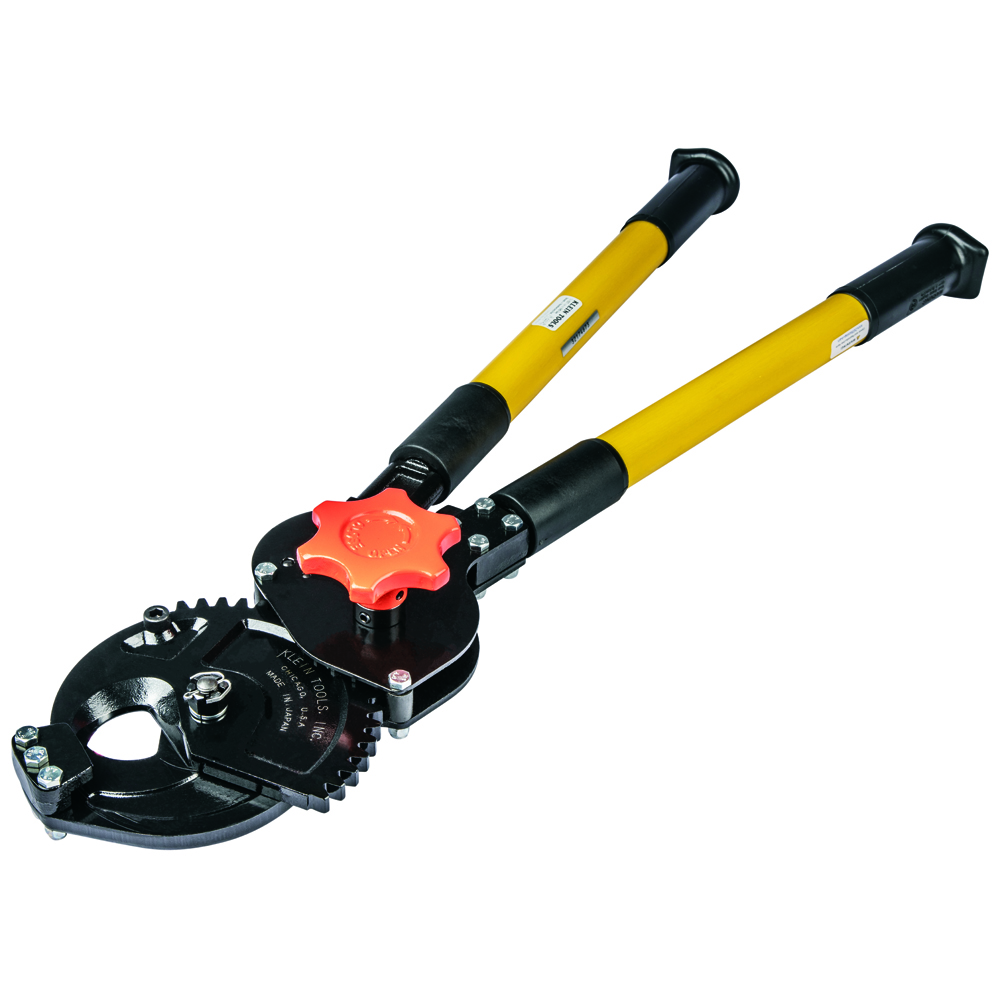

Klein Tools, 63700, Cable Cutter, 28 in; Ratchet-Action; Steel, ACSR, 1-1/4 in Diameter

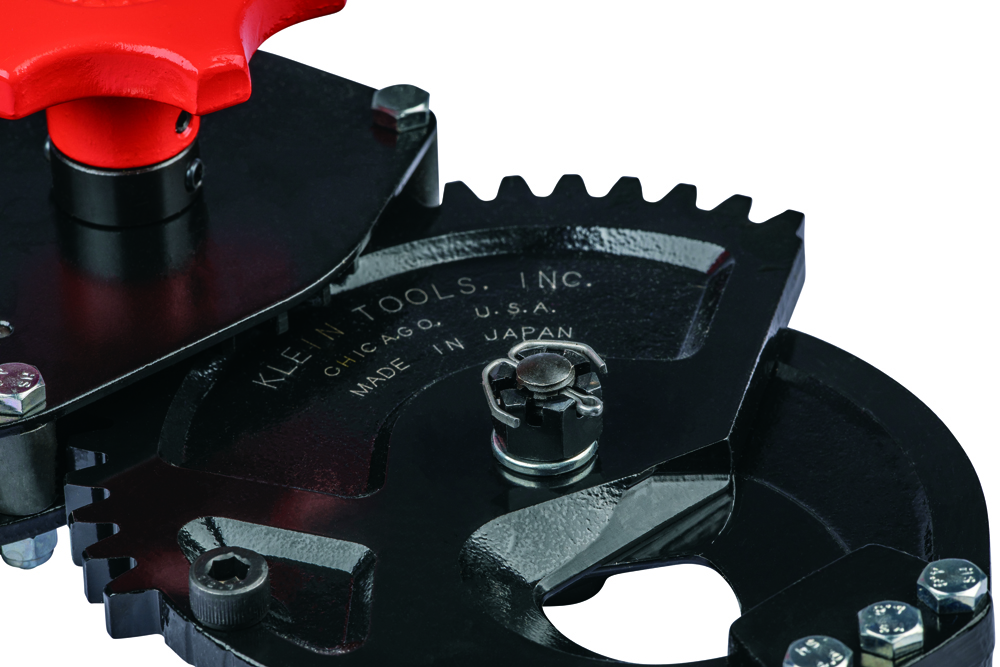

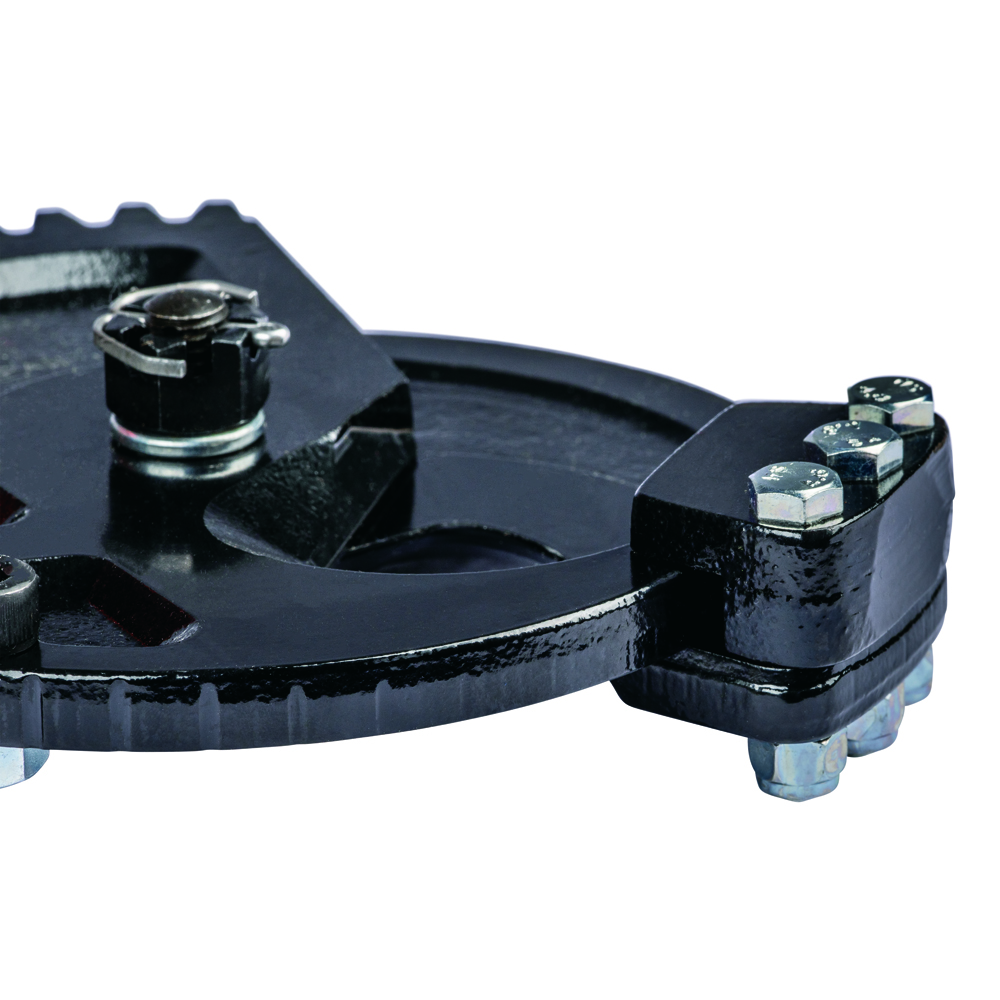

Ratchet-action design of this heavy-duty Ratcheting Cutter provides maximum leverage with minimum effort. Forged, heat-treated, shear-type blades cut steel and ACSR. Long steel handles have heavy vinyl grips for comfort and slip-resistance. Blade-advance knob quickly rotates the blade to engage the cable or other material being cut.

Features

• Ratchet-action design provides maximum leverage with minimum effort for heavy-duty use
• Not designed for cutting EHS Guy Strand or reinforcement rod
• Quick-release mechanism allows for removal of the cable or rod before completion of the cut, if desired
• Forged, heat-treated, shear-type blades, plus a 24-Inch (610 mm) long steel handles with heavy vinyl grips for comfort and slip-resistance
• Cuts steel and ACSR

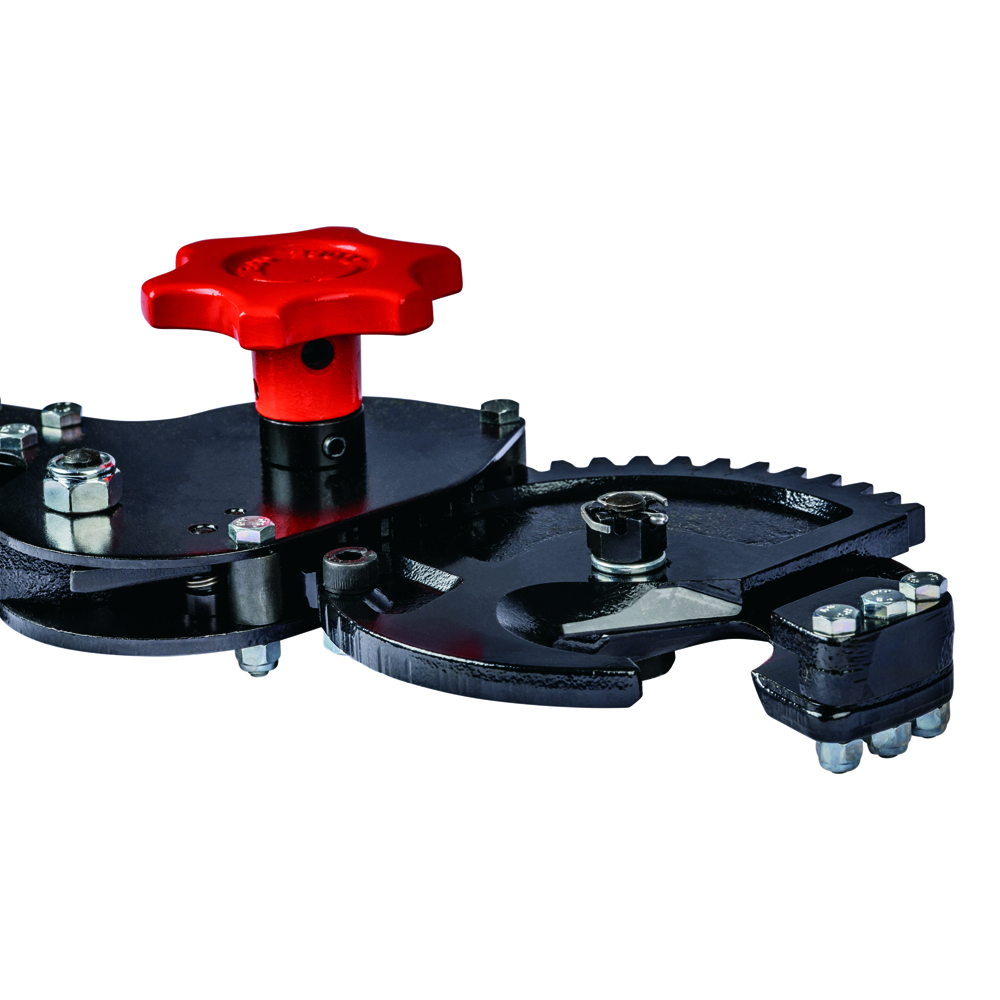

• Blade-advance knob for fast rotation of the blade to engage the cable or other material being cut

Warnings

• Always wear approved eye protection.
• NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.

• Type: Cable Cutter
• Soft Cable Maximum Capacity: 2-1/4 in (57.2 mm) Diameter, 750 MCM Copper or Aluminum
• Steel Cable Maximum Capacity: 1-1/4 in (31.8 mm) Diameter ACSR, ACAR, 7/16 in (11.1 mm) Diameter Common Guy Strand, 5/8 in (15.9 mm) Diameter Steel Wire Rope, 1/2 in (12.7 mm) Diameter Steel Rod
• Overall Length: 28 in (71.1 cm)
• Width: 6.075 in
• Height: 3.15 in
• Weight: 14 lb (6.4 kg)
• Handle Color: Yellow
• Handle Material: Steel with heavy vinyl grips
• Blade Material: Forged, heat-treated steel
