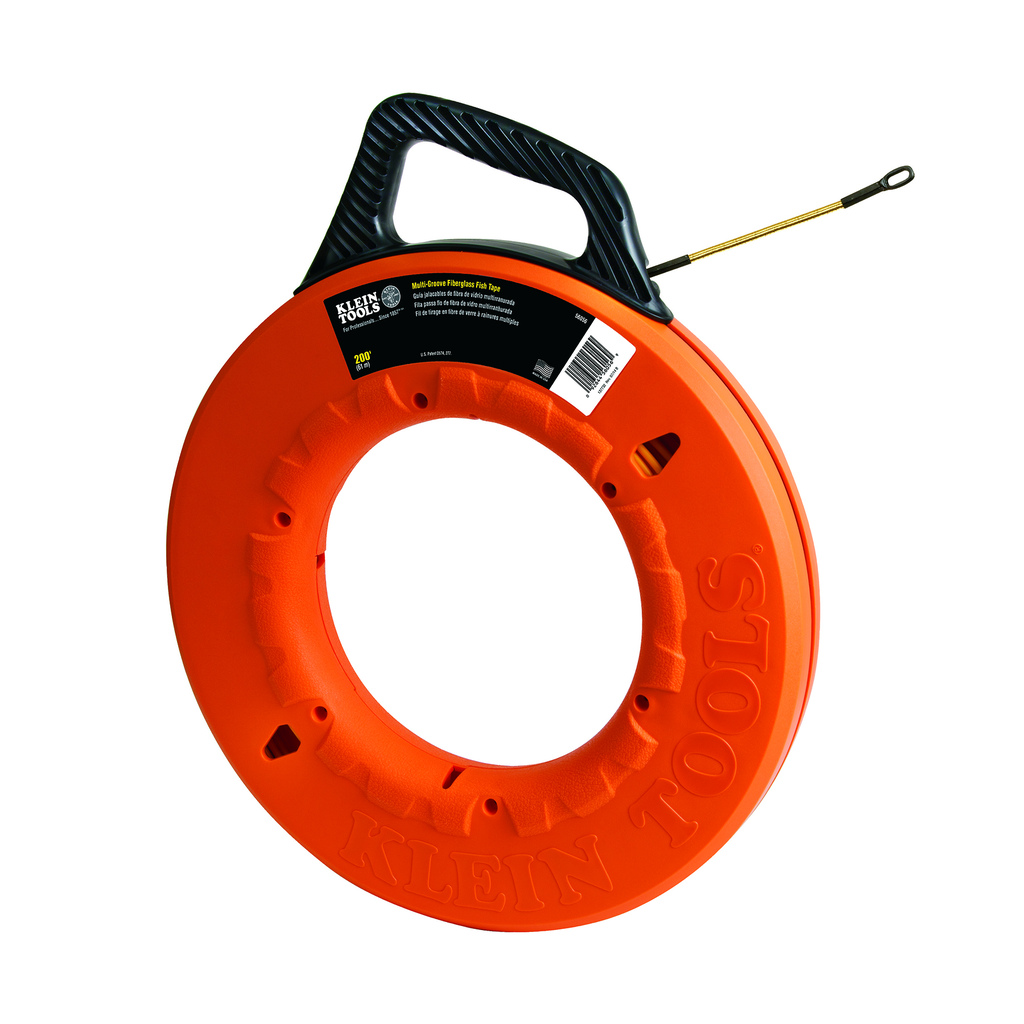

Klein Tools, 56056, Fish Tape, 200 ft x 3/16 in, Spiral Steel Leader, Fiberglass, 17 in Diameter

Klein Tools' Multi-Groove Fiberglass Fish Tapes feature a low-friction, easy feed design. The grooved profile and fiberglass core provide rigidity for long distances and less surface contact with wires when pushing through crowded conduit. It comes with a durable 7-Inch (178 mm) leader to help with navigation.

Features

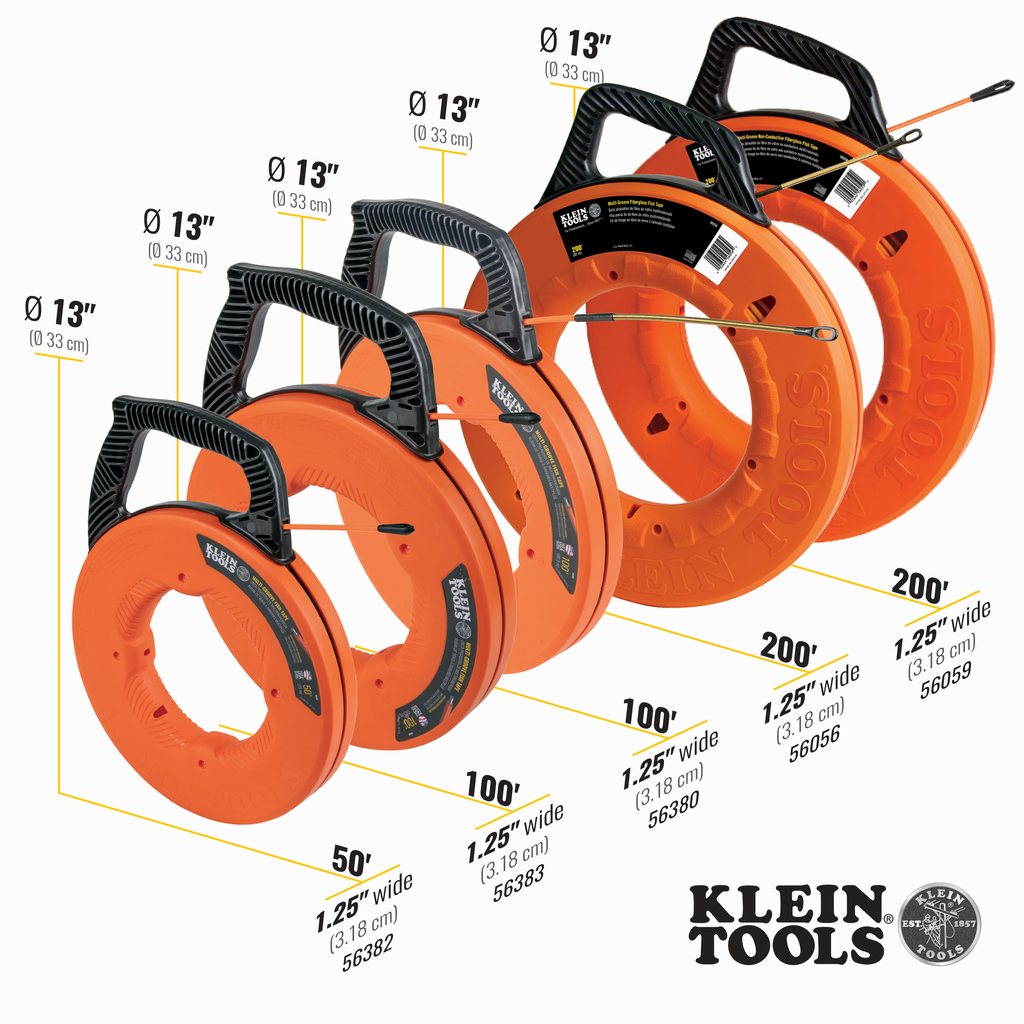

• The 17-Inch case diameter means you can reel in 10-percent more tape in a single revolution versus a 16-Inch case

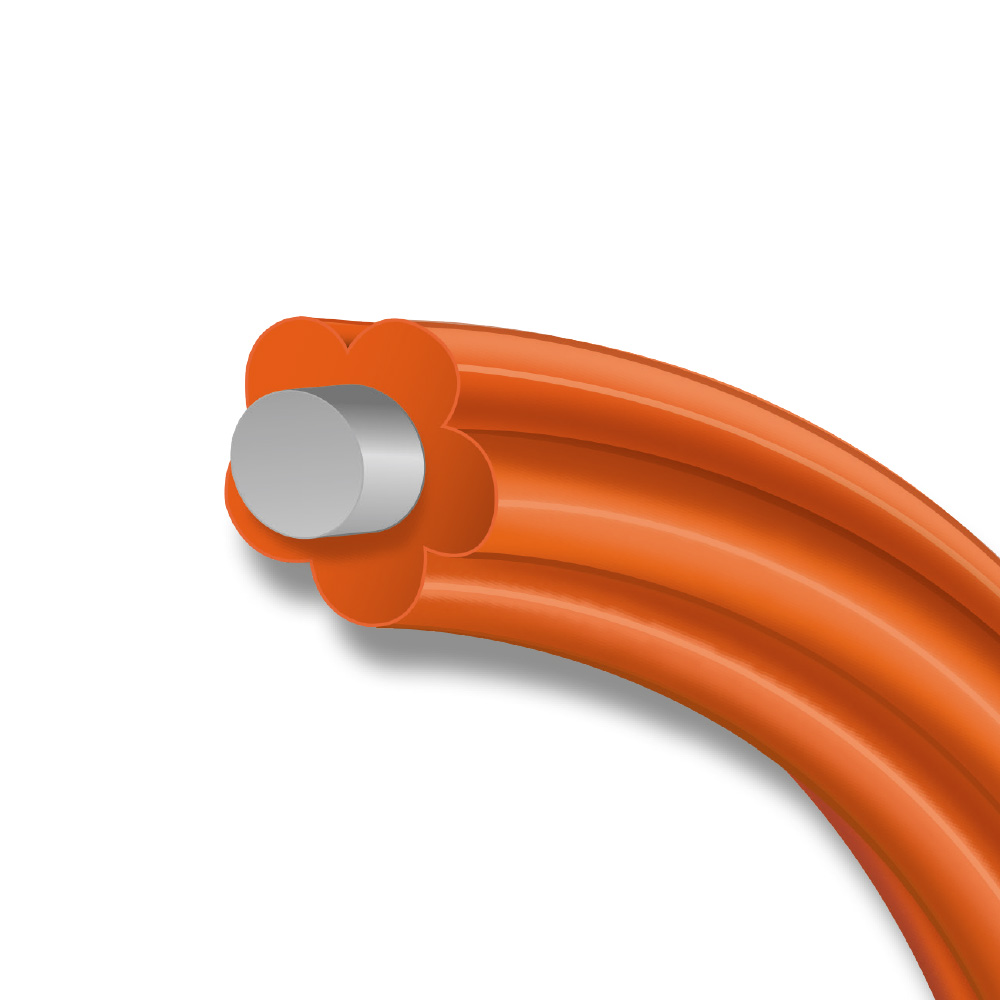

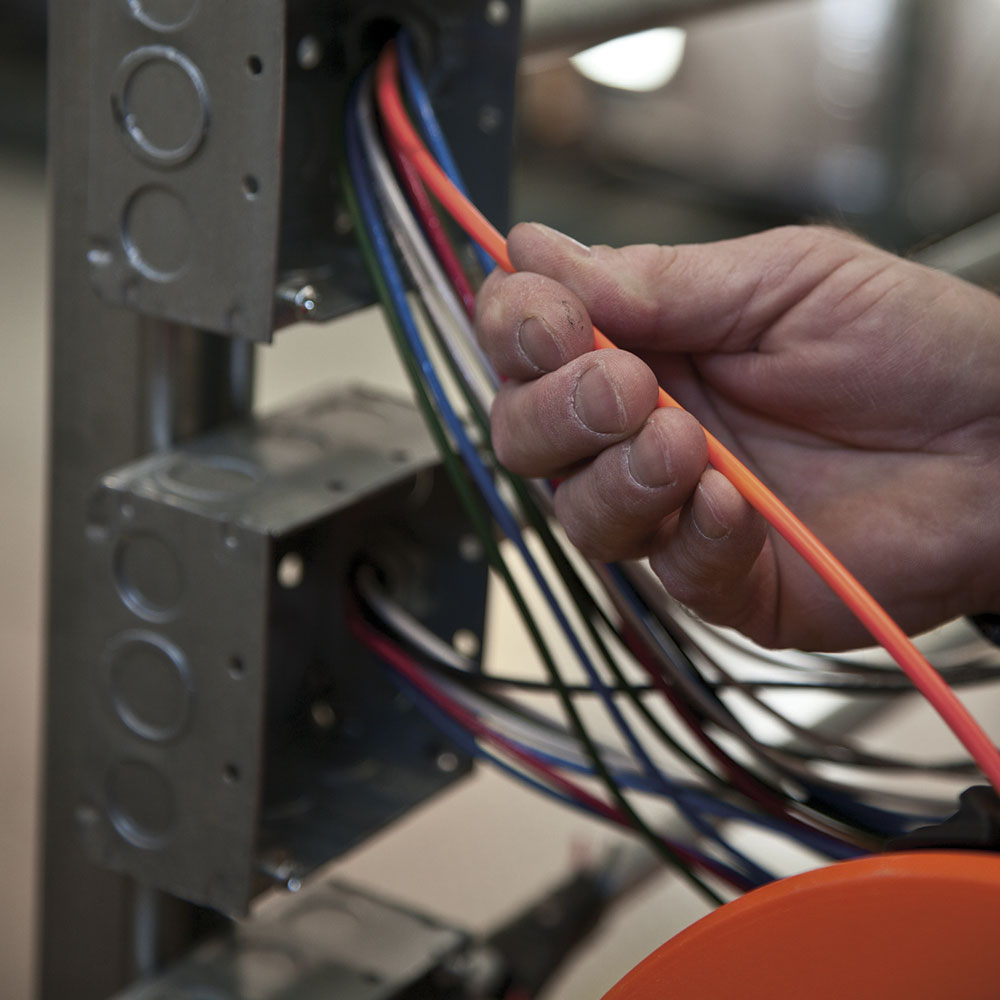

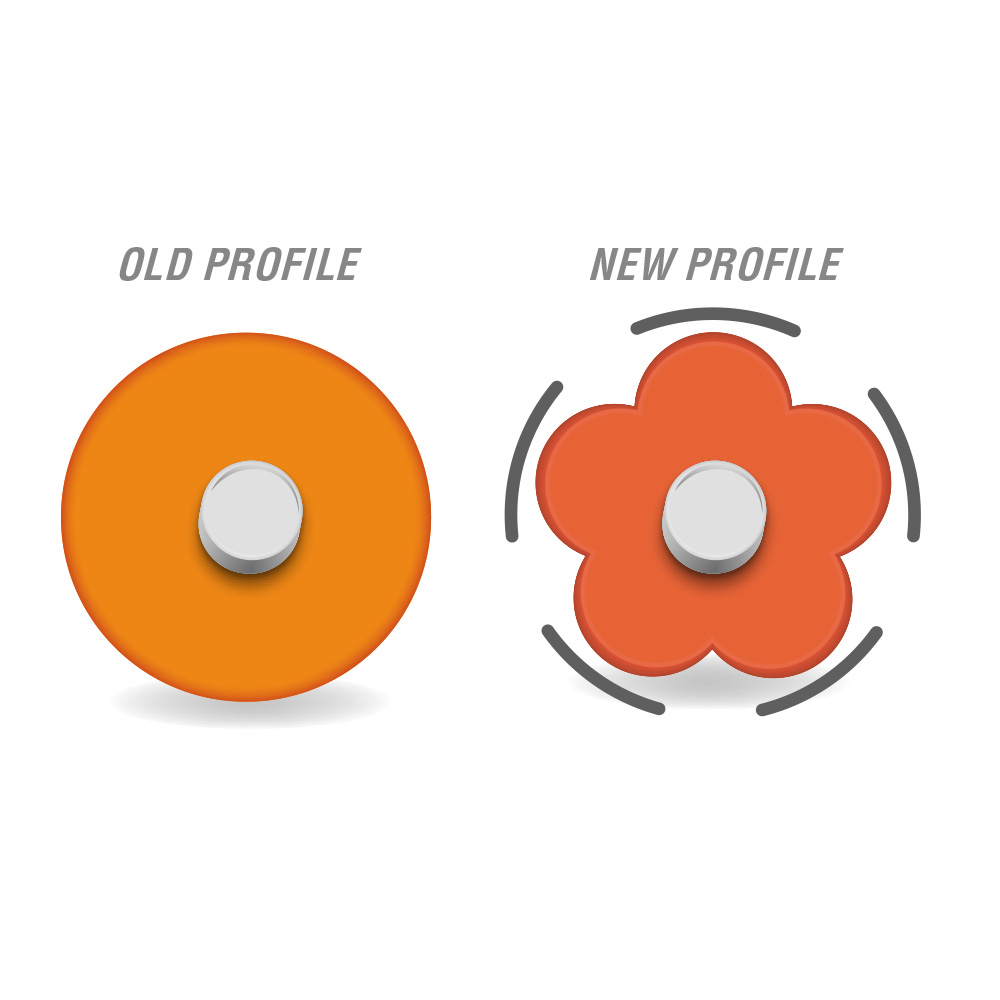

• Multiple grooves molded into the fish tape provides less friction in conduit with or without wires for smoother tape feeding

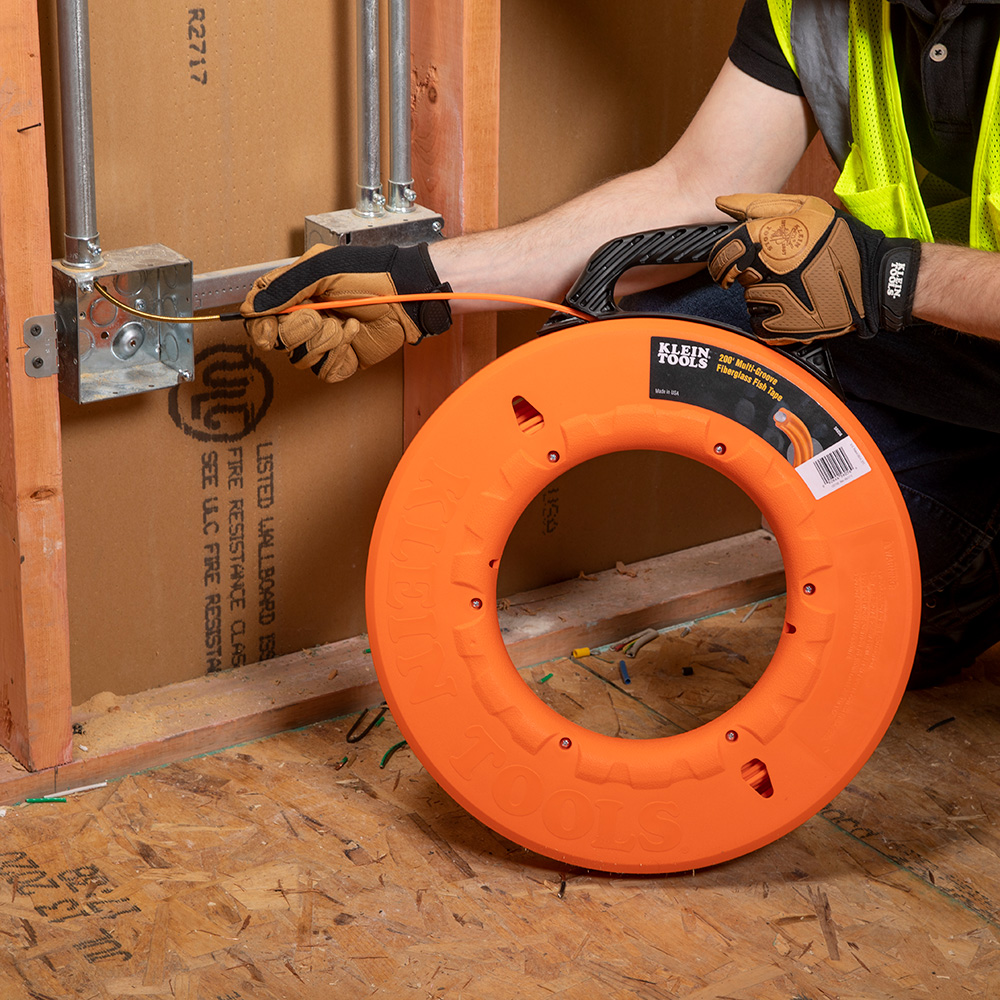

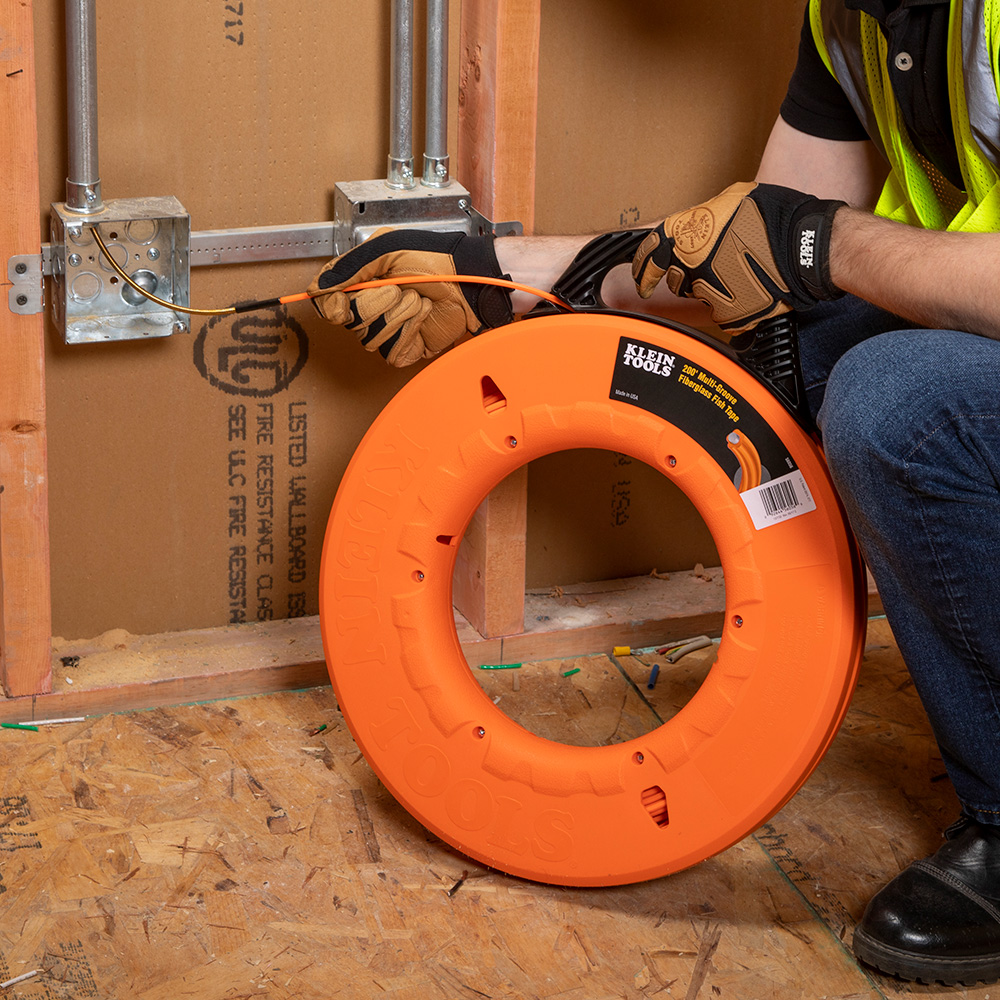

• The unique sloped handle optimizes the position of your hand for quick hand-over-hand rewinds and allows a more level payout of tape on the backswing while feeding conduit
• Made in USA

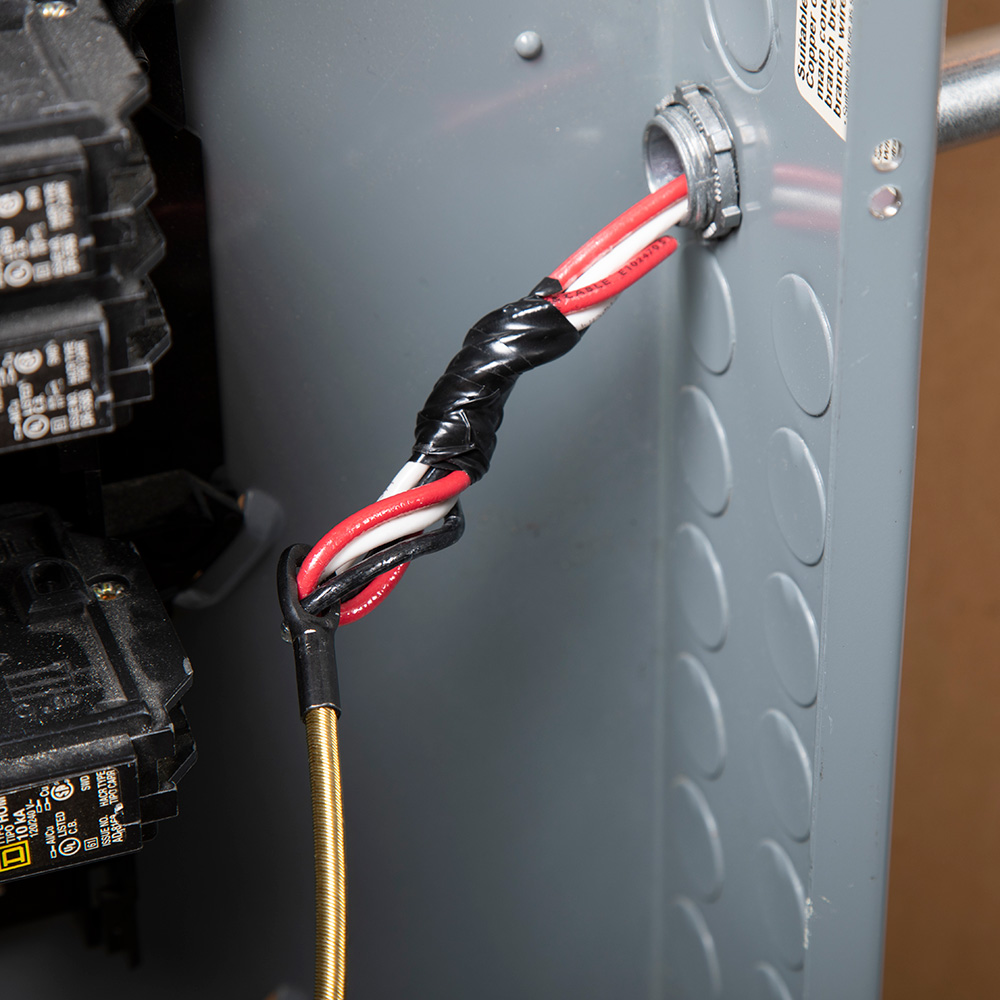

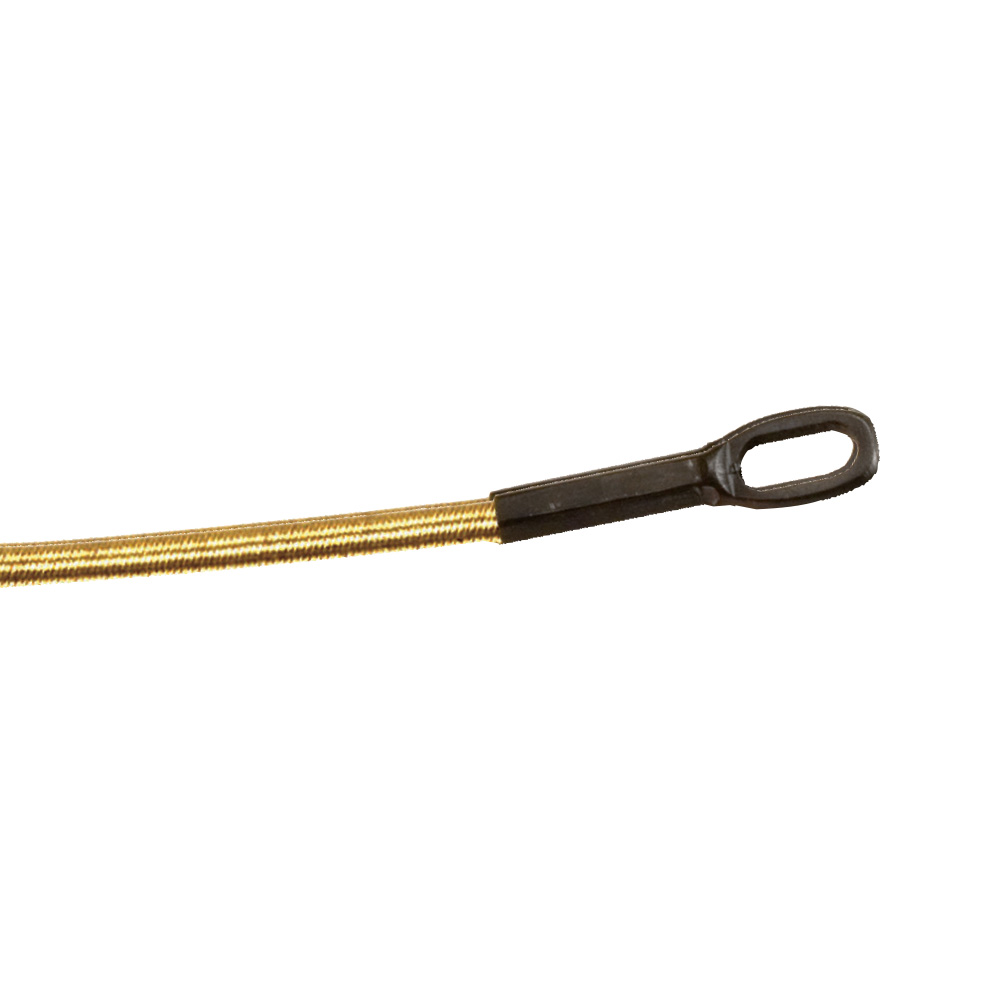

• Durable 7-Inch spiral steel leader helps push through crowded conduit
• Raised fingergrips help transfer 100-percent of the winding power from your hand and fingers

Warnings

• Although fiberglass fish tape itself is non-metallic, its metallic tip and leader are conductive and could be grounded against conduit. Do NOT use on or near live electrical circuits.
• Do NOT pull a fiberglass fish tape with any type of mechanical fish-tape puller. A mechanical puller will severely damage the tape, and could lead to personal injury.
• Use a safe work position to avoid loss of balance when using fish tape.
• Wear approved eye protection when feeding, pulling or rewinding fish tape.
• Never remove screws while fish tape is coiled inside reel.

• Tape Length: 200 ft
• Tape Width: 0.188 in (3/16 in)
• Tape End: Spiral Steel Leader
• Diameter: 17 in
• Depth: 21 in
• Height: 17 in
• Weight: 6.27 lbs
• Material: Fiberglass, Steel Leader
• Country of Origin: United States
