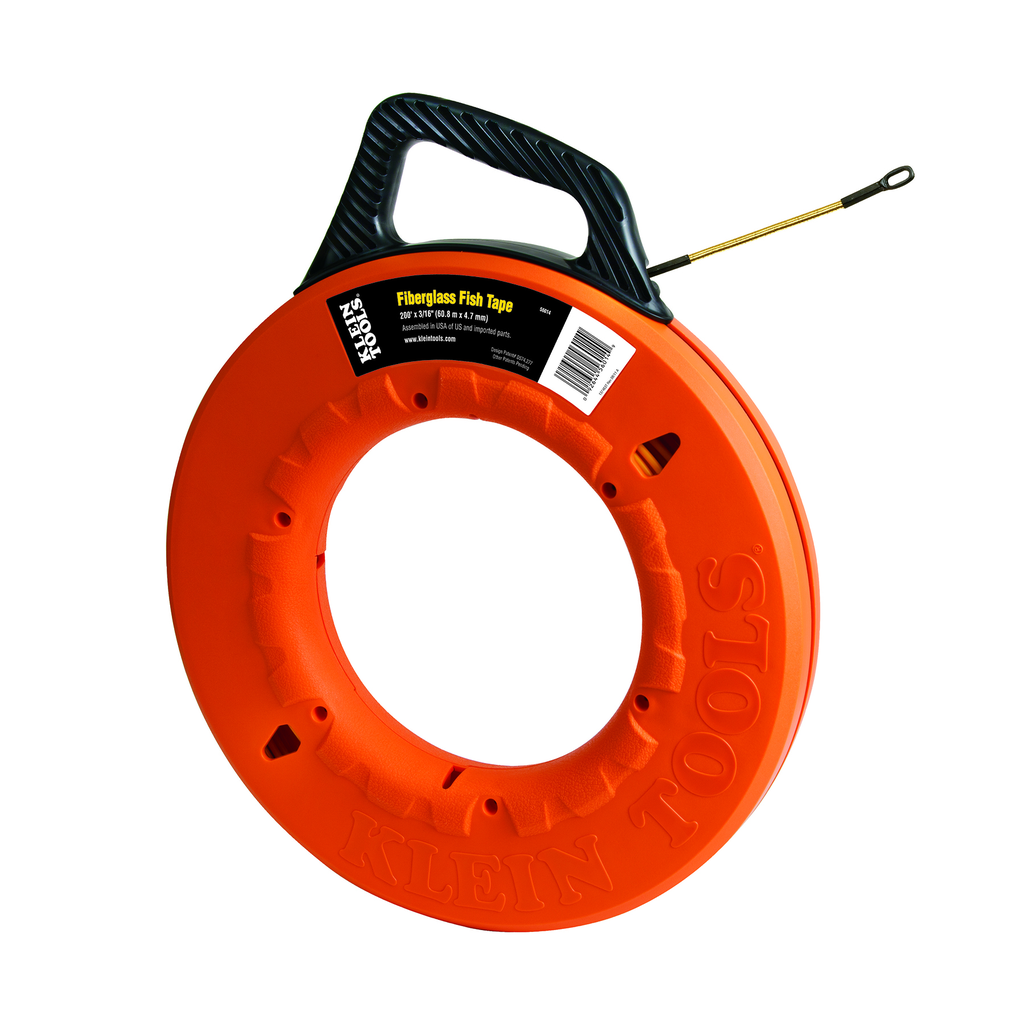

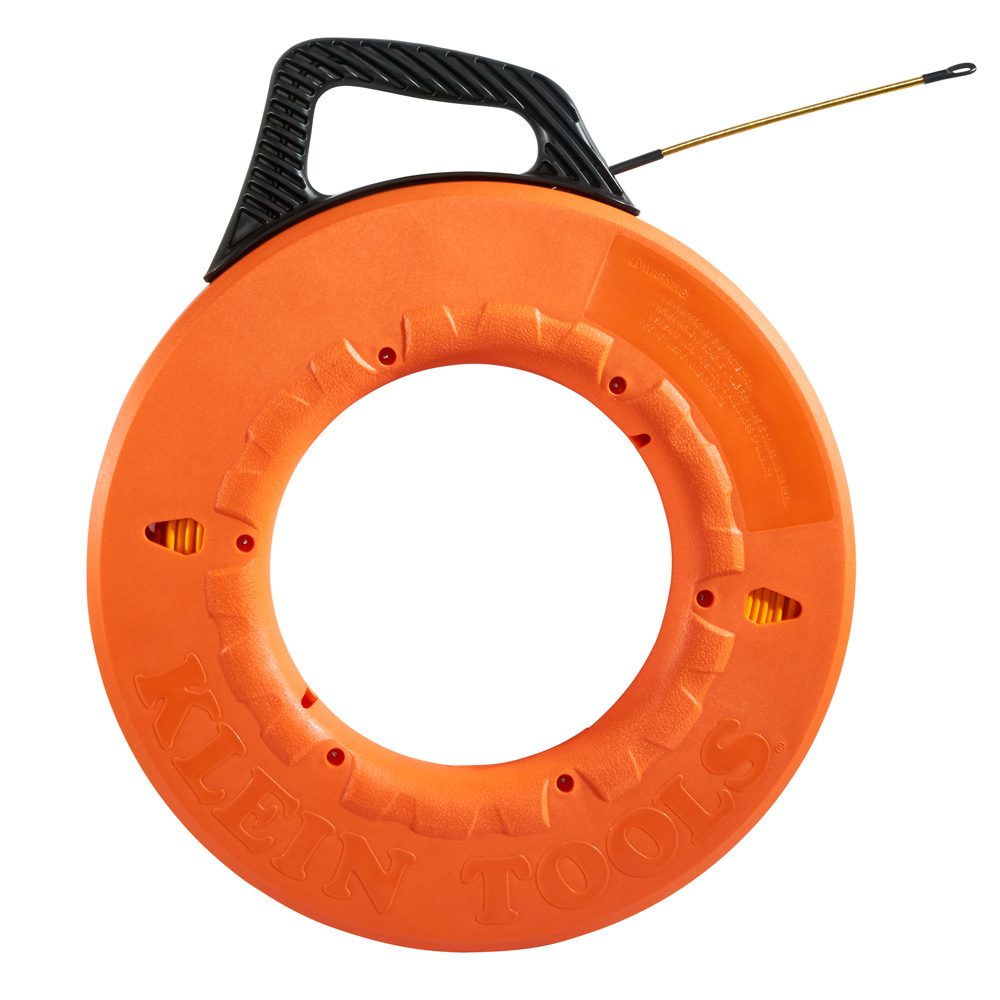

Klein Tools, 56014, Fiberglass Fish Tape, 200 ft x 3/16 in, Spiral Steel Leader, 17 in Case Diameter

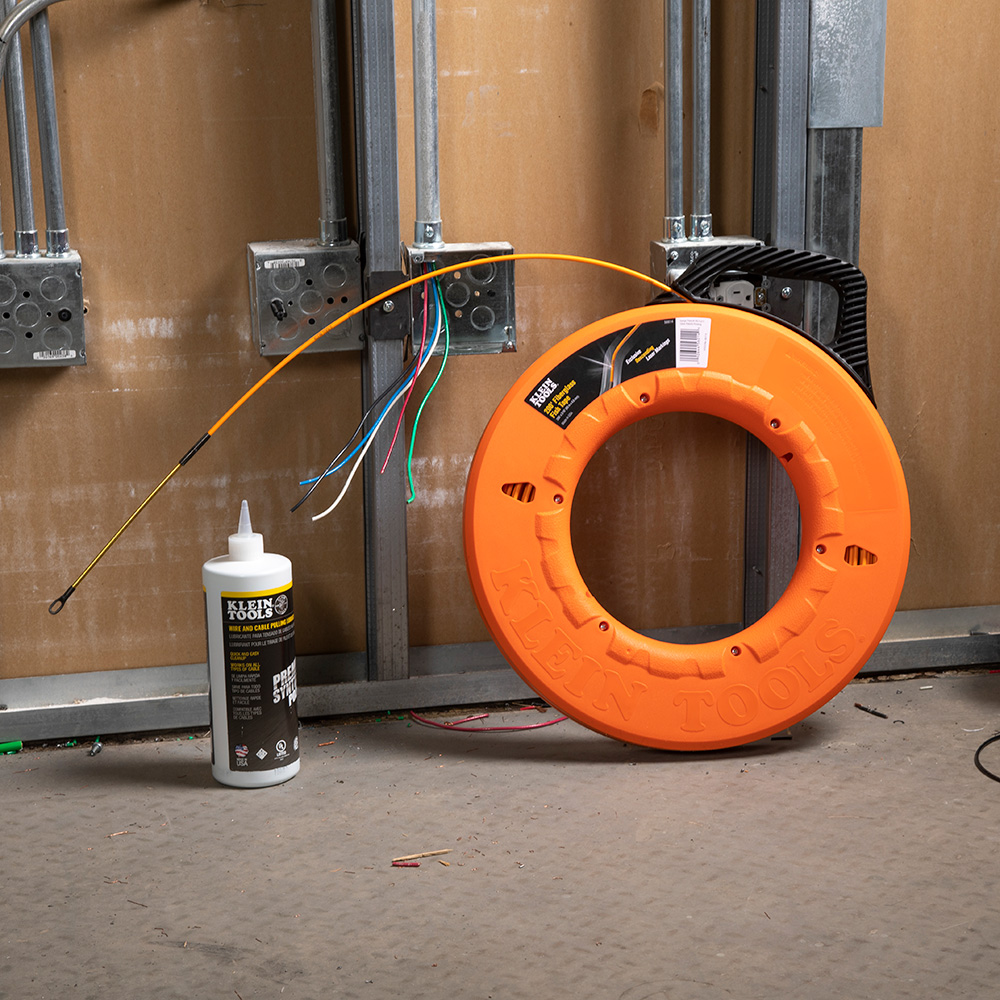

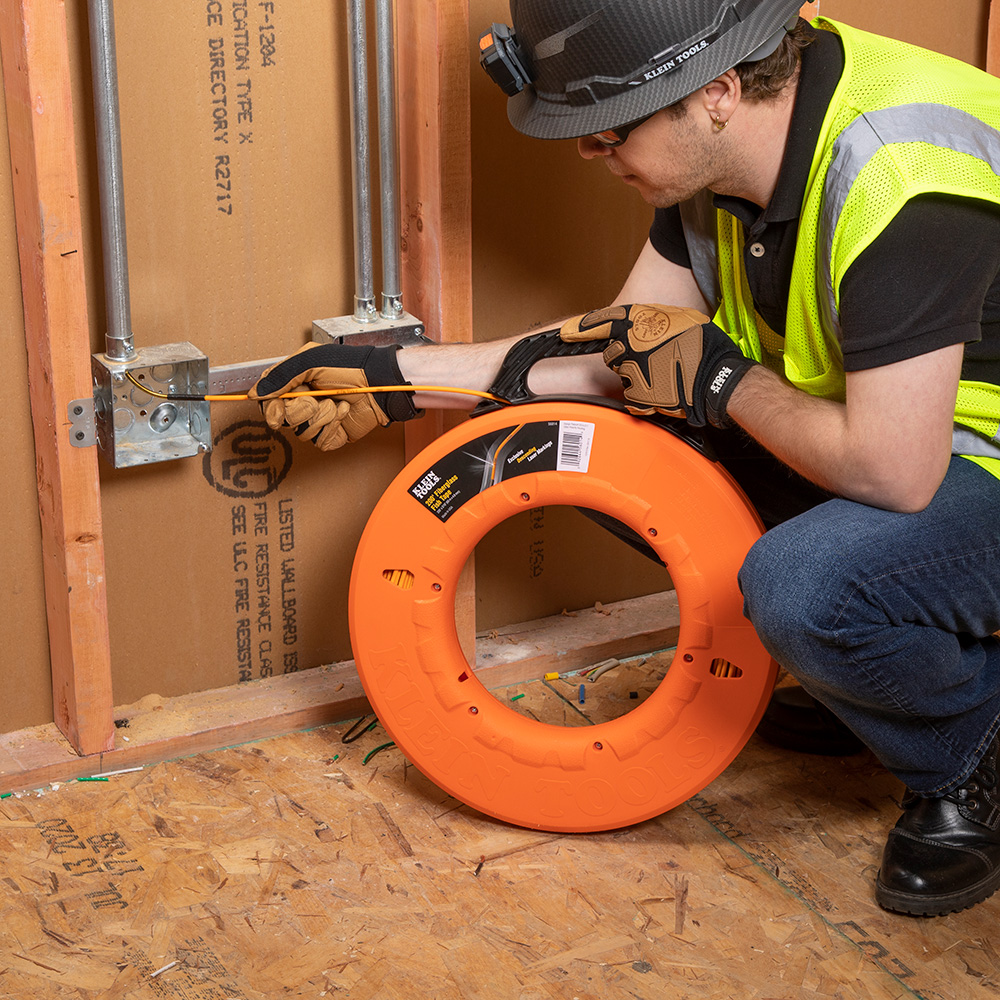

Designed for even longer conduit runs, the Klein Tools 200-foot (60.96 m) Fiberglass Fish Tape is flexible enough to glide over existing wires in crowded conduit, but stiffer than other non-conductive fish tapes. The 17-Inch (432 mm) case diameter allows user to reel in 10-percent more tape in a single revolution than 16-Inch (406 mm) diameter fish tape cases, saving time and effort.

Warnings

• Do NOT pull a fiberglass fish tape with any type of mechanical fish-tape puller. A mechanical puller will severely damage the tape, and could lead to personal injury.
• Although fiberglass fish tape itself is non-metallic, its metallic tip and leader are conductive and could be grounded against conduit. Do NOT use on or near live electrical circuits.
• Do NOT bend a fiberglass fish tape to a radius smaller than 3'' (76 mm) or the tape may break.
• Use a safe work position to avoid loss of balance when using fish tape.
• Never remove screws while fish tape is coiled inside reel.
• Wear approved eye protection when feeding, pulling or rewinding fish tape.

Features

• The 17-Inch case diameter means you can reel in 10-percent more tape in a single revolution vs. a 16-Inch (406 mm) case

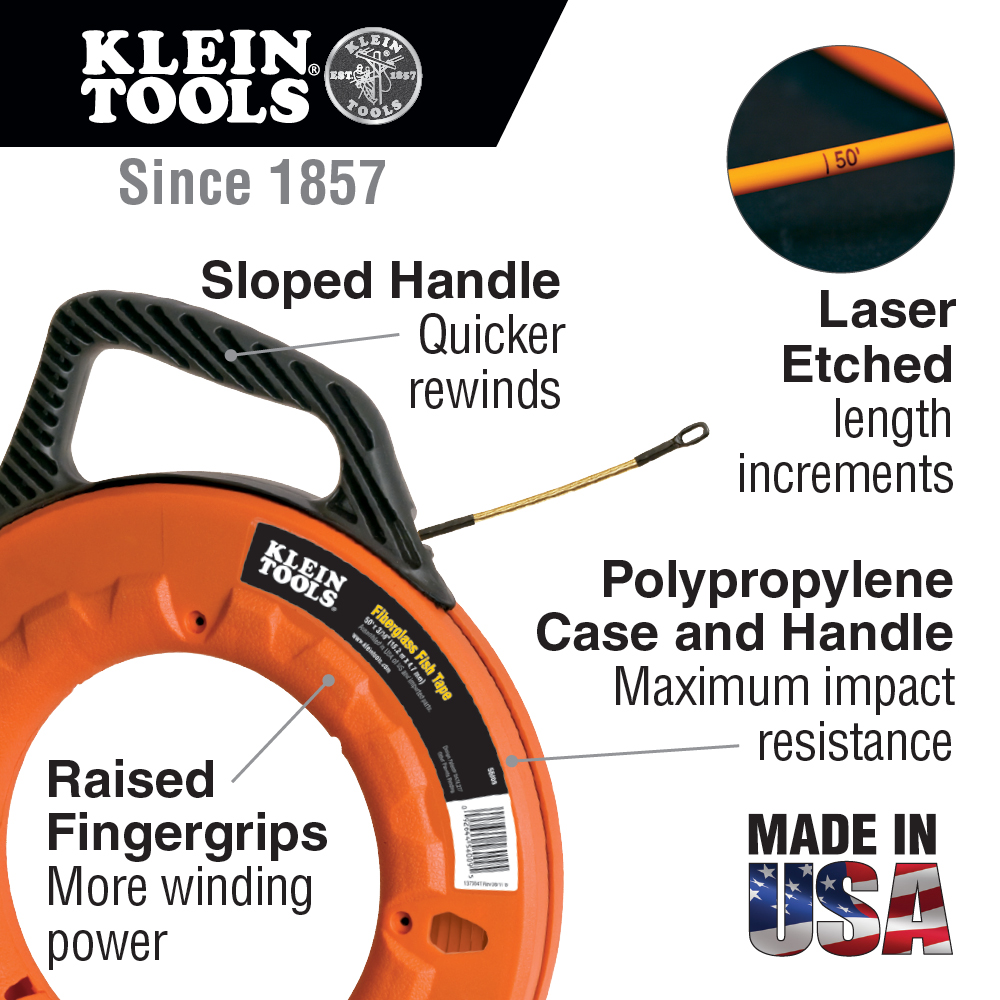

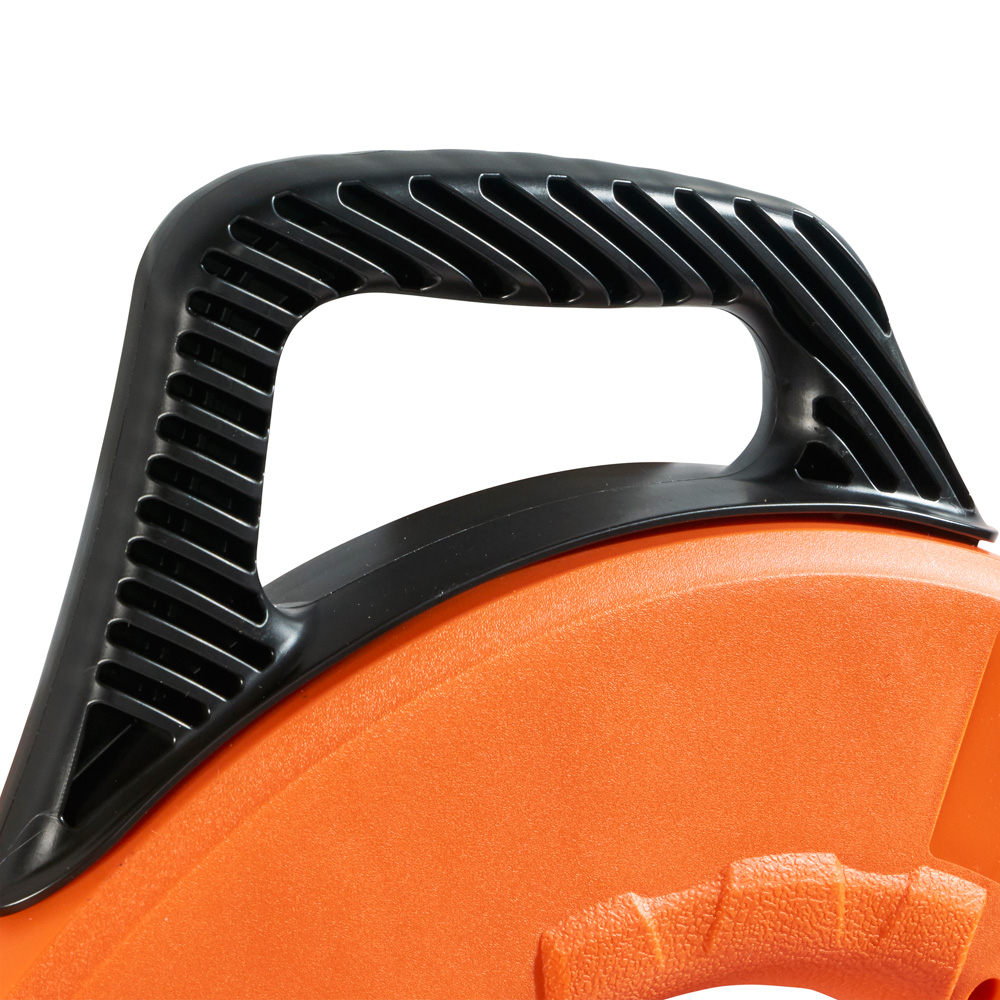

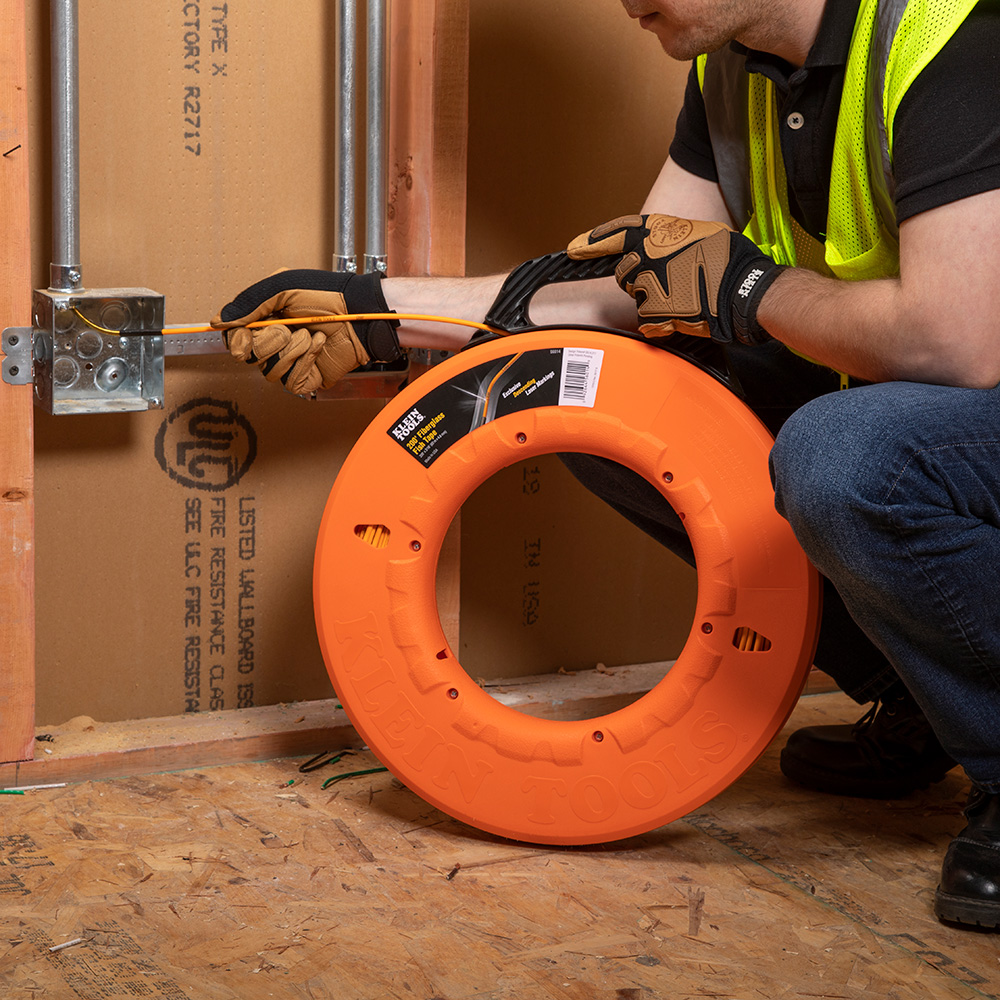

• The unique sloped handle optimizes the position of your hand for quick hand-over-hand rewinds and allows a more level payout of tape on the backswing while feeding conduit
• Repair kit available (Cat. No. 56115)

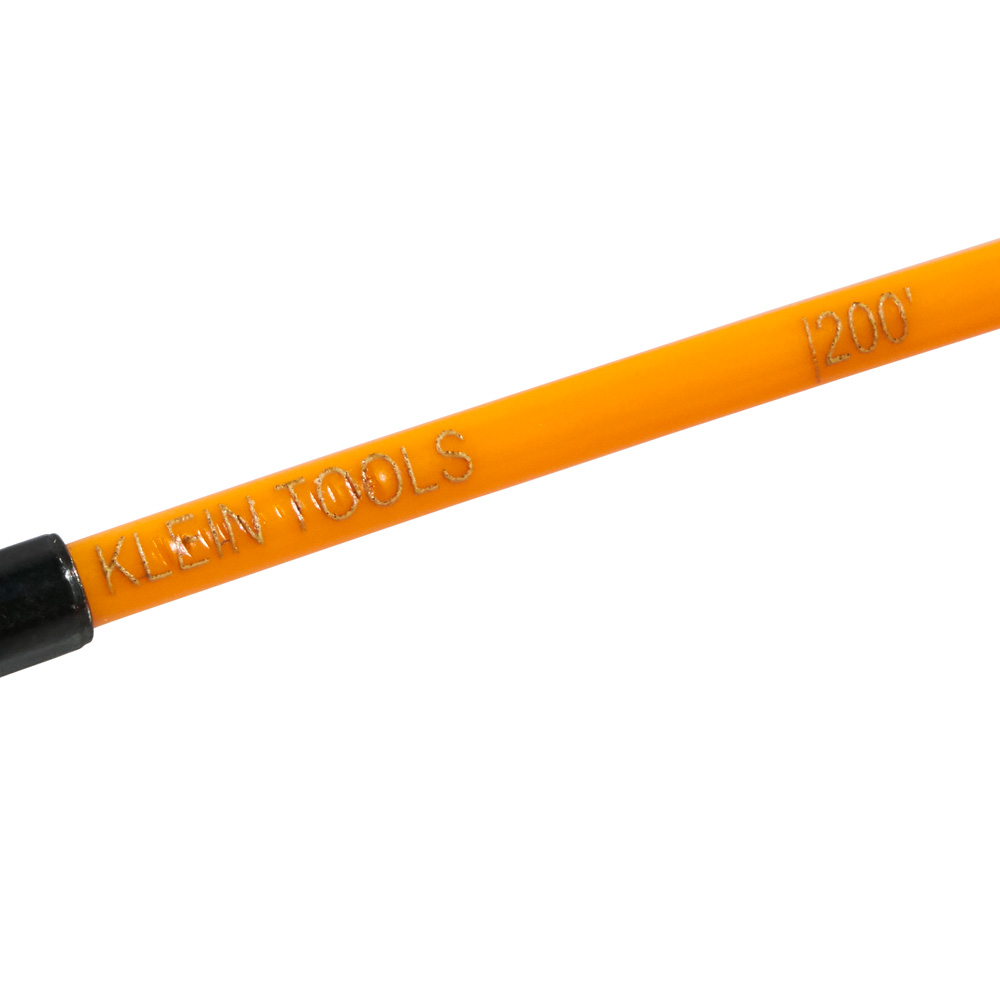

• Permanent, laser etched 1-foot increments on the tape allow you to more accurately measure the depth of conduit runs and determine the amount of tape left to pay out
• Raised finger grips help transfer 100-percent of the winding power from your hand and fingers
• Made in USA
• The lightweight and strong fiberglass tape resists harsh elements and is strength rated up to 500 pulling pounds

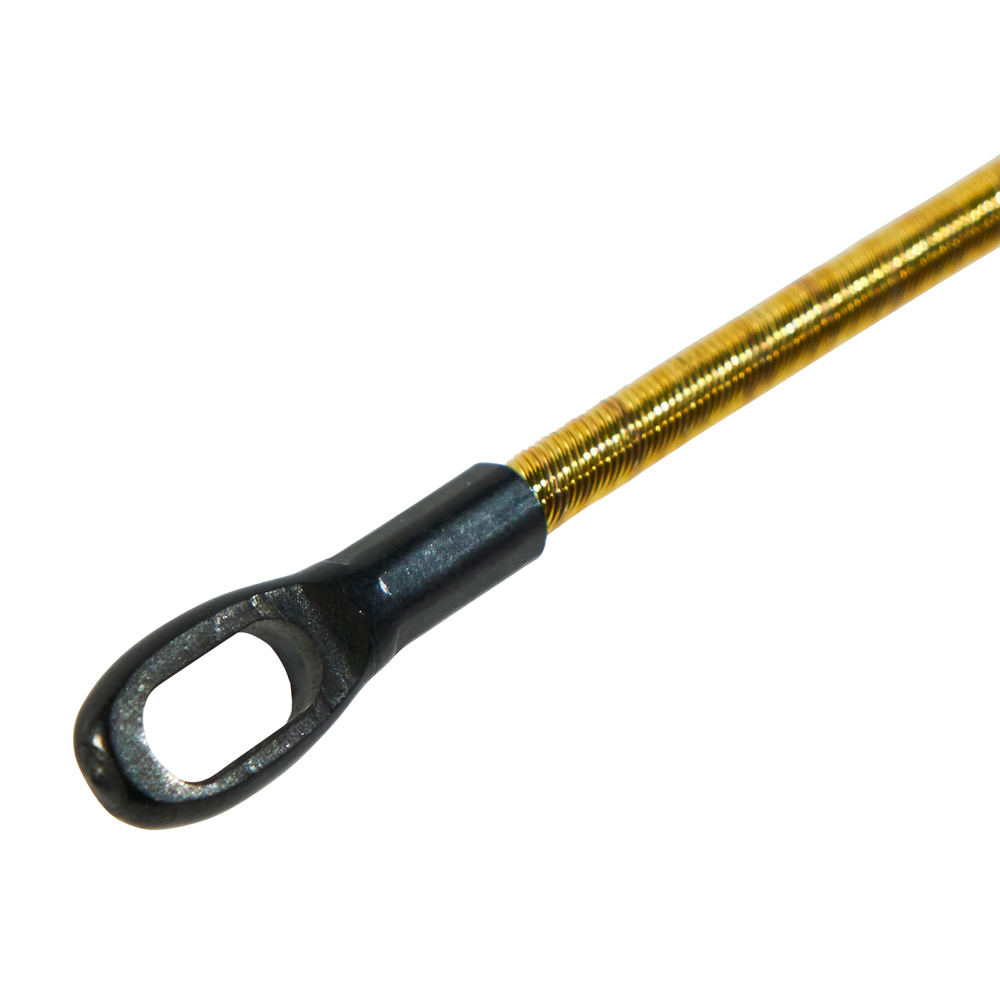

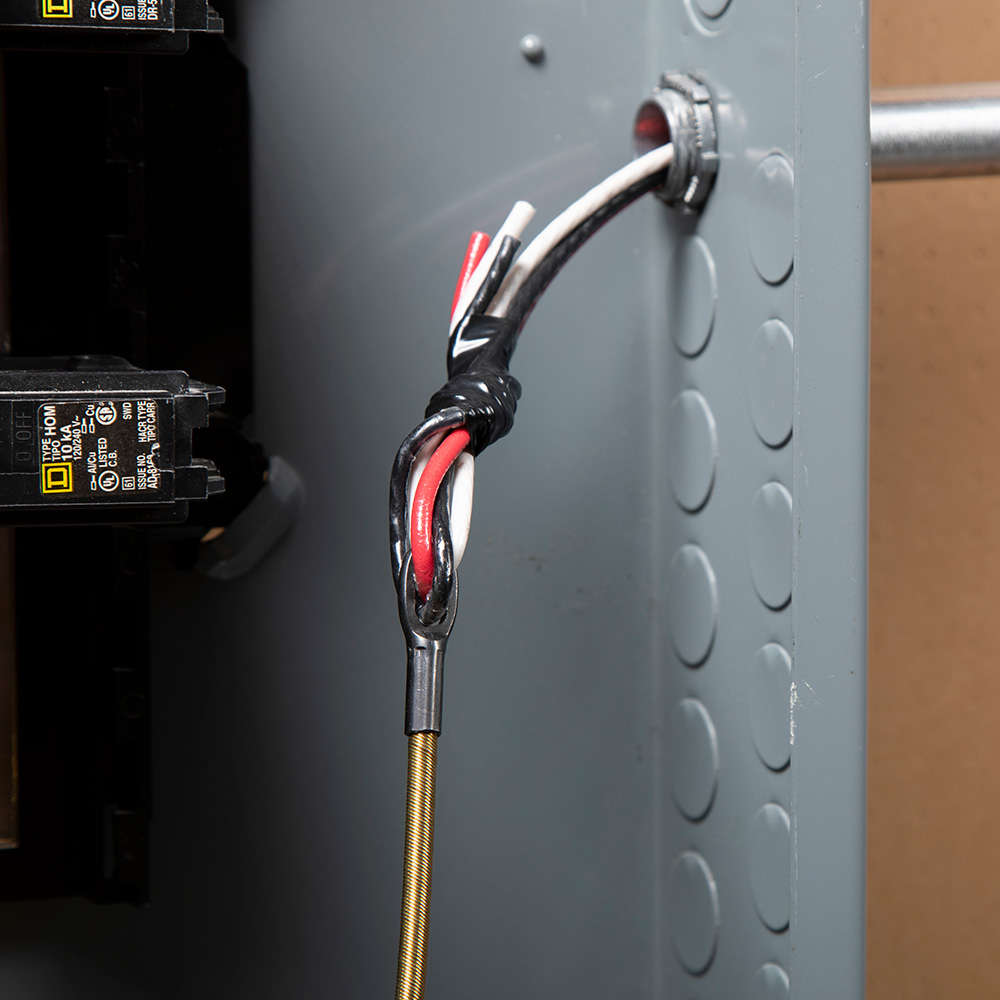

• Durable 7-Inch leader helps push through crowded conduit
• Replacement eyelets (Cat. No. 56116) and spiral leaders (Cat. No. 56120) available
• Non-conductive, fiberglass fish tape slides easily over existing wires and through multiple bends

• Length: 200 ft
• Tape Width: 3/16 in
• Tape Material: Fiberglass
• Strength Rating: 500 lbs pulling strength
• Weight: 6.2 lbs
• Diameter: 17 in
• Height: 2 in
• Width: 2.5 in
• Depth: 20.5 in

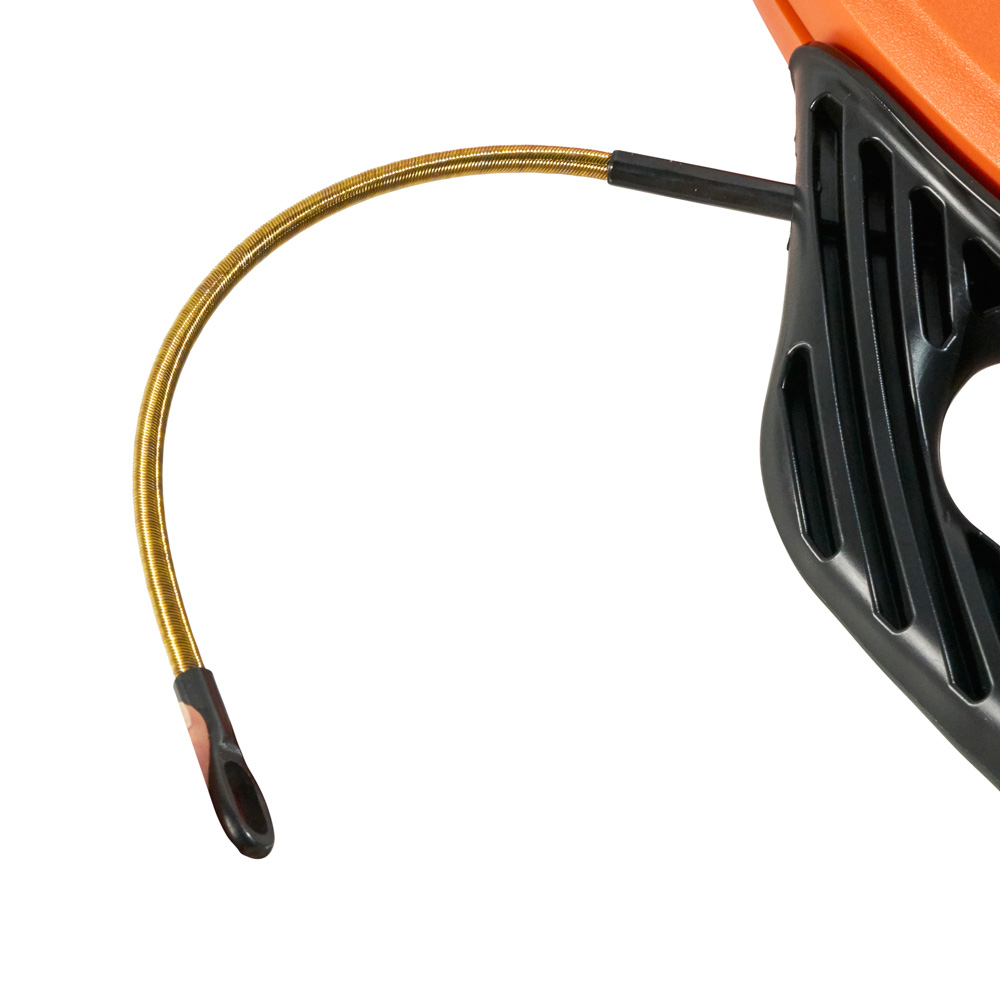

• Tape End: Spiral Steel Leader
• Material: Fiberglass
• Leader Length: 7 in
• Leader Material: Metallic
• Markings: Permanent laser-etched 1 ft increments
• Non-Conductive: Fiberglass tape (metallic tip and leader conductive)
• Country of Origin: United States
