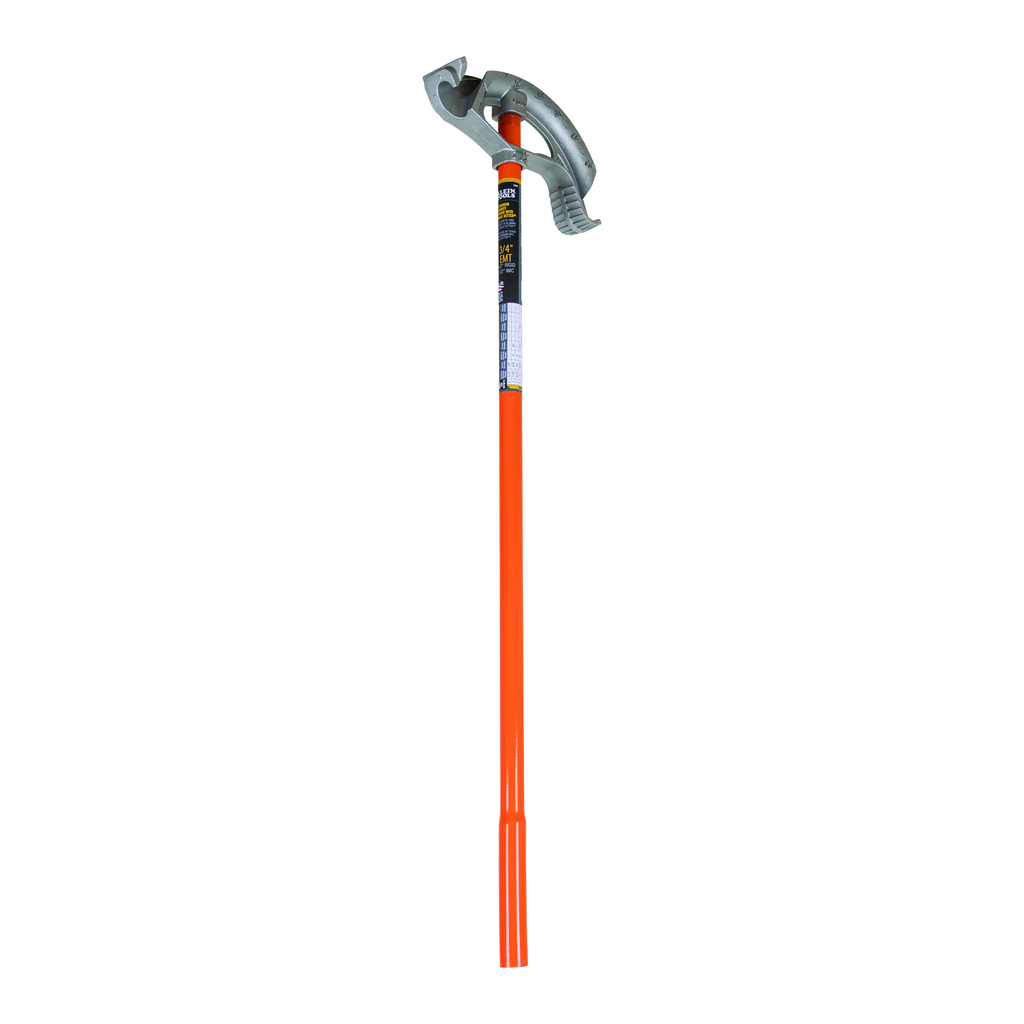

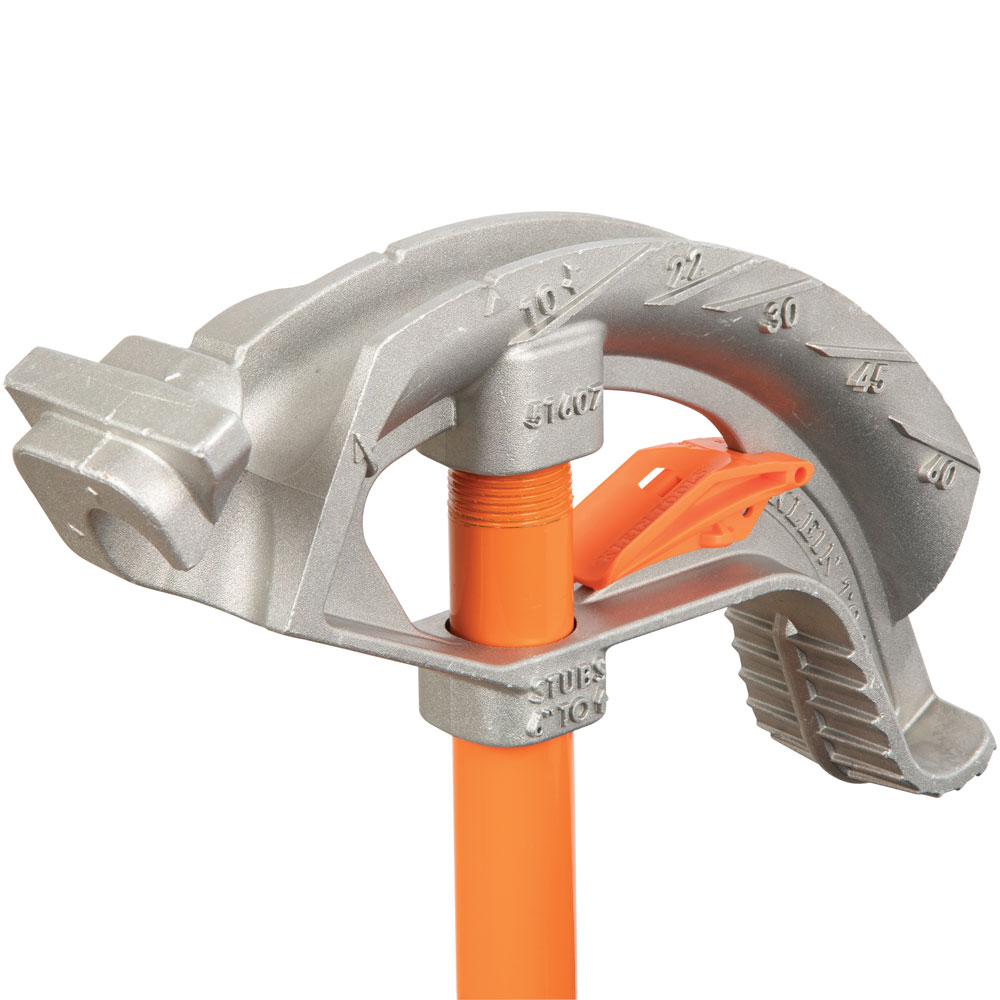

Klein Tools, 51607, Aluminum Conduit Bender, 3/4-Inch EMT, Angle Setter™ Technology, Includes Rigid/IMC 1/2-Inch

Klein Tools' conduit benders with Patent Pending Angle Setter™ technology allow for quick, accurate repeated bends. The wide foot pedal provides excellent stability and features angled grooves for extra traction. With easily visible bold cast-in benchmark symbols, degree scales and multiplier scales help save time on the job.

Features

• Designed to bend 3/4-Inch EMT, 1/2-Inch Rigid and 1/2-Inch IMC conduit

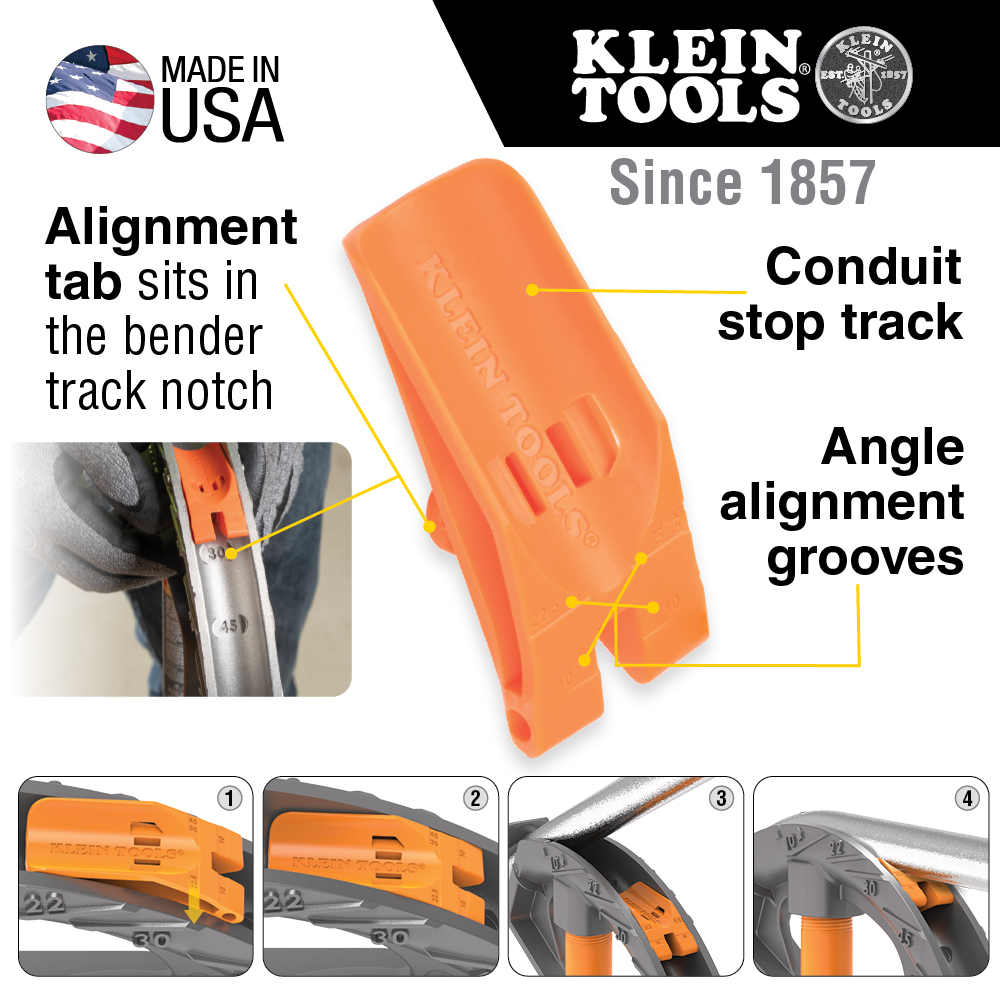

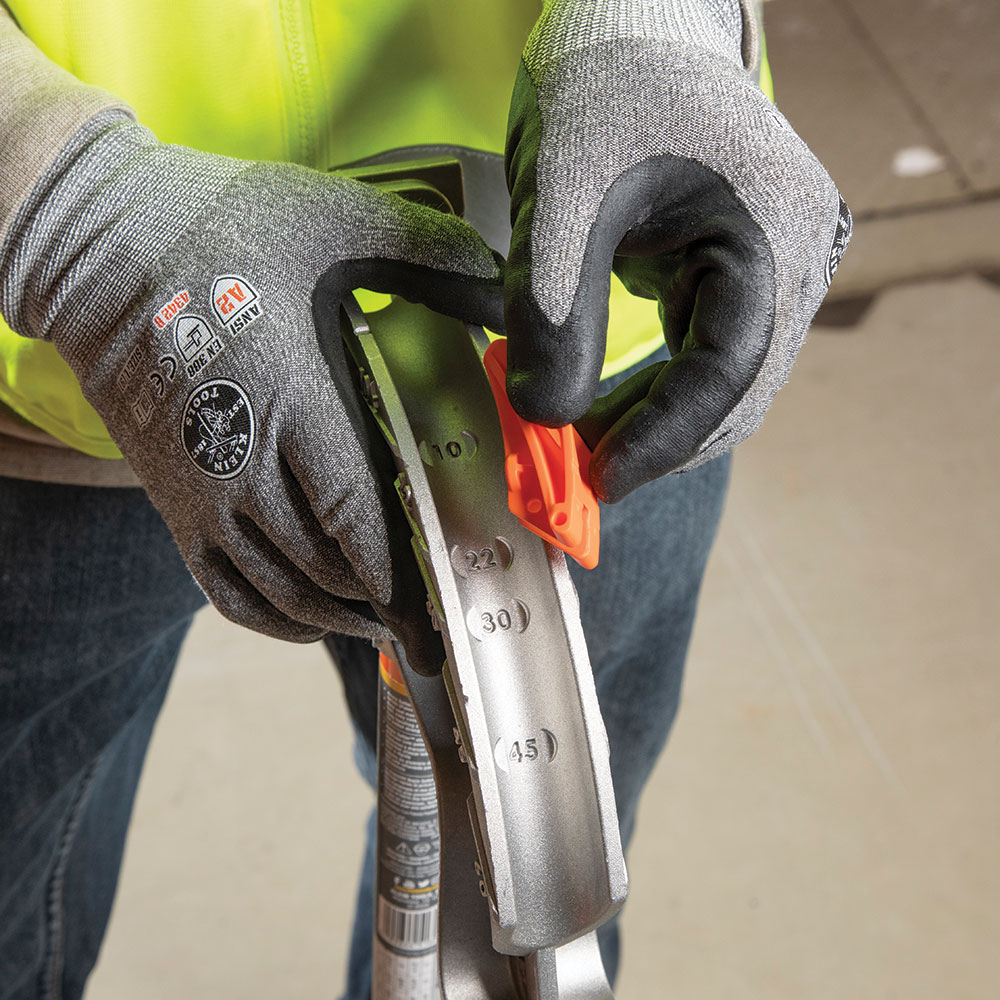

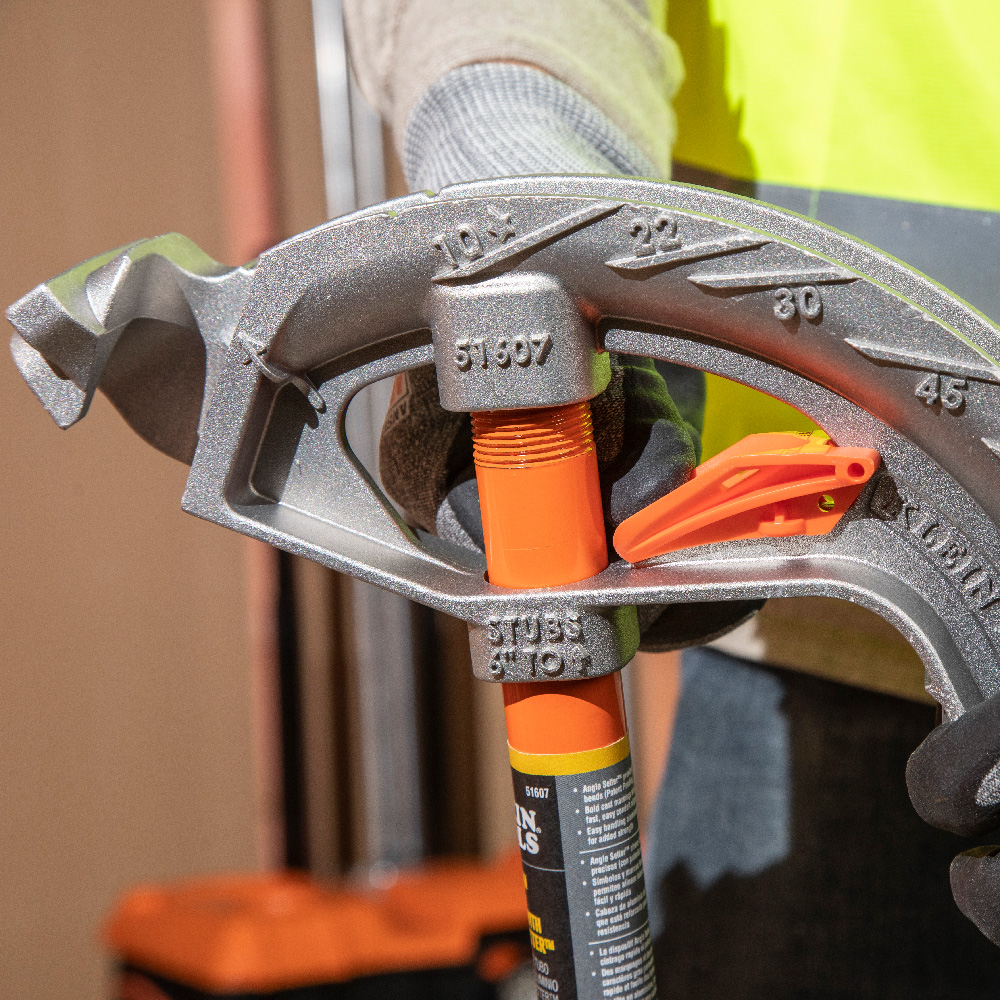

• Compatible with Klein's 3/4-Inch Angle Setter™ (Cat. No. 51612) creates a hard stop for quick, accurate, and consistent bends
• Patent Pending Angle Setter™ Technology

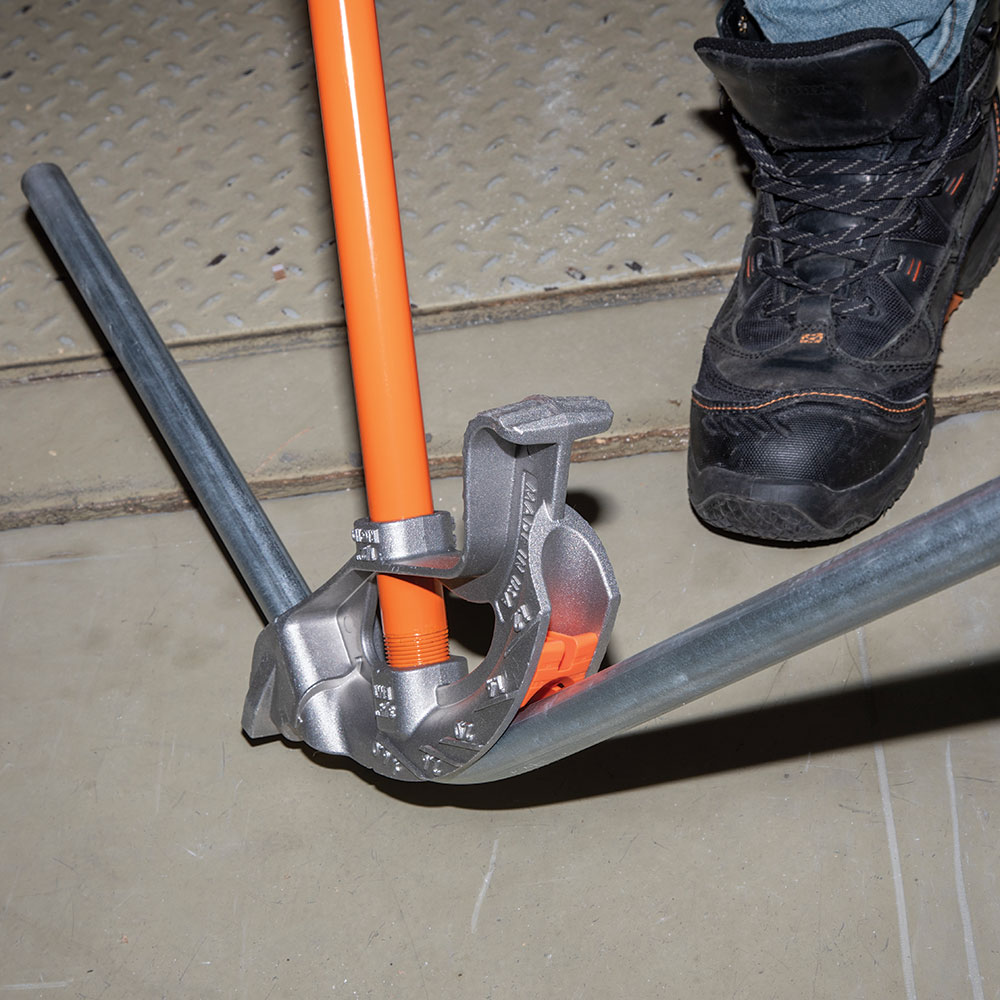

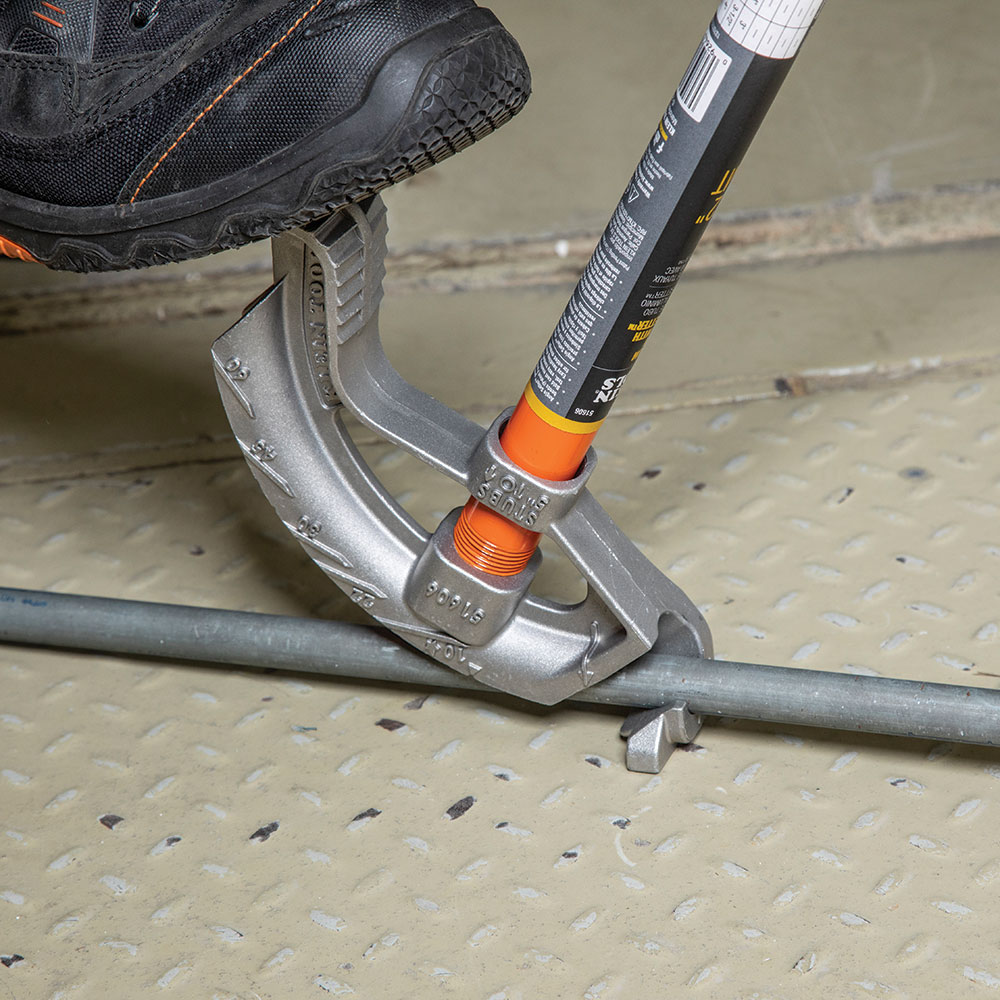

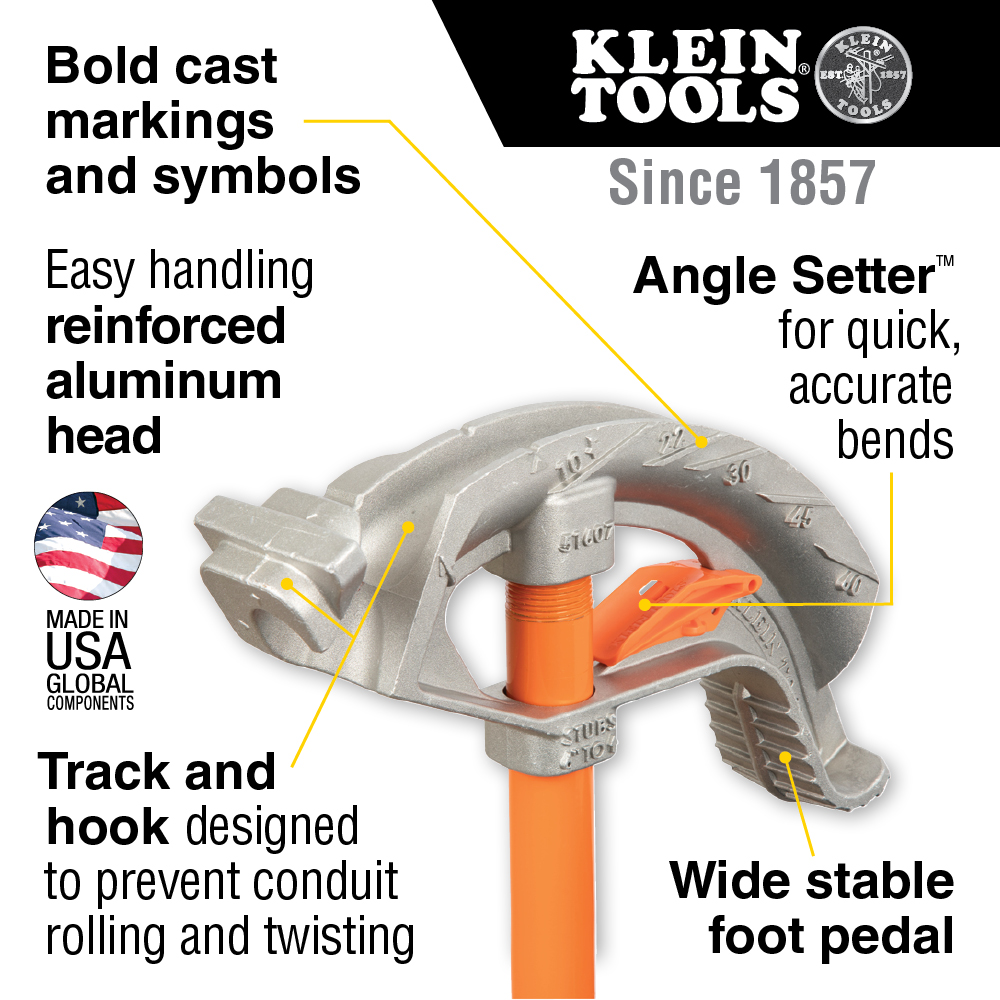

• Wide foot pedal provides excellent stability, leverage, and comfort
• Easy handling aluminum head is reinforced for added strength

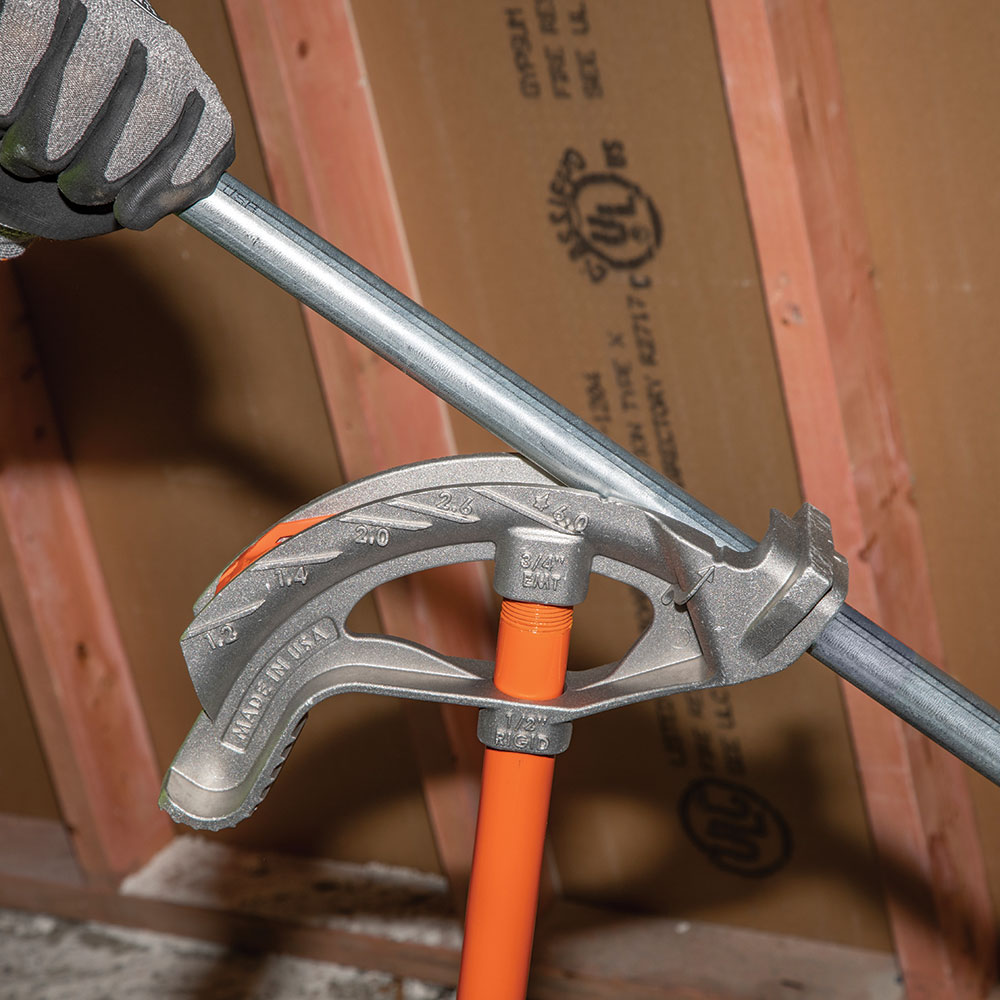

• Bold cast markings and symbols make for fast, easy conduit alignment to make all bend types, including saddle and back-to-back bends
• Includes markings for 10-Degrees, 22.5-Degrees, 30-Degrees, 45-Degrees, 60-Degrees and corresponding offset multipliers

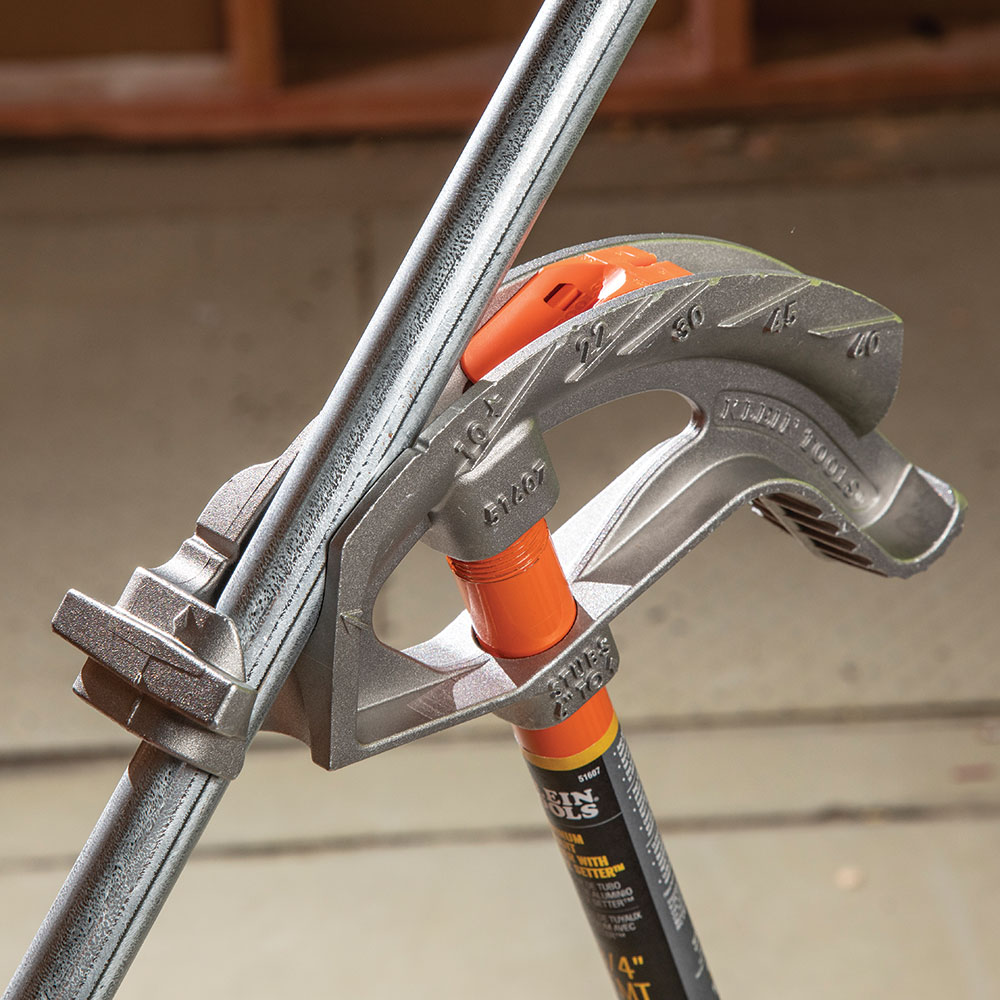

• Interior hook surface prevents conduit from rolling or twisting during bends
• 3/4-Inch assembled Aluminum Bender includes Klein's unique Angle Setter™ technology for time-saving, repeated accurate bends; Patent pending Angle Setter™ for use on 10-, 22.5-, 30-, and 45-Degree bends (adjusted for conduit spring back)

Warnings

• Always wear approved eye protection.
• Use a safe work position to avoid loss of balance.

• Conduit Size: 3/4 in. EMT, 1/2 in. Rigid, 1/2 in. IMC
• Centerline Bend Radius: 5 in., Stub-up Height 6 in., Centerline Radius 5-1/2 in.
• Weight: 5.12 lb (2.32 kg)
• Overall Height: 44.1 in. (112.0 cm)
• Height: 9.625 in. (24.45 cm)
• Width: 2.5 in. (6.35 cm)
• Depth: 39.875 in. (101.3 cm)
• Overall Width: 9.8 in. (24.8 cm)
• Overall Length: 1.9 in. (4.8 cm)
• Handle Length: 38 in. (96.5 cm)
• Material: Aluminum
• Compliance: Patent Pending Angle Setter Technology
• Country of Origin: United States
