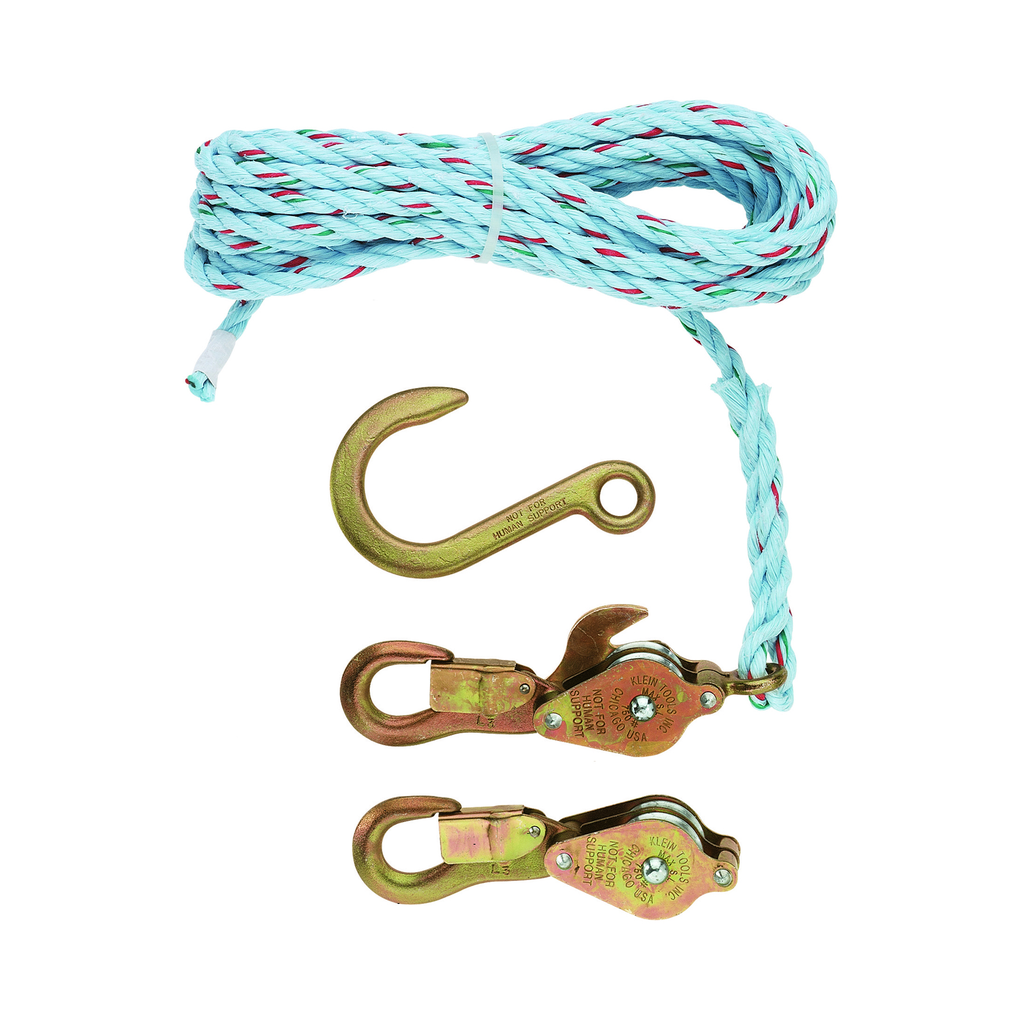

Klein Tools, 1802-30SR, Block and Tackle, 3/8 in Rope Diameter, 25 ft Rope Length, 750 lb Max Load

Light, galvanized-steel shell blocks are fitted with snubbing hooks to hold the load. Sheaves are strong yet lightweight aluminum alloy with all-bronze bushings. Available with standard snap hooks or guarded snap hooks (with snap hook nose lengthened to extend over the latch or keeper).

Features

• Made in USA
• Catalog numbers followed by S/R have rope spliced to block
• Light, galvanized-steel shell blocks are fitted with snubbing hooks to hold the load
• Sheaves are strong yet lightweight aluminum alloy with all-bronze bushings
• All Klein block and tackle use high-quality, 3/8-Inch (10 mm) diameter rope
• Maximum safe load is 750-pound (340 kg)
• 25-Foot (7.62 m) rope length
• Forged hook Cat. No. 258
• These are NOT occupational protective hooks. NOT for human support
• Hooks fit under insulator and engage pin on cross arm

Warnings

• These are NOT occupational protective devices. Do NOT use for human support.

• Maximum Safe Load: 750 lb (340 kg)
• Rope Diameter: 3/8 in (9.53 mm)
• Rope Length: 25 ft (7.6 m)
• Overall Length: 12.096 in
• Overall Height: 5.189 in
• Overall Width: 4.5 in
• Weight: 2.75 lb
• Hook Type: Standard Snap Hook
• Material: Galvanized-Steel Shell Blocks, Aluminum Alloy Bushings, Nylon Rope
• Depth: 12.096 in
• Width: 4.5 in
• Height: 5.189 in
• Country of Origin: USA
