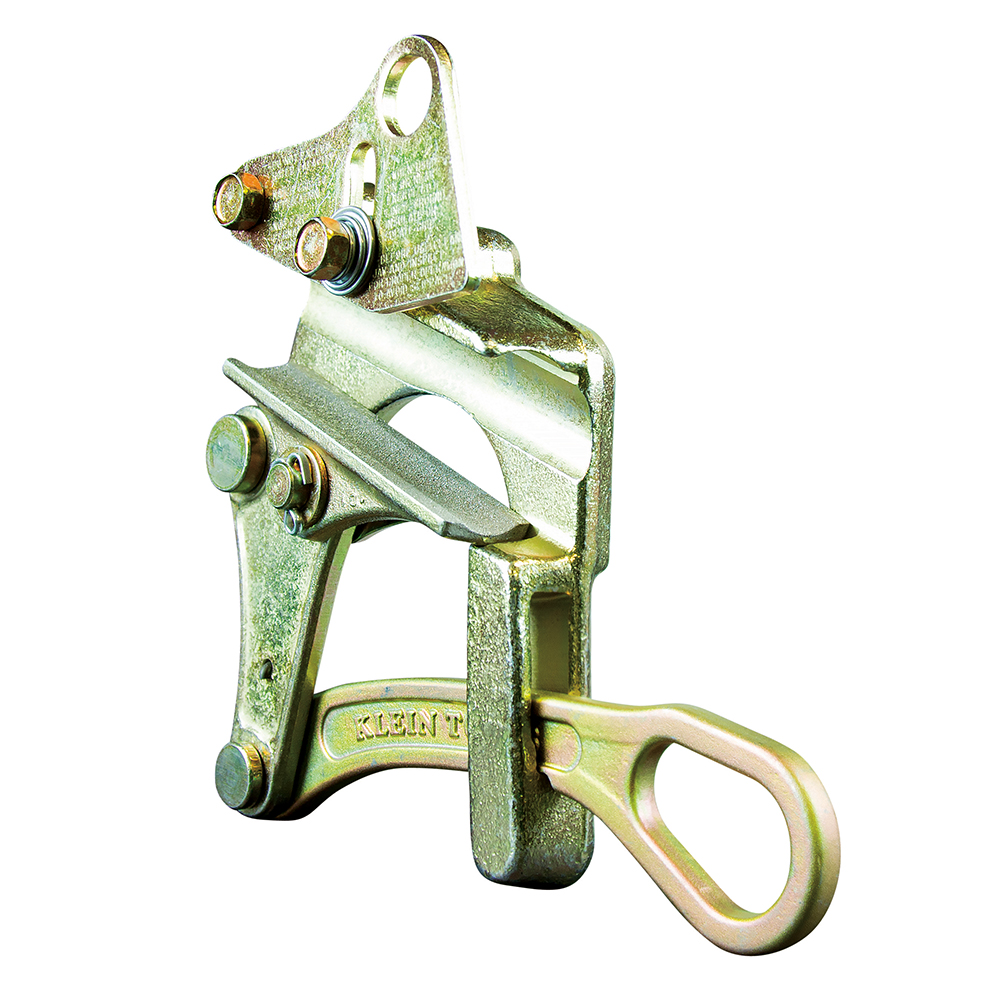

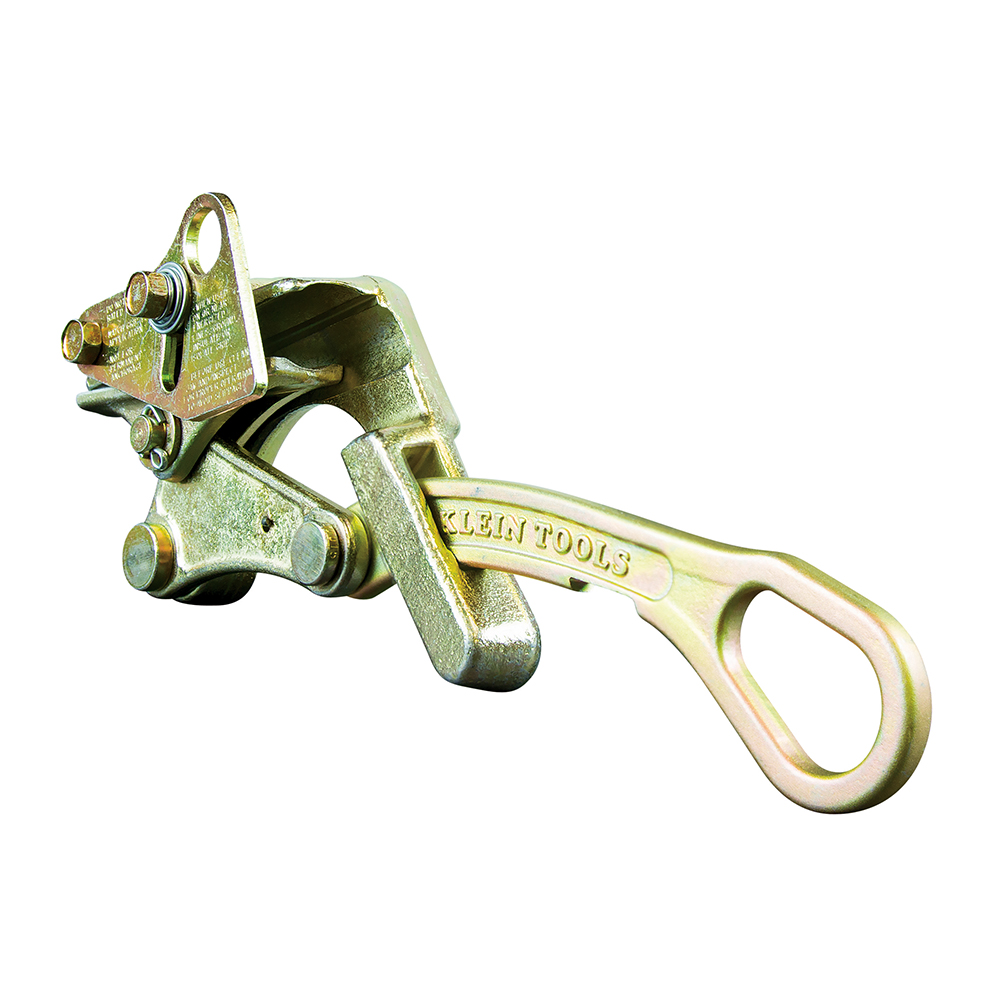

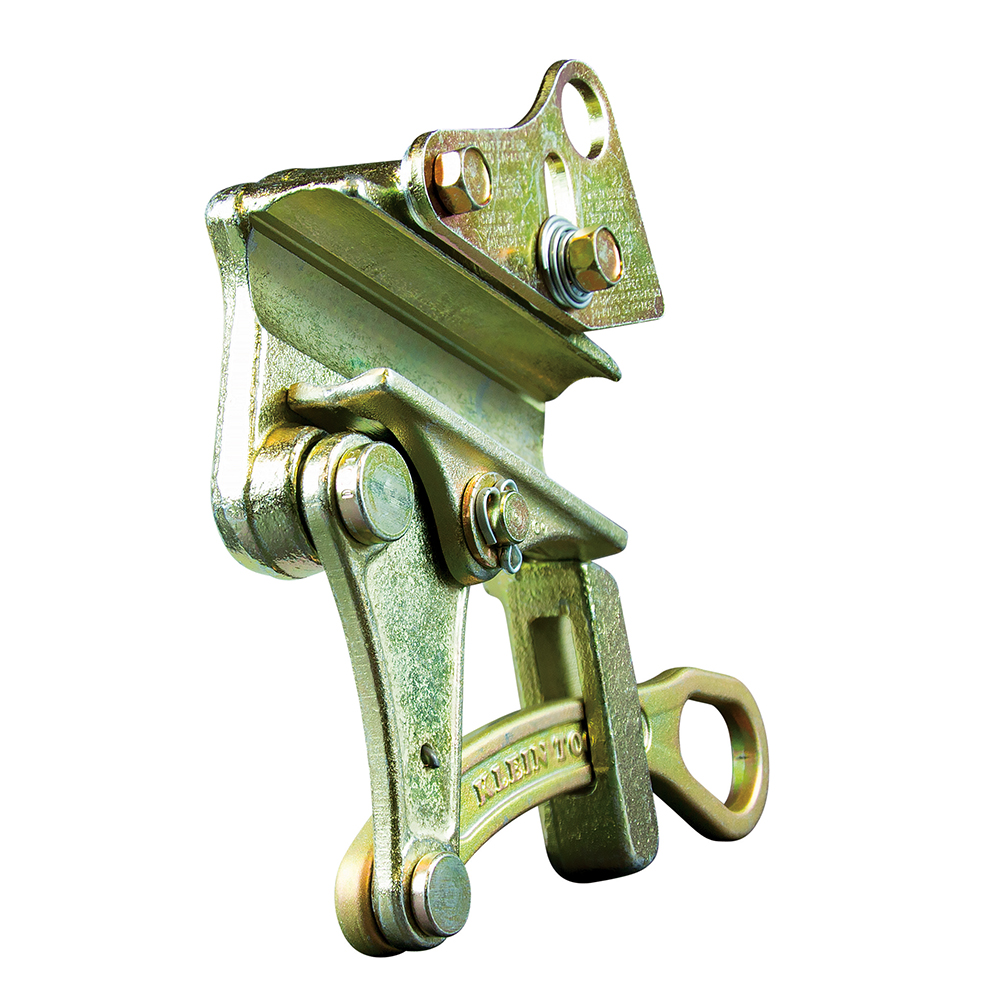

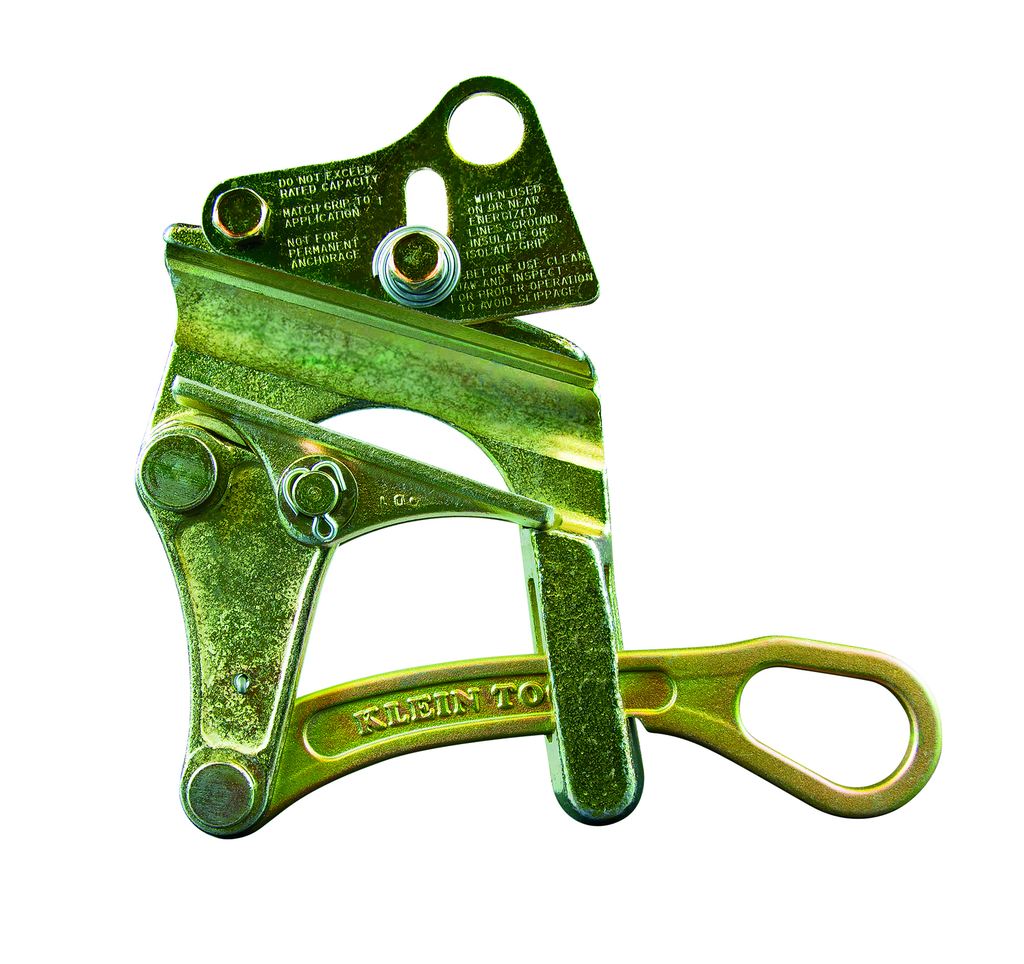

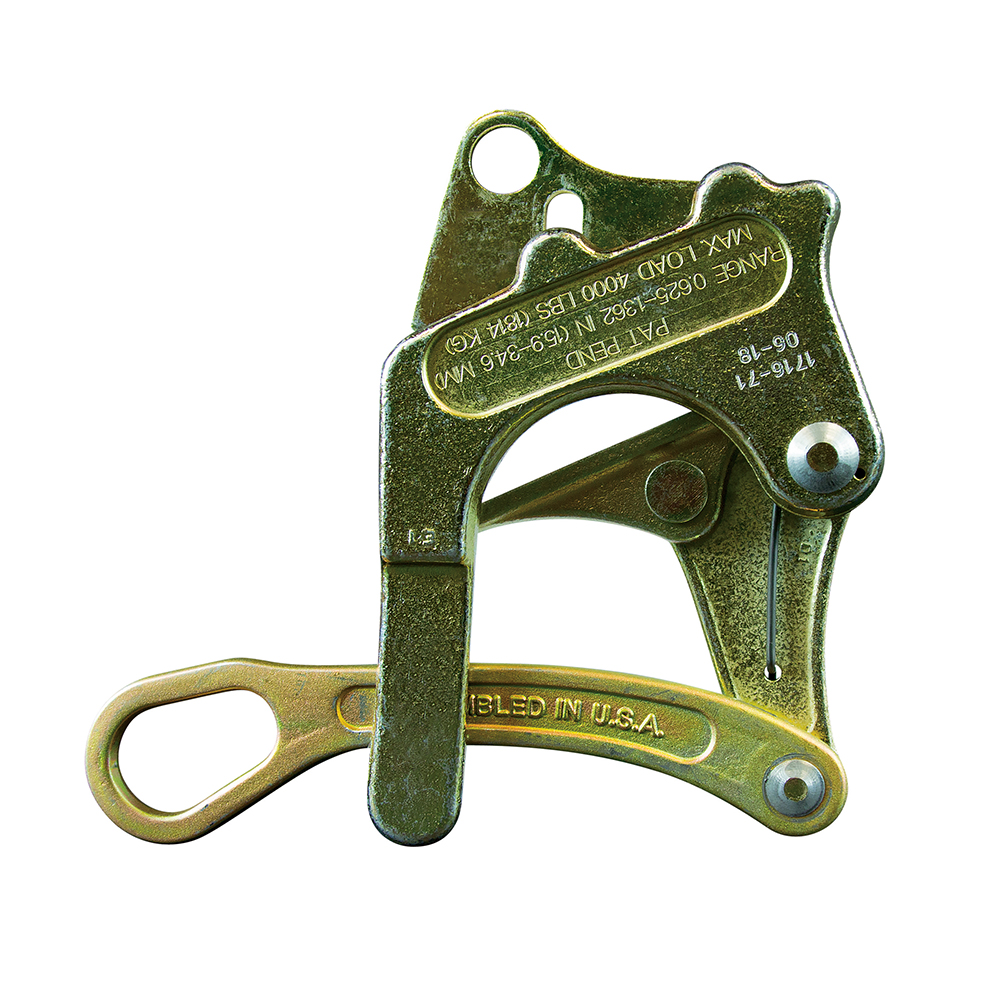

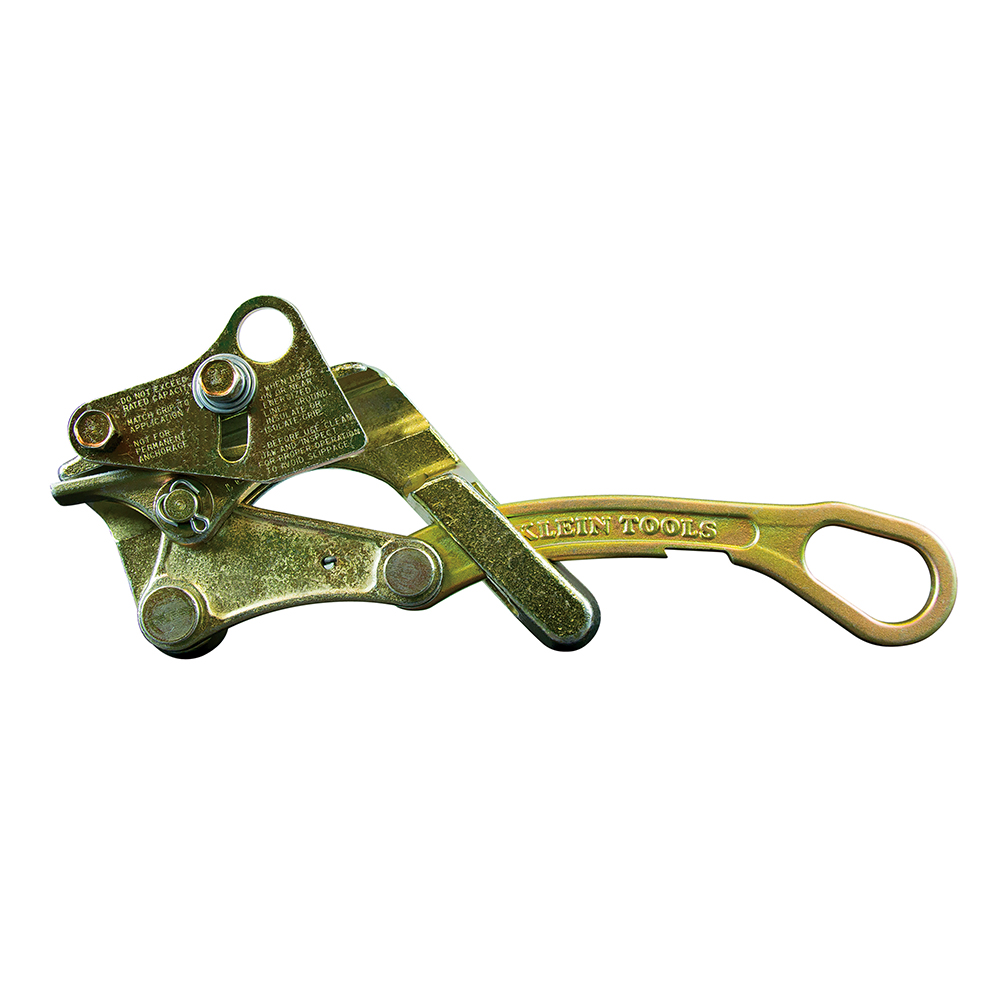

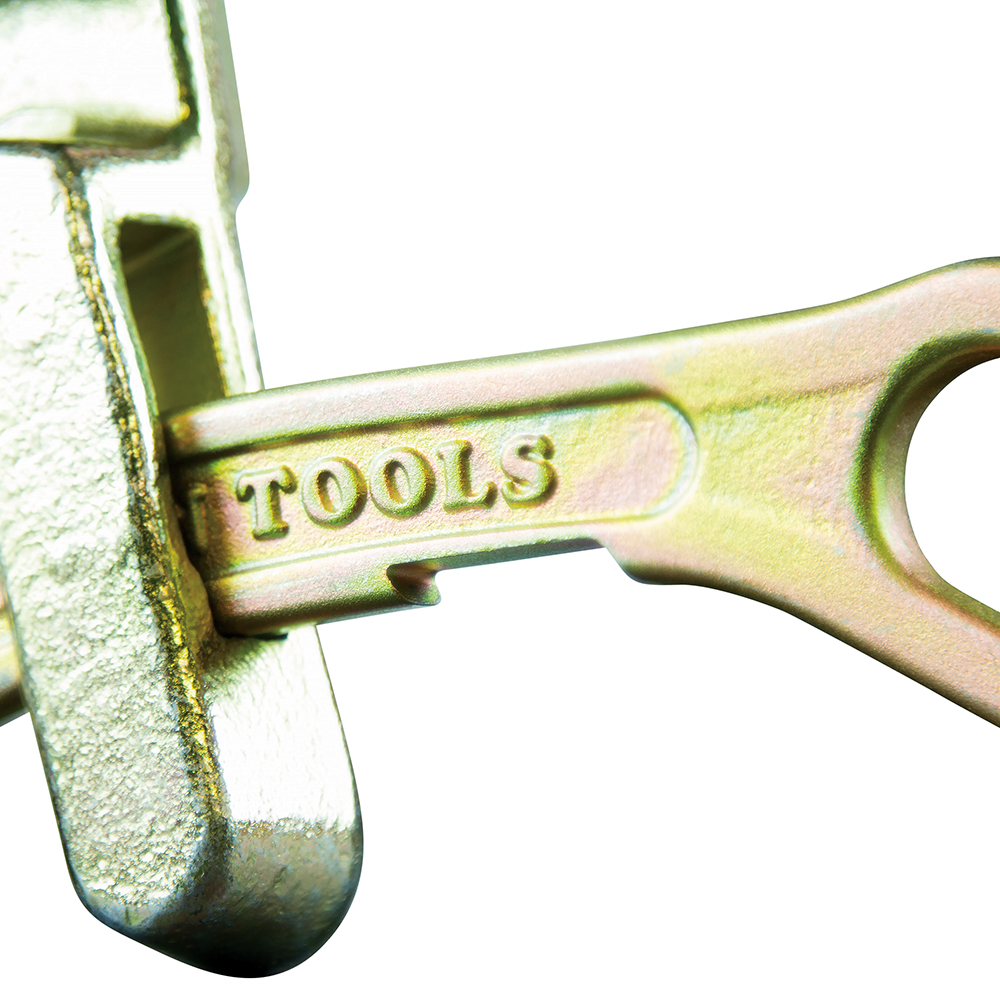

Klein Tools, 1716-71, Parallel Jaw Grip, 4000 lb; 0.625 in to 1.362 in, Steel, Locking Handle

This parallel jaw grip was specifically designed to securely pull slippery HDPE-coated cable or tree wire. The innovative high-traction surface grips the cable without damaging the outer jacket. The tough carbide grit technology withstands even the harshest jobsite conditions. The grip is spring-loaded for one-handed operation and easy placement on the conductor.

Features

• Tough carbide grit technology withstands even the harshest jobsite conditions
• Hendrix® is a registered trademark of Marmon Utility, LLC
• 4,000-Pound (1814 kg) maximum safe load

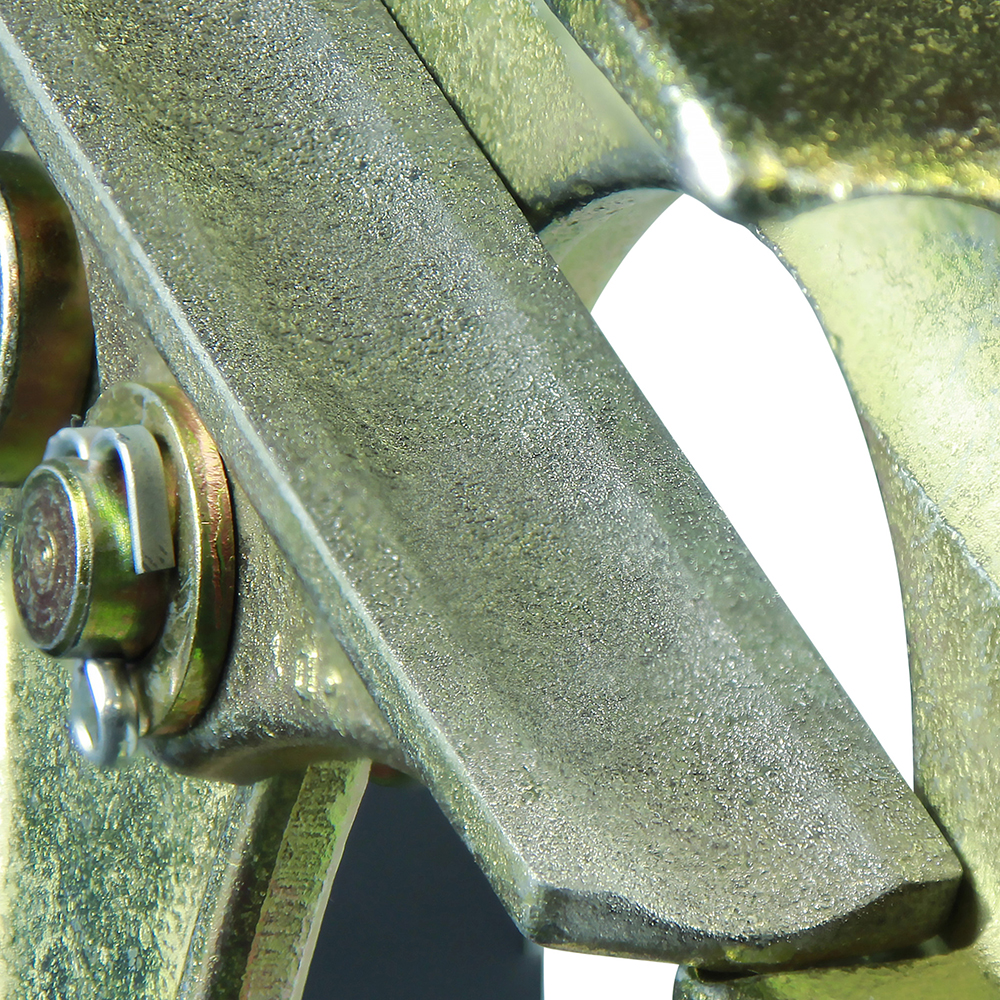

• Innovative high-traction surface grips the cable without damaging the outer jacket
• Spring-loaded for one-handed operation and easy placement on the conductor

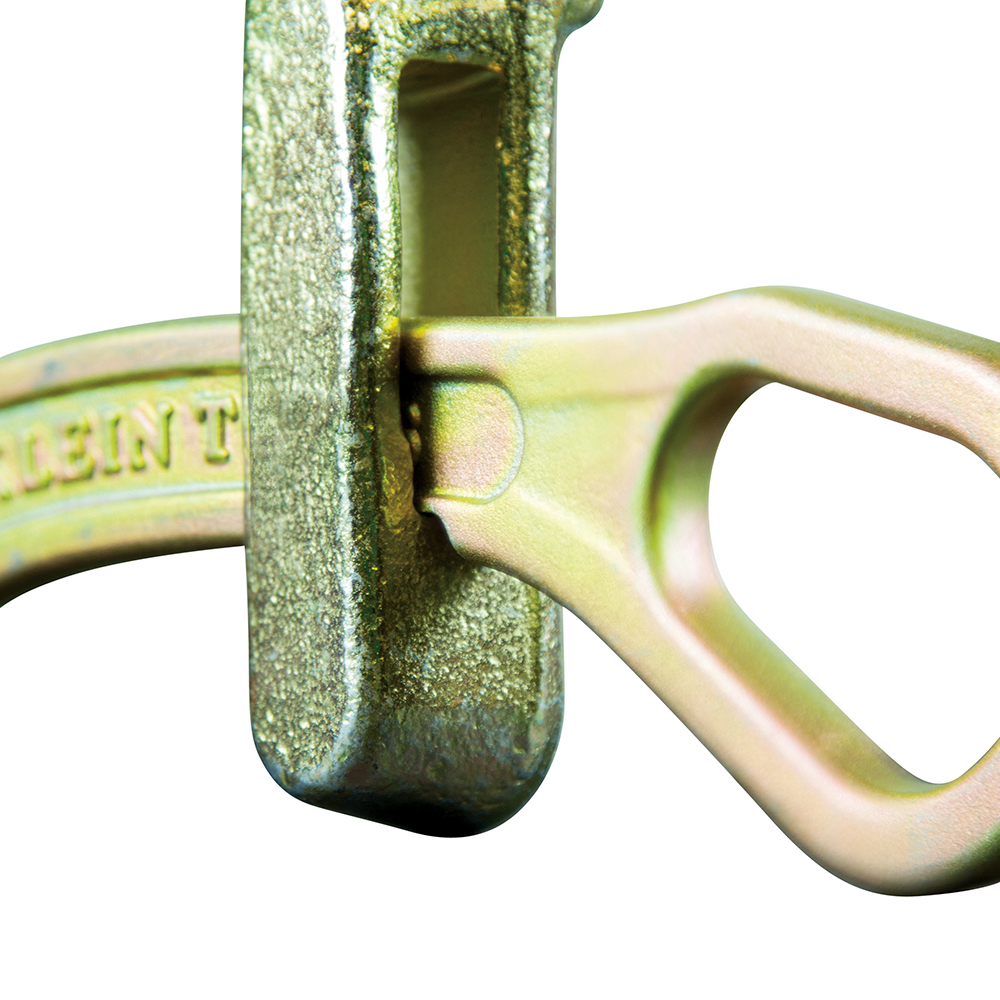

• Locking handle keeps jaw open while using hot stick to place grip on cable
• Securely pulls HDPE-coated cable commonly known as tree wire
• Pulls cable diameters 0.625-Inch to 1.362-Inches (15.9 to 35.0 mm)
• High Traction Grip Surface, Lock
• Common tree wire cable types include general cable, Hendrix® aerial systems, rite lite BLL conductor and Southwire® S2 covered cable
• Southwire® is a registered trademark of Southwire Company, LLC

Warnings

• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Do not exceed rated capacity.
• Always match proper size and type of grip to application.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.

• Maximum Safe Load: 4000 lb (1814 kg)
• Cable Diameter: 0.625 in to 1.362 in (15.9 to 34.6 mm)
• Overall Length: 13.05 in (17.7 cm)
• Width: 6.975 in (7 cm)
• Overall Height: 8.5 in (21.6 cm)
• Jaw Length: 4.5 in (11.4 cm)
• Depth: 13.05 in
• Height: 2.925 in
• Type: Parallel Jaw Grip
• Application: Wire Pulling
• Material: Steel
• Cable Type: HDPE-Coated
• Locking Handle: Yes
• Jaw Type: Round
• Swing Latch: No
• Hot Latch: Yes
• Spring: Yes
• Teeth Type: Grit
• Standard: OSHA
• Weight: 5.075 lb
