Klein Tools, 1716-70, Parallel Jaw Grip, Cable Diameter 0.625 in to 1.362 in, Max Safe Load 4000 lb, High Traction Grip

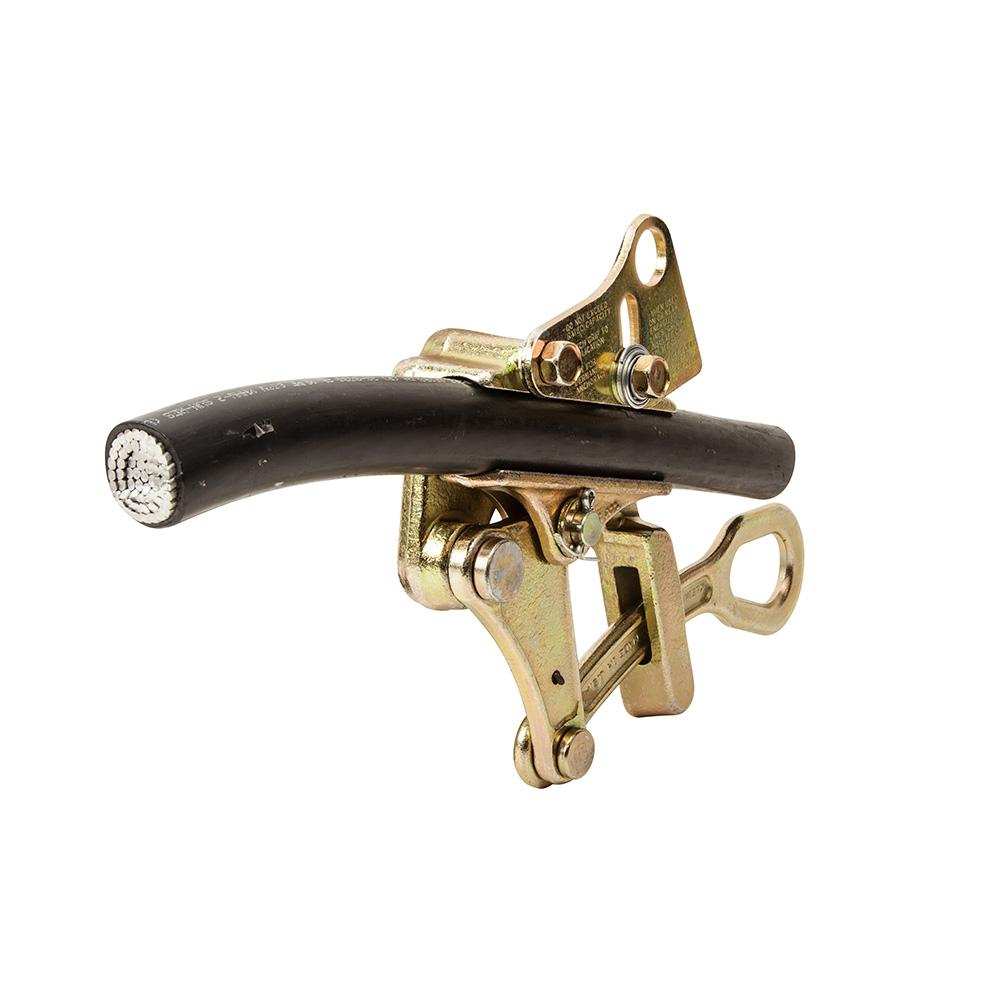

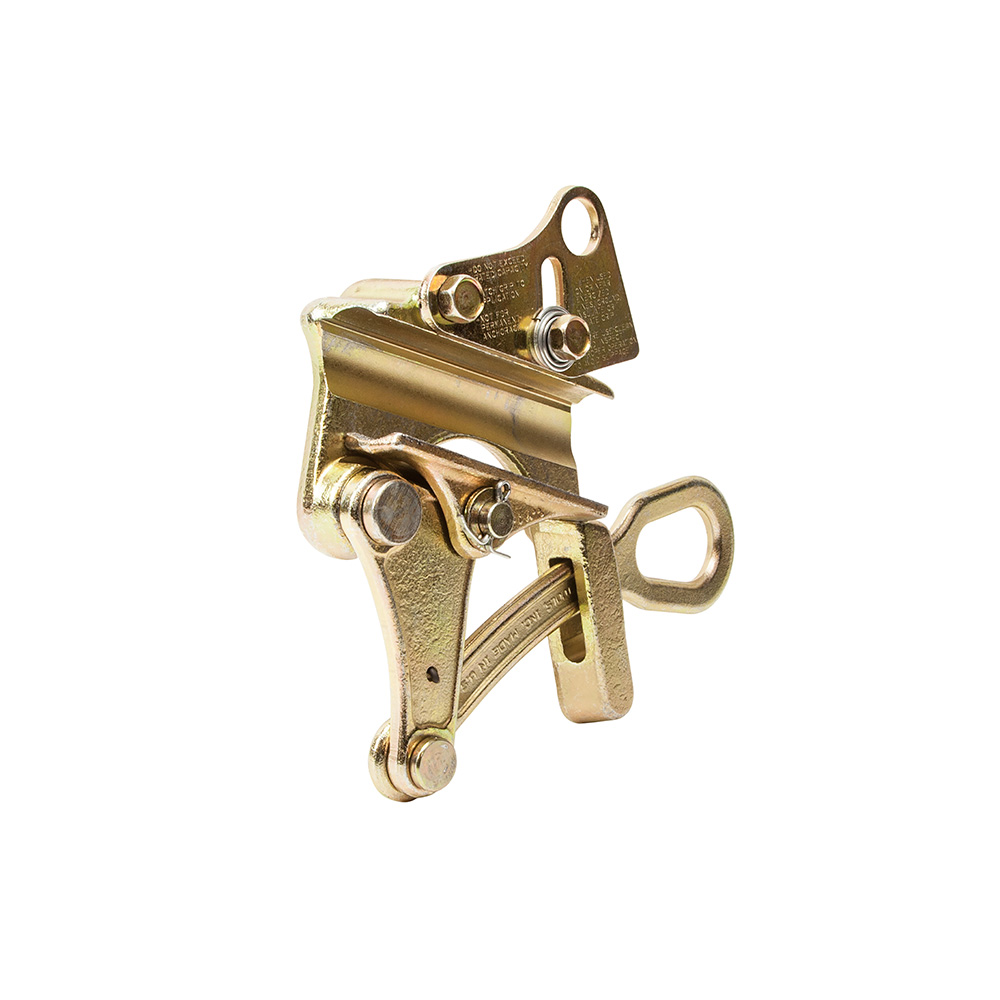

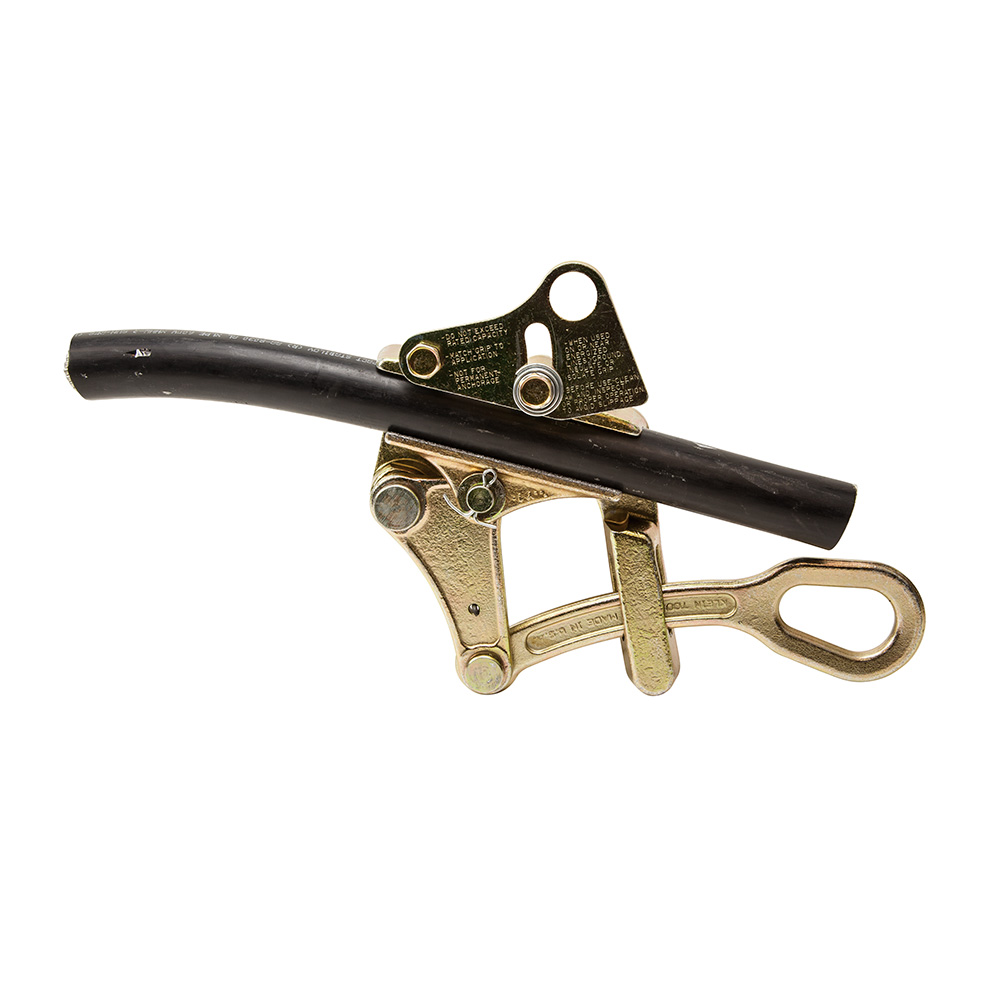

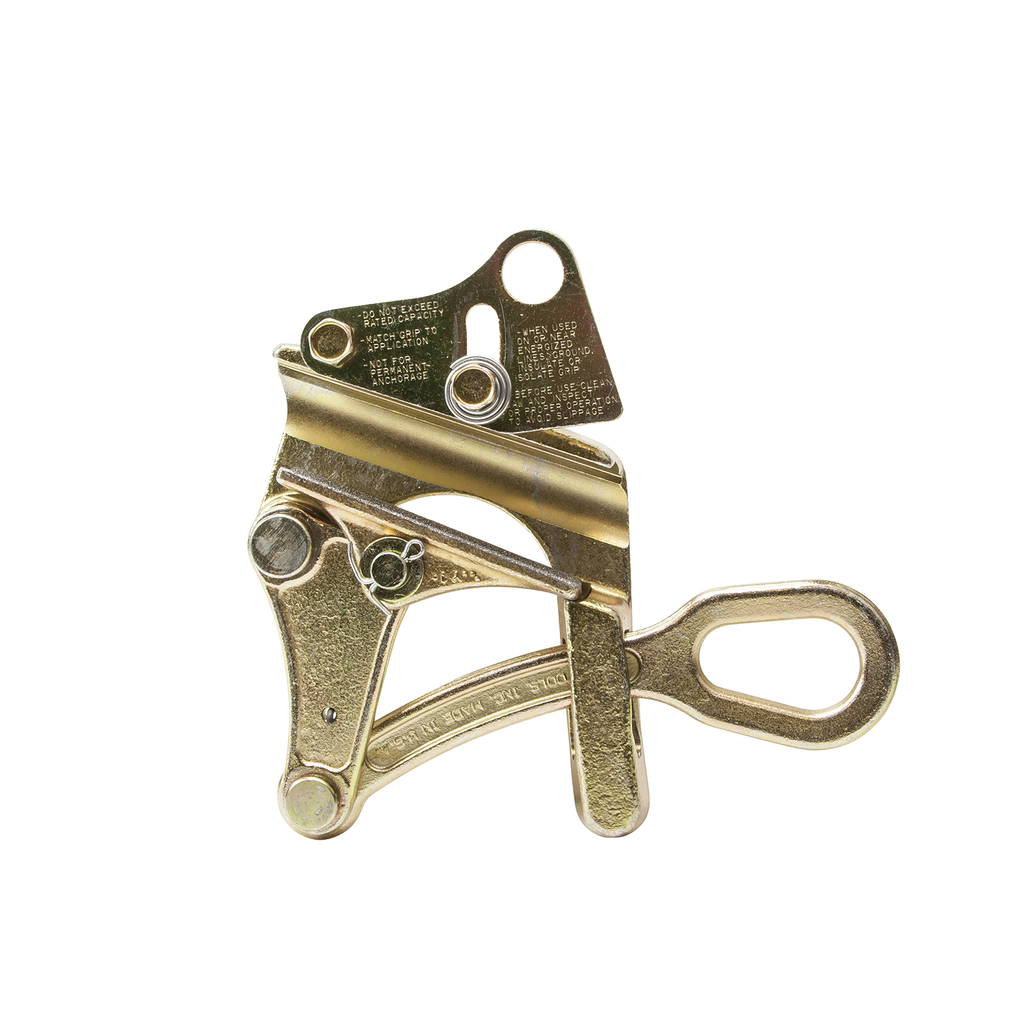

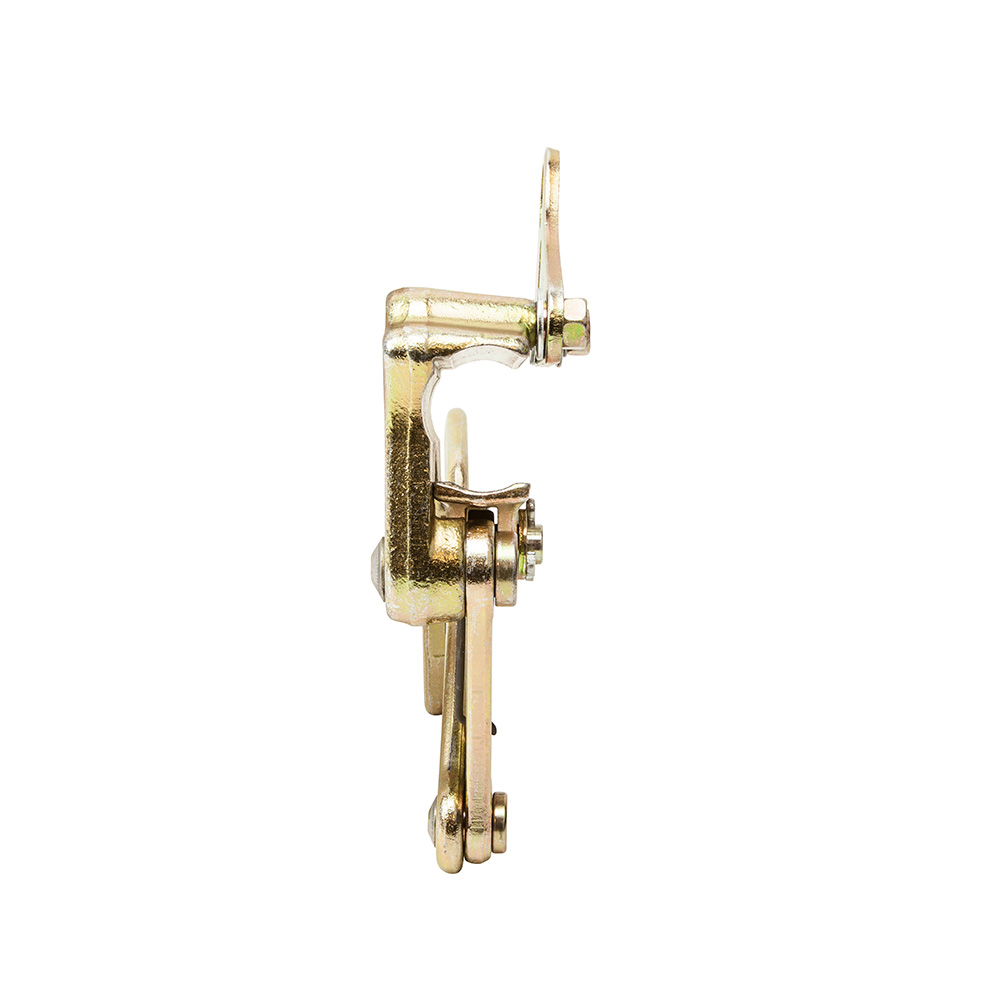

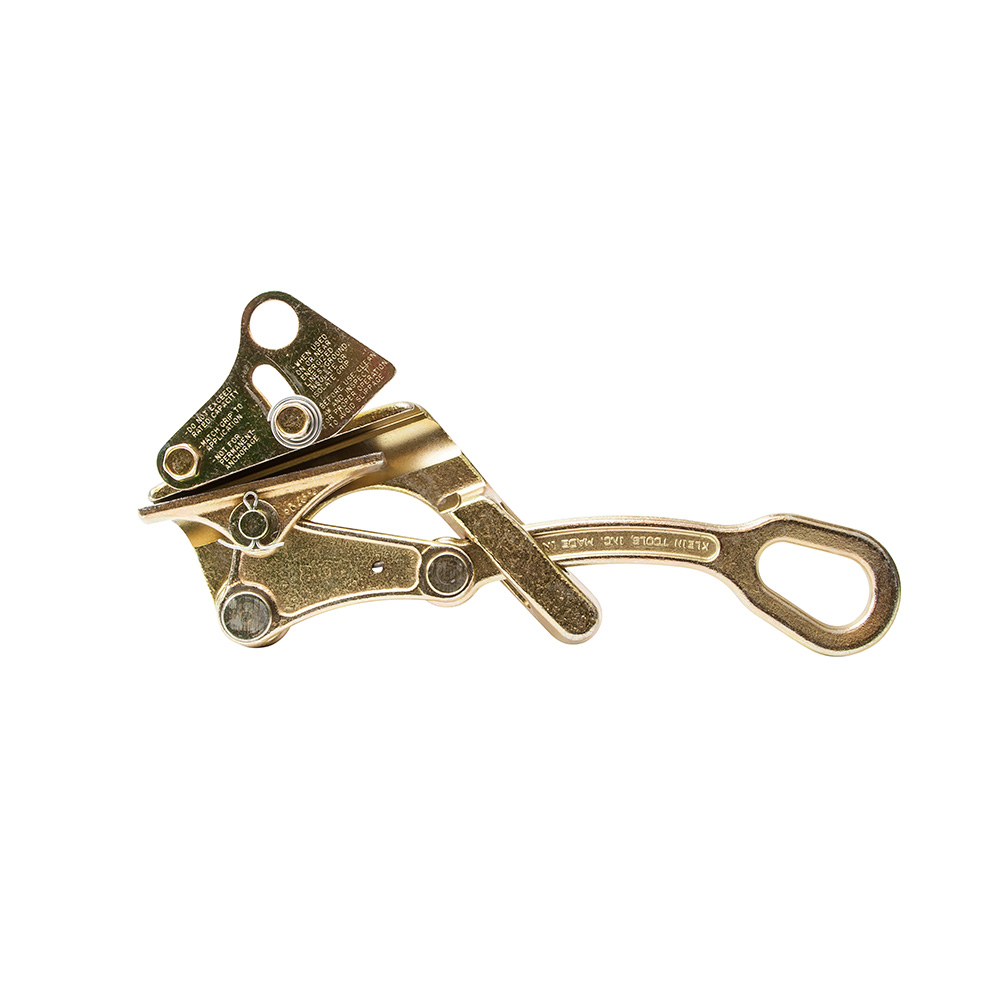

This parallel jaw grip was specifically designed to securely pull slippery HDPE-coated cable or tree wire. The innovative high-traction surface grips the cable without damaging the outer jacket. The tough carbide grit technology withstands even the harshest jobsite conditions. The grip is spring-loaded for one-handed operation and easy placement on the conductor.

Features

• Securely pulls HDPE-coated cable commonly known as tree wire
• Spring-loaded for one-handed operation and easy placement on the conductor
• Common tree wire cable types include general cable, Hendrix® aerial systems, rite lite BLL conductor and Southwire® S2 covered cable
• Hendrix® is a registered trademark of Marmon Utility, LLC
• Tough carbide grit technology withstands even the harshest jobsite conditions
• Innovative high-traction surface grips the cable without damaging the outer jacket
• Southwire® is a registered trademark of Southwire Company, LLC
• Pulls cable diameters 0.625-Inch to 1.362-Inch (15.875 to 34.595 mm) with Max Safe Load: 4000-Pound (1814 kg)
• Made in USA
• High Traction Grip Surface

Warnings

• Do not exceed rated capacity.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Always match proper size and type of grip to application.

• Maximum Safe Load: 4000 lb (1814 kg)
• Cable Diameter Range: 0.625 in to 1.362 in (15.9 mm to 34.6 mm)
• Overall Length: 12.5 in (31.8 cm)
• Overall Height: 8.5 in (21.6 cm)
• Overall Width: 2.75 in (7 cm)
• Jaw Length: 4.5 in (11.4 cm)
• Depth: 13.05 in
• Width: 6.975 in
• Height: 2.925 in
• Weight: 5.075 lbs
• Jaw Type: Round
• Cable Type: HDPE-Coated
• Material: Steel, Carbide Grit
• Grip Type: Parallel Jaw Grip
• Teeth Type: Grit
• Locking Handle: No
• Hot Latch: Yes
• Spring: Yes
• Swing Latch: No
• Standard: OSHA
• Operation: Spring-loaded, One-handed
• Grip Surface: High Traction
• Country of Origin: USA
