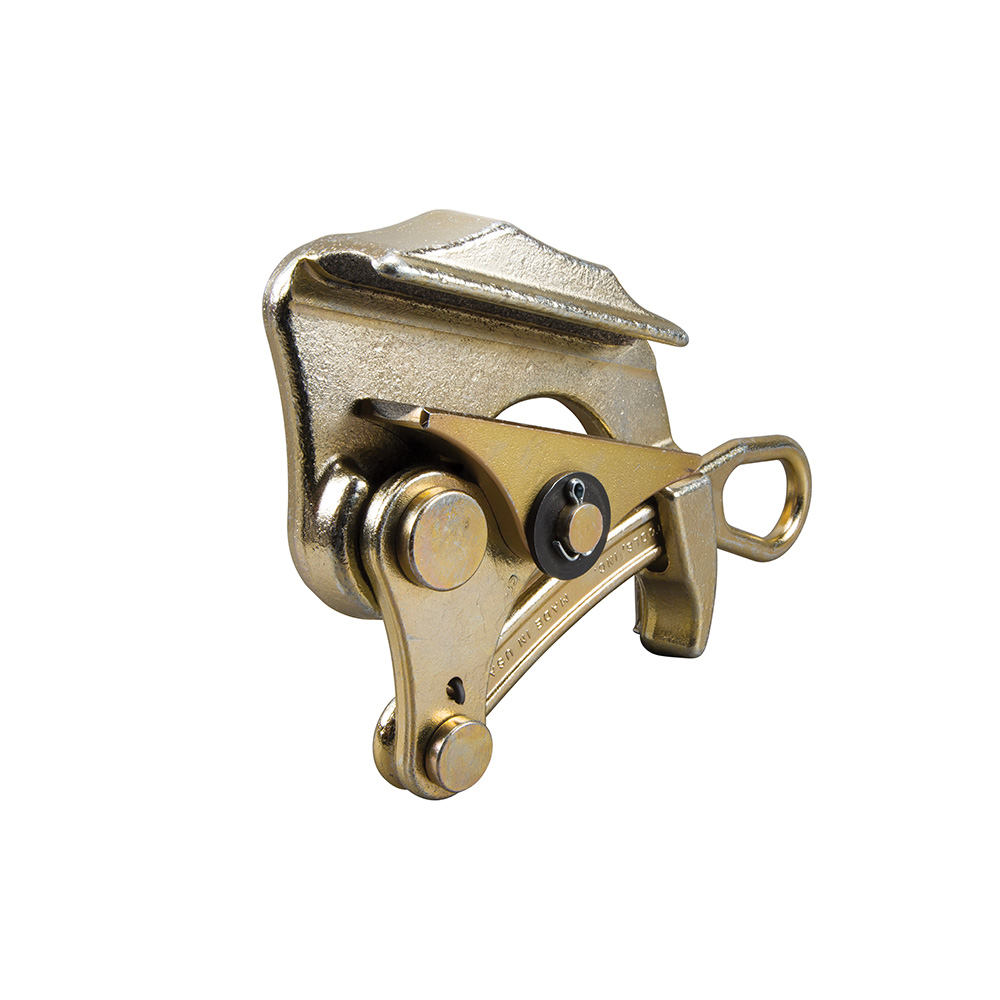

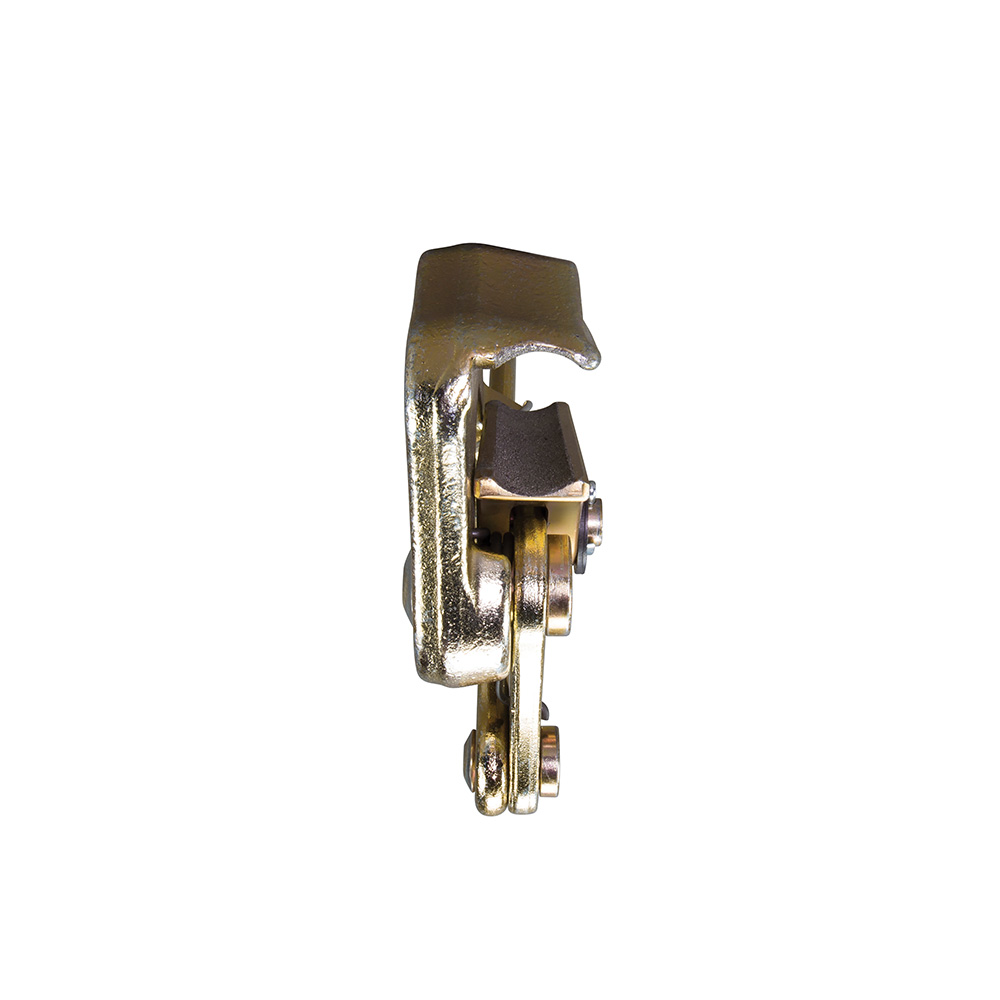

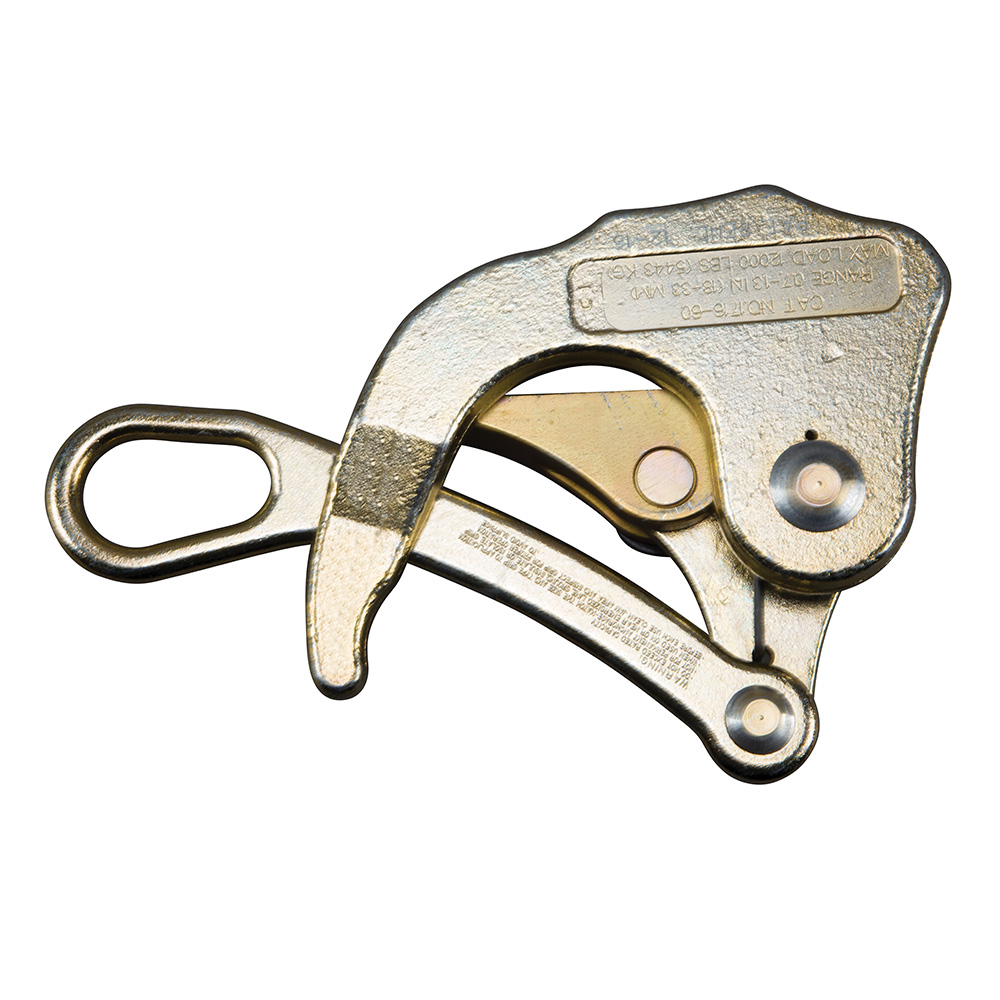

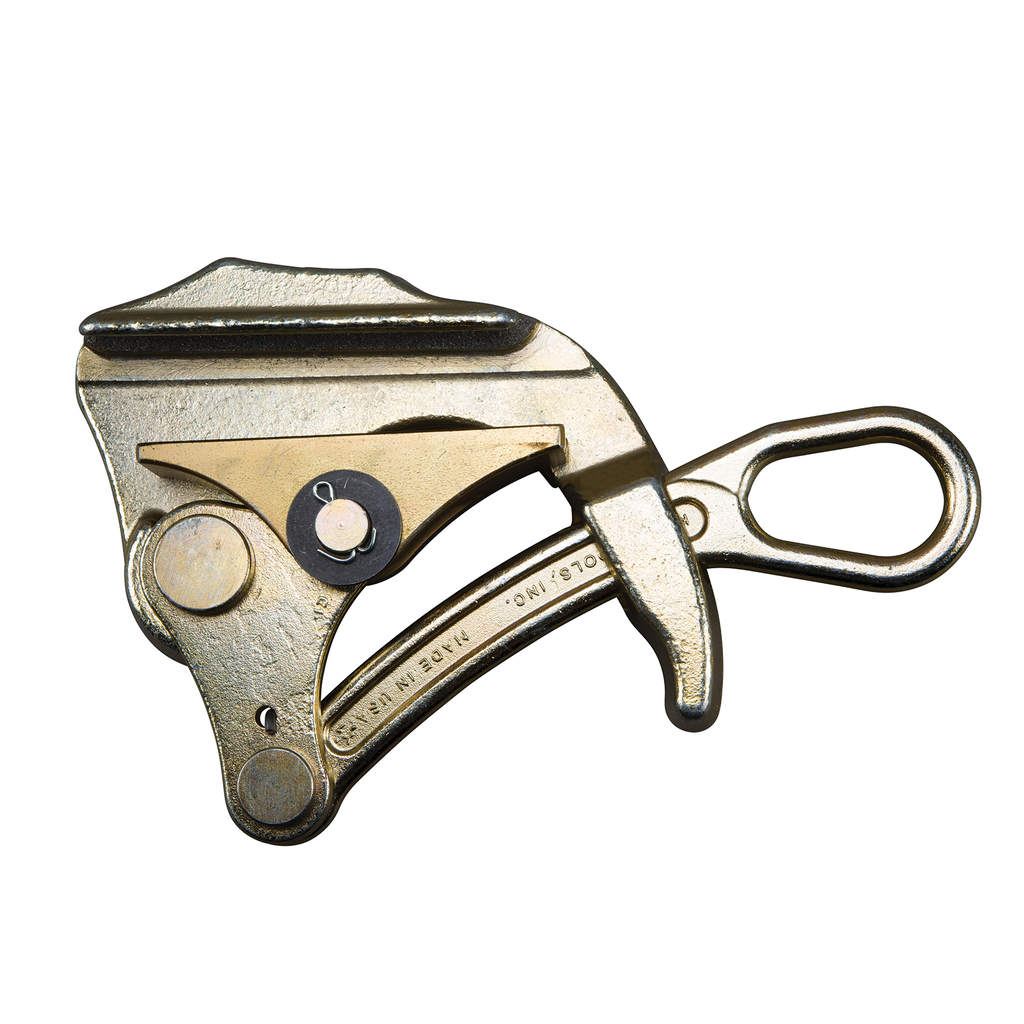

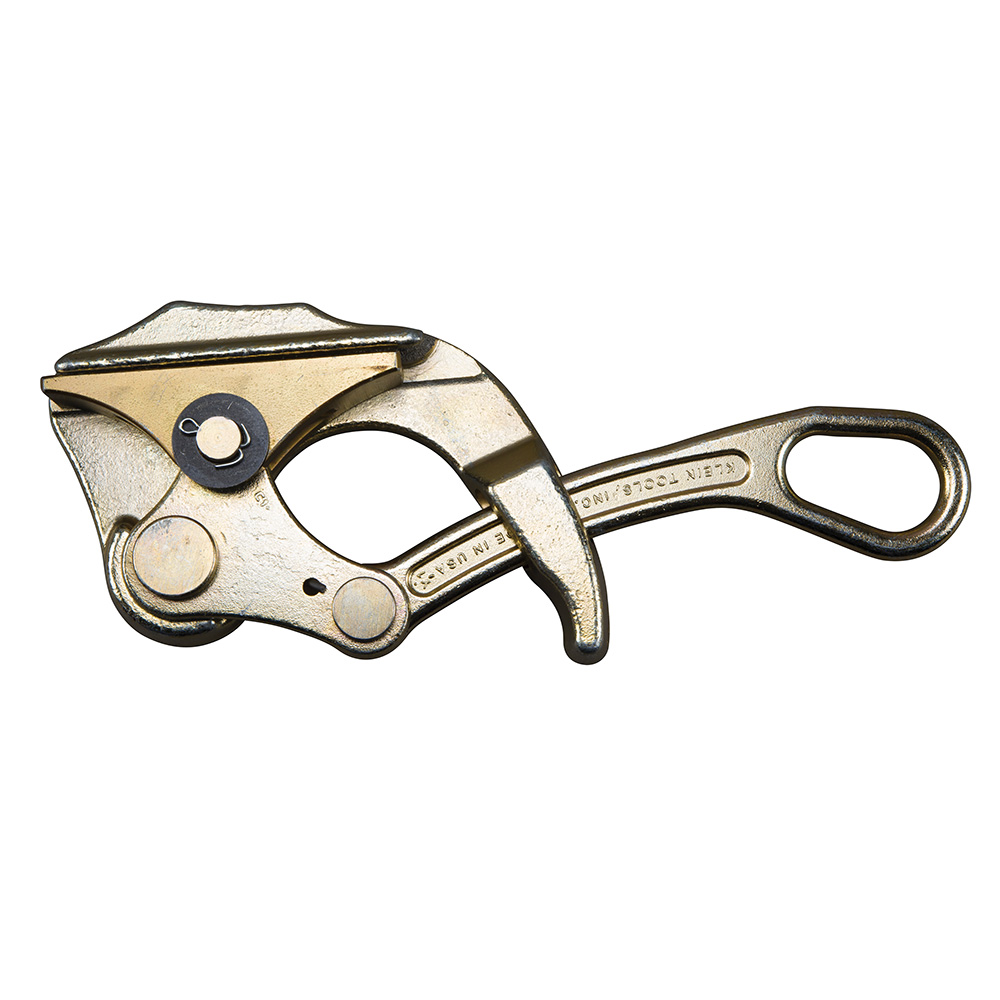

Klein Tools, 1716-60, Parallel Jaw Grip, 0.7 to 1.3 in Cable Diameter, Maximum Load 12,000 lb, Spring-Loaded

This Parallel Jaw grip was specifically designed to securely pull slippery HDPE-coated cable or tree wire. The innovative high-traction surface grips the cable without damaging the outer jacket. The tough carbide grit technology withstands even the harshest jobsite conditions. The grip is spring-loaded for one-handed operation and easy placement on the conductor.

Features

• Hendrix® is a registered trademark of Marmon Utility, LLC
• Innovative high-traction surface grips the cable without damaging the outer jacket; pulls cable diameters 0.7 to 1.3-Inch (1.8 to 3.3 cm)
• Southwire® is a registered trademark of Southwire Company, LLC
• Spring-loaded for one-handed operation and easy placement on the conductor
• Made in USA
• Common tree wire cable types include General Cable, Hendrix® aerial systems, Rite Lite BLL conductor and Southwire S2 covered cable

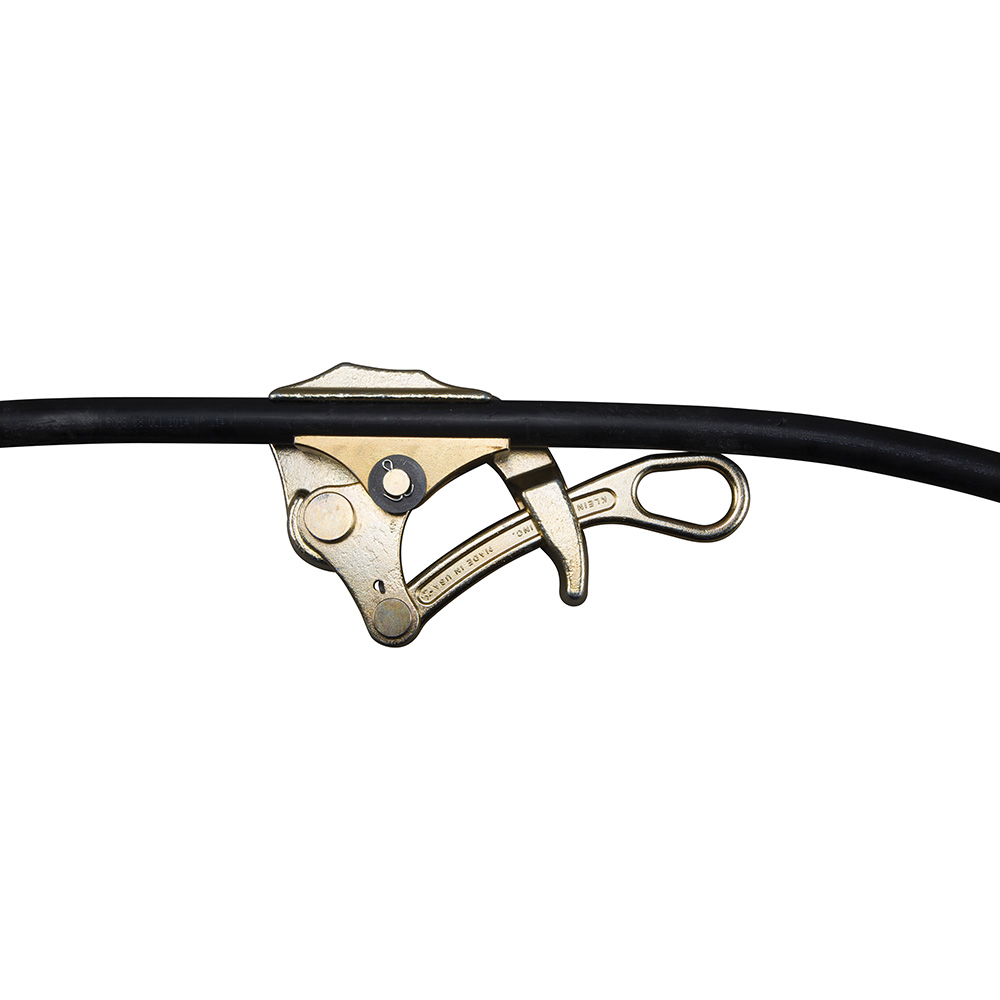

• Securely pulls HDPE-coated cable commonly known as tree wire
• Tough carbide grit technology withstands even the harshest jobsite conditions

Warnings

• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Do not exceed rated capacity.
• Always match proper size and type of grip to application.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.

• Maximum Safe Load: 12,000 lb (5,443 kg)
• Cable Diameter Range: 0.7 to 1.3 in (17.78 to 33.02 mm)
• Jaw Length: 5.125 in (13 cm)
• Weight: 8.1 lb (3.7 kg)
• Width: 6.975 in
• Depth: 13.05 in
• Height: 2.925 in
• Jaw Type: Round
• Type: Parallel Jaw Grip
• Teeth Type: Grit
• Material: Steel
• Cable Type: HDPE-Coated
• Spring: Yes
• Operation: Spring-loaded, one-handed
