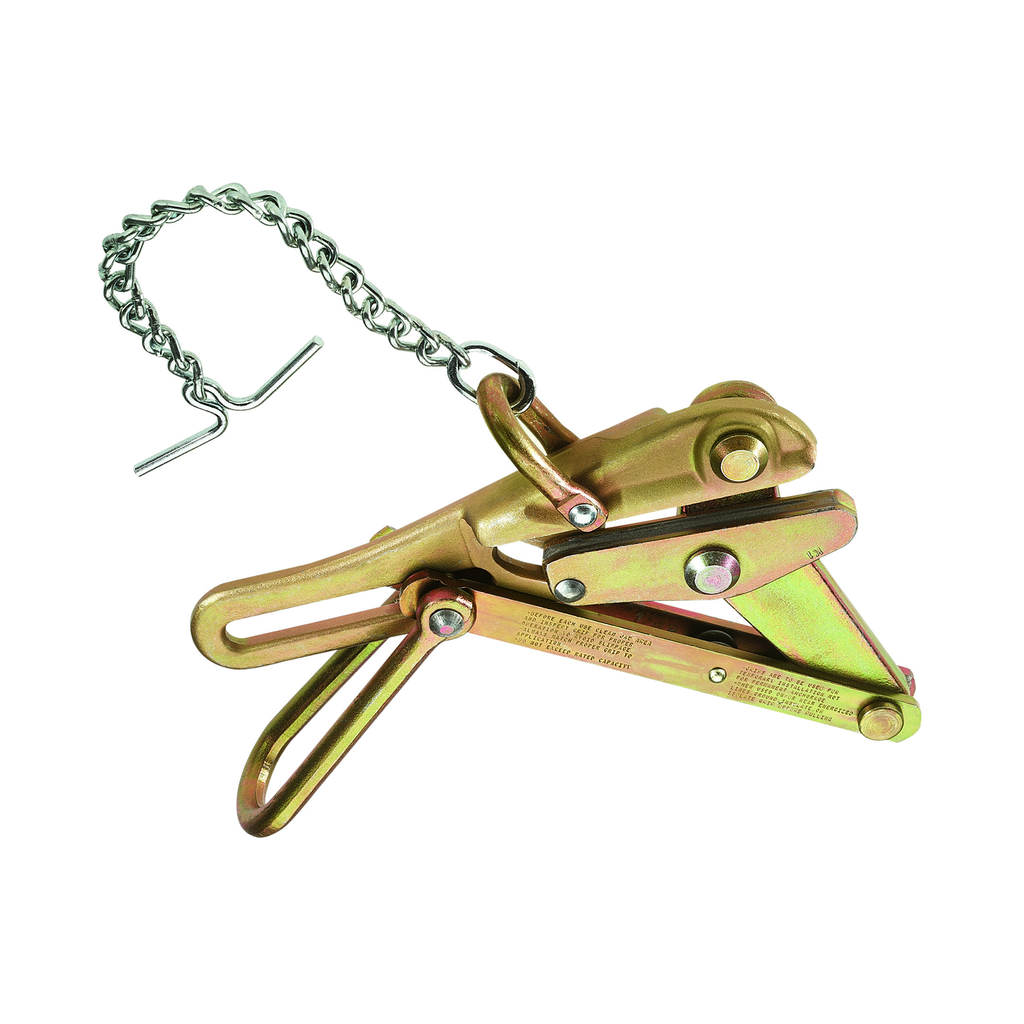

Klein Tools, 1692-5AT, Chicago Grip, 8000 lb Max Load, 0.218 to 0.55 in Cable Diameter, 5 in Jaw Length

Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. The Chicago style grip was designed for cable sizes from 0.12-Inch to 1.0-Inch (3.10 to 25.4 mm). Equipped with chain, toggle and shackle. For support wire 0.134-Inch and larger, refer to 1659 series. Outside diameter of support wire includes thickness of polyethylene coating.

Warnings

• Grips are to be used for temporary installation, not for permanent anchorage.
• Always match proper size and type of grip to application.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Do not exceed rated capacity.

Features

• For support wire 0.134 and larger, refer to 1659 series
• For 0.218 to 0.550-Inch (5.54 to 13.97 mm) diameter cable range with Max Safe Load of 8000-Pound (3629 kg)
• Equipped with chain, toggle and shackle to keep grip from falling off the cable
• Outside diameter of support wire includes thickness of polyethylene coating
• Made in USA

• Maximum Safe Load: 8000 lb (3629 kg)
• Cable Diameter: 0.218 in to 0.55 in (5.54 to 13.97 mm)
• Jaw Length: 5 in (12.7 cm)
• Width: 5 in
• Depth: 10 in
• Height: 2 in
• Weight: 0.1 lb
• Material: Steel
• Jaw Type: Double V
• Teeth Type: Smooth
• Type: Chicago Grip
• Application: Wire Pulling
• Locking Handle: Yes
• Swing Latch: No
• Hot Latch: No
• Spring: Yes
• Cable Type: Messenger, Guy Strand
