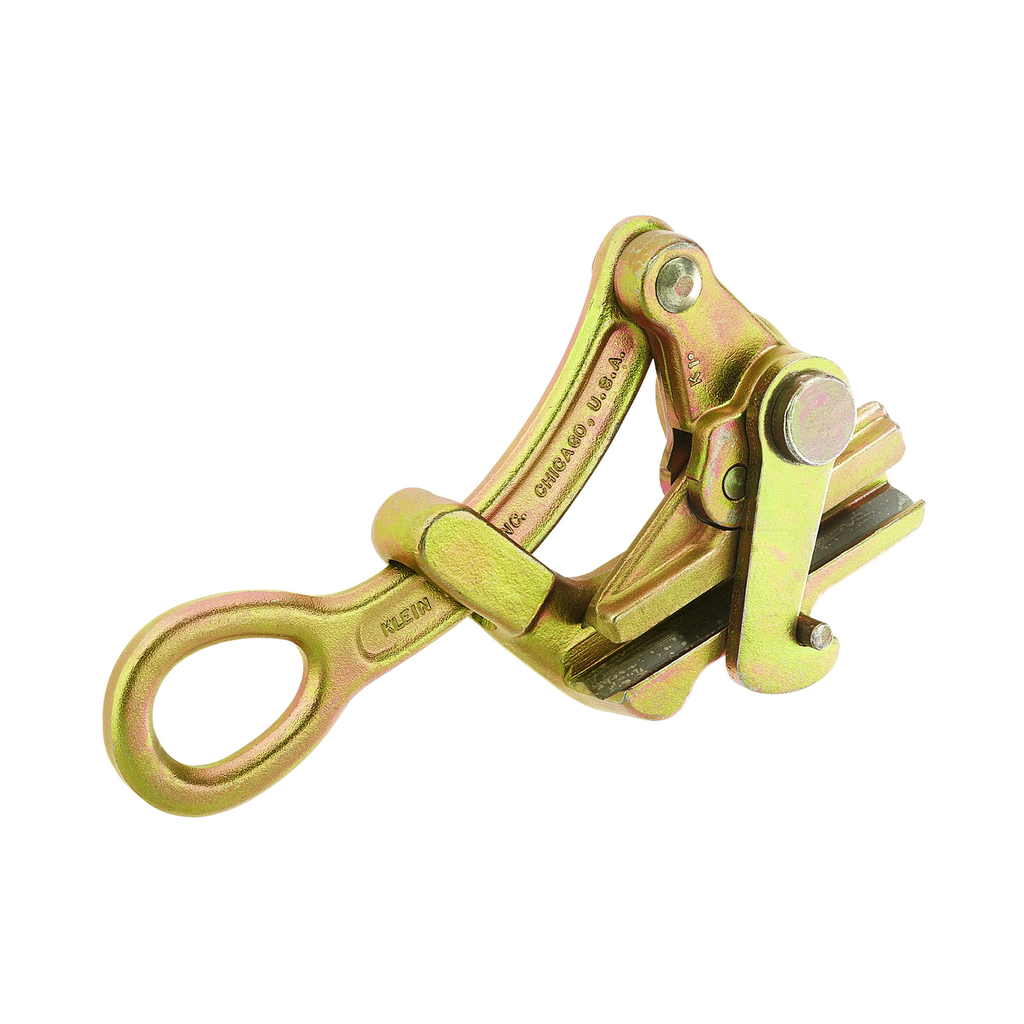

Klein Tools, 1686-20, Parallel Jaw Grip, Max Load 10,000 lb, Jaw Length 4.375 in, Cable Diameter 0.2 to 0.4 in

Longer knurled jaws achieve a firm hold, reducing possibility of slippage and damage to cable. Design includes a latch, plus a large-diameter eye that accommodates large hooks on hoists, winches and tackle blocks. When latch is closed, it helps maintain cable position in grip jaws.

Warnings

• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Always match proper size and type of grip to application.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Do not exceed rated capacity.

Features

• Made in USA
• Longer Jaw and Large Diameter Eye
• Longer jaws achieve a firm hold, reducing possibility of slippage and damage to cable
• When latch is closed, it helps maintain cable position in grip jaws
• Design includes a latch, plus a large-diameter eye that accommodates large hooks on hoists, winches and tackle blocks
• Same as Cat. No. 1686-10, but with knurled jaws

• Maximum Safe Load: 10,000 lb (4536 kg)
• Overall Length: 7.2 in (18.3 cm)
• Jaw Length: 4.375 in (11.1 cm)
• Cable Diameter: 0.2 in to 0.4 in (5.08 to 10.16 mm)
• Weight: 4.6260 lbs
• Width: 4.5 in
• Height: 1.8 in
• Depth: 7.2 in
• Material: Steel
• Jaw Type: Double V
• Teeth Type: Coarse
• Cable Type: Aircraft, Messenger, Guy Strand
• Type: Parallel Jaw Grip
• Swing Latch: No
• Spring: No
• Locking Handle: No
• Hot Latch: No
