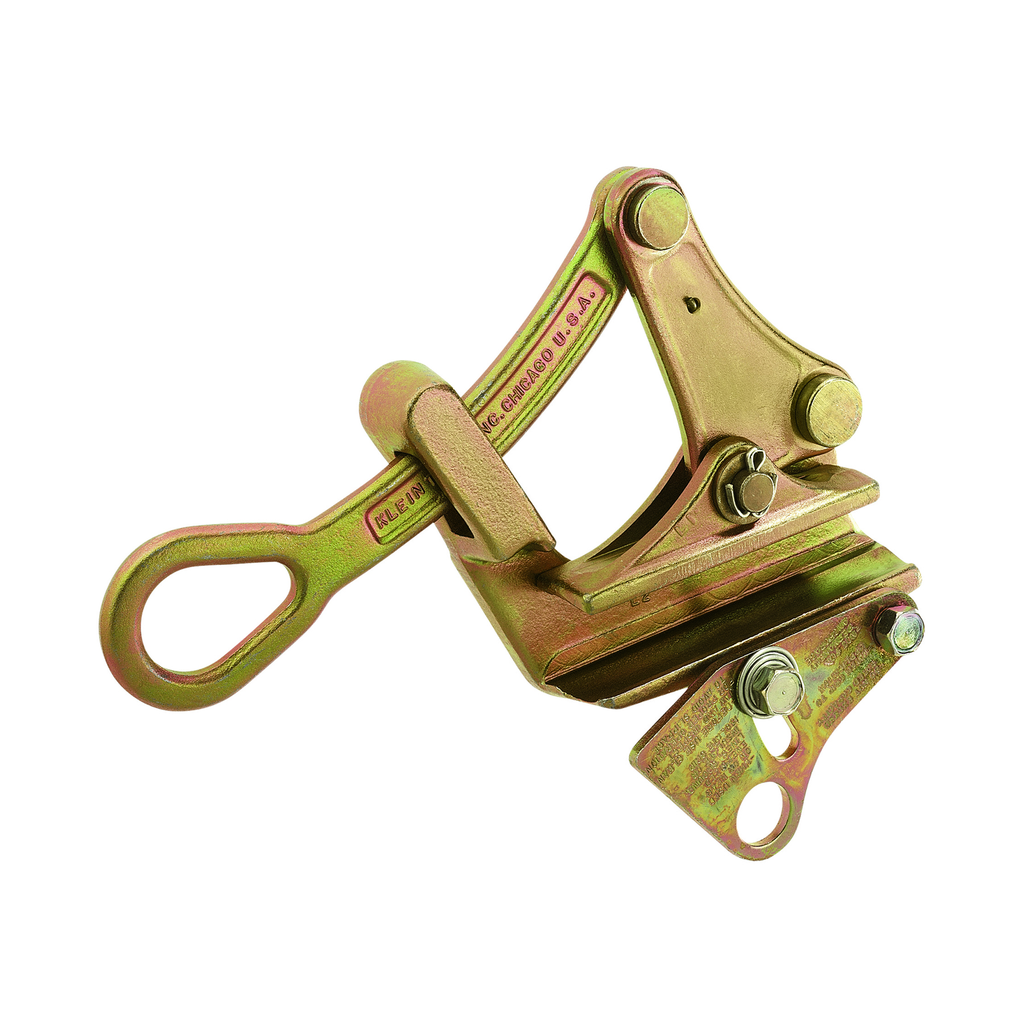

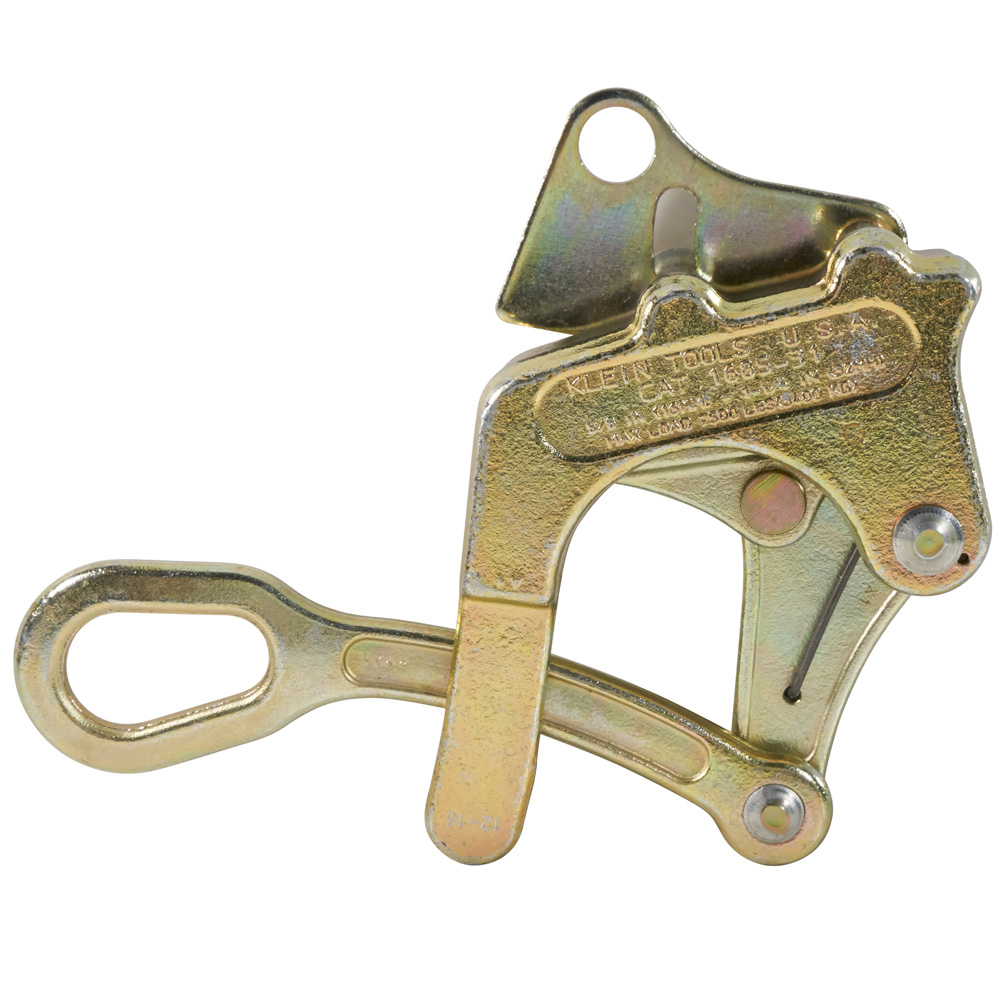

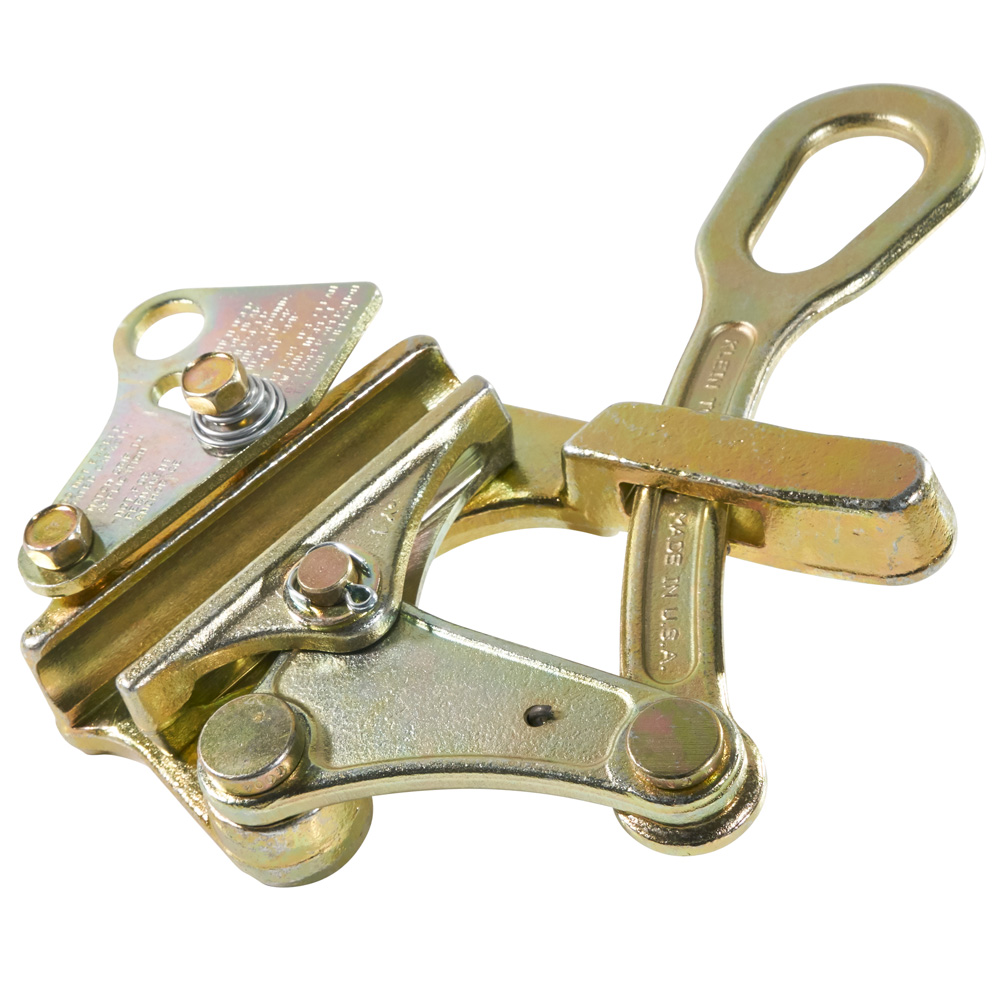

Klein Tools, 1685-31, Parallel Jaw Grip, 4.5 in Jaw Length; 0.625 to 1.25 in Cable Diameter; 7500 lb Max Safe Load

Lightweight, compact grips pull an exceptionally wide range of cable sizes and types. Designed with a round inside-jaw contour for maximum contact to minimize conductor damage. Lower jaw is serrated to firmly grip insulated cables and conductors. Design includes a latch that prevents the grip from falling in case of jaw disengagement from the cable.

Warnings

• Do not exceed rated capacity.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Always match proper size and type of grip to application.

Features

• Large-diameter eye accommodates large hooks on hoists, winches and tackle blocks
• Lightweight, compact grips pull an exceptionally wide range of cable sizes and types
• Designed with a round inside-jaw contour for maximum contact to minimize conductor damage and lower serrated jaw to firmly grip insulated cables and conductors
• Made in USA
• Hot Latch, Spring
• Design includes a latch that prevents the grip from falling in case of jaw disengagement from the cable

• Maximum Safe Load: 7500 lb (3400 kg)
• Cable Diameter: 0.625 in to 1.25 in (15.87 to 31.75 mm)
• Overall Length: 11.7 in (29.7 cm)
• Depth: 11.7 in
• Overall Height: 6.4 in (16.3 cm)
• Overall Width: 2.4 in (6.1 cm)
• Weight: 4.8 lb
• Jaw Type: Round
• Teeth Type: Coarse
• Material: Steel
• Cable Type: Messenger, EHS, Guy Strand
• Locking Handle: No
• Swing Latch: No
• Type: Parallel Jaw Grip
• Hot Latch: Yes
• Jaw Length: 4.5 in (11.4 cm)
• Spring: Yes
