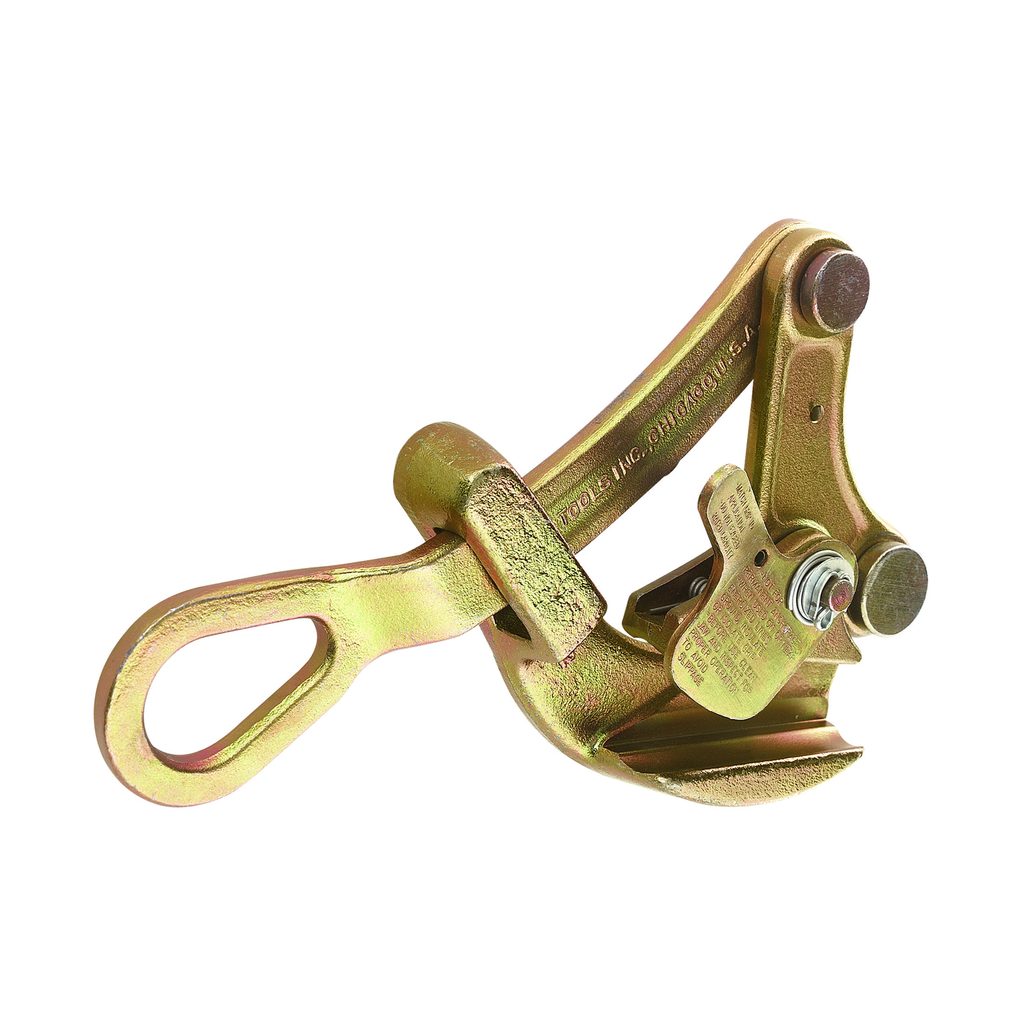

Klein Tools, 1685-20, Parallel Jaw Grip, 2.5 in Jaw Length; 4500 lb Max Load, Steel, Cable Diameter 0.157 to 0.875 in

Lightweight, compact grips pull an exceptionally wide range of cable sizes and types. Designed with a round inside-jaw contour for maximum contact to minimize conductor damage. Lower jaw is serrated to firmly grip insulated cables and conductors. Design includes a latch that prevents the grip from falling in case of jaw disengagement from the cable.

Warnings

• Do not exceed rated capacity.
• Always match proper size and type of grip to application.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.

Features

• Large-diameter eye accommodates large hooks on hoists, winches and tackle blocks
• Spring
• Designed with a round inside-jaw contour for maximum contact to minimize conductor damage and lower serrated jaw to firmly grip insulated cables and conductors
• Lightweight, compact grips pull an exceptionally wide range of cable sizes and types
• Design includes a latch that prevents the grip from falling in case of jaw disengagement from the cable
• Made in USA

• Maximum Safe Load: 4500 lb (2041 kg)
• Application: Wire Pulling
• Type: Parallel Jaw Grip
• Jaw Length: 2.5 in (6.4 cm)
• Jaw Type: Round
• Teeth Type: Coarse
• Material: Steel
• Overall Length: 9.52 in (24.2 cm)
• Overall Height: 5.31 in (13.5 cm)
• Overall Width: 1.22 in (3.1 cm)
• Cable Diameter: 0.157 to 0.875 in (3.98 to 22.22 mm)
• Cable Type: Messenger, EHS, Coated
• Weight: 2.628 lb
• Depth: 10.35 in
• Height: 1.467 in
• Width: 3.942 in
• Spring: Yes
• Hot Latch: No
• Locking Handle: No
• Swing Latch: No
