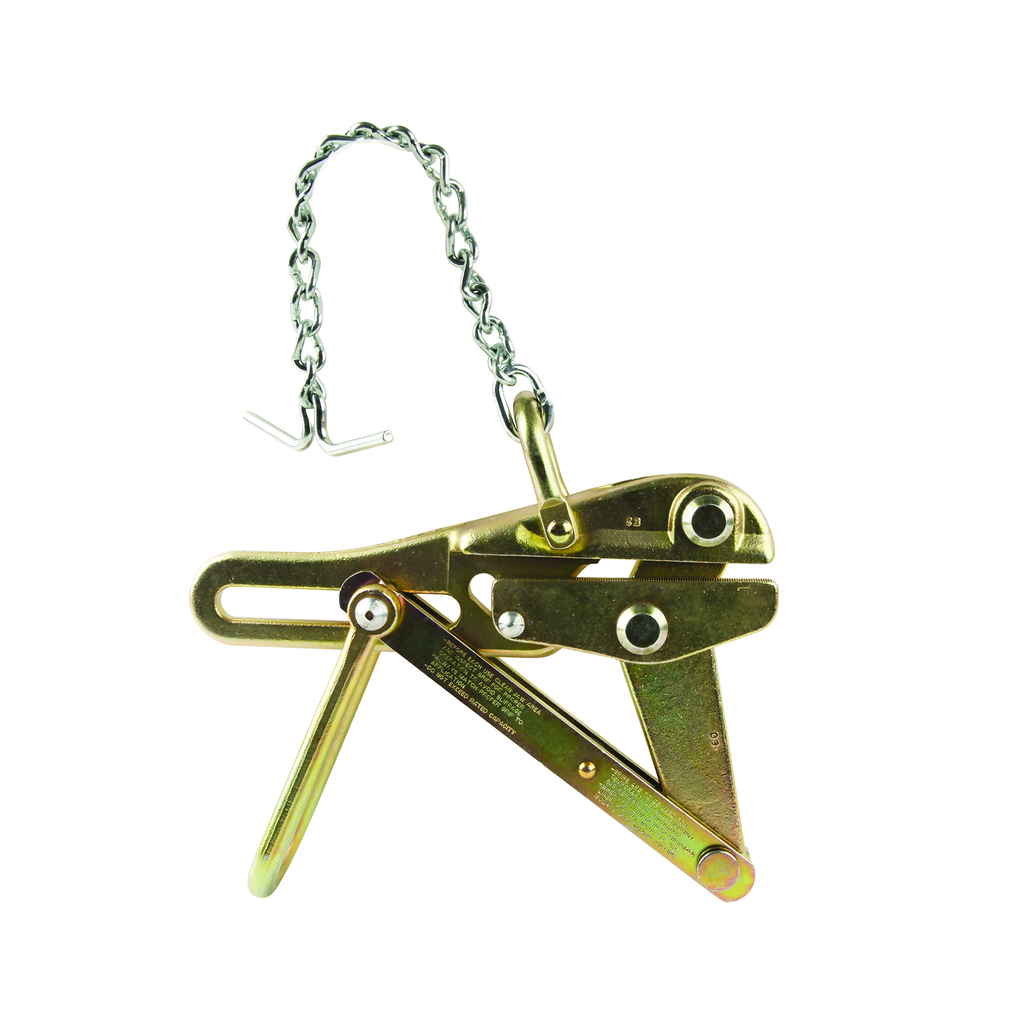

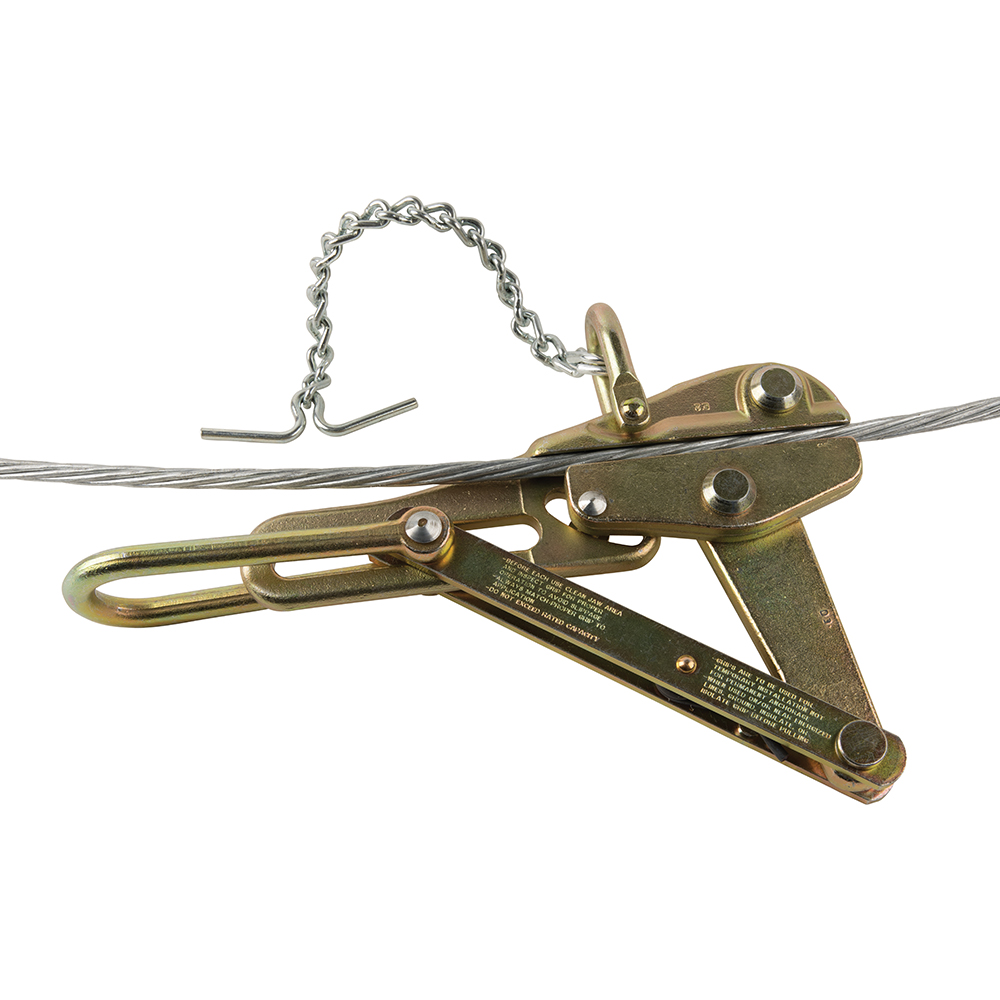

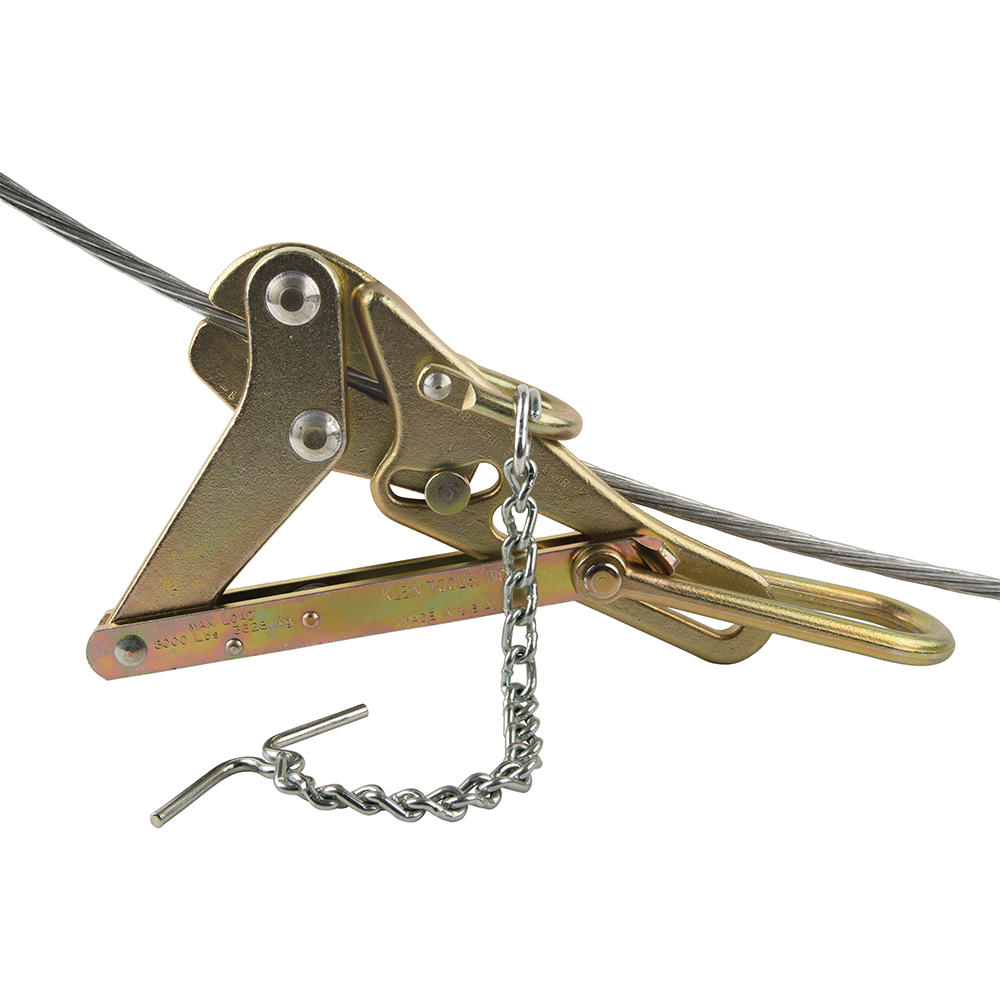

Klein Tools, 16845CAT, Chicago Grip, Max Load 8000 lb, Jaw Length 5 in, Cable Diameter 0.218 to 0.55 in, Aggressive Sawtooth Teeth

This Chicago Grip is designed specifically to work with coated guy strand and EHS cable. Klein grips are made of drop-forged, quality US steel and heat treated for strength and durability. The chain, toggle and shackle keep the grip from falling off the cable. The 5-Inch jaw length increases the surface area contact with the cable minimizing cable damage. The sawtooth jaw profile resists galvanization build-up.

Warnings

• Grips are to be used for temporary installation, not for permanent anchorage.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Do not exceed rated capacity.
• Always match proper size and type of grip to application.

Features

• Designed for cable sizes 0.218 to 0.55-Inch (5.54 to 13.97 mm)
• Made in USA
• Equipped With a Chain, Toggle and Shackle
• Aggressive sawtooth jaw profile resists build-up from galvanized coating on guy strand and EHS cables
• Locking handle keeps jaw open while grip is placed on cable with a hot stick
• Equipped with chain, toggle and shackle to keep grip from falling off the cable
• 5-Inch (127 mm) jaw length for extra gripping area on stranded cable and spring that closes grip on cable helping to maintain initial position
• Maximum Safe Load is 8000-Pound (3629 kg)

• Maximum Safe Load: 8000 lb (3629 kg)
• Cable Diameter: 0.218 to 0.55 in (5.54 to 13.97 mm)
• Application: Wire Pulling
• Type: Chicago Grip
• Jaw Length: 5 in (12.7 cm)
• Teeth Type: Aggressive sawtooth
• Overall Length: 13.3 in (33.8 cm)
• Overall Width: 7.6 in (19.3 cm)
• Overall Height: 2.5 in (6.4 cm)
• Width: 7.6 in
• Height: 2.5 in
• Depth: 13.3 in
• Weight: 6 lbs
• Spring: Yes
• Locking Handle: Yes
• Jaw Type: Round
• Material: Steel
• Cable Type: Aircraft, EHS, Messenger, Guy Strand
• Country of Origin: USA
