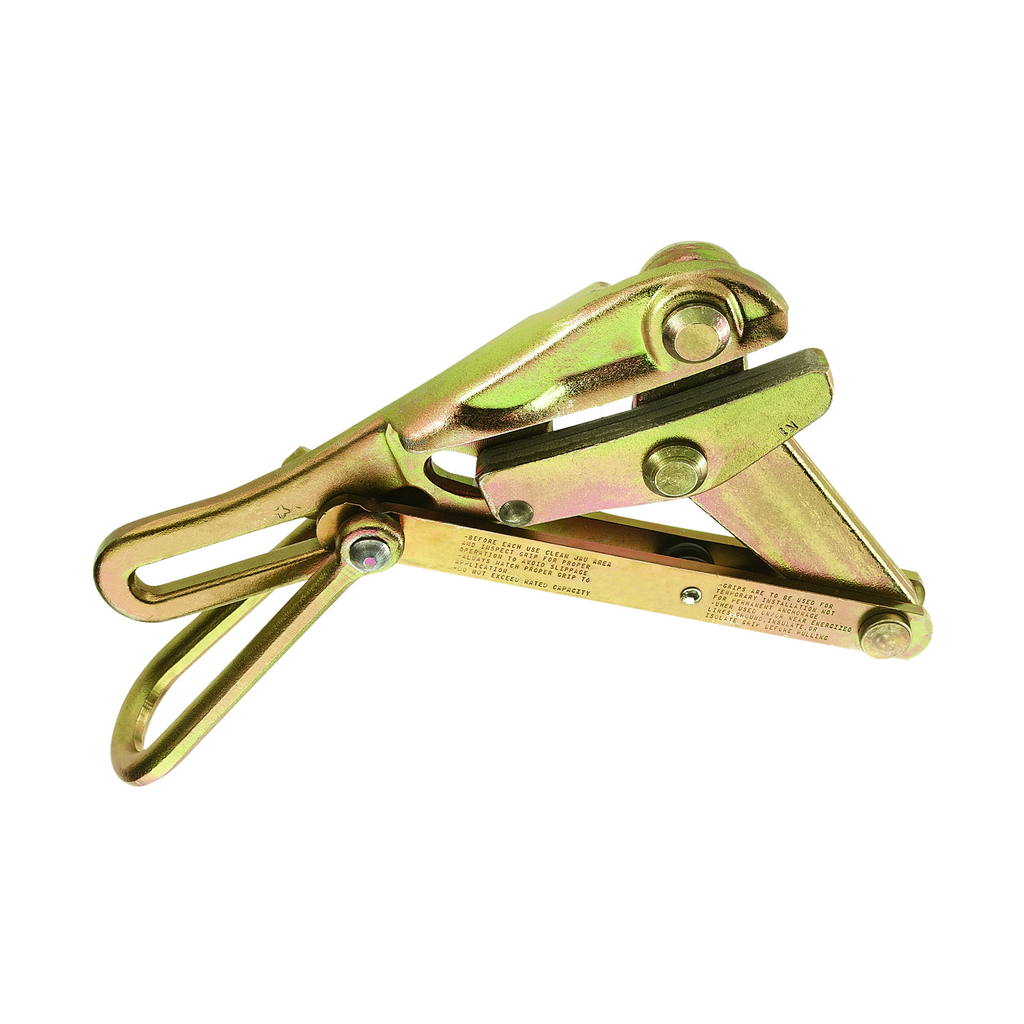

Klein Tools, 1684-74, Chicago Grip, 8000 lb, 0.218 in to 0.55 in, Steel, Double V Jaw

Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. The Chicago style grip was designed for cable sizes from 0.12-Inch to 1.0-Inch (3.10 to 25.4 mm). When pulling EHS (extra-high-strength) galvanized-steel cable, the galvanizing has a tendency to coat the jaws of any grip, causing the cable to slip. Double V contour reduces the possibility of slippage and damage to the cable.

Features

• Locking handle keeps jaw open while grip is placed on cable with a hot stick
• When pulling EHS (extra-high-strength) galvanized-steel cable, the galvanizing has a tendency to coat the jaws of any grip, causing the cable to slip
• Made in USA
• For use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand
• To reduce the possibility of slippage and damage to the cable, the jaws of this grip are milled on a curve with a double V contour

Warnings

• Do not exceed rated capacity.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Always match proper size and type of grip to application.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.

• Maximum Safe Load: 8000 lb (3629 kg)
• Cable Diameter: 0.218 in to 0.55 in (5.54 to 13.97 mm)
• Jaw Length: 5 in (12.7 cm)
• Height: 1.584 in
• Width: 6.3 in
• Depth: 9 in
• Weight: 5.625 lb
• Jaw Type: Double V
• Teeth Type: Milled, Curved
• Material: Steel
• Cable Type: Aircraft, EHS, Messenger, Guy Strand
• Type: Chicago Grip
• Application: Wire Pulling
• Spring: Yes
• Locking Handle: Yes
• Hot Latch: No
• Swing Latch: No
