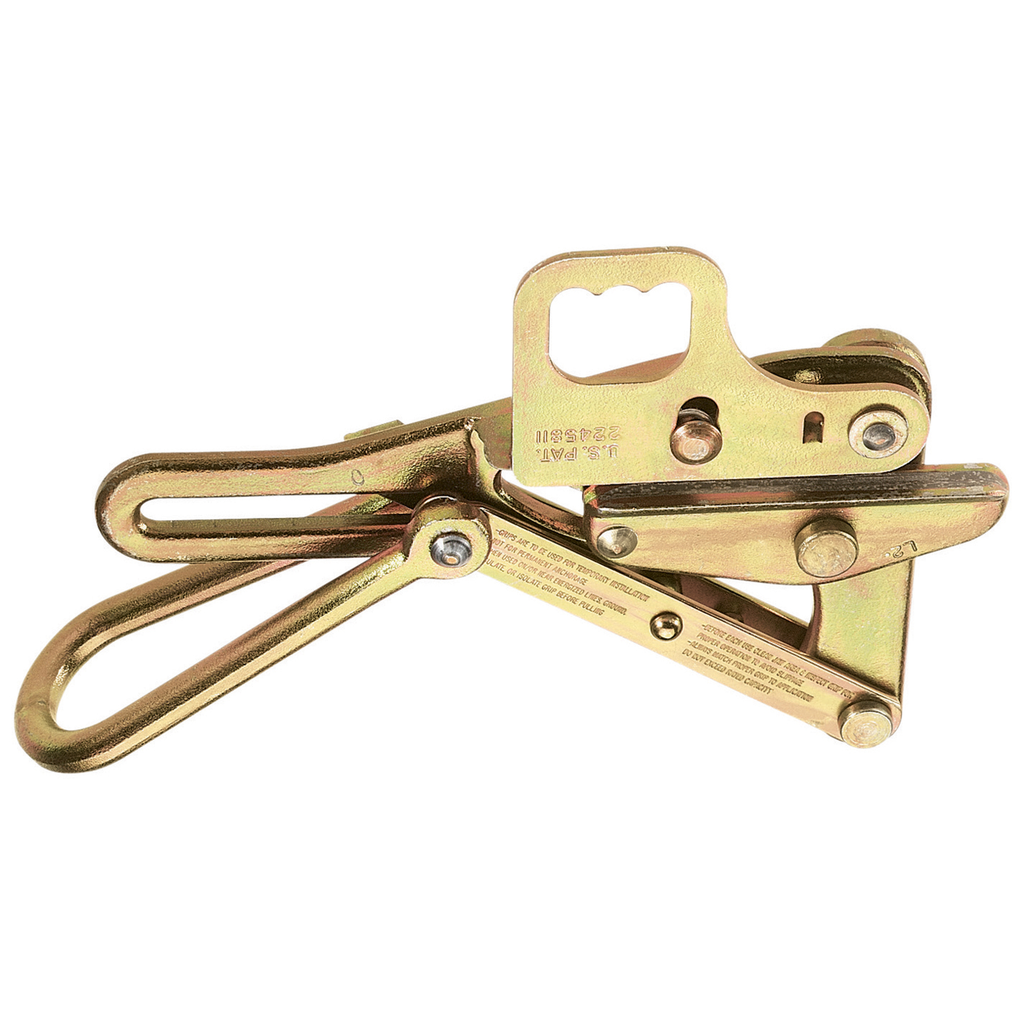

Klein Tools, 1684-5H, Chicago Grip, 8000 lb; 0.218 in to 0.55 in, Steel, 14.75 in

Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. The Chicago style grip was designed for cable sizes from 0.12-Inch to 1.0-Inch (3.10 to 25.4 mm). Hot-line grips for both bare and insulated conductors. Grip may be placed on wire with hot-line stick. When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire. Standard hot-line grips are not supplied with springs or lock-open features.

Features

• Locking handle keeps jaw open while grip is placed on cable with a hot stick
• When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire
• Hot-line grips for steel stranded cable
• Standard hot-line grips are not supplied with springs or lock-open features
• Made in USA
• Grip may be placed on wire with hot-line stick

Warnings

• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Do not exceed rated capacity.
• Always match proper size and type of grip to application.

• Maximum Safe Load: 8000 lb (3629 kg)
• Cable Diameter: 0.218 in to 0.55 in (5.54 to 13.97 mm)
• Overall Length: 14.75 in (37.5 cm)
• Overall Height: 8.63 in (21.9 cm)
• Overall Width: 2.38 in (6 cm)
• Depth: 10 in
• Jaw Length: 5 in (12.7 cm)
• Weight: 0.1 lb
• Material: Steel
• Cable Type: Aircraft, EHS, Messenger, Guy Strand
• Locking Handle: Yes
• Hot Latch: Yes
• Swing Latch: No
• Spring: No
• Jaw Type: Double V
• Teeth Type: Smooth
• Type: Chicago Grip
• Application: Wire Pulling
