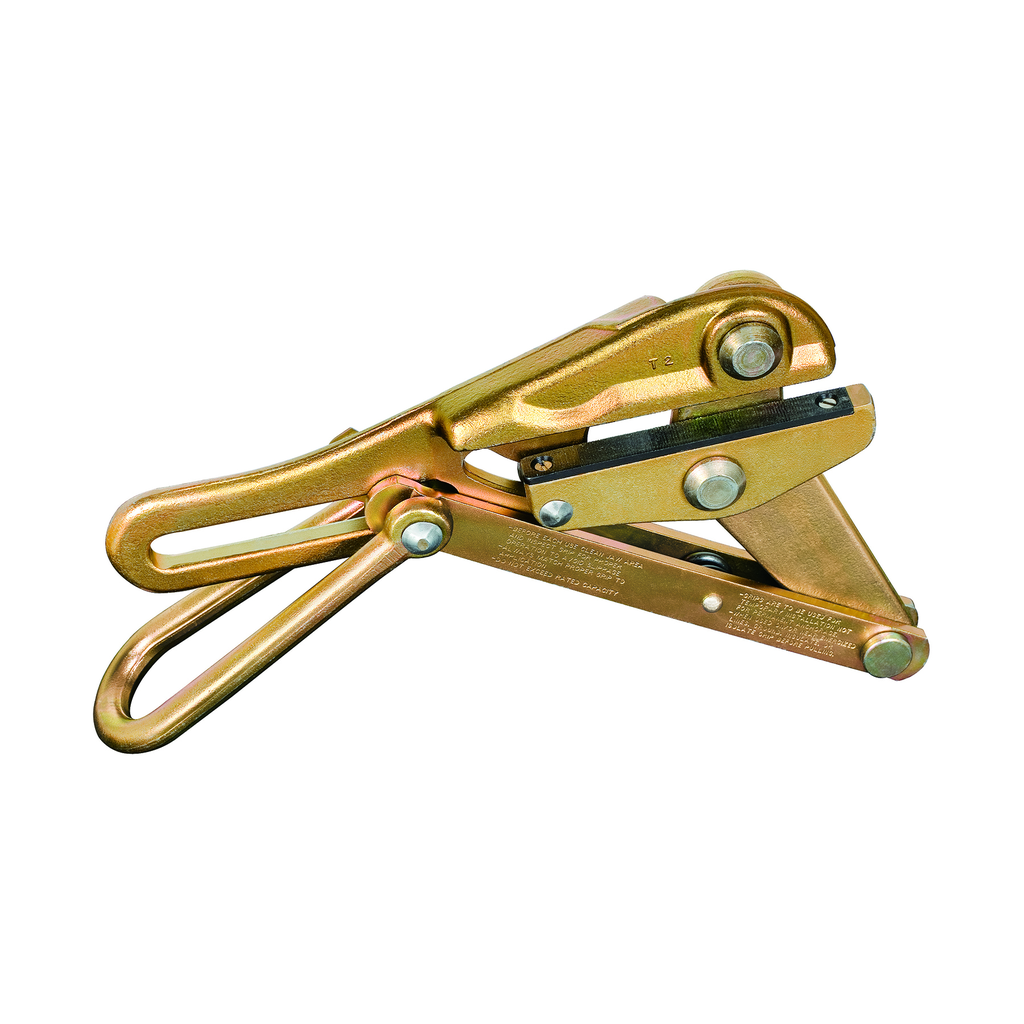

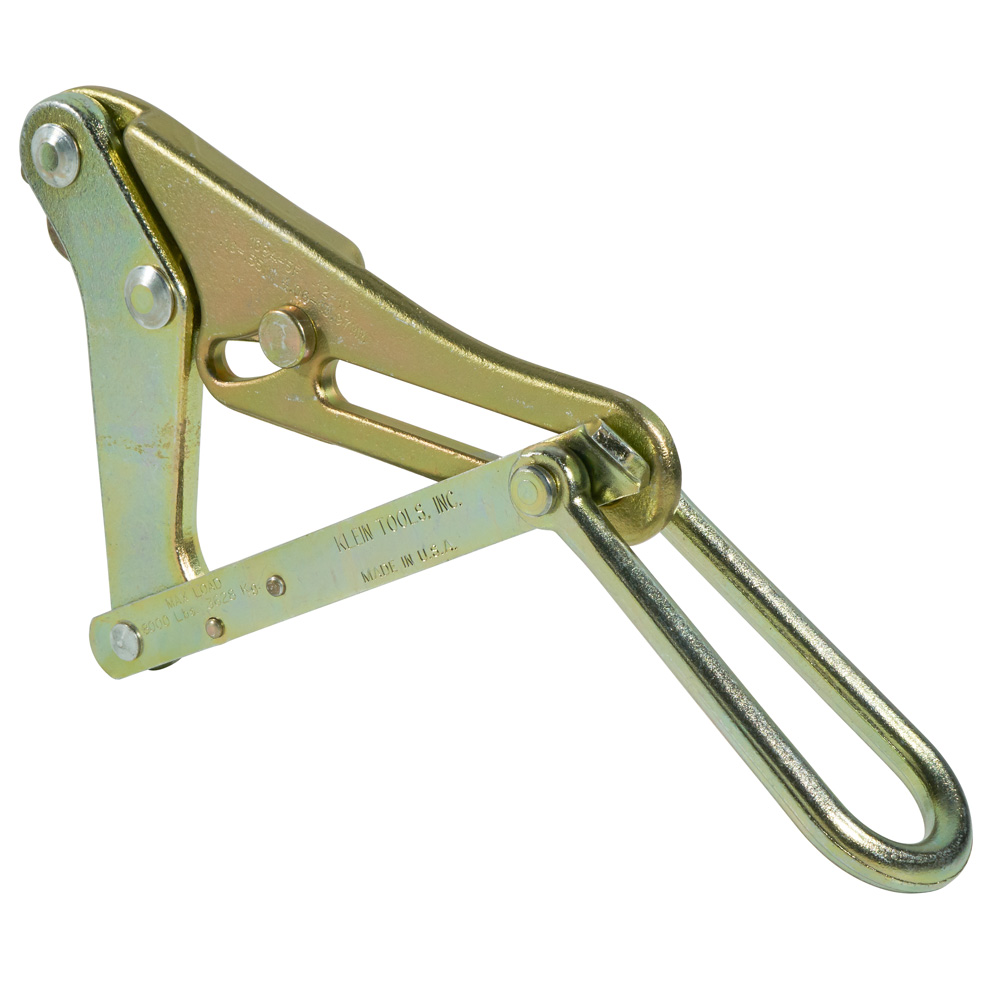

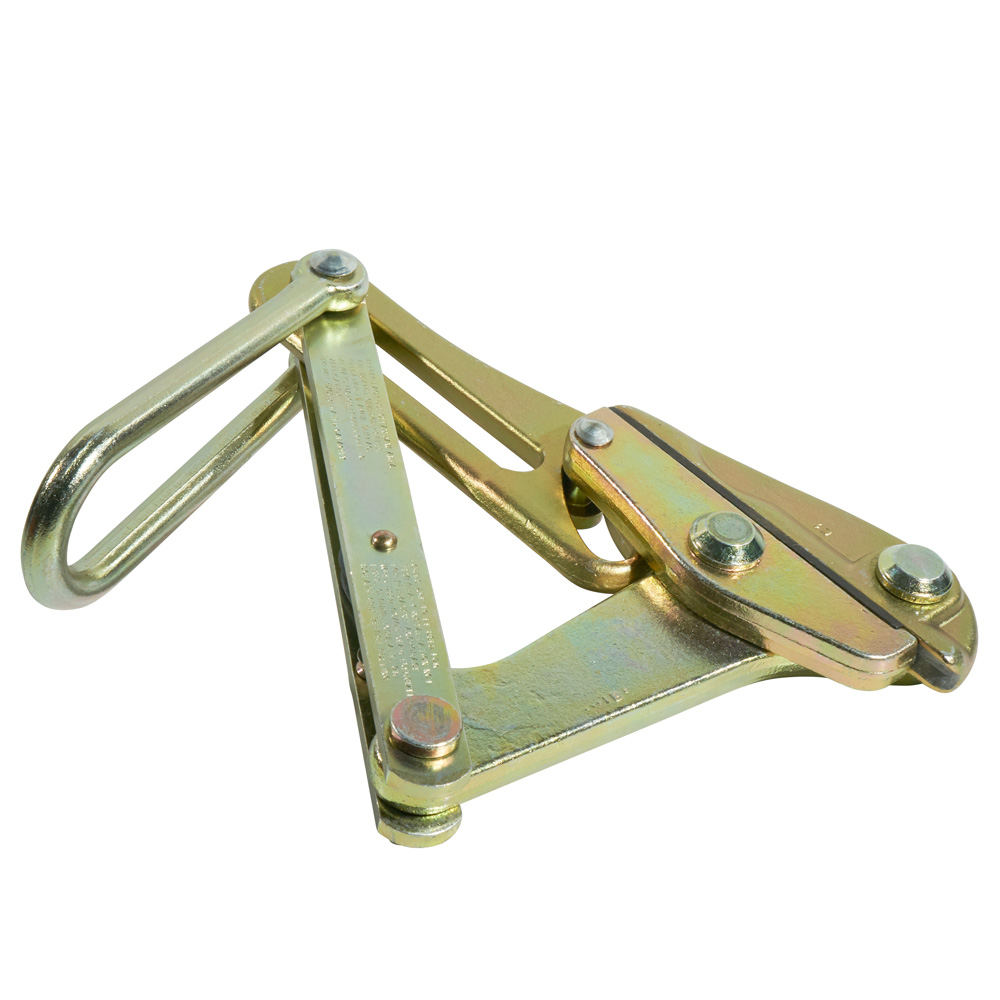

Klein Tools, 1684-5F, Chicago Grip, Cable Diameter 0.16 in to 0.55 in; Max Safe Load 8000 lb; Steel

Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. The Chicago style grip was designed for cable sizes from 0.16-Inch to 0.55-Inch (4.06 - 13.97 mm). Double V grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable.

Features

• Removeable file (Replacement file Cat. No. 578 and screws Cat. No. 573)
• Locking handle keeps jaw open while grip is placed on cable with a hot stick
• Made in USA
• Designed for cable sizes from 0.16-Inch (4.06 mm) to 0.55-Inch (13.97 mm)
• For larger conductors, see our grips with round inside-jaw contour
• Double V grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
• Similar to Cat. No. 1684-5 except with a file inserted in jaw for extra gripping power. Replacement file No. 578 and screws No. 573 are also available

Warnings

• Grips are to be used for temporary installation, not for permanent anchorage.
• Always match proper size and type of grip to application.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Do not exceed rated capacity.

• Maximum Safe Load: 8000 lb (3629 kg)
• Cable Diameter: 0.16 in to 0.55 in (4.06 mm to 13.97 mm)
• Overall Length: 13.3 in (33.8 cm)
• Depth: 9.25 in
• Overall Width: 7.6 in (19.3 cm)
• Overall Height: 2.5 in (6.4 cm)
• Jaw Length: 5 in (12.7 cm)
• Weight: 6.375 lb
• Material: Steel
• Jaw Type: Single V
• Teeth Type: File Insert
• Spring: Yes
• Locking Handle: Yes
• Cable Type: Aircraft, EHS, Messenger, Guy Strand
• Type: Chicago Grip
• Height: 1.76 in
• Hot Latch: No
• Swing Latch: No
