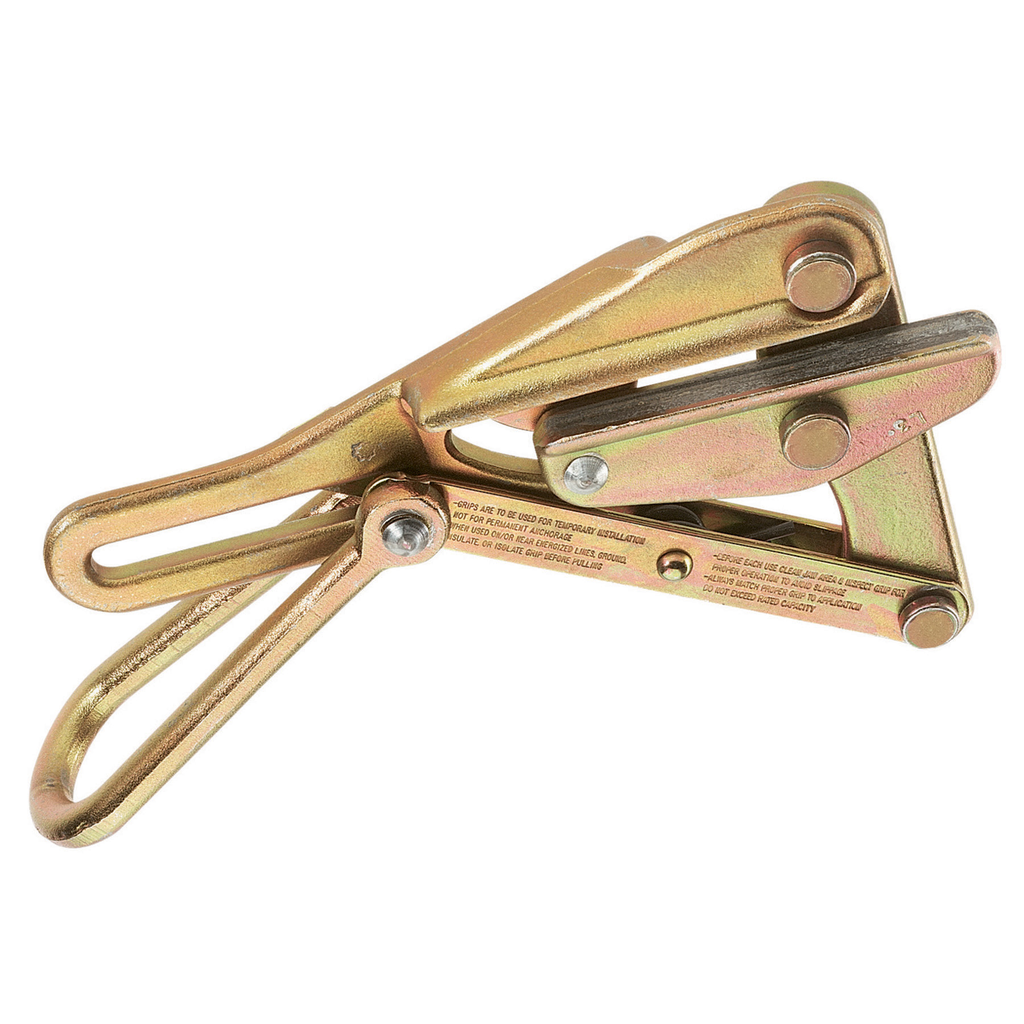

Klein Tools, 1684-5, Chicago Grip, 8000 lb Safe Load, 0.218 to 0.55 in Cable Diameter, Steel

Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. The Chicago style grip was designed for cable sizes from 0.218-Inch to 0.55-Inch (5.5 to 13.9 mm). Double V grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable.

Warnings

• Do not exceed rated capacity.
• Always match proper size and type of grip to application.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.

Features

• Designed for cable sizes from 0.218 to 0.55-Inch (5.5 to 13.9 mm) with Max Safe Load of 8000-Pound (3629 kg)
• Double ''V'' grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
• Manufactured from drop-forged, heat-treated steel for excellent durability
• Made in USA
• Locking handle keeps jaw open while grip is placed on cable with a hot stick

• Maximum Safe Load: 8000 lb (3629 kg)
• Cable Diameter: 0.218 in to 0.55 in (5.54 to 13.97 mm)
• Overall Length: 13.3 in (33.8 cm)
• Overall Width: 7.6 in (19.3 cm)
• Overall Height: 2.5 in (6.4 cm)
• Jaw Length: 5 in (12.7 cm)
• Depth: 8.55 in
• Width: 6.075 in
• Height: 1.584 in
• Weight: 5.76 lbs
• Jaw Type: Double V
• Teeth Type: Smooth
• Material: Steel
• Locking Handle: Yes
• Spring: Yes
• Hot Latch: No
• Swing Latch: No
• Cable Type: Aircraft, EHS, Messenger, Guy Strand
• Application: Wire Pulling
• Type: Chicago Grip
• Country of Origin: United States
