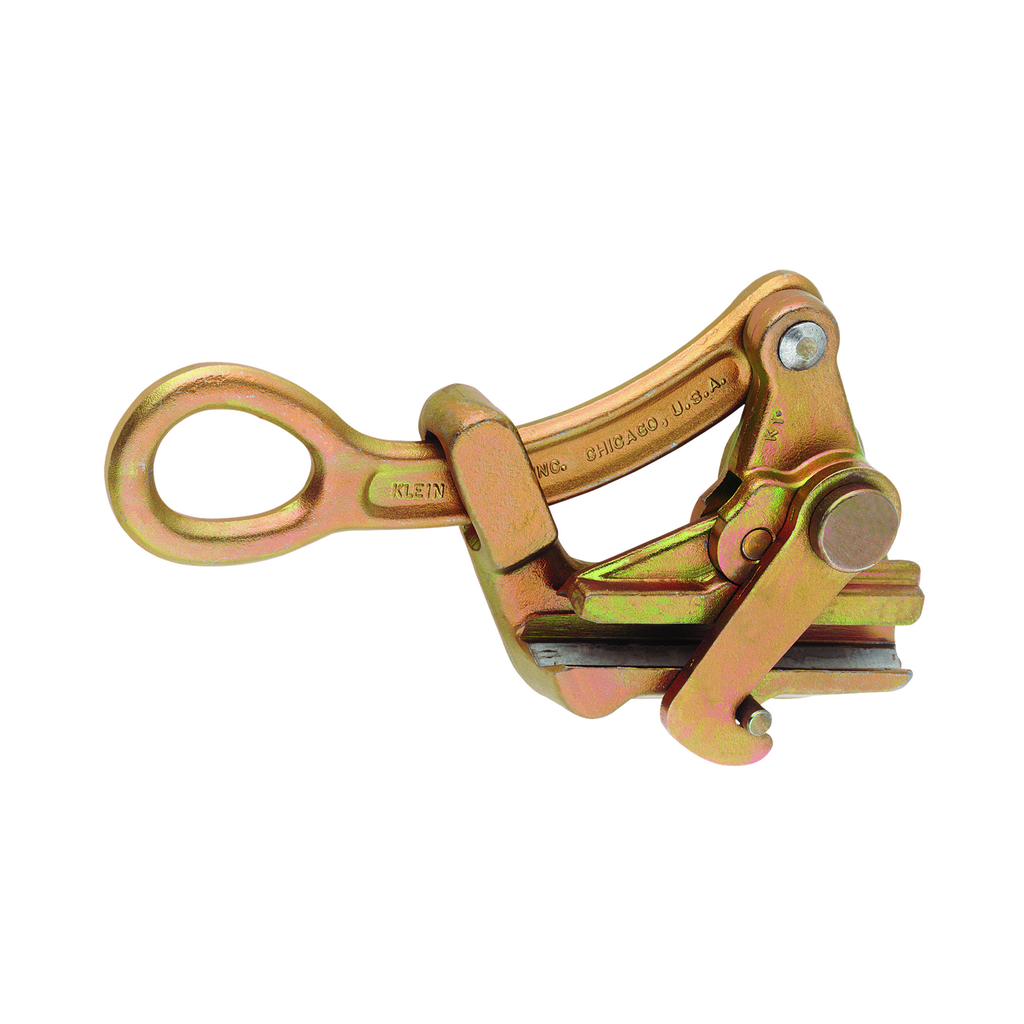

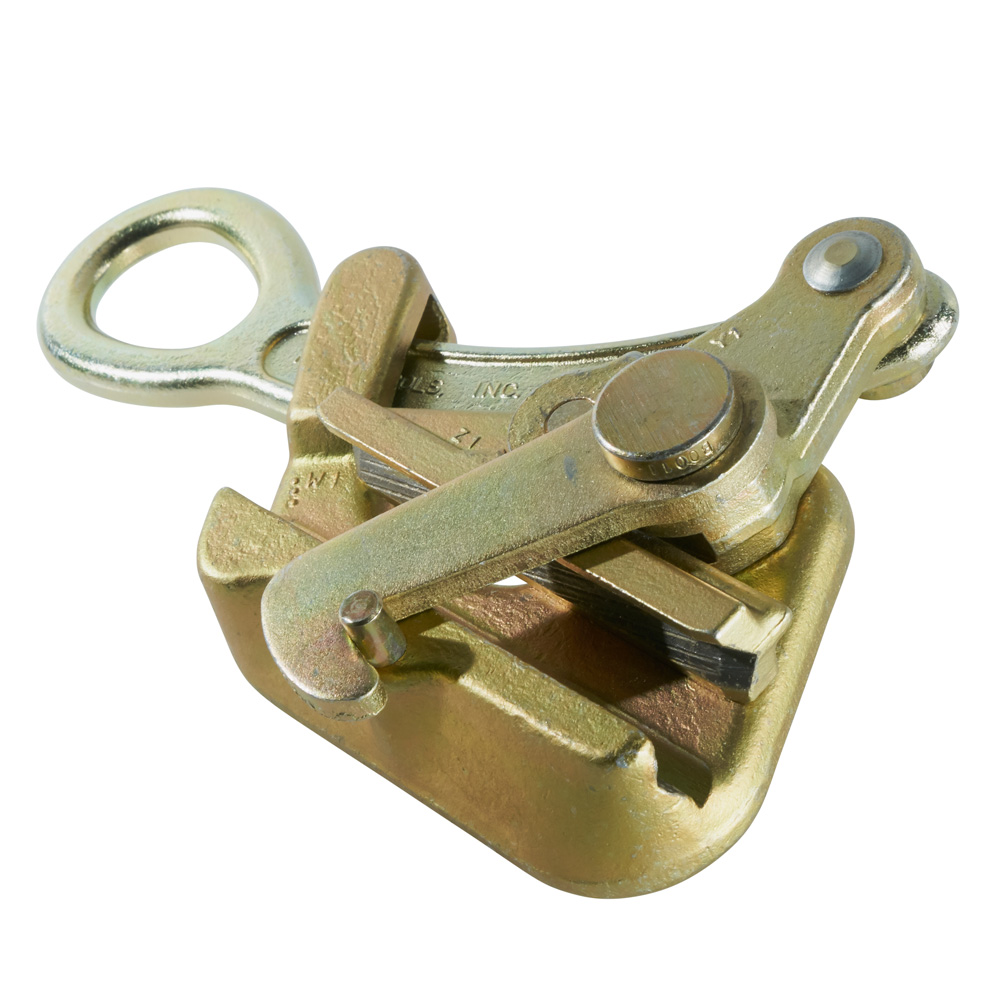

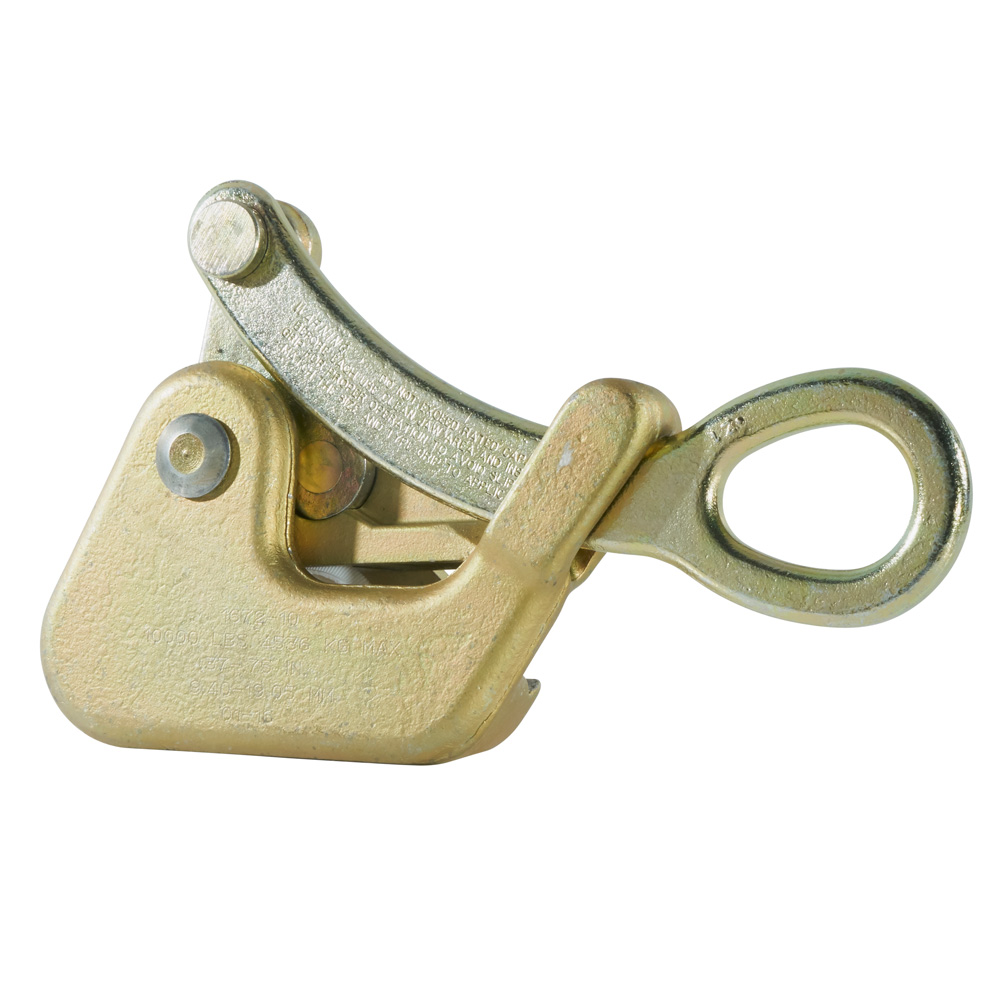

Klein Tools, 1672-10, Parallel Jaw Grip, 10,000 lb, 0.37 to 0.75 in Cable Diameter, 4.375 in Jaw Length, Steel

The Klein Tools 1671-10 Parallel Jaw Grip works with a wide range of cable types and sizes. The longer, knurled jaws provide a firm hold on the cable, reducing the possibility of slippage and deformation. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Features

• Made in USA
• Design includes a latch, plus a large-diameter eye that accommodates large hooks on hoists, winches and tackle blocks
• Same as Cat. No. 1671-10 but with knurled jaws
• Extended Jaw
• Longer jaws achieve a firm hold, reducing possibility of slippage and damage to cable
• When latch is closed, it helps maintain cable position in grip jaws

Warnings

• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Do not exceed rated capacity.
• Grips are to be used for temporary installation, not for permanent anchorage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Always match proper size and type of grip to application.

• Maximum Safe Load: 10,000 lb (4536 kg)
• Cable Diameter: 0.37 to 0.75 in (9.4 to 19.05 mm)
• Jaw Length: 4.375 in (11.1 cm) Extended
• Jaw Type: Double V
• Weight: 4.392 lbs
• Width: 4.95 in
• Depth: 8.325 in
• Height: 1.683 in
• Material: Steel
• Cable Type: Aircraft, Messenger, Guy Strand
• Hot Latch: No
• Swing Latch: Yes
• Teeth Type: Coarse
• Spring: No
• Locking Handle: No
• Type: Parallel Jaw Grip
• Application: Wire Pulling
• Country of Origin: United States
