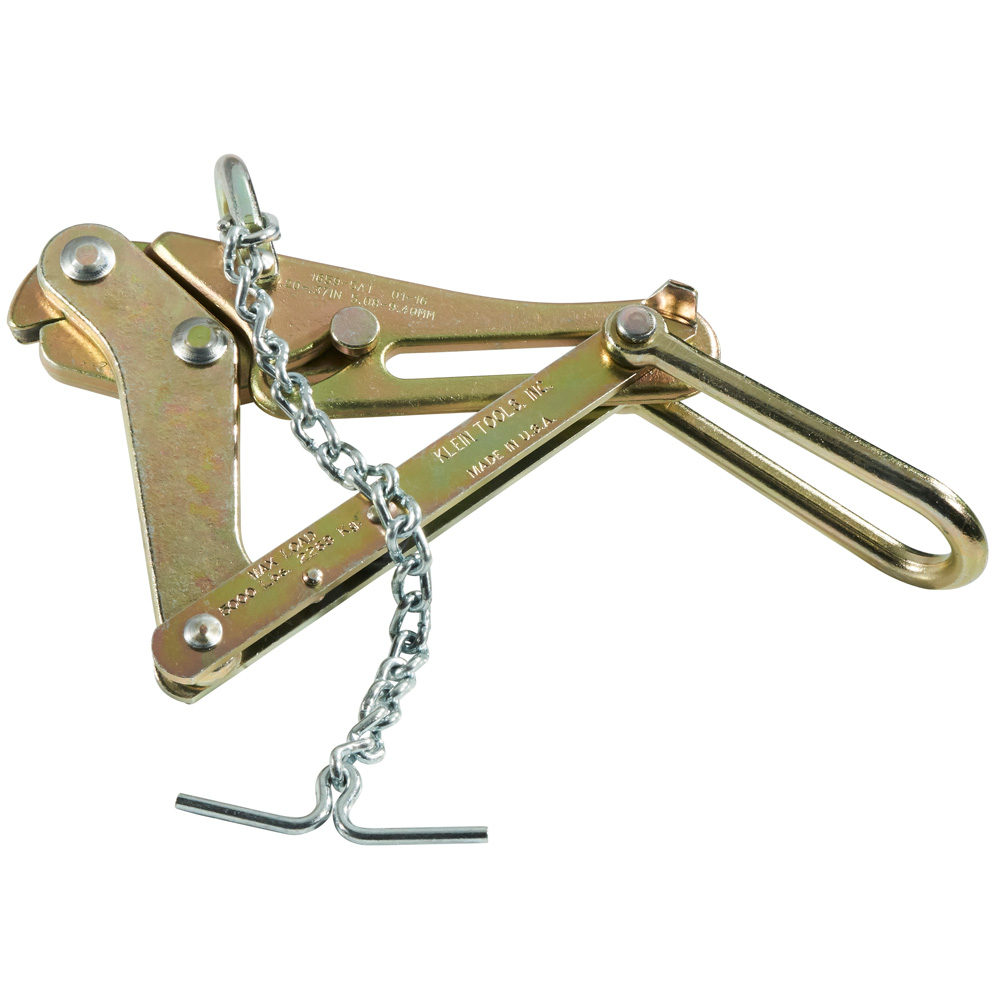

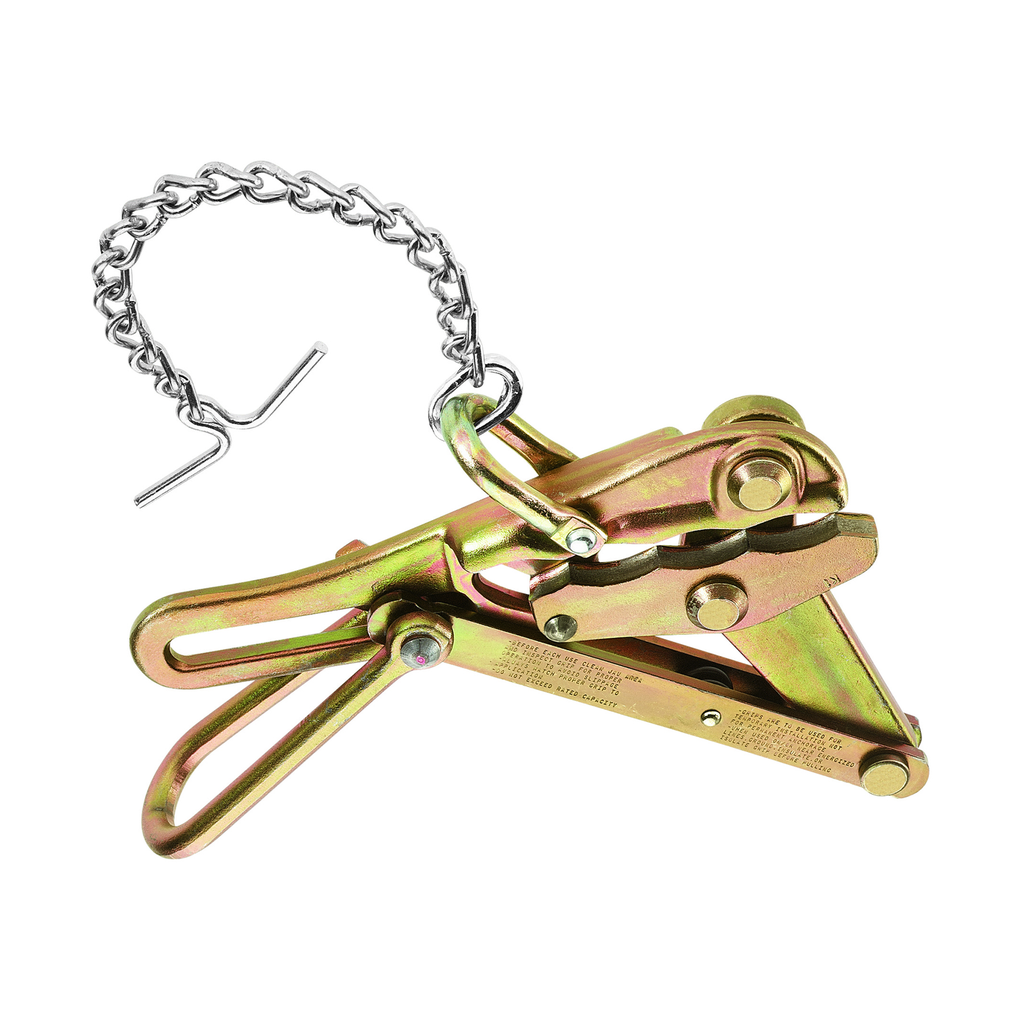

Klein Tools, 1659-5AT, Chicago Grip, 5000 lb Max Load, 0.2 in to 0.37 in Cable Diameter, 5 in Jaw Length

The Klein Tools 1659-5AT Chicago Grip is similar to a Bell-System type B Strand Puller. It is designed to pull 1/4-Inch figure-8 telephone cable. Plus, it is equipped with a chain, toggle and shackle to keep the grip from falling off the cable. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Warnings

• Grips are to be used for temporary installation, not for permanent anchorage.
• Always match proper size and type of grip to application.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Do not exceed rated capacity.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.

Features

• Similar to Bell-System type ''B'' strand puller
• 0.20-Inch to 0.37-Inch (5.08 to 9.40 mm) cable diameter range with max safe load of 5000-Pound (2268 kg)
• Serpentine grooves grip insulation on strand, preventing slippage

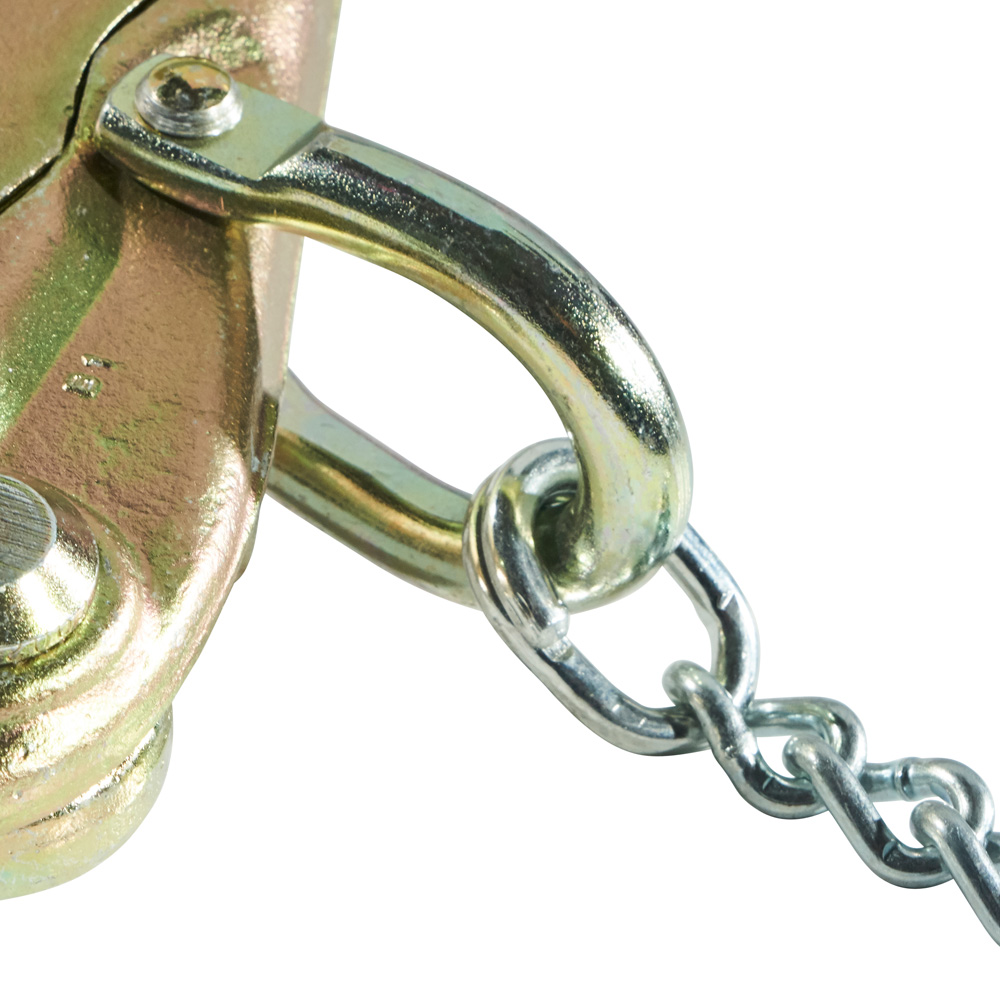

• "B" Strand Puller -- Equipped With a Chain, Toggle and Shackle
• Designed to pull 1/4-Inch (6.35 mm) figure-8 telephone cable
• Made in USA
• Equipped with chain, toggle, and shackle

• Maximum Safe Load: 5000 lb (2268 kg)
• Cable Diameter: 0.2 in to 0.37 in (5.08 to 9.4 mm)
• Jaw Length: 5 in (12.7 cm)
• Height: 1.76 in
• Depth: 10 in
• Width: 7 in
• Weight: 0.1000 lb
• Material: Steel
• Type: Chicago Grip
• Application: Wire Pulling
• Cable Type: Messenger, Guy Strand
• Spring: Yes
• Locking Handle: Yes
• Jaw Type: Round
• Teeth Type: Serpentine
