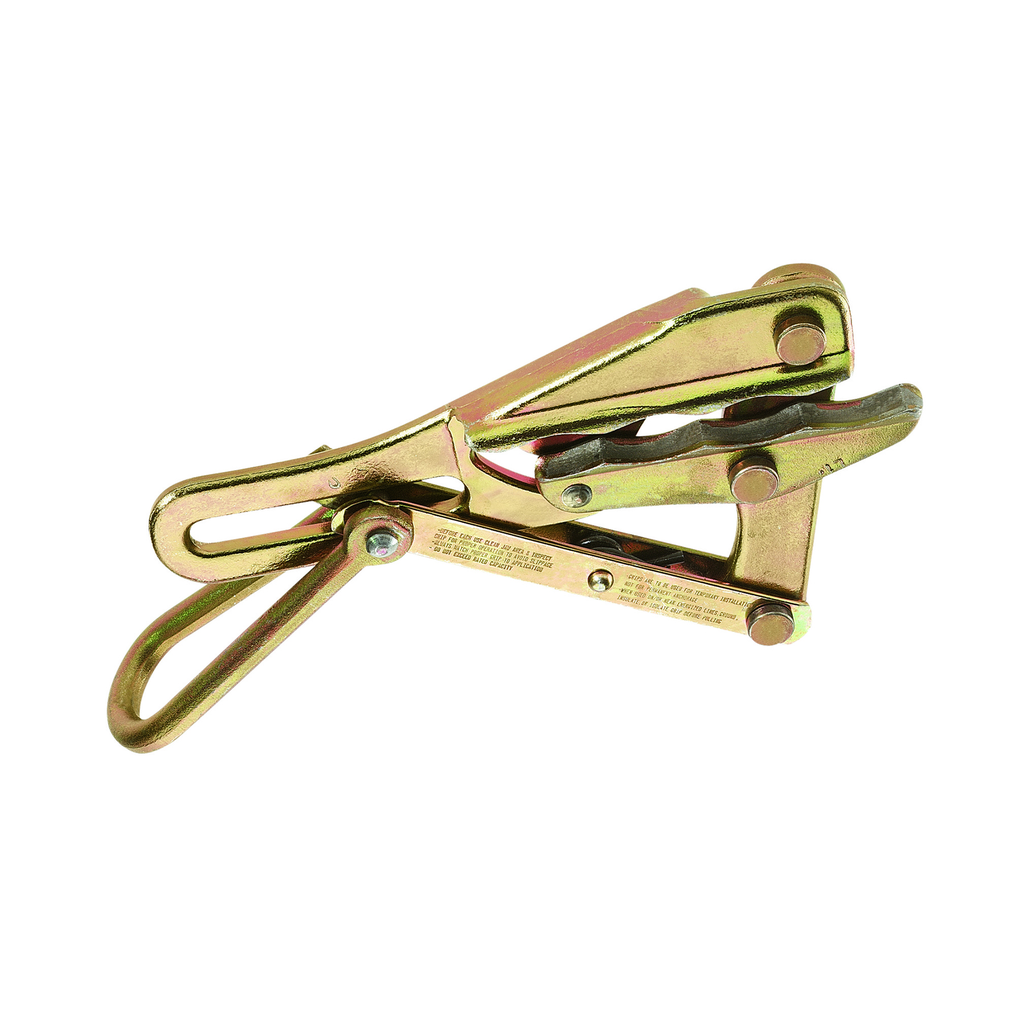

Klein Tools, 1659-30, Chicago Grip, 4500 lb, 0.31 in to 0.5 in, Round Serpentine, PVC-Coated

The Klein Tools 1659 Series PVC-Covered Chicago Grips have a specially machined serpentine jaw which allows an insulated conductor to be inserted through the jaws. This eliminates the need to strip insulation from the conductor first. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Warnings

• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Do not exceed rated capacity.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Always match proper size and type of grip to application.

Features

• Serpentine jaws are specially machined to allow insertion of insulated conductor through the jaws, which reduces danger of slippage which might result in insulation damage
• Eliminates necessity of stripping insulation from conductor
• Made in USA
• Round inside-jaw contour
• Manufactured from drop-forged, heat-treated steel for excellent durability
• (NOT HDPE)

• Maximum Safe Load: 4500 lb (2041 kg)
• Cable Diameter: 0.31 in to 0.5 in (7.87 to 12.7 mm)
• Jaw Type: Round Serpentine
• Jaw Length: 4.75 in (12.1 cm)
• Locking Handle: Yes
• Spring: Yes
• Height: 1.917 in
• Width: 3.825 in
• Depth: 8.55 in
• Weight: 3.258 lbs
• Material: Drop-forged heat-treated steel
• Cable Type: PVC-Coated
• Type: Chicago Grip
• Application: Wire Pulling
• Locking Handle: Yes
• Hot Latch: No
• Swing Latch: No
• Country of Origin: United States
