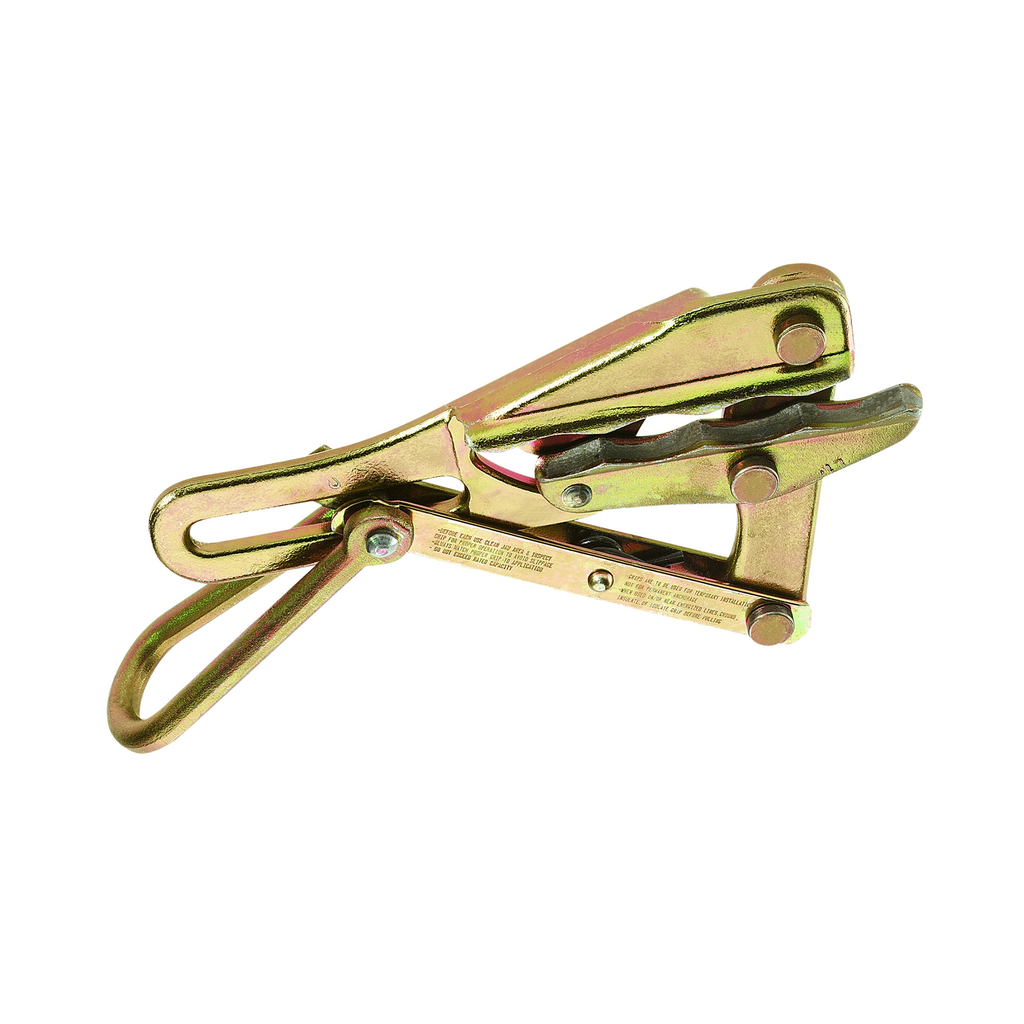

Klein Tools, 1659-20, Chicago Grip, 4500 lb; 0.2" to 0.42" Cable Diameter, Round Serpentine Jaw, PVC-Coated

The Klein Tools 1659 Series PVC-Covered Chicago Grips have a specially machined serpentine jaw which allows an insulated conductor to be inserted through the jaws. This eliminates the need to strip insulation from the conductor first. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Features

• Eliminates necessity of stripping insulation from conductor
• Round inside-jaw contour
• (NOT HDPE)
• Made in USA
• Serpentine jaws are specially machined to allow insertion of insulated conductor through the jaws, which reduces danger of slippage which might result in insulation damage
• Manufactured from drop-forged, heat-treated steel for excellent durability

Warnings

• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Grips are to be used for temporary installation, not for permanent anchorage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Always match proper size and type of grip to application.
• Do not exceed rated capacity.

• Maximum Safe Load: 4500 lb (2041 kg)
• Cable Diameter: 0.2" to 0.42" (5.08 to 10.67 mm)
• Jaw Length: 4.188" (10.6 cm)
• Height: 1.575 in
• Width: 3.6 in
• Depth: 7.2 in
• Material: Drop-forged heat-treated steel
• Cable Type: PVC-Coated
• Jaw Type: Round, Serpentine
• Teeth Type: Serpentine
• Locking Handle: Yes
• Spring: Yes
• Hot Latch: No
• Swing Latch: No
• Application: Wire Pulling
• Type: Chicago Grip
• Conductor Type: PVC-Covered
• Made In: USA
