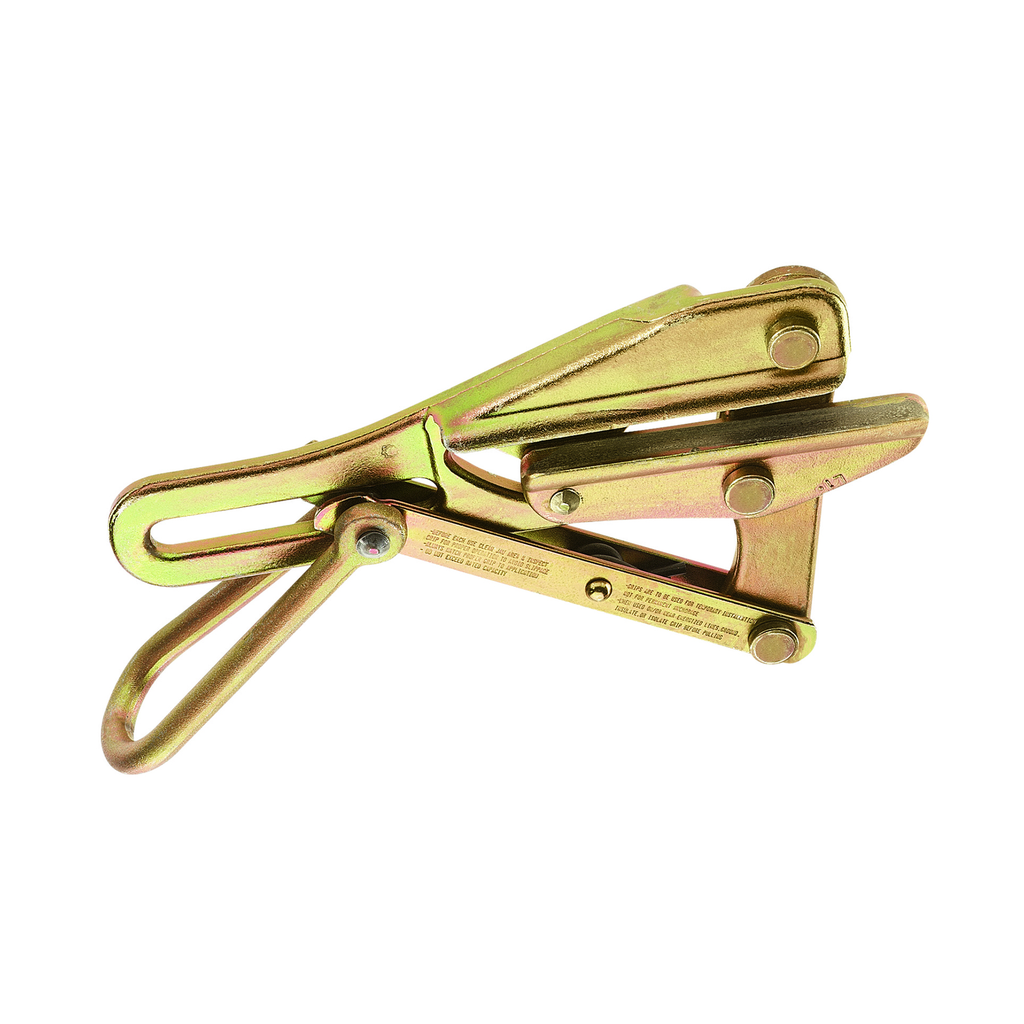

Klein Tools, 1656-50, Chicago Grip, 8000 lb Max Load, 0.74 to 0.86 in Cable Diameter, Drop-forged Steel

Klein Tools 1656 Series Chicago Grips have a round, smooth inside jaw contour making it perfect for work with stranded copper cables. These smooth jaws grip with maximum contact and are less likely to cause cable deformation. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Features

• Round, smooth inside jaw contour on this series of grips is ideal for bare ACSR, aluminum, and stranded-copper cables
• Jaw design helps reduce slippage to make pulling cables easier
• Made in USA
• Manufactured from drop-forged, heat-treated steel for excellent durability
• Smooth jaws grip with maximum contact and are less likely to damage conductors

Warnings

• Grips are to be used for temporary installation, not for permanent anchorage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Always match proper size and type of grip to application.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Do not exceed rated capacity.

• Maximum Safe Load: 8000 lb (3629 kg)
• Cable Diameter Range: 0.74 in to 0.86 in (18.8 to 21.84 mm)
• Jaw Type: Round, smooth inside jaw contour
• Jaw Length: 5.5 in (14 cm)
• Width: 4.5 in
• Height: 1.8 in
• Depth: 9.9 in
• Weight: 7.47 lbs
• Locking Handle: Yes
• Hot Latch: No
• Swing Latch: No
• Type: Chicago Grip
• Cable Type: ACSR, AAC, Copper
• Application: Wire Pulling
• Material: Drop-forged, heat-treated steel
• Teeth Type: Smooth
• Country of Origin: United States
