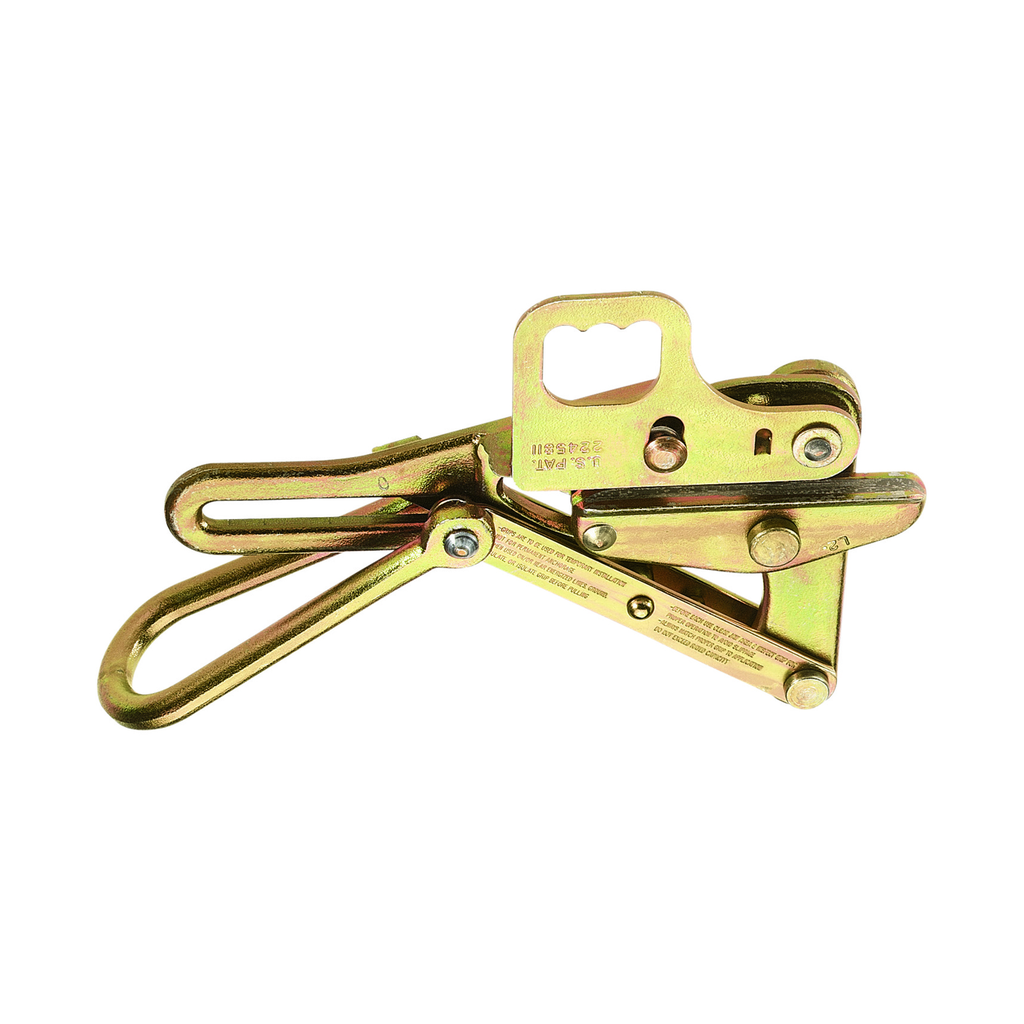

Klein Tools, 1656-40H, Chicago Grip, 8000 lb; 0.53 to 0.74 in, 5.5 in Jaw Length, Steel

Klein Tools 1656 Series Chicago Grips have a round, smooth inside jaw contour making it perfect for work with stranded copper cables. These smooth jaws grip with maximum contact and are less likely to cause cable deformation. This grip also has a hot-line latch designed for placing a grip on a cable with a hot-line stick. The three notches in the hot-line latch adjust the balance of the grip to better match the direction of the cable sag. Grips are rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Features

• Hot-line grips for both bare and insulated conductors
• Made in USA
• Grip may be placed on wire with hot-line stick
• When springs or lock-open features are desired, add prefix letter ''S'' before catalog number (example: S1684-5H)
• When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire
• Standard hot-line grips are not supplied with springs or lock-open features

Warnings

• Grips are to be used for temporary installation, not for permanent anchorage.
• Do not exceed rated capacity.
• Always match proper size and type of grip to application.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.

• Maximum Safe Load: 8000 lb (3629 kg)
• Cable Diameter: 0.53 in to 0.74 in (13.46 to 18.8 mm)
• Jaw Length: 5.5 in (14 cm)
• Application: Wire Pulling
• Type: Chicago Grip
• Hot Latch: Yes
• Swing Latch: No
• Locking Handle: Yes
• Spring: No
• Teeth Type: Smooth
• Material: Steel
• Cable Type: ACSR, AAC, Copper
• Height: 2 in
• Width: 5 in
• Depth: 11 in
• Weight: 0.1 lb
• Jaw Type: Round
• Country of Origin: USA
