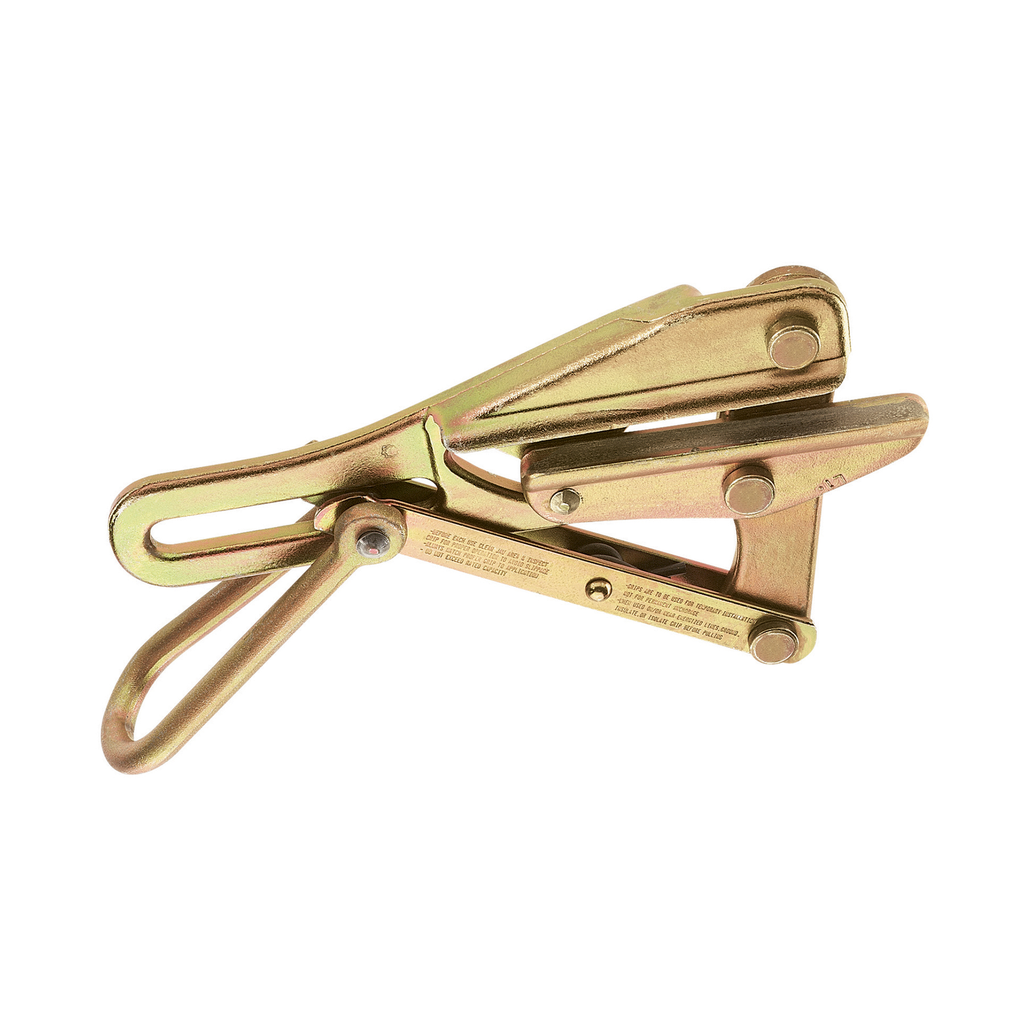

Klein Tools, 1656-20, Chicago Grip, 4500 lb Capacity, 0.2 to 0.4 in Cable Diameter, 4 in Jaw Length

Klein Tools 1656 Series Chicago Grips have a round, smooth inside jaw contour making it perfect for work with stranded copper cables. These smooth jaws grip with maximum contact and are less likely to cause cable deformation. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Features

• Made in USA
• Spring Loaded
• Manufactured from drop-forged, heat-treated steel for excellent durability
• Smooth jaws grip with maximum contact and are less likely to damage conductors
• Jaw design helps reduce slippage to make pulling cables easier
• Round, smooth inside jaw contour on this series of grips is ideal for bare ACSR, aluminum, and stranded copper cables

Warnings

• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Do not exceed rated capacity.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Always match proper size and type of grip to application.

• Maximum Safe Load: 4500 lb (2041 kg)
• Cable Diameter: 0.2 to 0.4 in (5.08 to 10.16 mm)
• Jaw Length: 4 in (10.2 cm)
• Overall Length: 12.5 in (31.8 cm)
• Width: 3.6 in
• Depth: 7.2 in
• Overall Width: 2.13 in (5.4 cm)
• Height: 2.025 in
• Overall Height: 4.75 in (12.1 cm)
• Material: Drop-forged heat-treated steel
• Jaw Type: Round, smooth inside jaw contour
• Locking Handle: Yes
• Type: Chicago Grip
• Cable Type: Copper, ACSR, AAC
• Application: Wire Pulling
• Hot Latch: No
• Swing Latch: No
• Spring: No
• Grip Type: Spring Loaded
• Made in: USA

Downloads

Instructions
