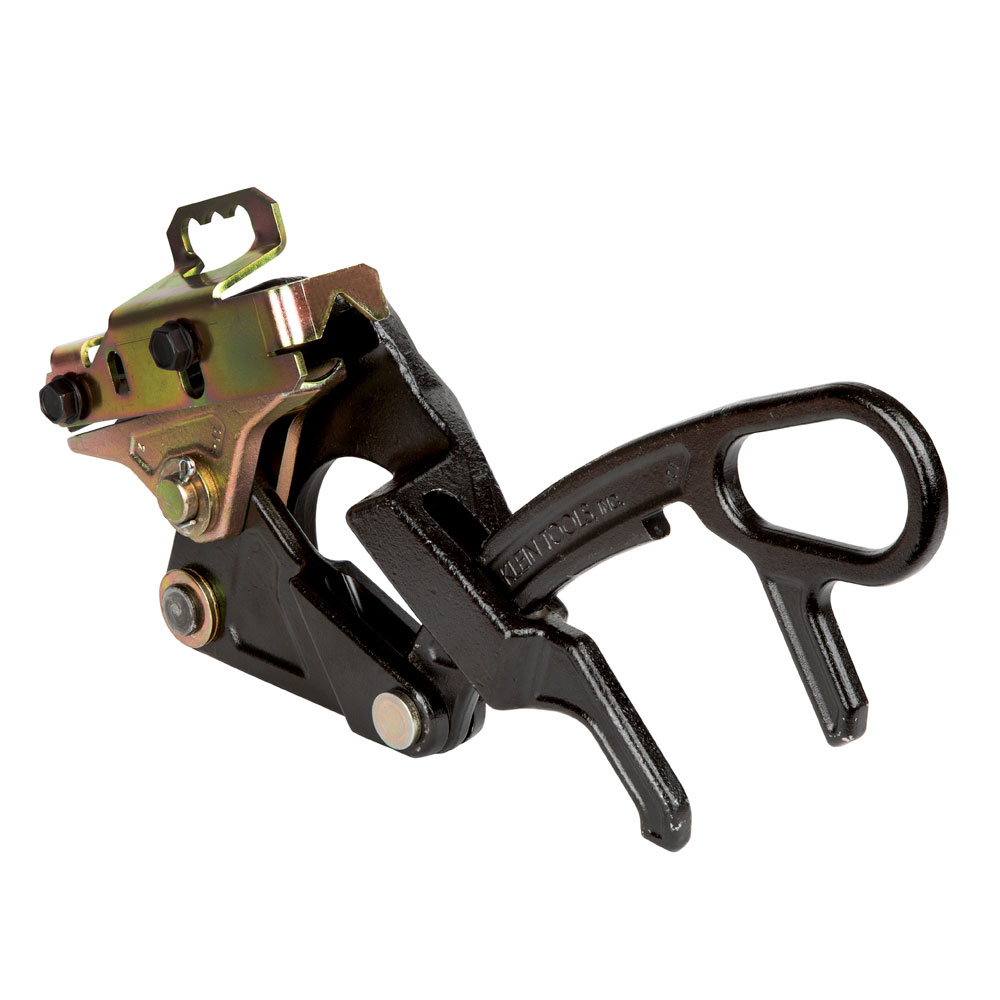

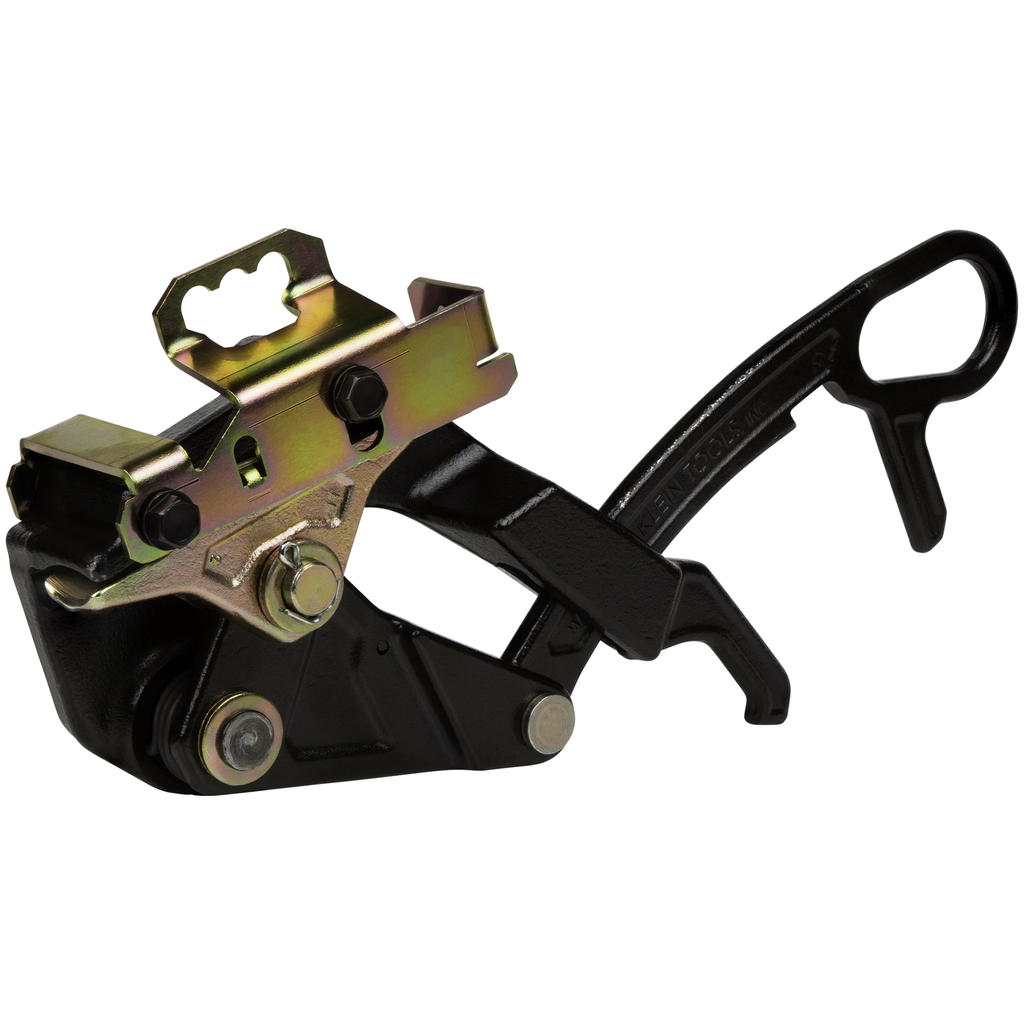

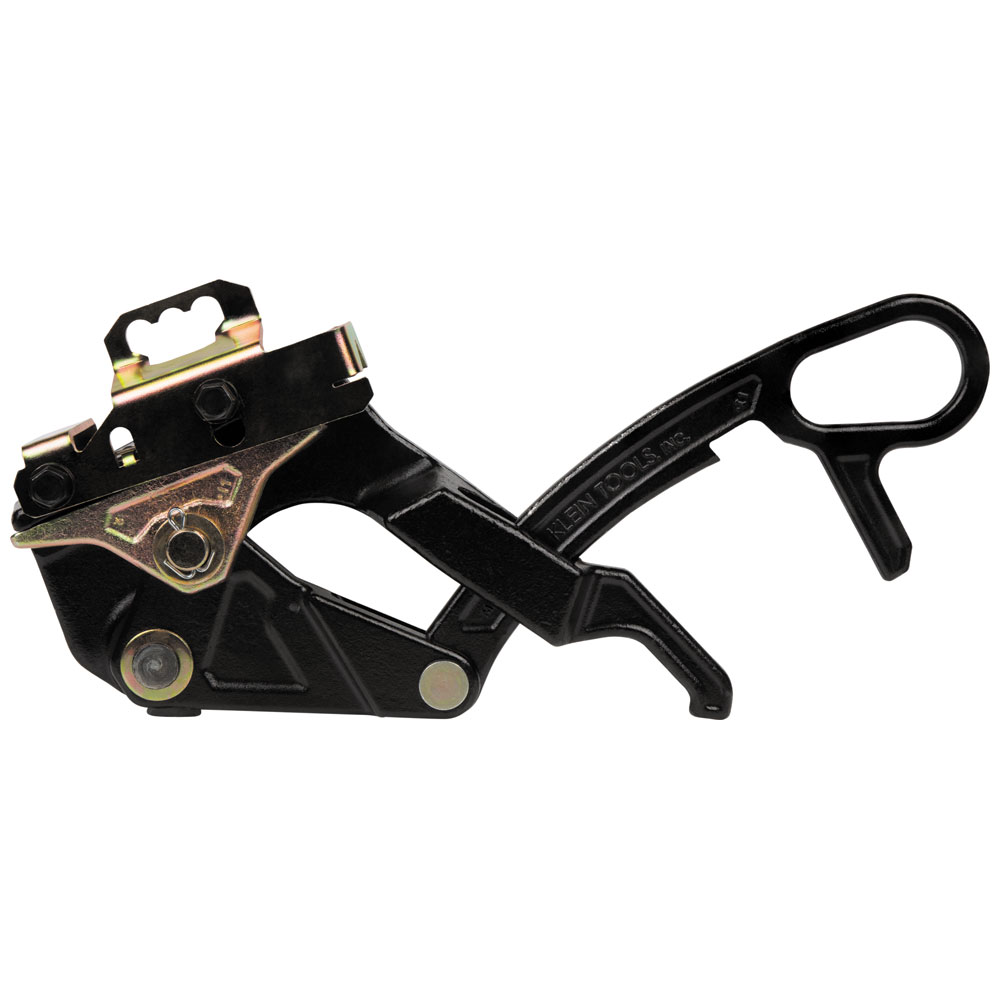

Klein Tools, 1649920, Parallel Jaw Grip, 12,000 lb Maximum Safe Load, 0.68 in to 1.42 in Cable Diameter, Steel

The Klein Tools Wide Range Transmission Grip with Hot Latch was specifically designed to securely pull ACSR, AAC and bare copper cables. Holds a wide range of cable from 0.68-Inch to 1.42-Inch (17.3 to 36.1 mm). This grip has a maximum safe load of 12,000-Pound.

Features

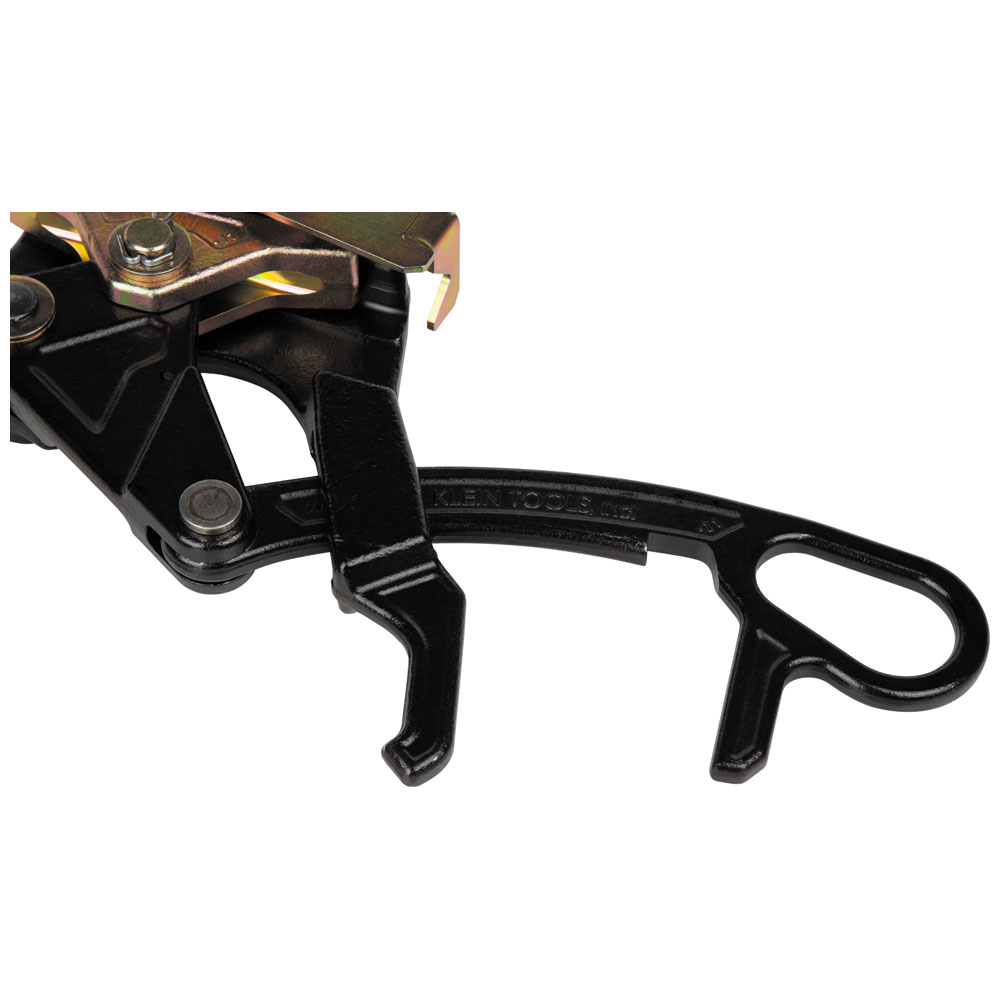

• Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks
• Spring closes grip on cable to hold the initial position
• Includes a latch to help maintain cable position in the grip jaw
• Max Safe Load of 12000-Pound (5443 kg)
• Patent pending design
• Holds cable sizes from 0.68-Inch to 1.42-Inch (17.3 to 36.1 mm)
• Cable pulling grip securely pulls ACSR, AAC and bare copper cables
• Made in the USA
• Fine tooth jaw geometry provides greater grip strength

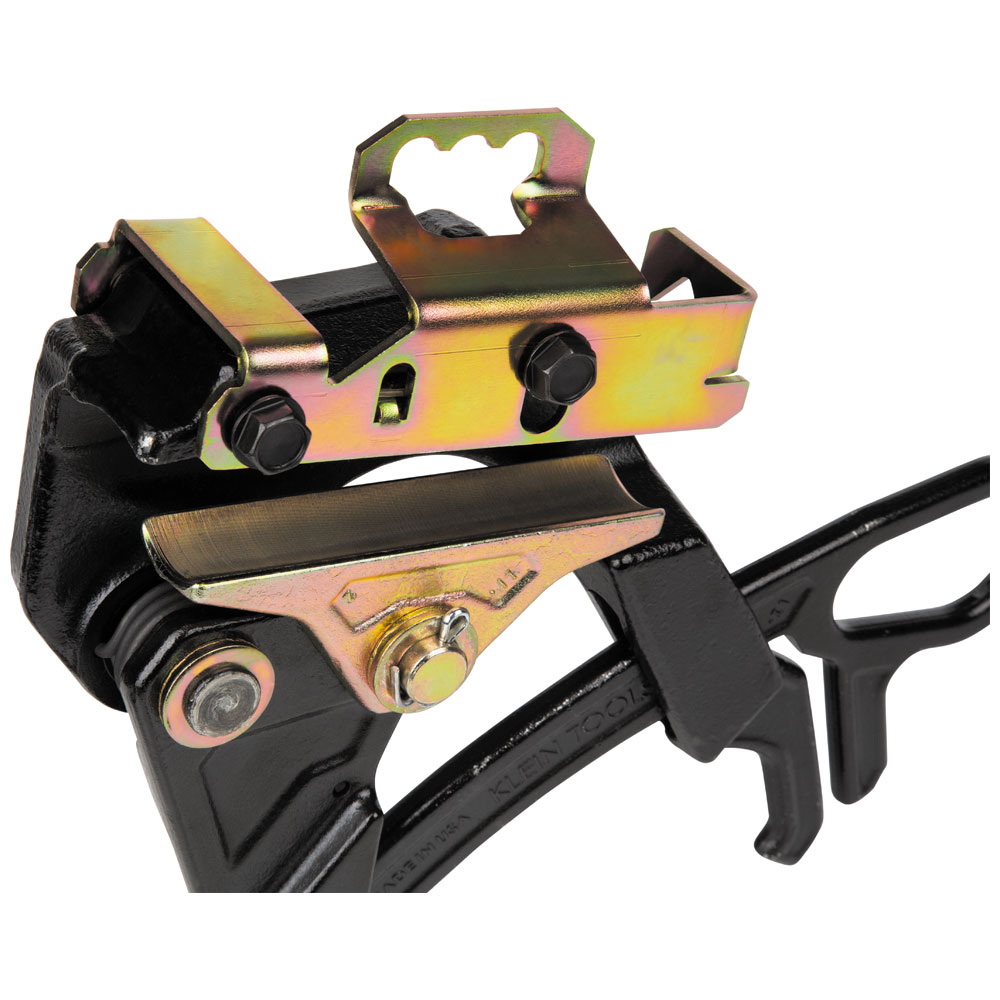

• Innovative hot latch with V-notch centers cable

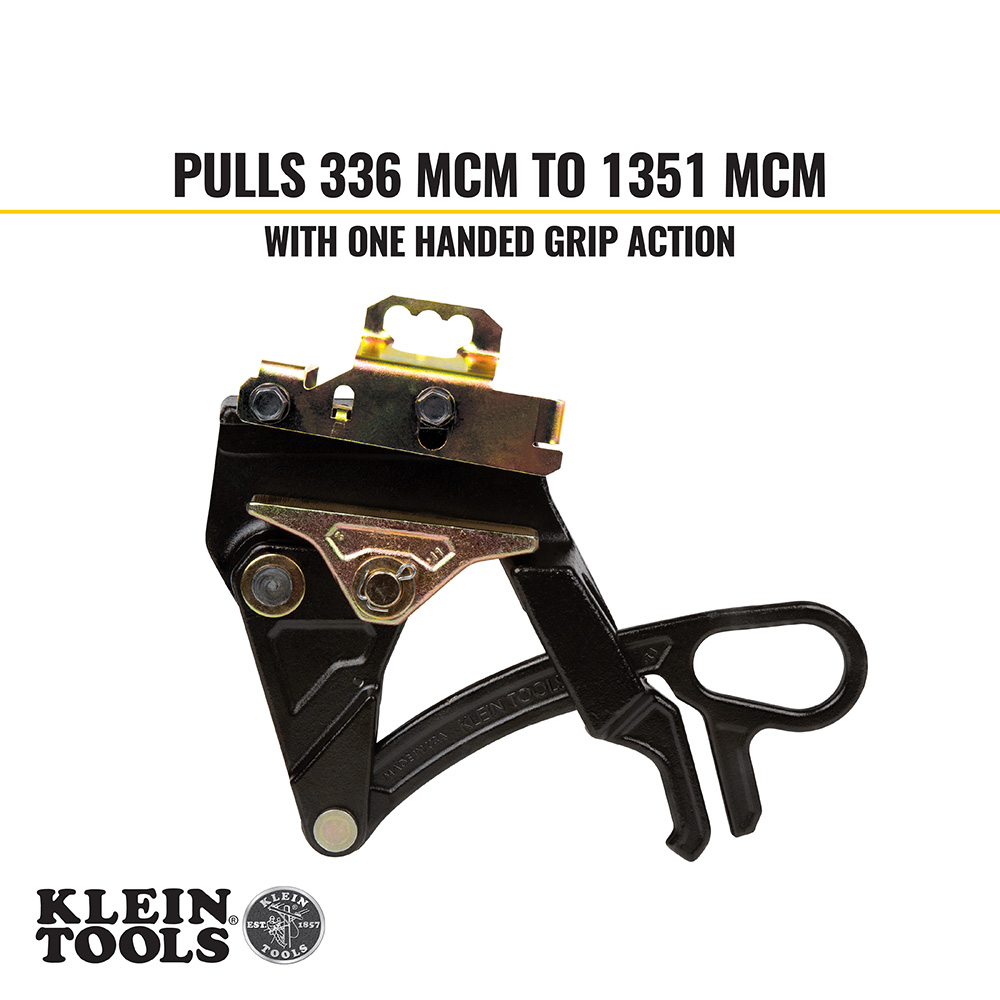

• Hot Latch, One-Handed Grip

Warnings

• When used on/or near energized lines, ground, insulate, or isolate grip before pulling.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Do not exceed rated capacity.
• Always match proper size and type of grip to application.

• Maximum Safe Load: 12,000 lb (5,443 kg)
• Cable Diameter: 0.68 in to 1.42 in (17.3 to 36.1 mm)
• Jaw Length: 4.85 in (12.3 cm)
• Overall Length: 13.1 in (33.3 cm)
• Overall Height: 9.3 in (23.6 cm)
• Overall Width: 3.06 in (7.8 cm)
• Width: 9.27 in
• Height: 3.16 in
• Depth: 11.79 in
• Jaw Type: Round
• Cable Type: ACSR, AAC, Copper
• Material: Steel
• Hot Latch: Yes
• Locking Handle: Yes
• Teeth Type: Fine
• Spring: Yes
• Type: Parallel Jaw Grip
• Swing Latch: No
• Application: Wire Pulling
• Weight: 8.2 lbs (3.72 kg)
• Country of Origin: United States
