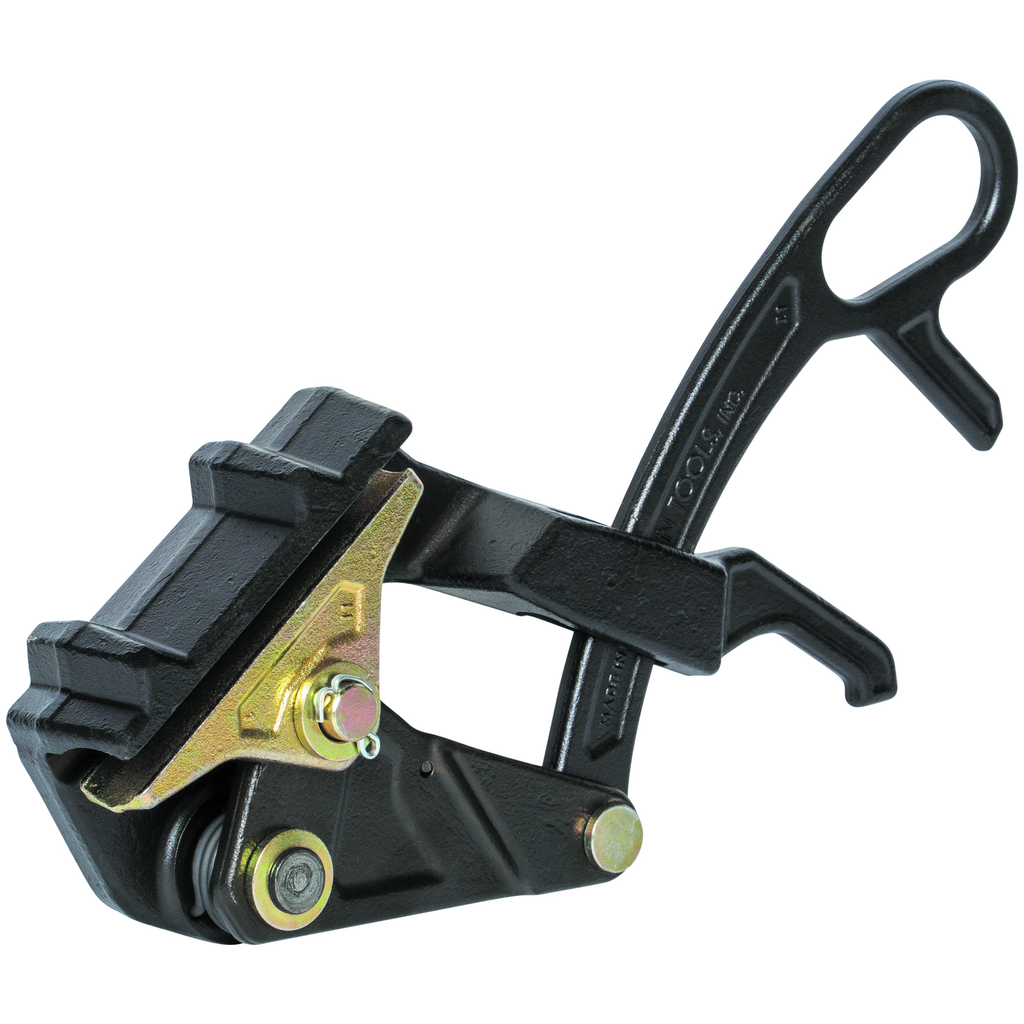

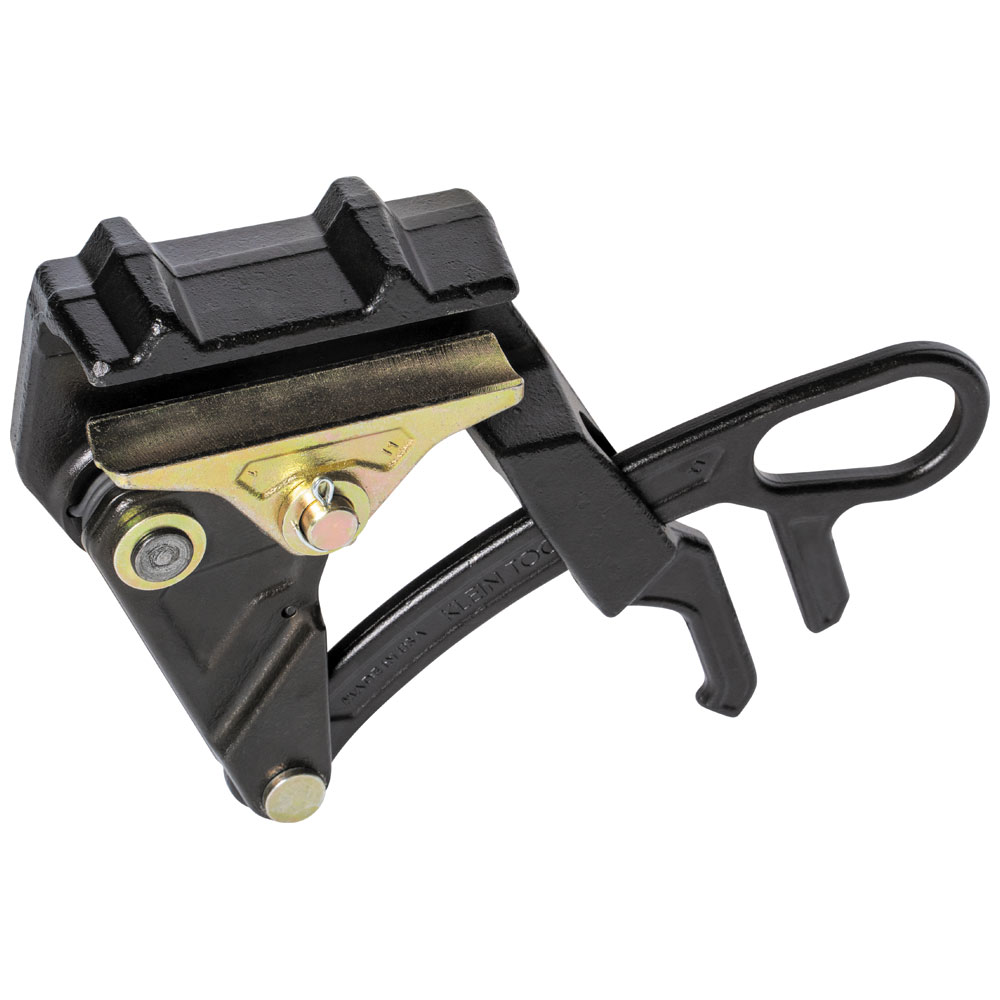

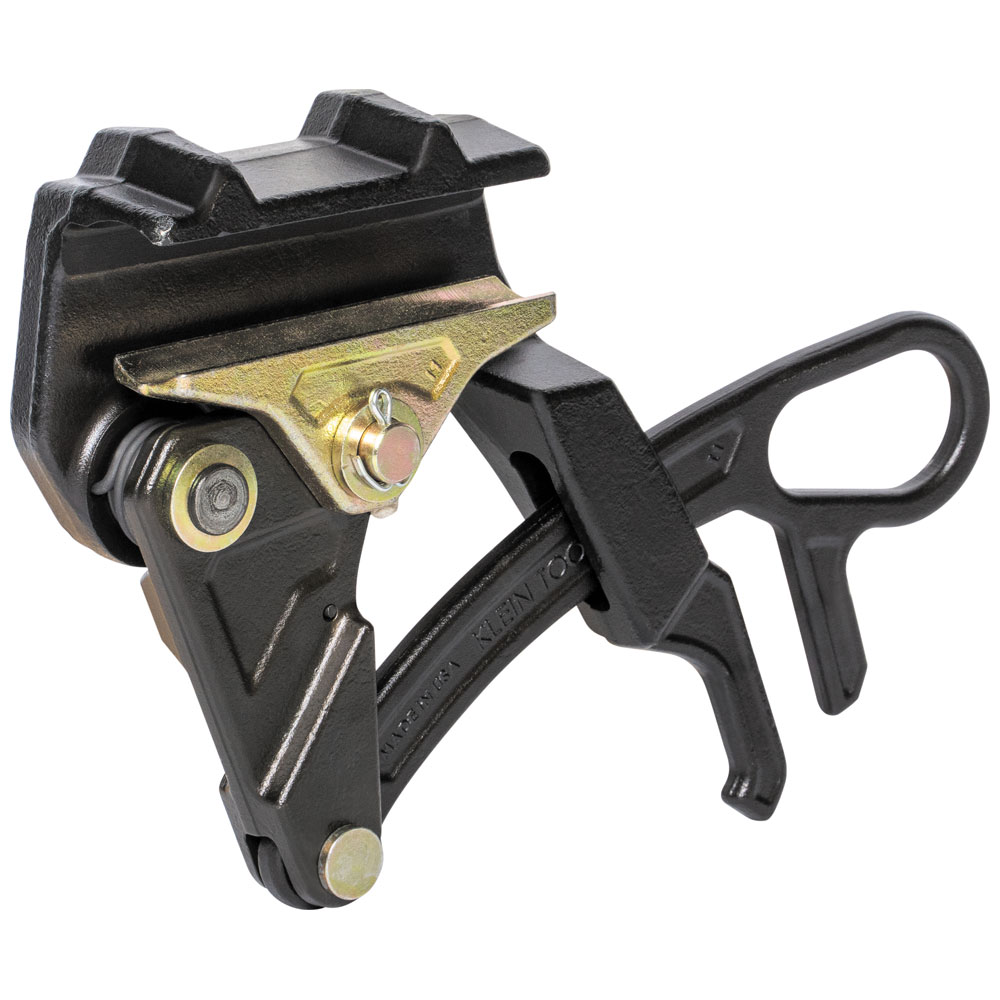

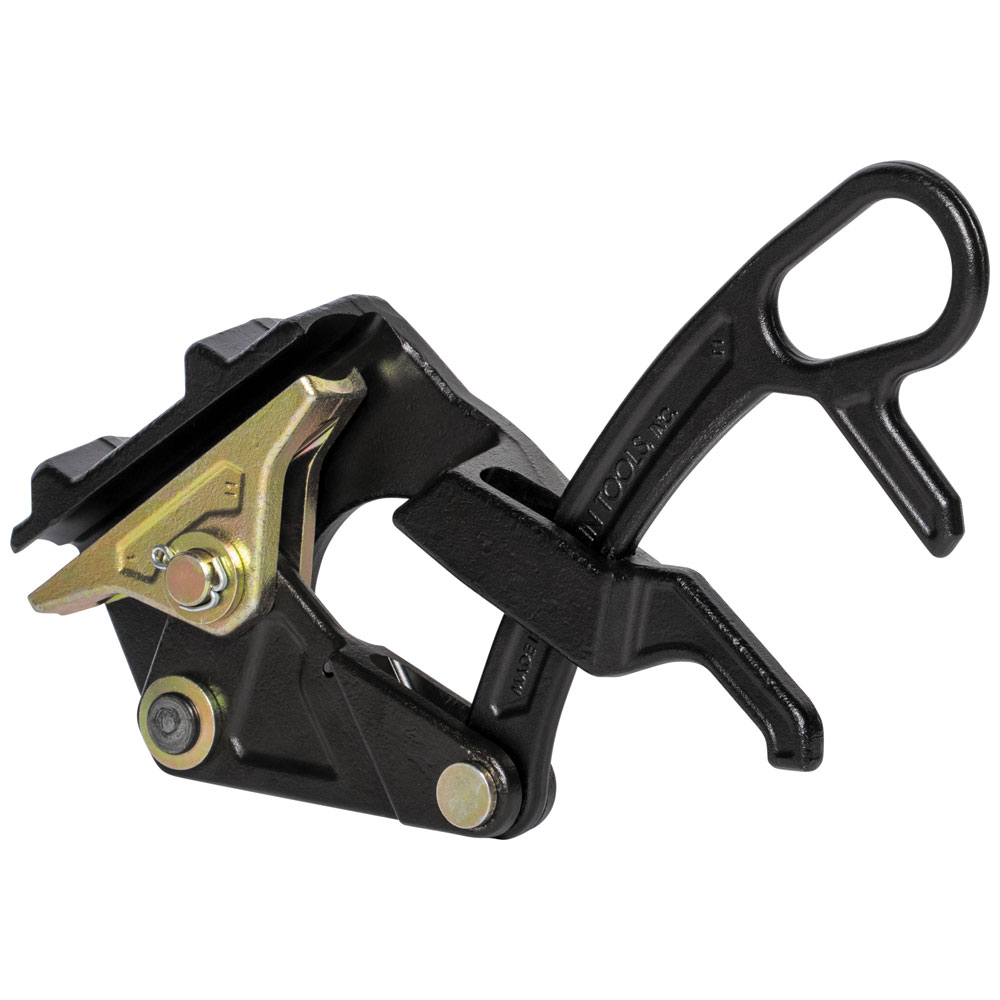

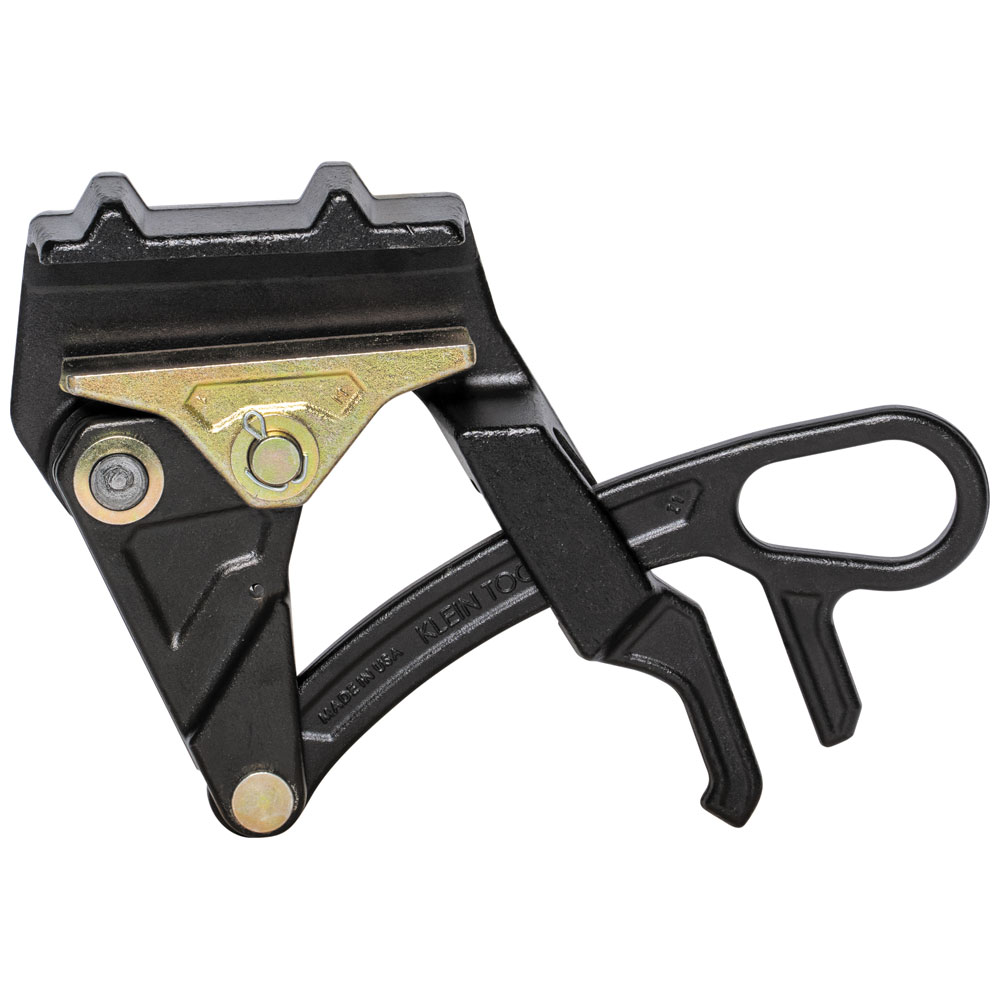

Klein Tools, 16499, Parallel Jaw Grip, 12,000 lb, 0.68 in to 1.42 in, Steel

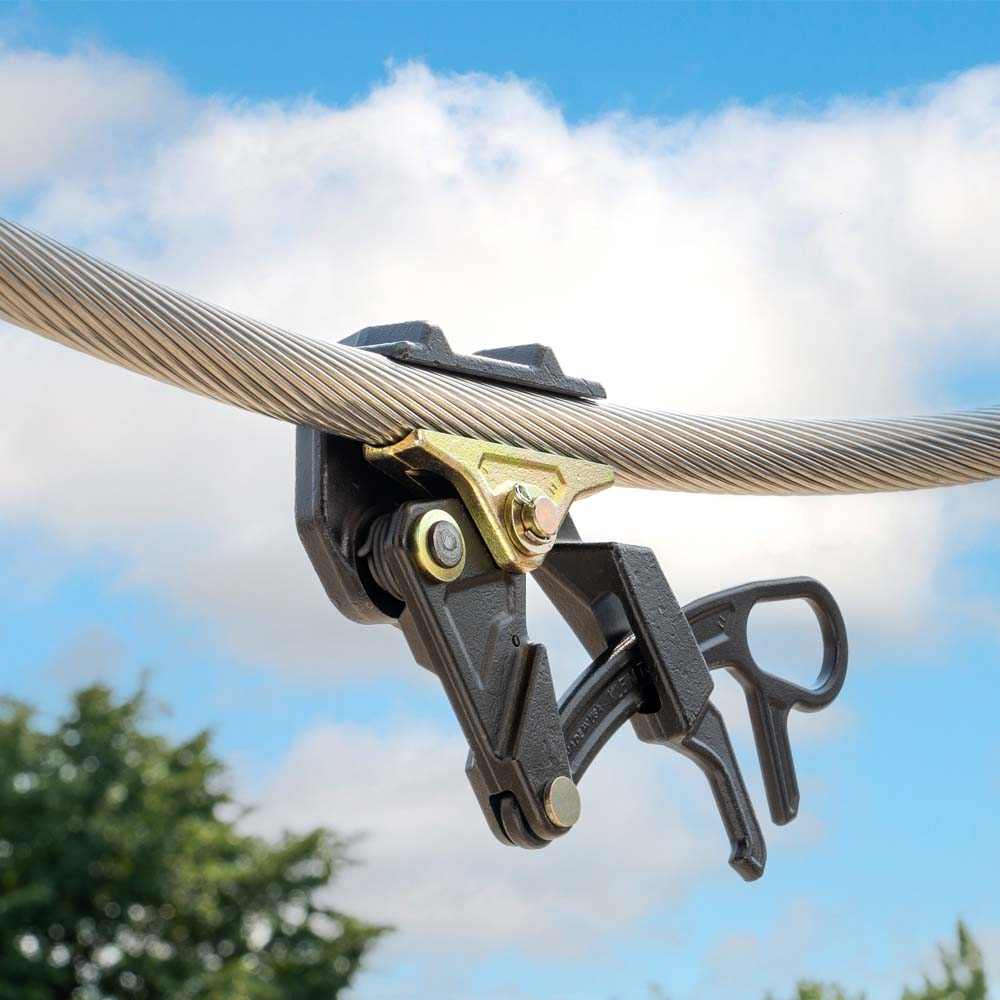

The Klein Tools Wide Range Transmission Grip was specifically designed to securely pull ACSR, AAC and bare copper cables. Holds a wide range of cable from 0.68-Inch to 1.42-Inch (17.3 mm to 36.1 mm). This grip has a maximum safe load of 12,000-Pound (5443 kg).

Features

• Securely pulls ACSR, AAC and bare copper cables

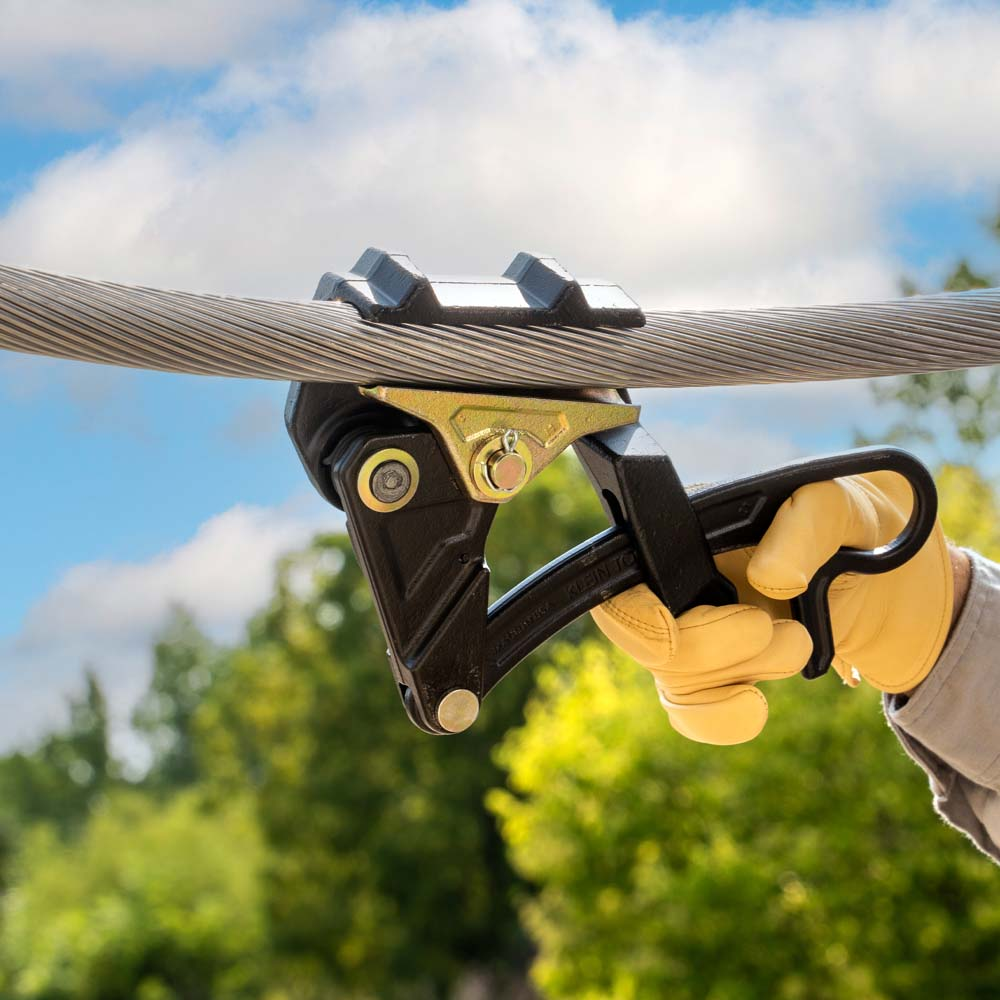

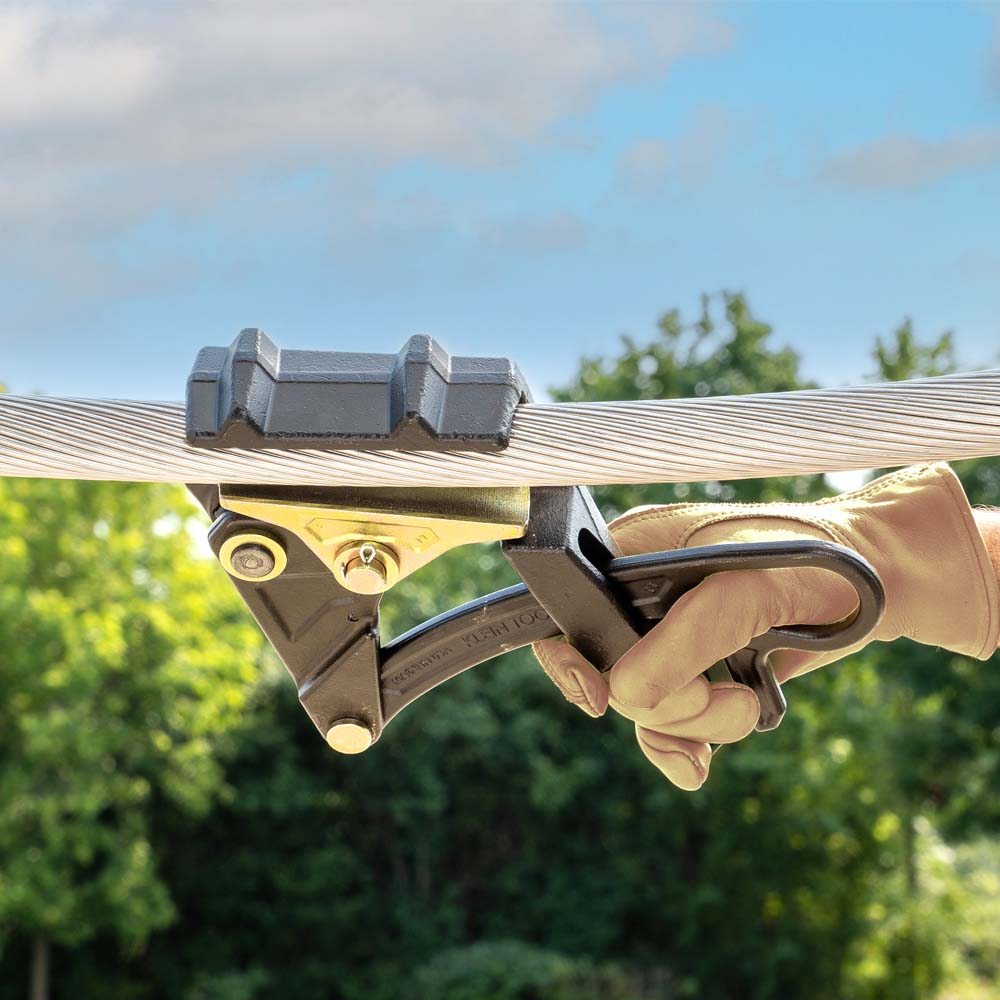

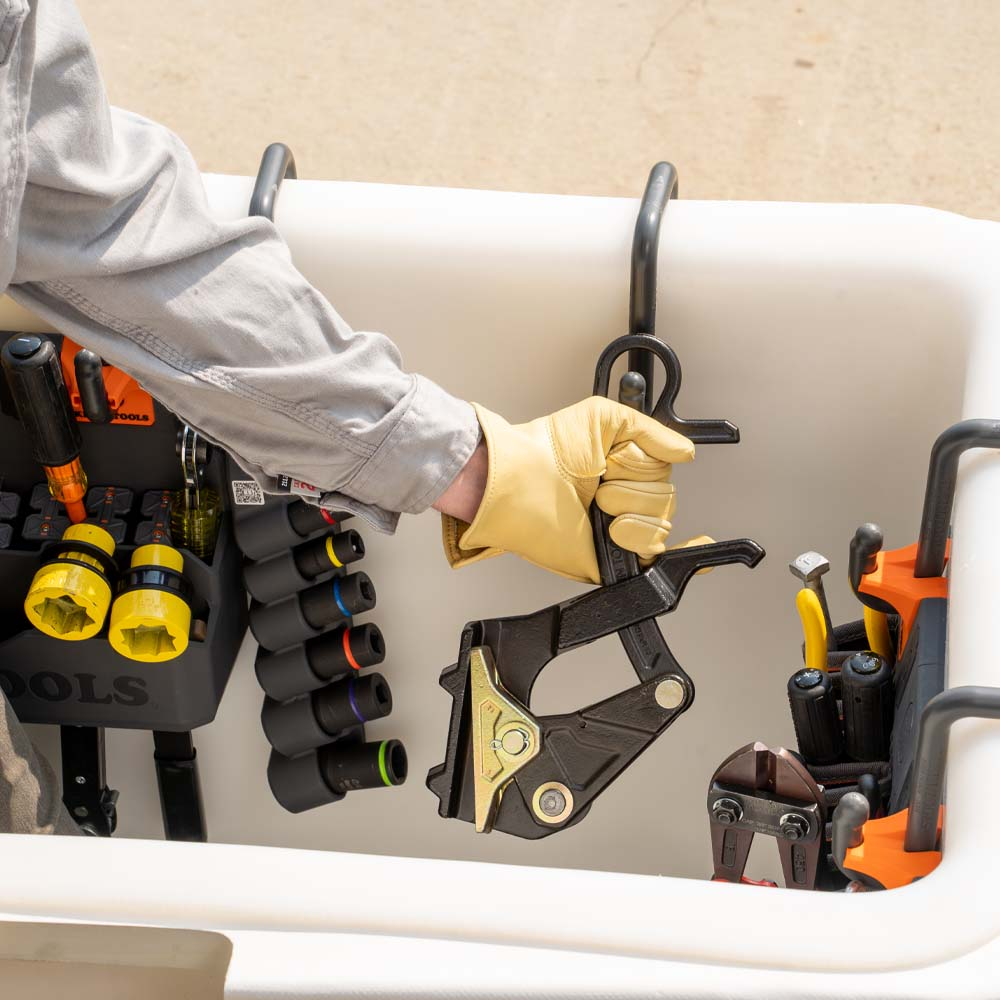

• One-Handed Grip
• Made in the USA

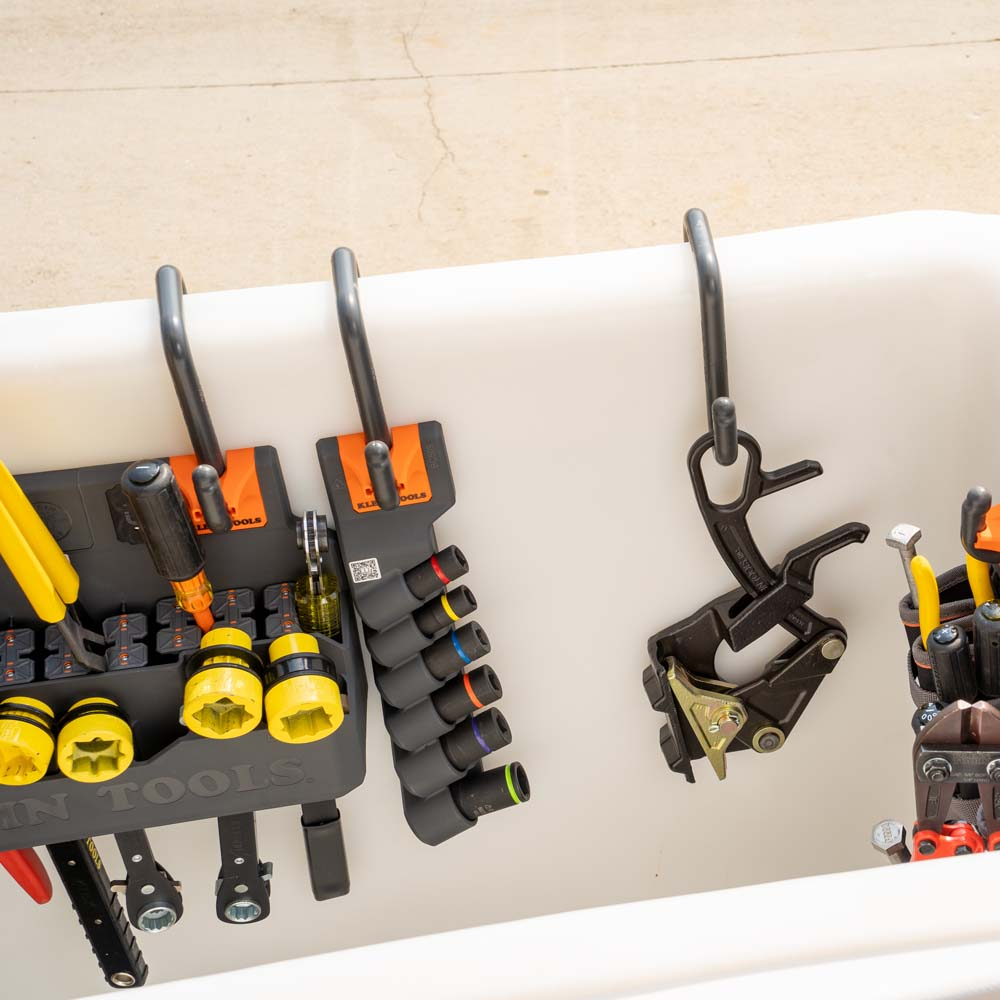

• Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks
• Spring closes grip on cable to hold the initial position
• Max Safe Load of 12,000-Pound (5443 kg)
• Fine Sawtooth jaw geometry provides greater grip strength
• Patent pending design

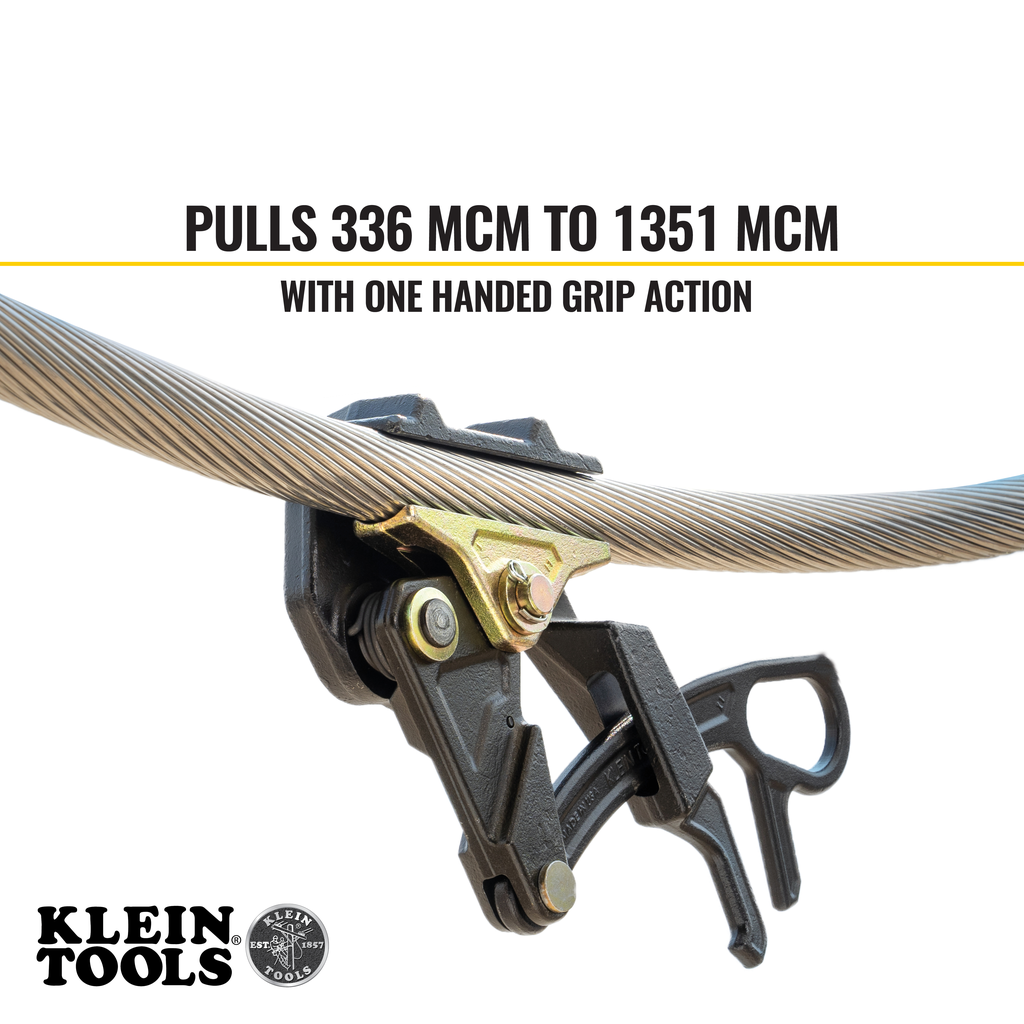

• Holds cable sizes from 0.68-Inch to 1.42-Inch (17.3 mm to 36.1 mm)

Warnings

• Always match proper size and type of grip to application.
• When used on/or near energized lines, ground, insulate, or isolate grip before pulling.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Do not exceed rated capacity.
• Grips are to be used for temporary installation, not for permanent anchorage.

• Maximum Safe Load: 12,000 lb (5,443 kg)
• Cable Diameter: 0.68 in to 1.42 in (17.3 mm to 36.1 mm)
• Jaw Type: Round
• Teeth Type: Fine
• Spring: Yes
• Jaw Length: 4.85 in (12.3 cm)
• Overall Length: 13.1 in (33.3 cm)
• Width: 8.0 in
• Height: 2.4 in
• Overall Height: 8.1 in (20.6 cm)
• Overall Width: 2.4 in (6.1 cm)
• Locking Handle: Yes
• Swing Latch: No
• Hot Latch: No
• Material: Steel
• Cable Type: ACSR, AAC, Copper
• Type: Parallel Jaw Grip
• Application: Wire Pulling
• Country of Origin: United States
