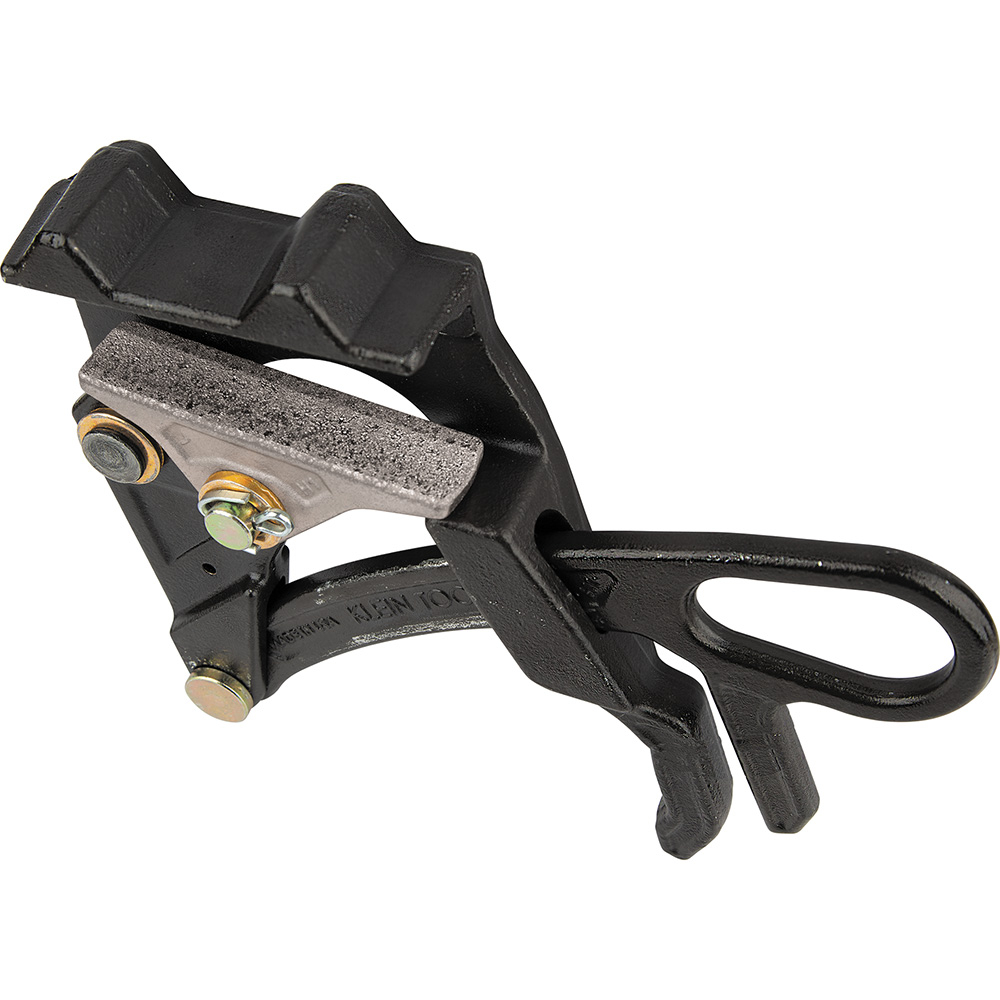

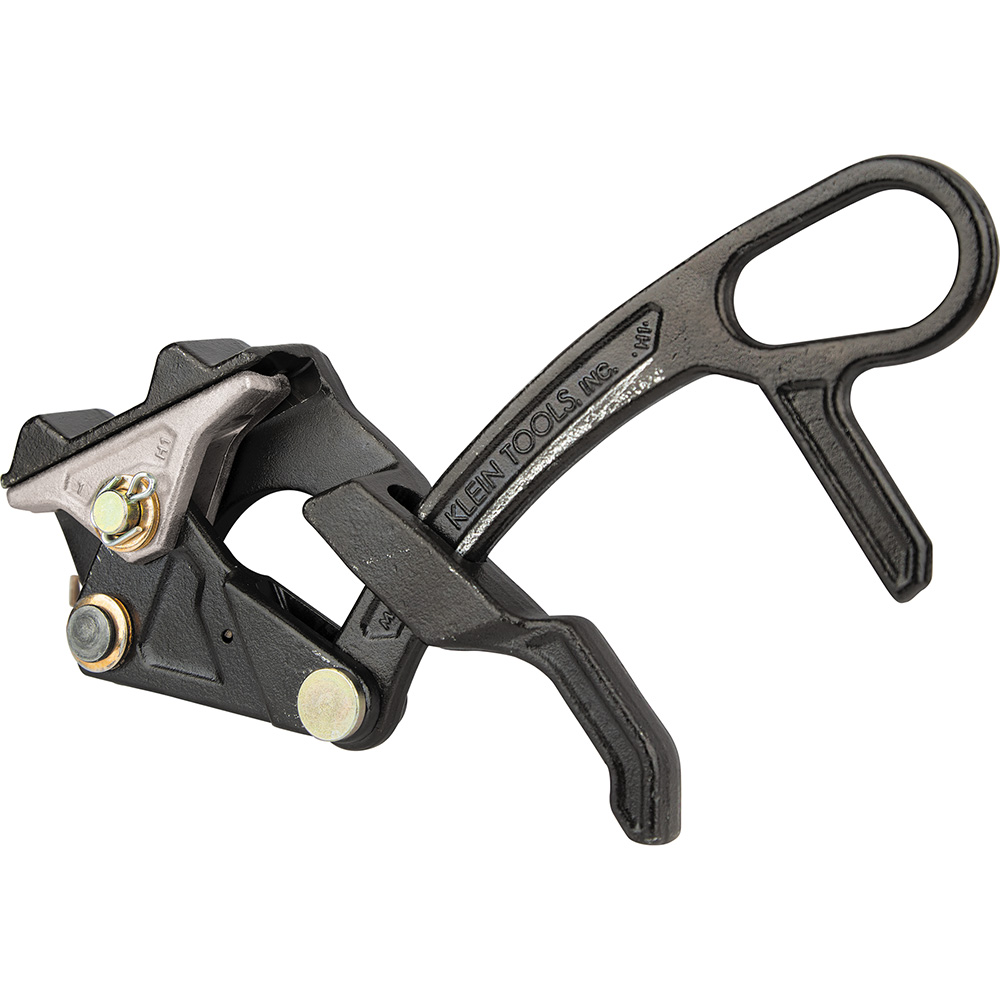

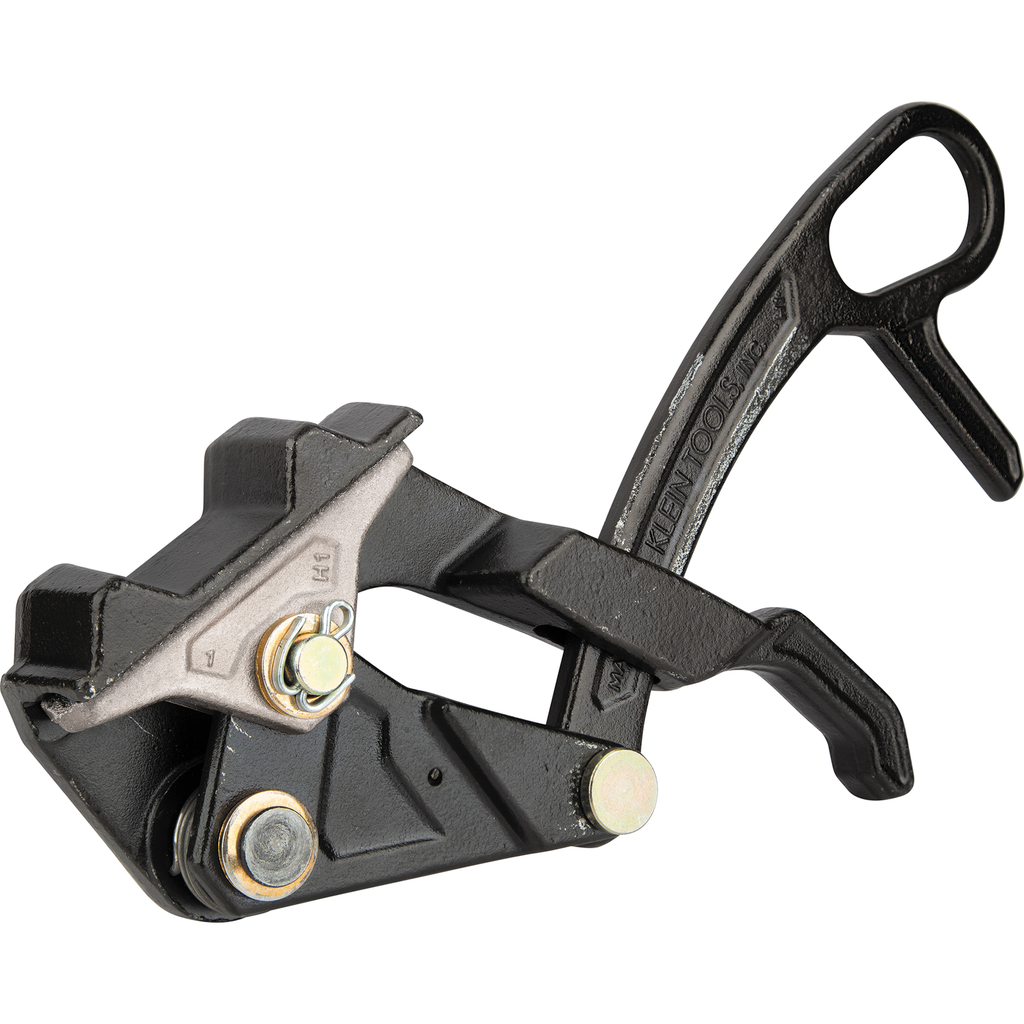

Klein Tools, 1647728, Distribution Grip, 5000 lb Max Load, For HDPE-Coated Cable, 0.162 to 0.883 in Diameter

Klein Tools' Wide Range Distribution Grip for Tree Wire was specifically designed to securely pull slippery HDPE-coated cable as known as tree wire or fire wire. Holds a wide range of cable sizes from 0.162-Inch to 0.883-Inch (4.11 to 22.42 mm). This versatile, one-handed actuation grip is 50-Percent lighter than the Klein's KT4600 grip with easy. Made in the USA, this grip has a maximum safe load of 5000-Pound (2268 kg).

Warnings

• Do not exceed rated capacity.
• When used on/or near energized lines, ground, insulate, or isolate grip before pulling.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Always match proper size and type of grip to application.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.

Features

• Patent pending design
• One-Handed Grip
• Max Safe Load of 5000-Pound (2268 kg)
• Spring closes grip on cable to hold the initial position
• Securely pulls HDPE-coated cable commonly known as tree wire or fire wire; holds cable sizes from 0.162-Inch to 0.883-Inch (4.11 to 22.42 mm)
• Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks
• One-handed design makes for easier actuation
• Made in the USA
• 50-Percent lighter than the KT4600 grip

• Maximum Safe Load: 5000 lb (2268 kg)
• Cable Diameter: 0.162 to 0.883 in (4.11 to 22.42 mm)
• Overall Length: 10.25 in (26 cm)
• Depth: 10 in
• Width: 6.5 in
• Overall Height: 8 in (20.3 cm)
• Jaw Length: 3.31 in (8.4 cm)
• Overall Width: 1.75 in (4.4 cm)
• Height: 1.25 in
• Teeth Type: Grit
• Jaw Type: Round
• Type: Parallel Jaw Grip
• Spring: Yes
• Locking Handle: No
• Hot Latch: No
• Swing Latch: No
• Cable Type: HDPE-Coated, PVC-Coated, Weatherproof
• Material: Steel
• Material Compatibility: HDPE-coated cable (tree wire)
• Weight: 2.9 lbs (1.3 kg)
• Application: Wire Pulling
• Jaw Color: Silver
• Compliance: Made in USA
