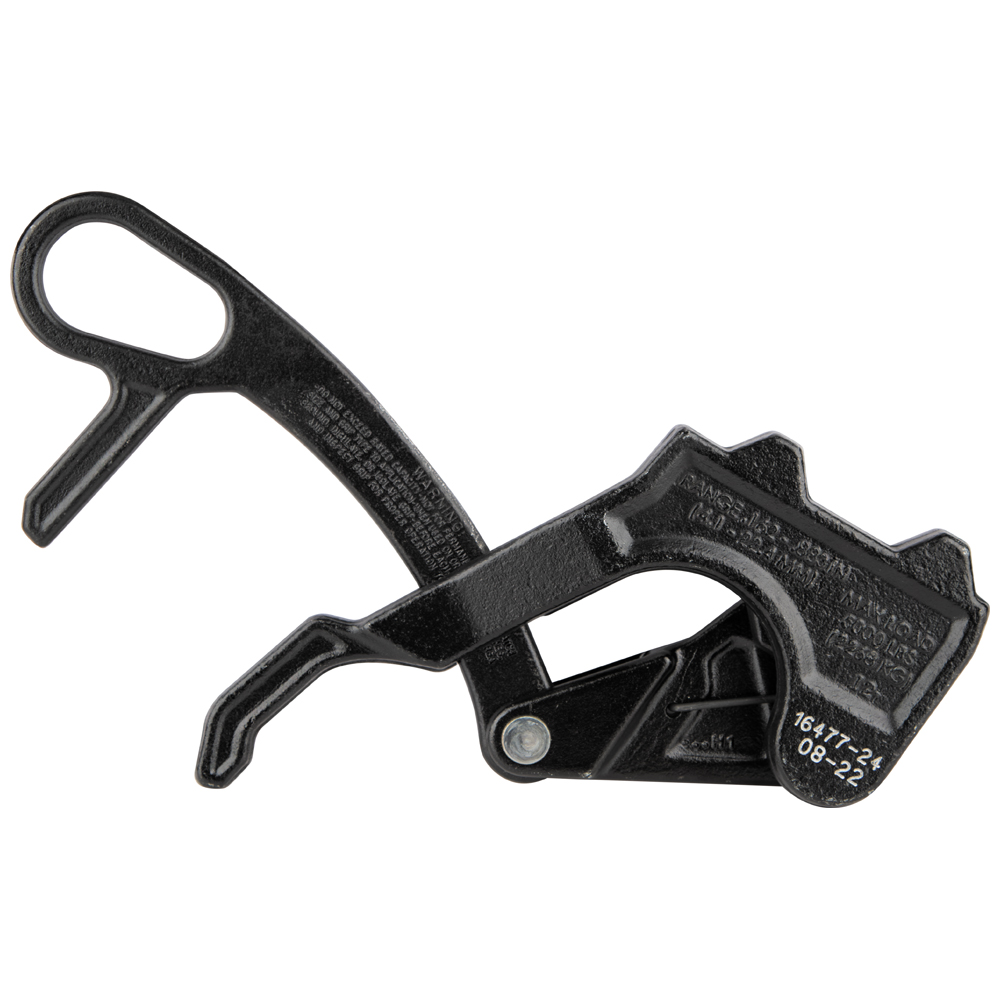

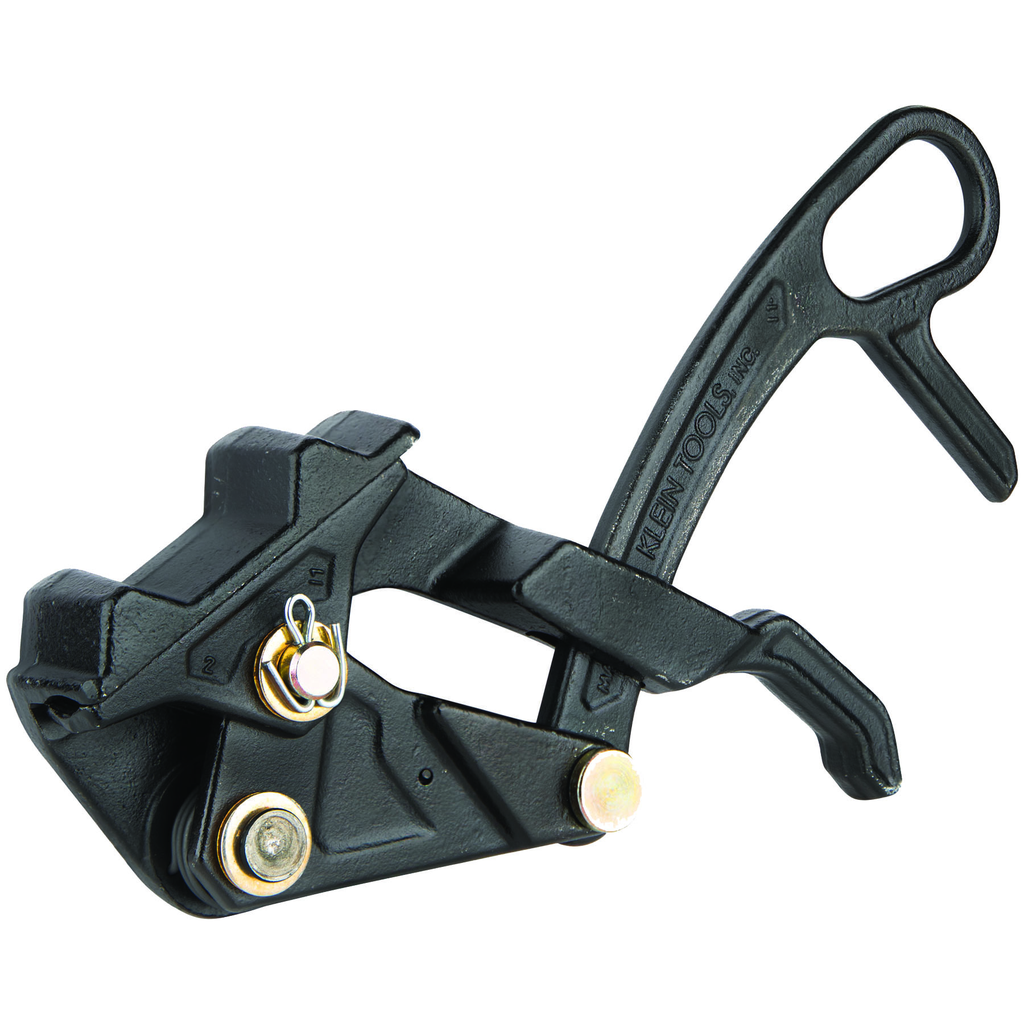

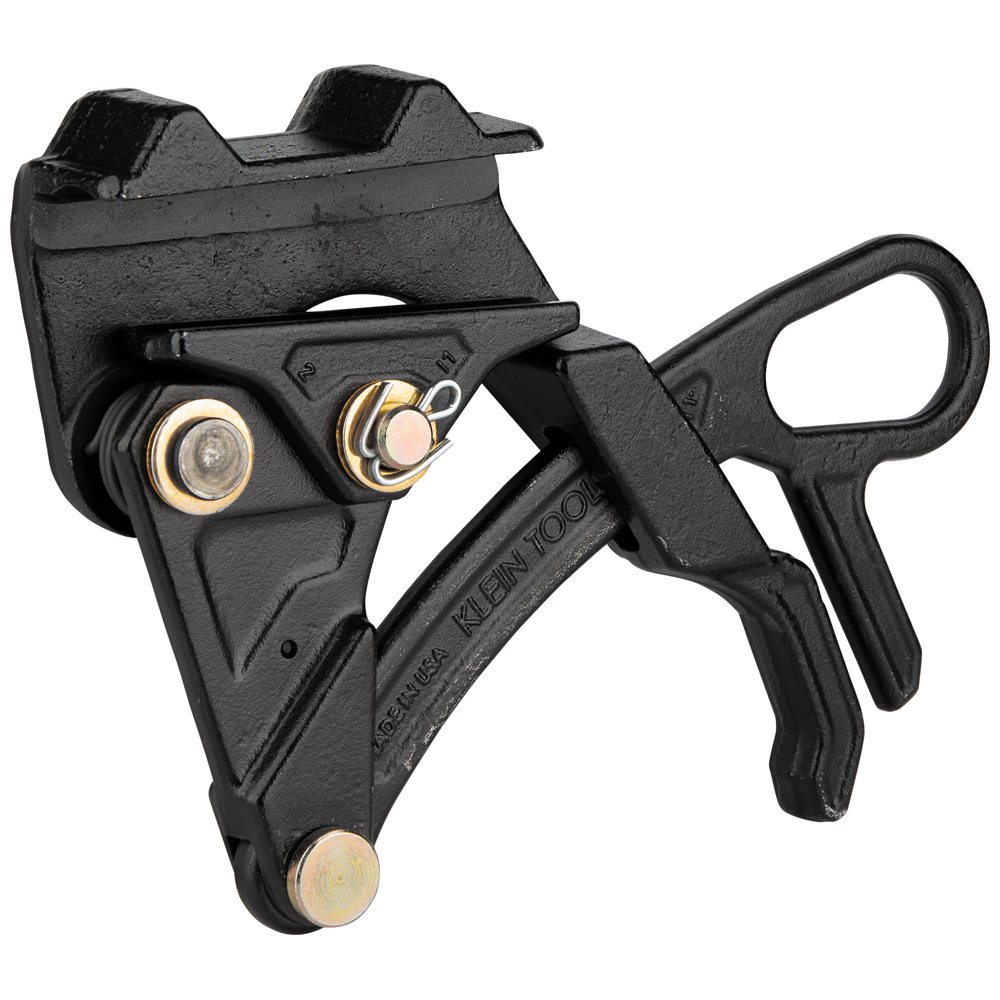

Klein Tools, 1647724, Distribution Grip, EHS Jaw, 0.162 to 0.883 in, Max Load 5000 lb, One-Handed Design

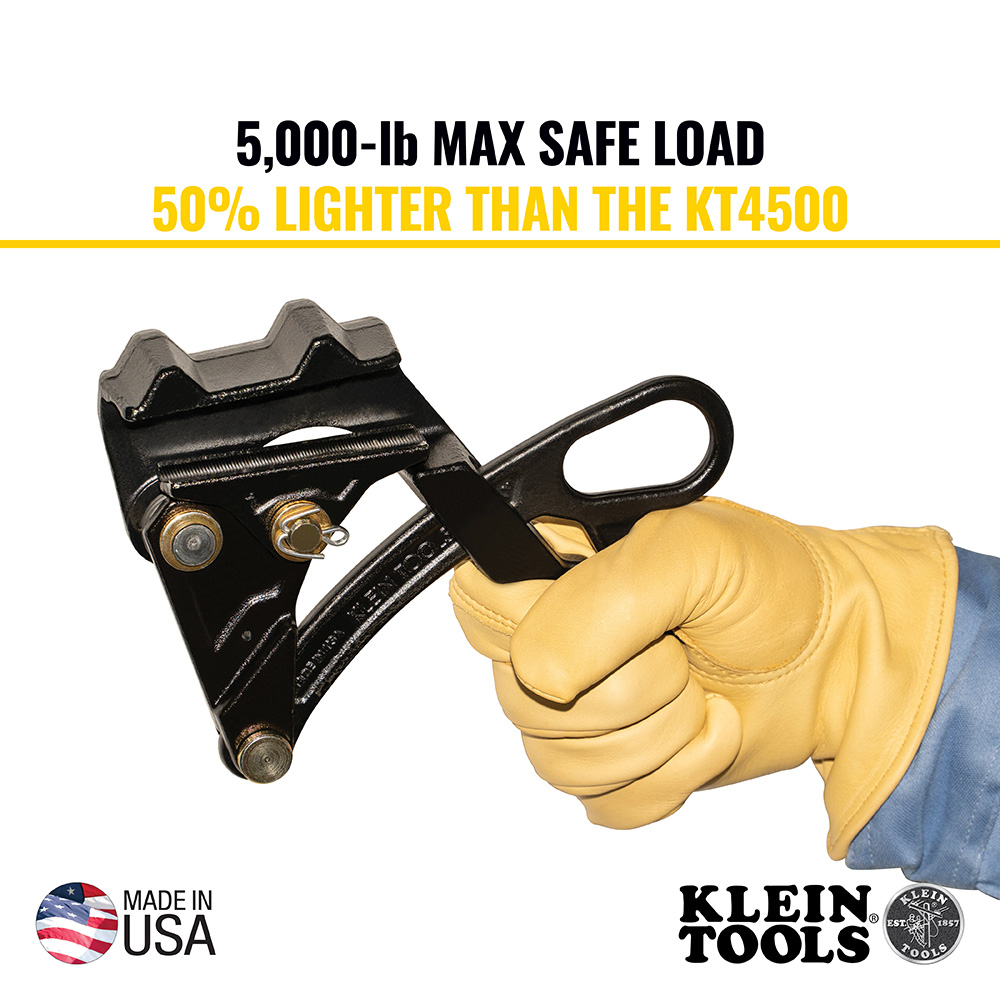

Klein Tools' Wide Range Distribution Grip with EHS Jaw holds a wide range of cable from 0.162-Inch to 0.883-Inch (4.11 to 22.42 mm). This versatile, one-handed actuation grip is 50-Percent lighter than the Klein's KT4600 grip. Made in the USA, this grip has a maximum safe load of 5000-Pound (2268 kg).

Warnings

• Do not exceed rated capacity.
• When used on/or near energized lines, ground, insulate, or isolate grip before pulling.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Always match proper size and type of grip to application.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.

Features

• EHS Jaw holds a wide range of cable from 0.162-Inch to 0.883-Inch (4.11 to 22.42 mm)
• Made in the USA
• Max Safe Load of 5000-Pound (2268 kg)
• Spring closes grip on cable to hold the initial position
• One-Handed Grip
• Patent pending design
• 50-Percent lighter than the KT4600 grip
• One-handed design makes for easier actuation
• Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks

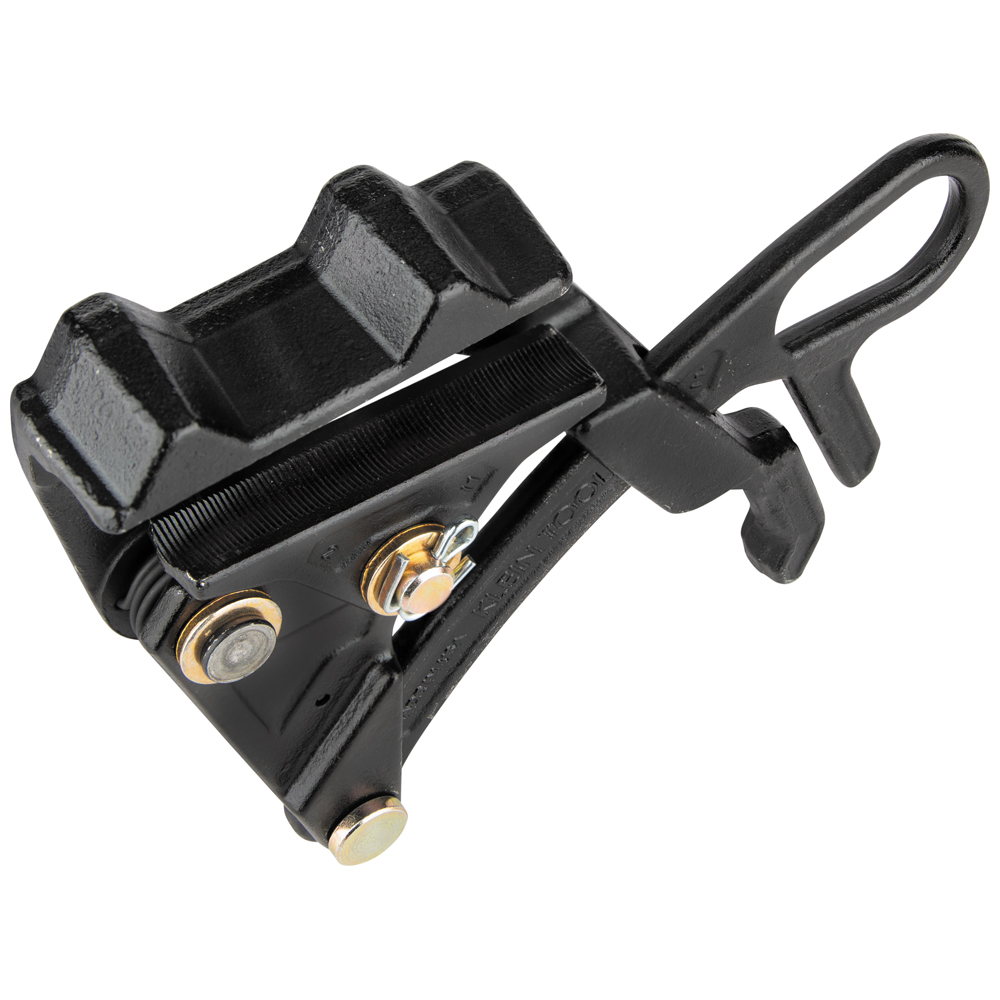

• Alternating sawtooth jaw geometry provides greater grip strength

• Maximum Safe Load: 5000 lb (2268 kg)
• Cable Diameter: 0.162 to 0.883 in (4.11 to 22.42 mm)
• Overall Length: 10.25 in (26 cm)
• Width: 6.5 in
• Depth: 10 in
• Overall Height: 8 in (20.3 cm)
• Overall Width: 1.75 in (4.4 cm)
• Height: 1.25 in
• Jaw Length: 3.31 in (8.4 cm)
• Weight: 1.36 lbs (0.62 kg)
• Type: Parallel Jaw Grip
• Material: Steel
• Jaw Type: Round, Coarse Tooth
• Cable Type: Aircraft, EHS, Messenger, Guy Strand
• Spring: Yes
• Swing Latch: No
• Locking Handle: No
• Hot Latch: No
• Application: Wire Pulling
• Jaw Color: Black
• Material Origin: Made in USA
• Design: One-handed
