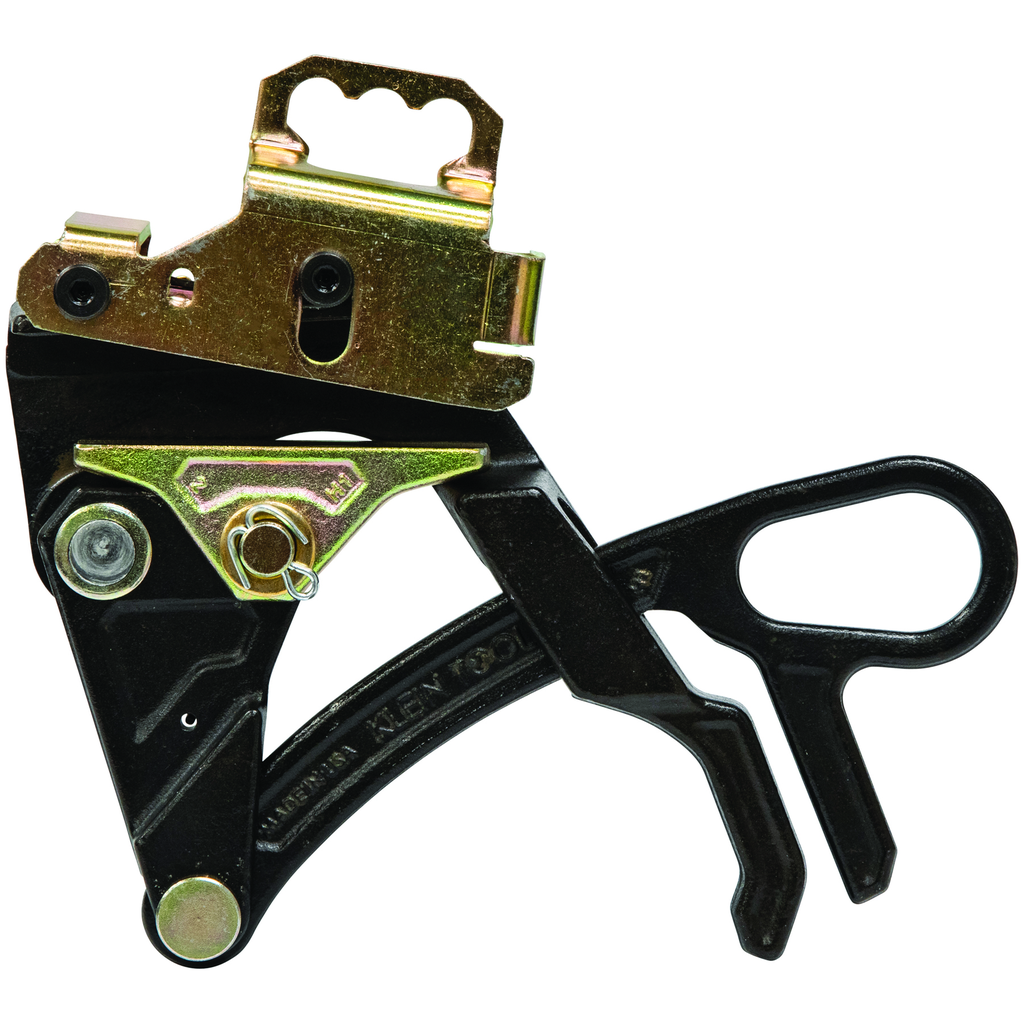

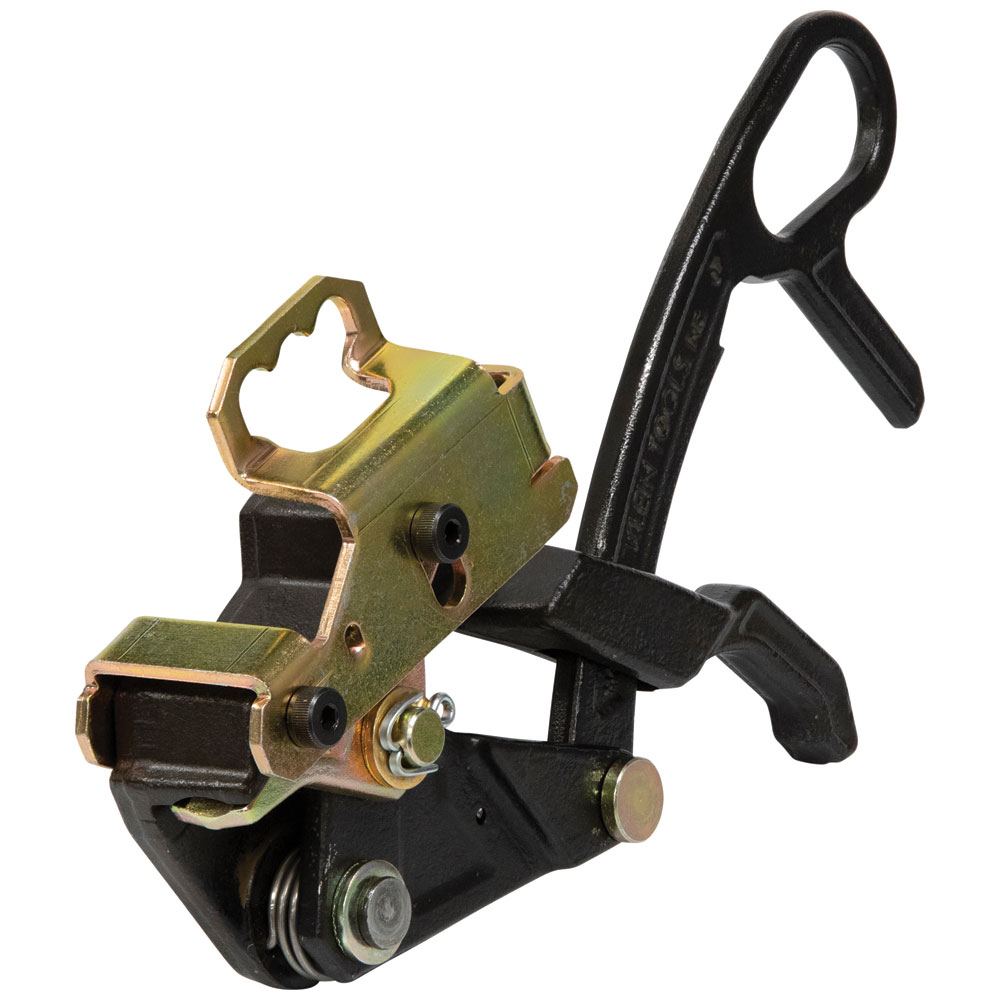

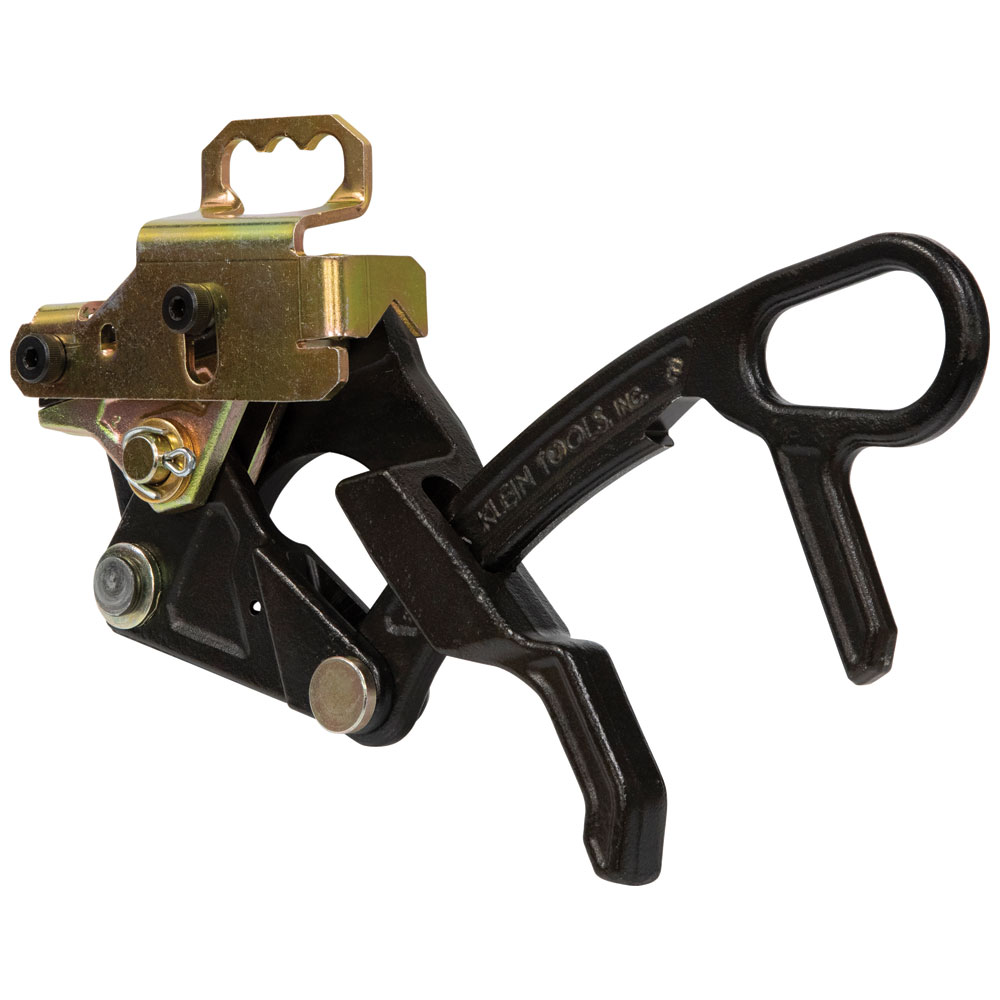

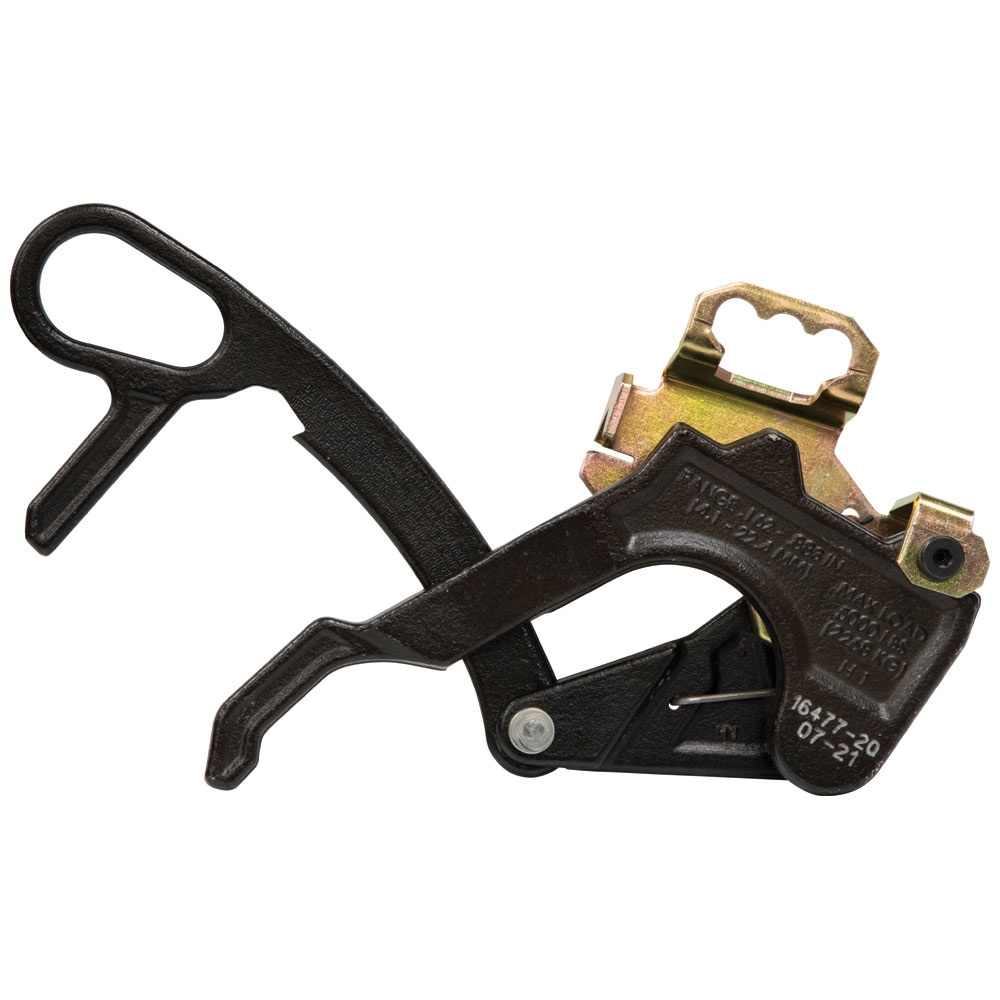

Klein Tools, 16477-20, Parallel Jaw Grip, Max Safe Load 5000 lb, Cable Size #6 to 477 ACSR, Cable Diameter 0.162 to 0.883 in

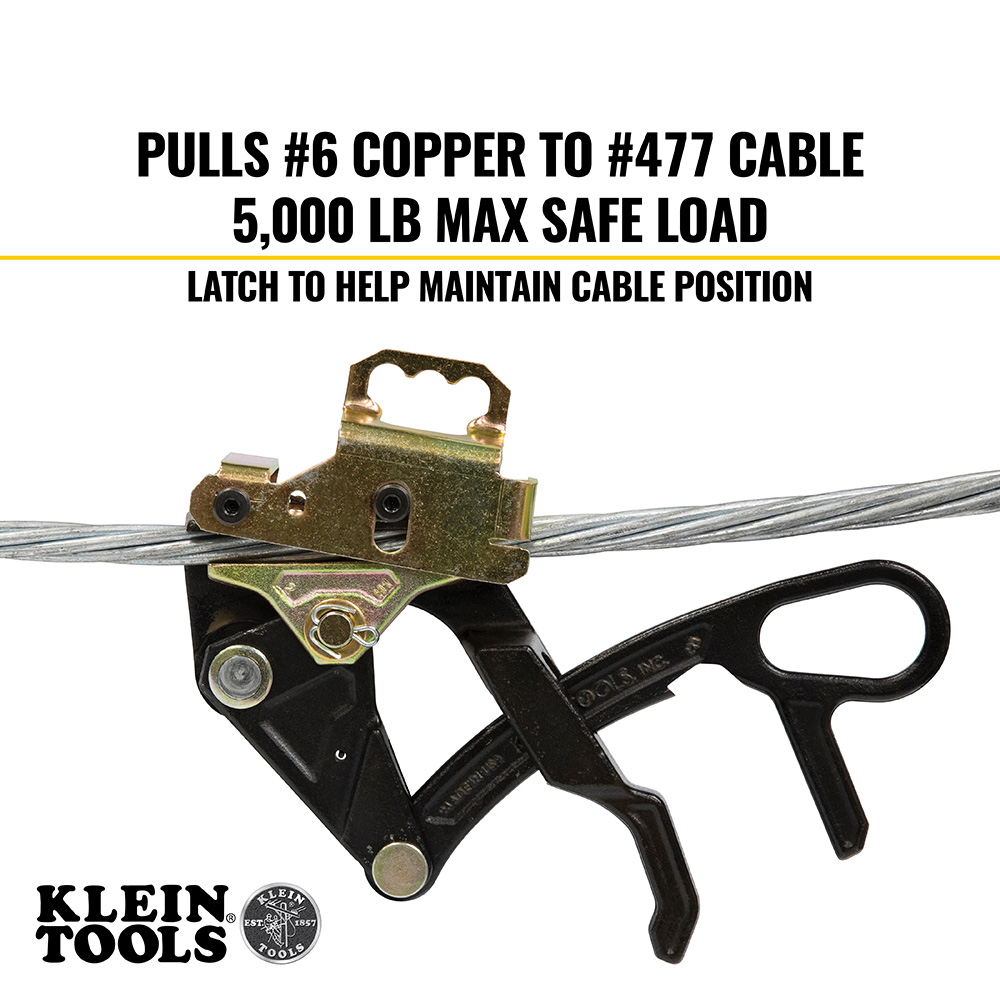

Versatile, one-handed grip holds a wide range of cable sizes pulling No. 6 Copper to No. 477 ACSR. 20-Percent lighter than the Klein's Cat. No. KT4500 grip with easy, one-handed actuation. Design includes a latch to help maintain cable position in grip jaws. Made in the USA, this grip has a maximum safe load of 5000-Pound.

Features

• 20-Percent lighter than the Cat. No. KT4500 grip
• One-handed design makes for easier actuation
• Made in the USA
• Spring closes grip on cable to hold the initial position

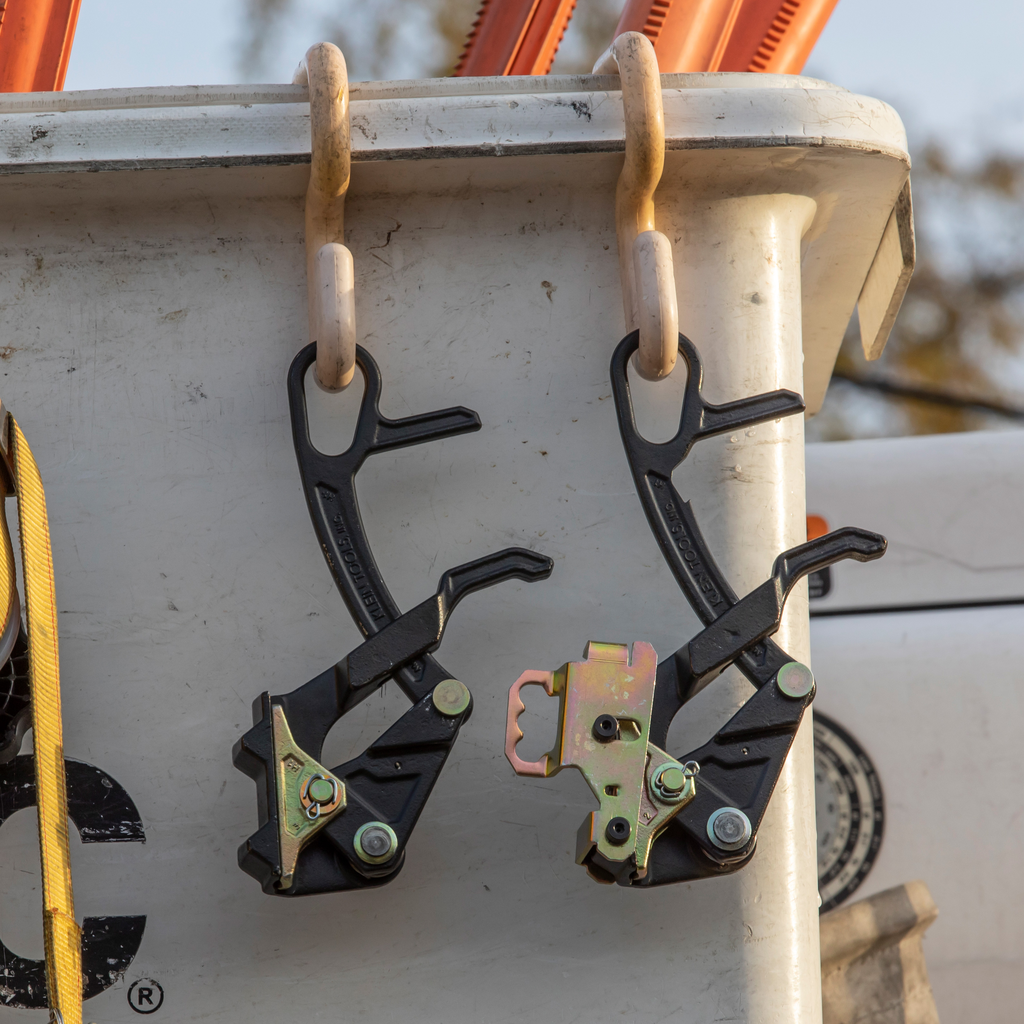

• Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks

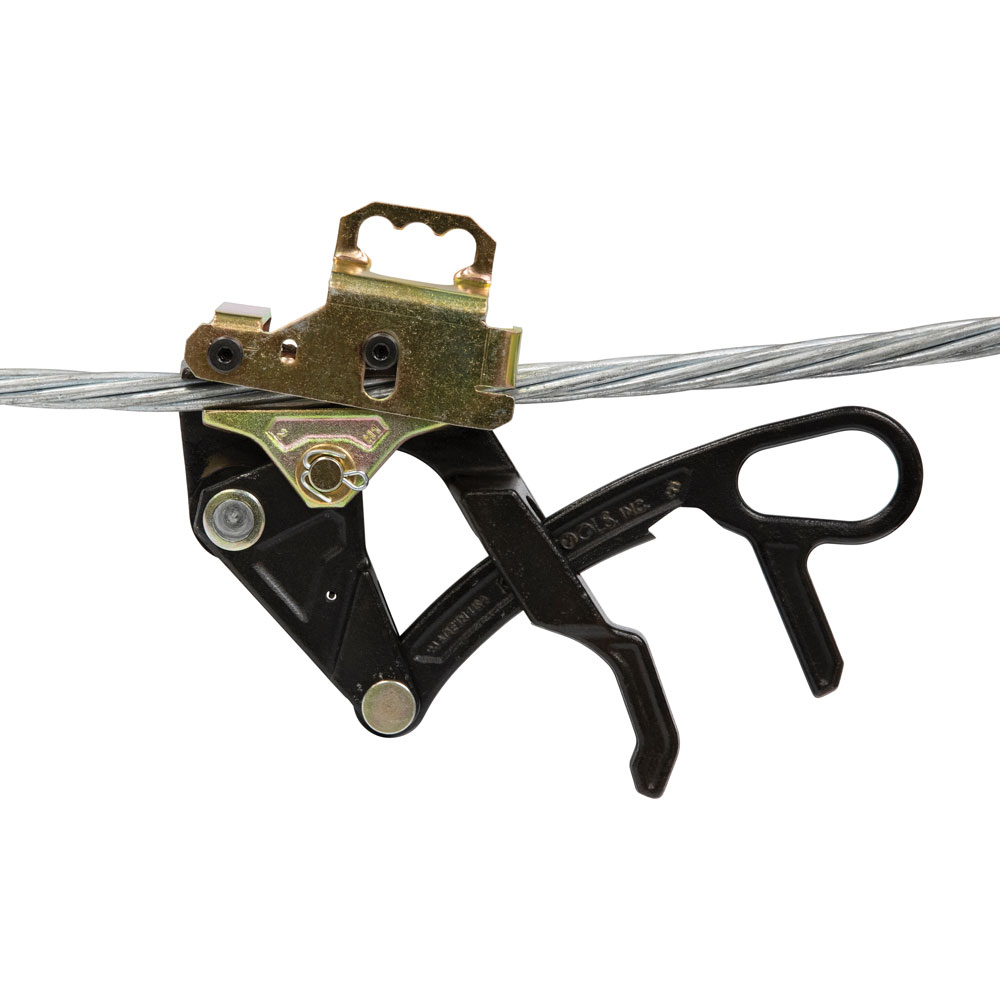

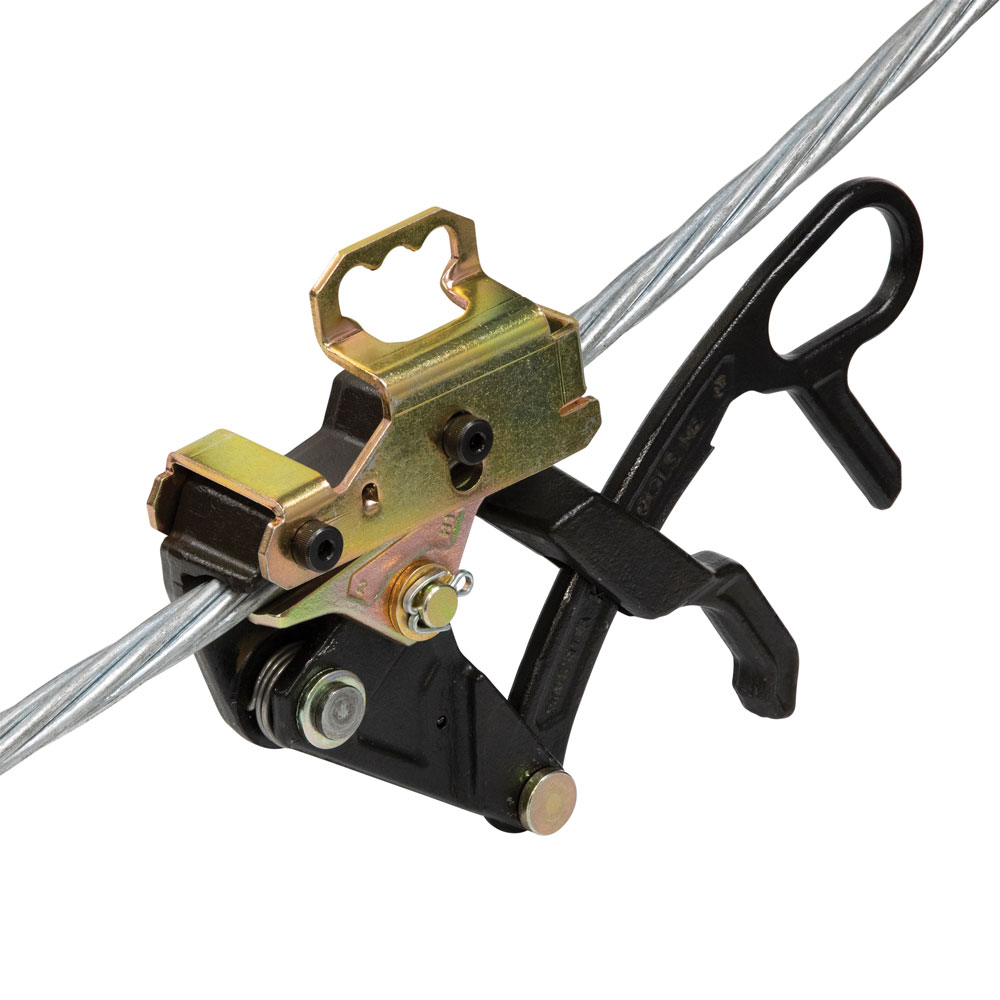

• Wide Range Distribution Grip pulls No. 6 Copper to No. 477 ACSR 0.162 to 0.883-Inch (4.11 to 22.42 mm) cable
• Max Safe Load of 5000-Pound (2268 kg)
• Patent pending design

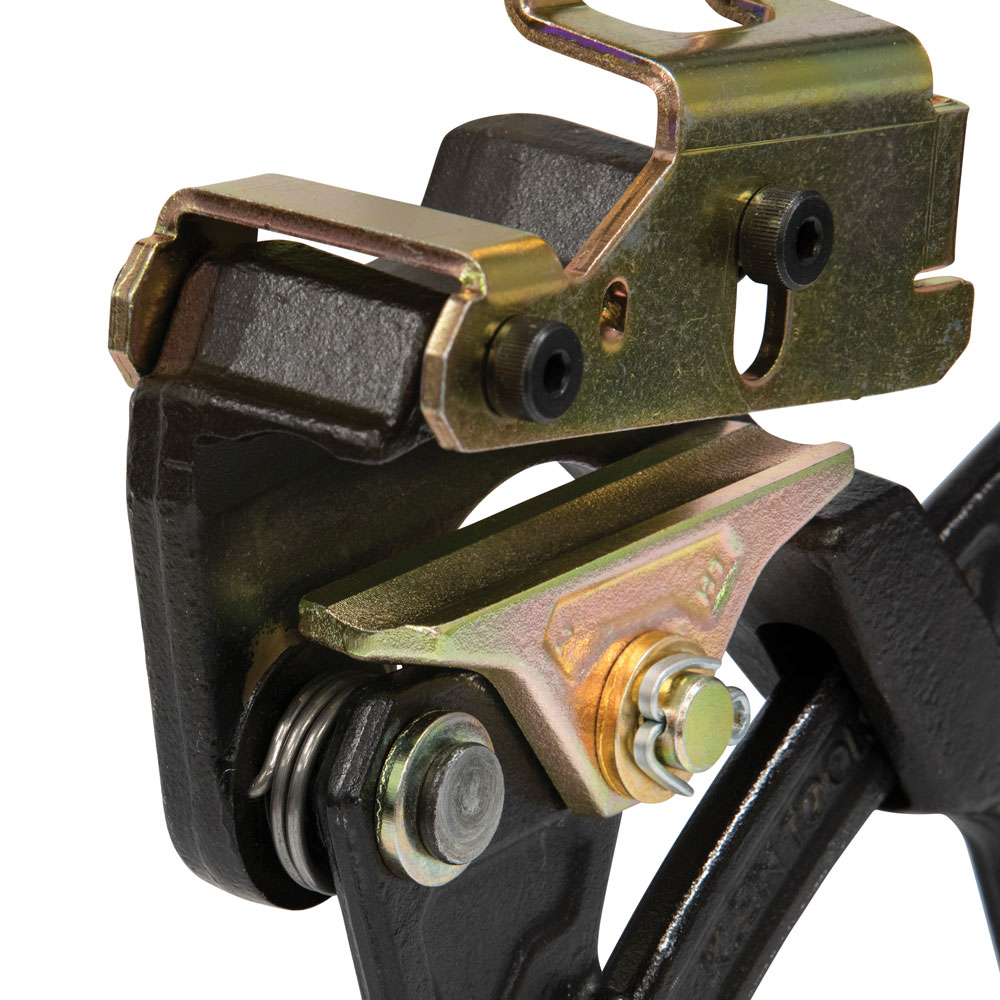

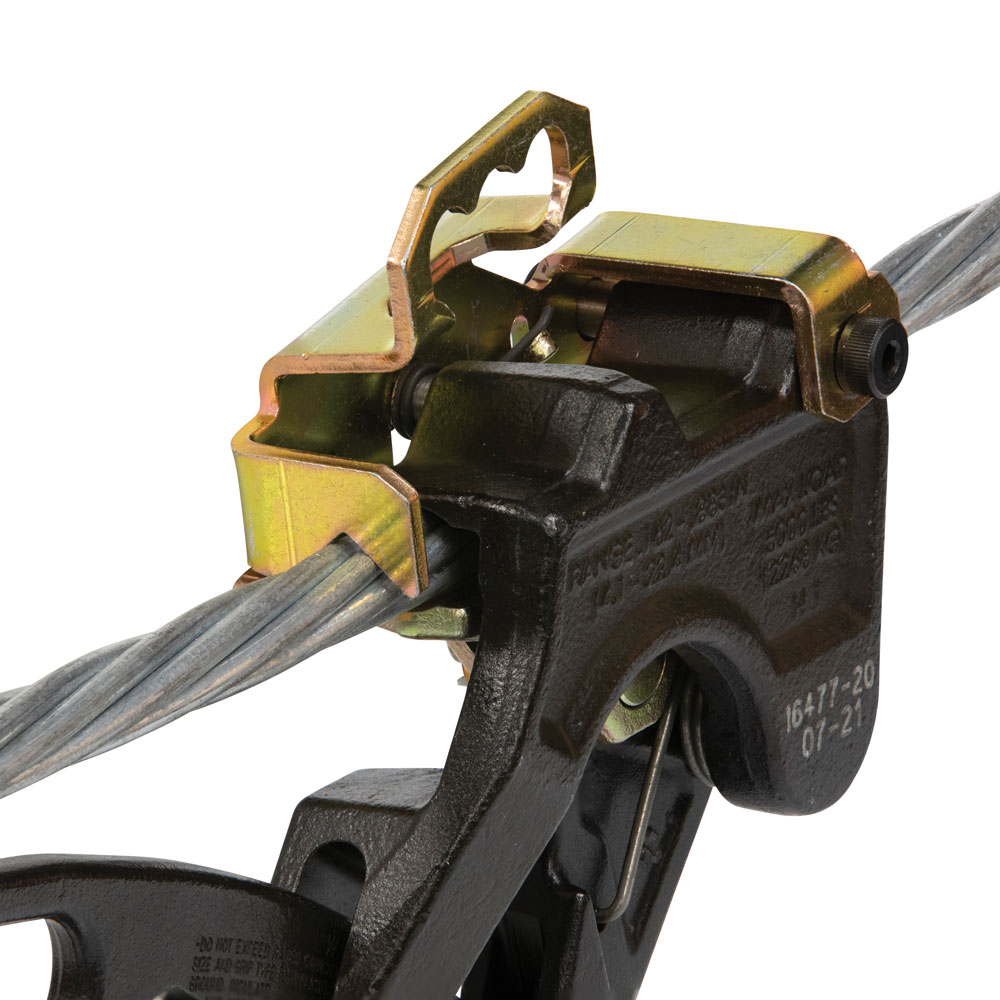

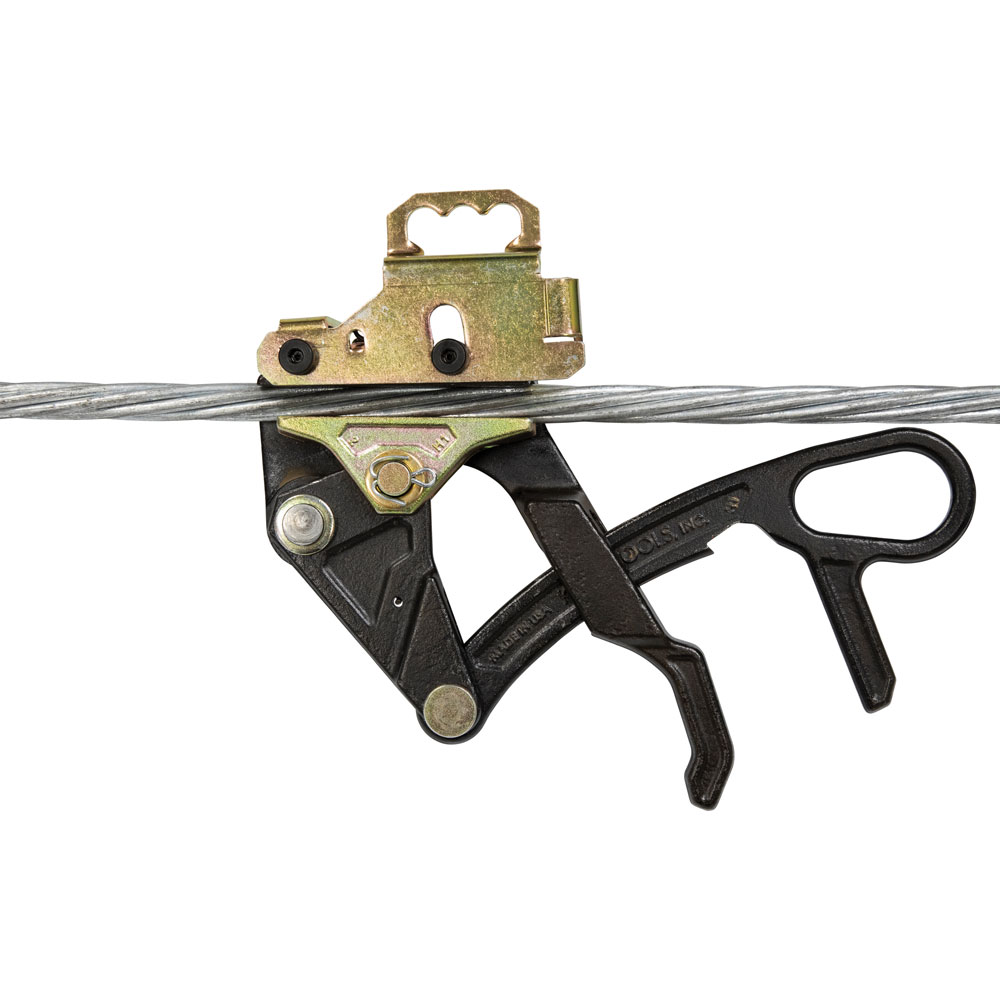

• Includes a latch to help maintain cable position in the grip jaw
• Hot Latch, One-Handed Grip

Warnings

• Grips are to be used for temporary installation, not for permanent anchorage.
• Do not exceed rated capacity.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• When used on/or near energized lines, ground, insulate, or isolate grip before pulling.
• Always match proper size and type of grip to application.

• Maximum Safe Load: 5000 lb (2268 kg)
• Cable Size Range: #6 to 477 ACSR
• Cable Diameter Range: 0.162 to 0.883 in (4.11 to 22.42 mm)
• Weight: 2.9 lbs
• Overall Length: 10.25 in (26 cm)
• Depth: 8.68 in
• Width: 7.31 in
• Height: 2.3 in
• Overall Height: 8 in (20.3 cm)
• Overall Width: 1.75 in (4.4 cm)
• Jaw Length: 3.31 in (8.4 cm)
• Material: Steel
• Cable Type: Copper, AAC, ACSR
• Jaw Type: Round
• Teeth Type: Fine
• Type: Parallel Jaw Grip
• Locking Handle: Yes
• Hot Latch: Yes
• Spring: Yes
• Swing Latch: No
• Country of Origin: USA
