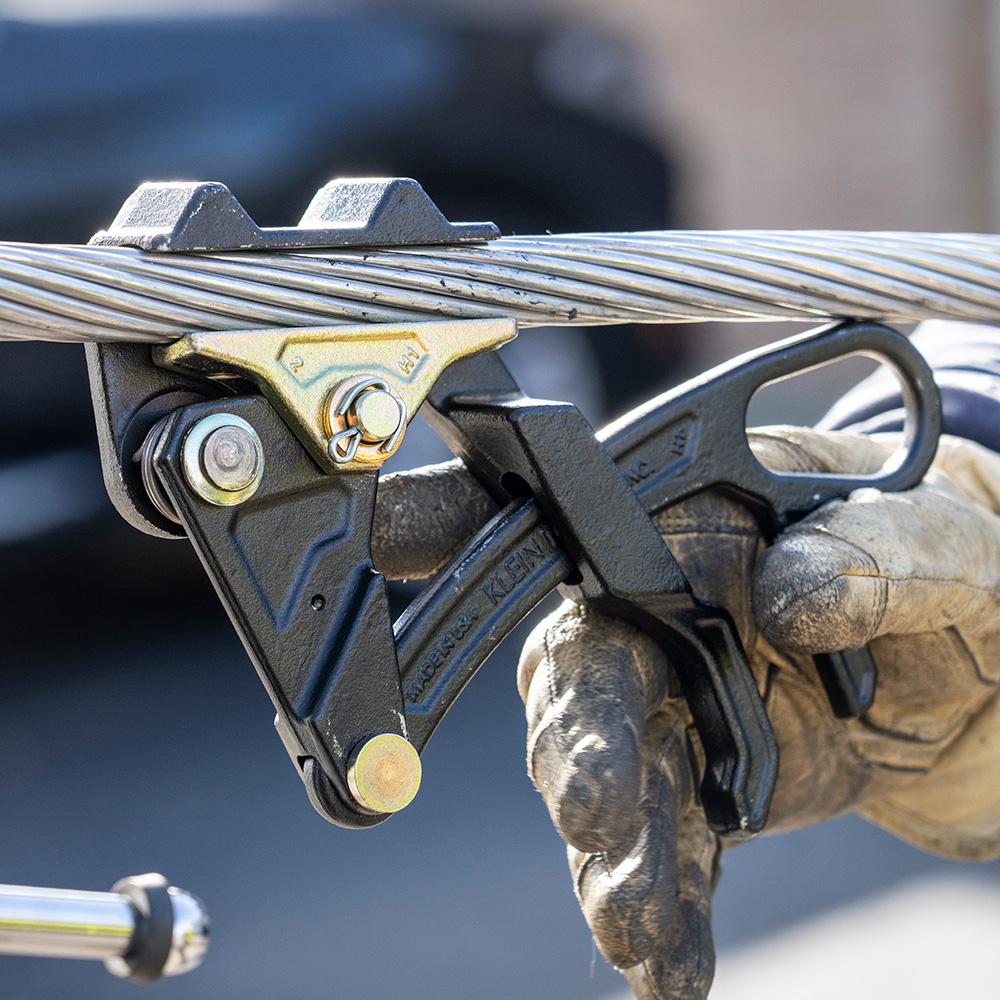

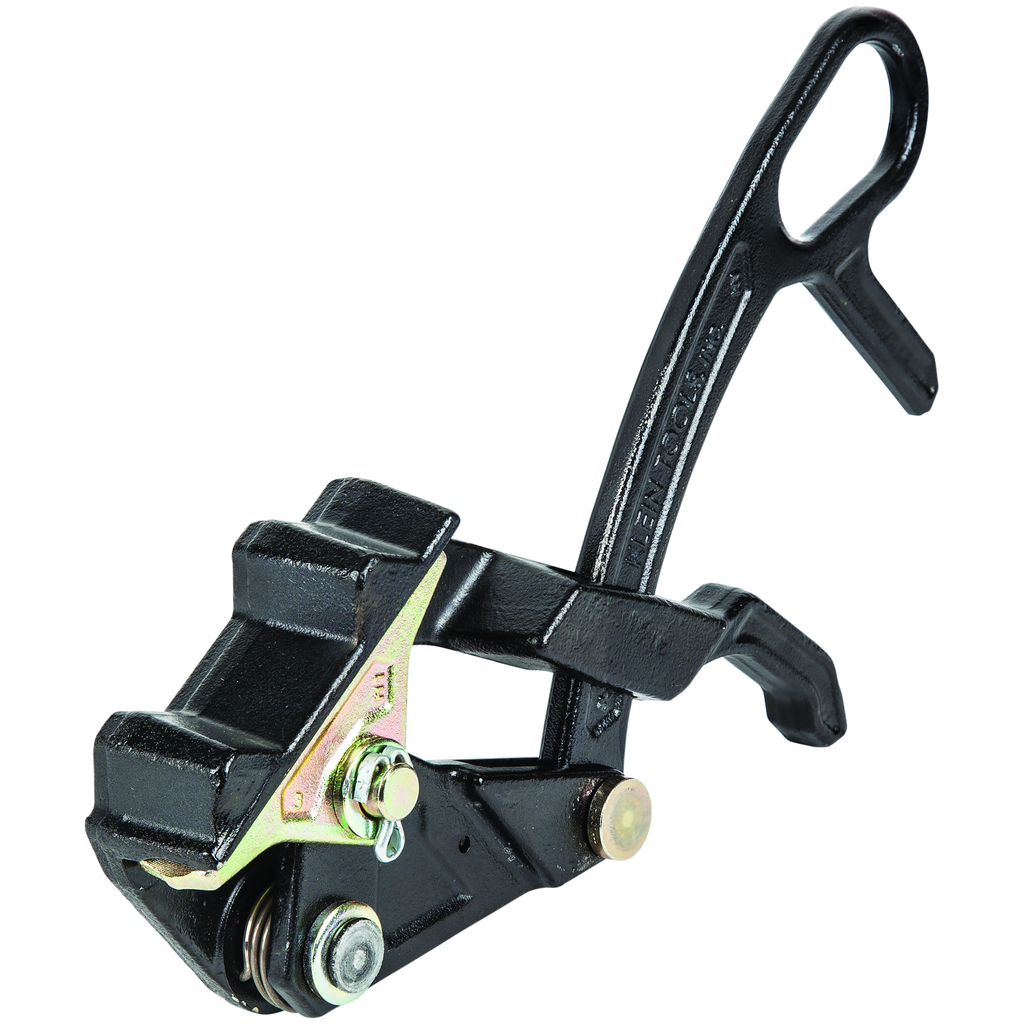

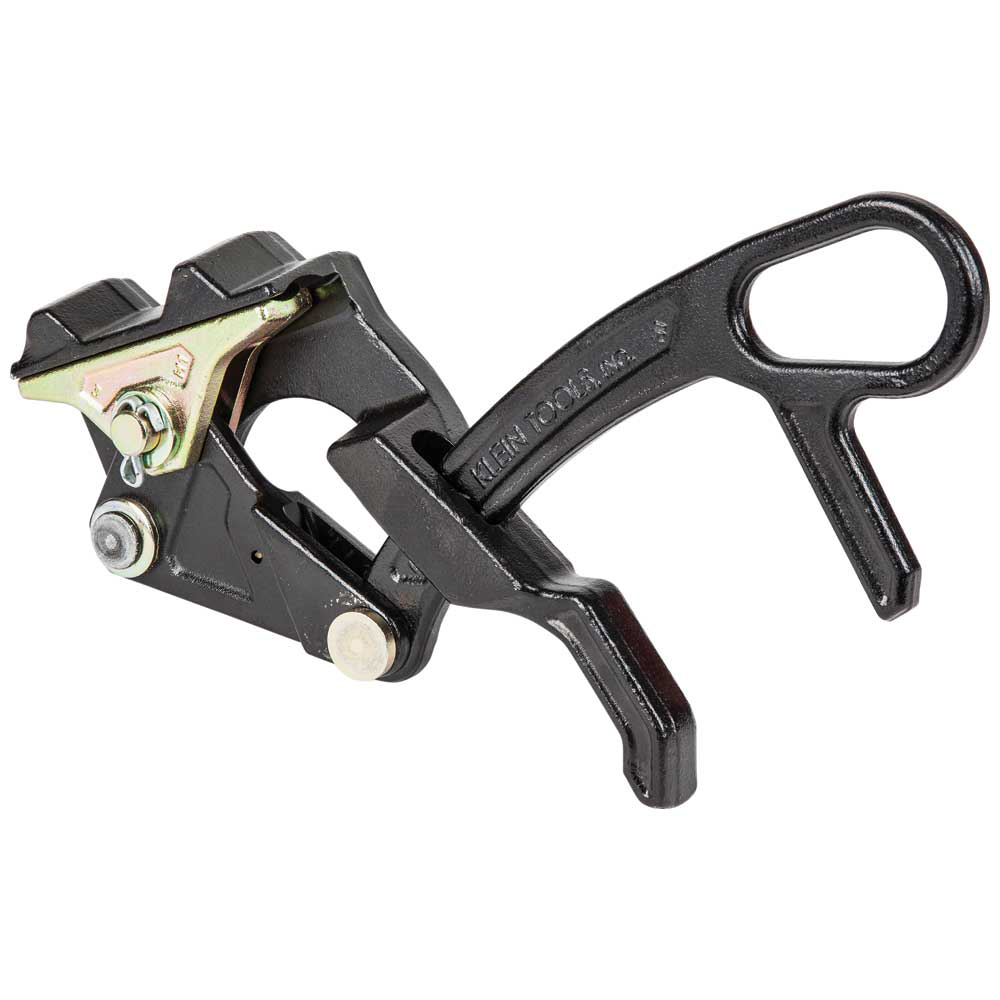

Klein Tools, 16477, Wide Range Distribution Grip, Max Safe Load 5000 lb, Cable Diameter 0.162 to 0.883 in, One-Handed Design

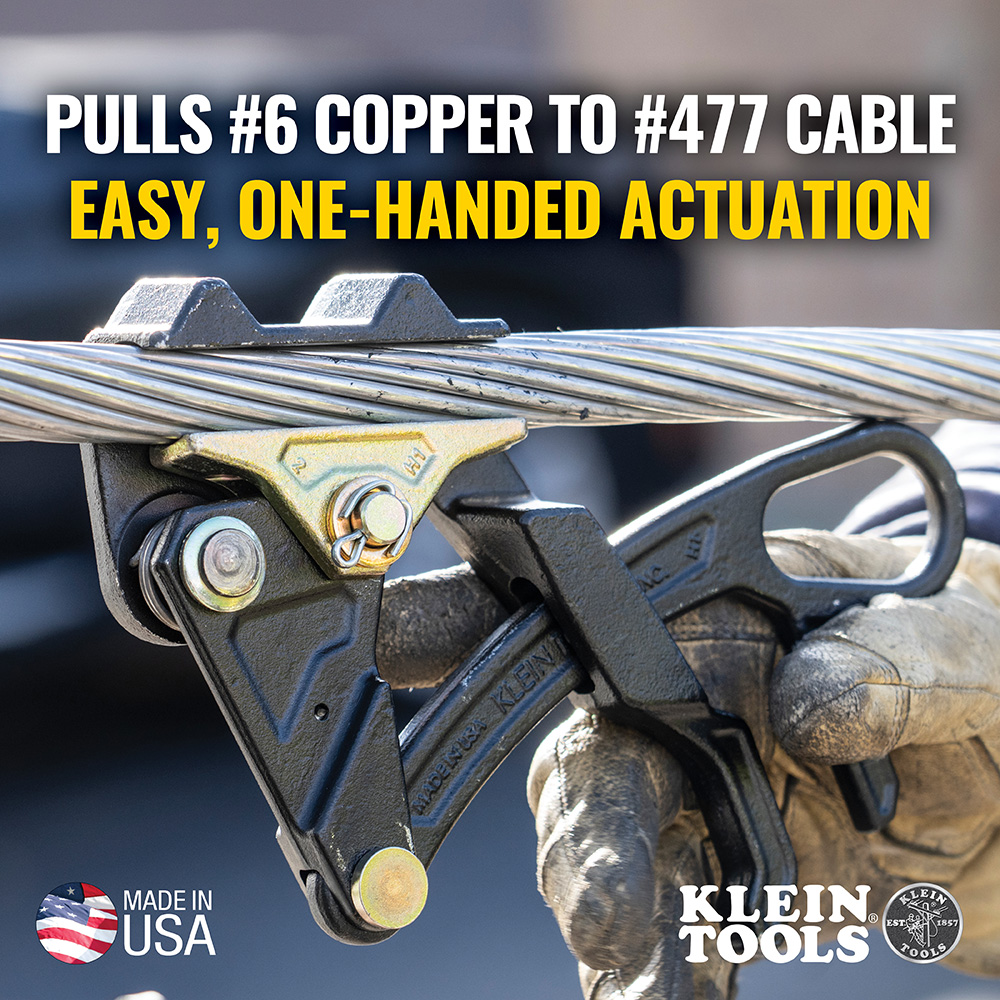

Versatile, one-handed grip holds a wide range of cable sizes pulling No. 6 Copper to No. 477 ACSR. 20-Percent lighter than Klein's Cat. No. KT4500 grip with easy, one-handed actuation. Made in the USA, this grip has a maximum safe load of 5000-Pound (2268 kg).

Warnings

• Grips are to be used for temporary installation, not for permanent anchorage.
• Do not exceed rated capacity.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Always match proper size and type of grip to application.
• When used on/or near energized lines, ground, insulate, or isolate grip before pulling.

Features

• Patent pending design
• Spring closes grip on cable to hold the initial position
• 20-Percent lighter than the Cat. No. KT4500 grip
• One-handed design makes for easier actuation
• Wide Range Distribution Grip pulls No. 6 Copper to No. 477 ACSR 0.162 to 0.883-Inch (4.11 to 22.42 mm) cable
• One-Handed Grip
• Made in the USA

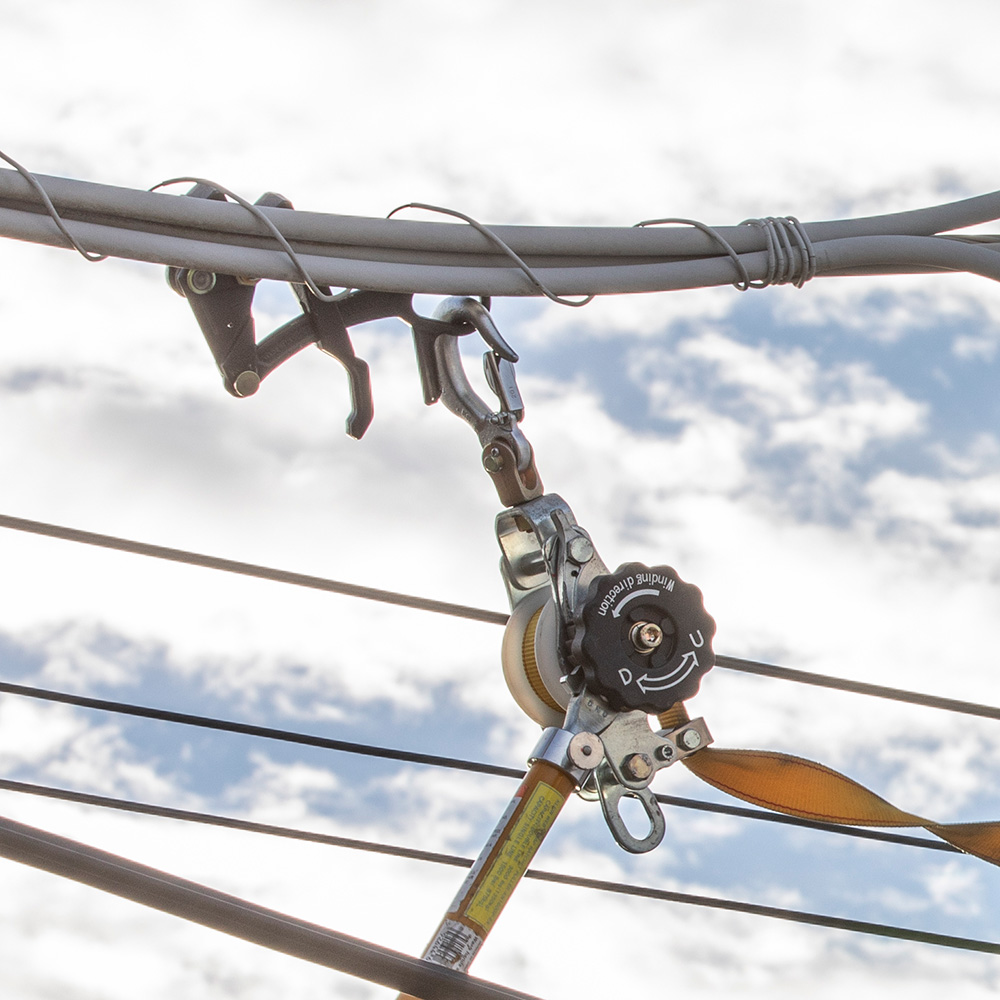

• Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks

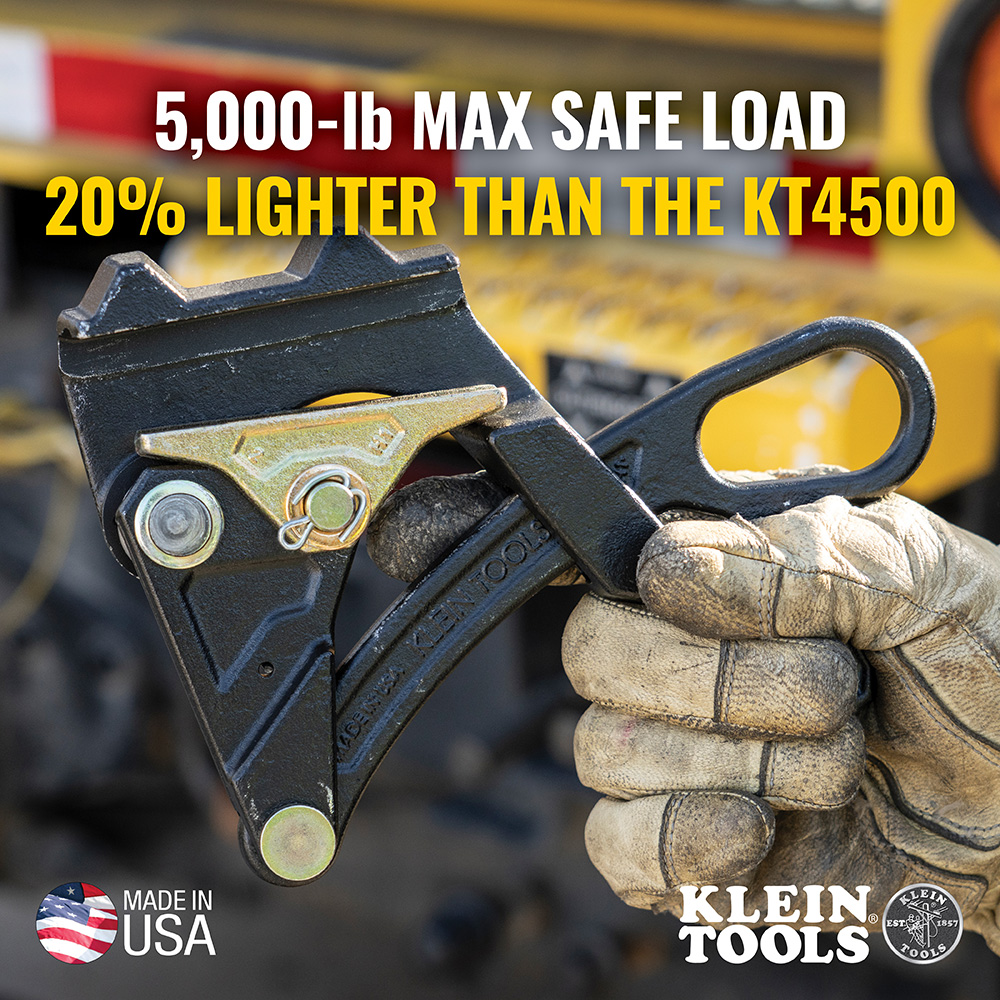

• Max Safe Load of 5000-Pound (2268 kg)

• Maximum Safe Load: 5000 lb (2268 kg)
• Cable Diameter Range: 0.162 to 0.883 in (4.11 to 22.42 mm)
• Cable Size Range: No. 6 Copper to No. 477 ACSR
• Depth: 10 in (25.4 cm)
• Overall Length: 10 in (25.4 cm)
• Overall Width: 6.5 in (16.5 cm)
• Overall Height: 1.25 in (3.2 cm)
• Weight: 2.9 lbs (1.3 kg)
• Material: Steel
• Type: Parallel Jaw Grip
• Cable Type: Copper, AAC, ACSR

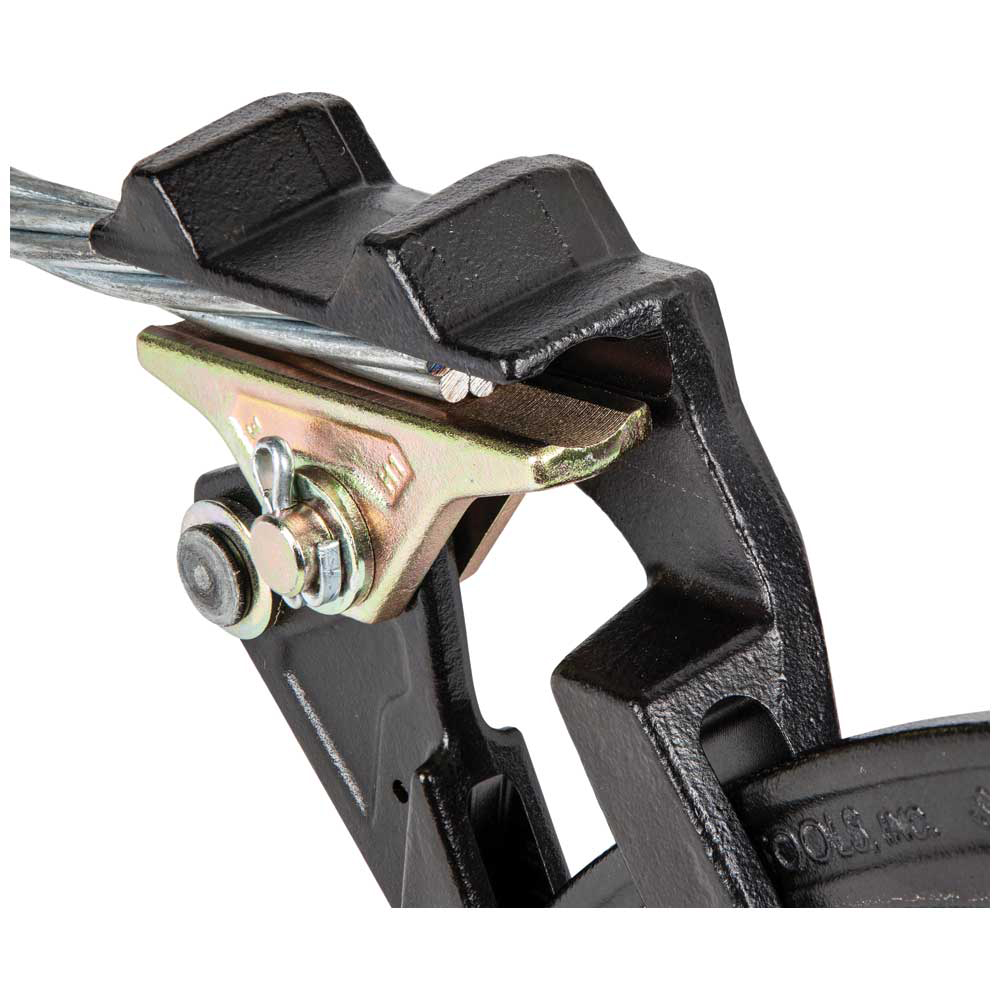

• Jaw Type: Round
• Jaw Length: 3.31 in (8.4 cm)
• Teeth Type: Fine
• Spring: Yes
• Swing Latch: No
• Hot Latch: No
• Locking Handle: No
• Application: Wire Pulling
• Design: One-handed
• Compliance: Made in USA
