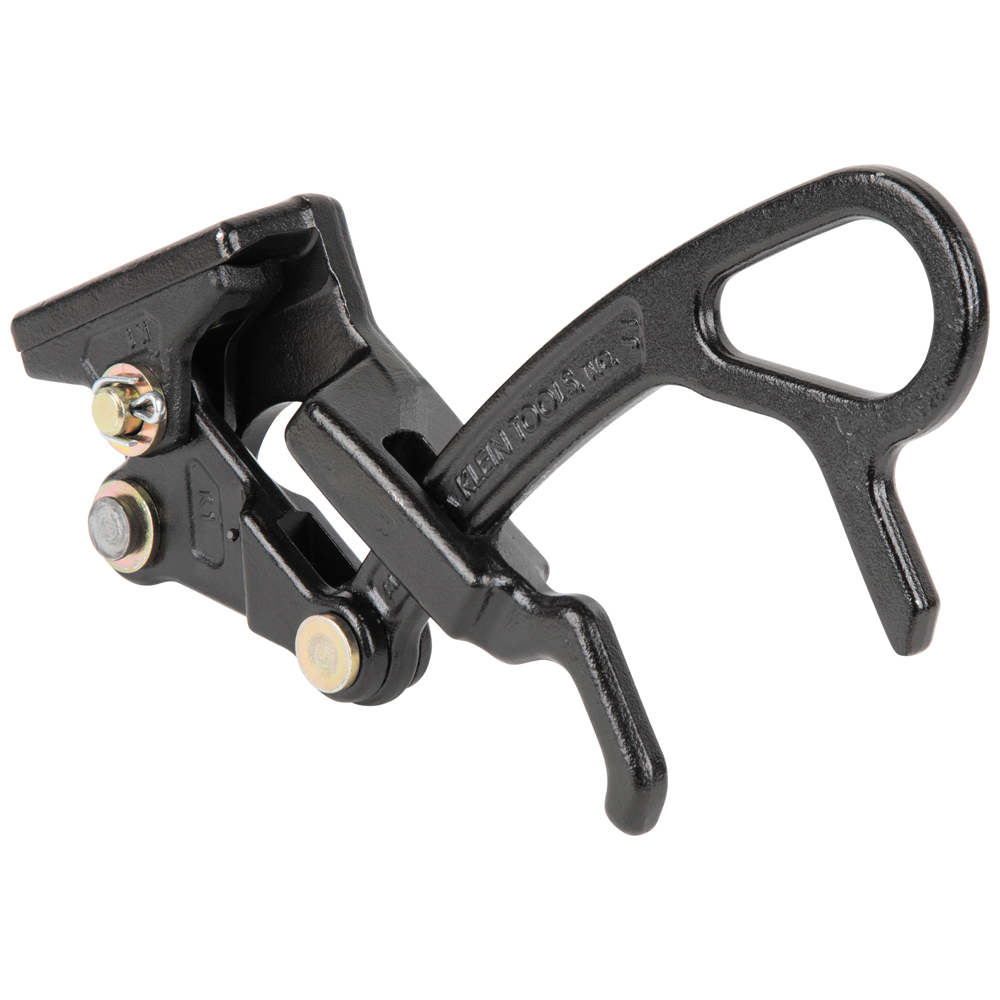

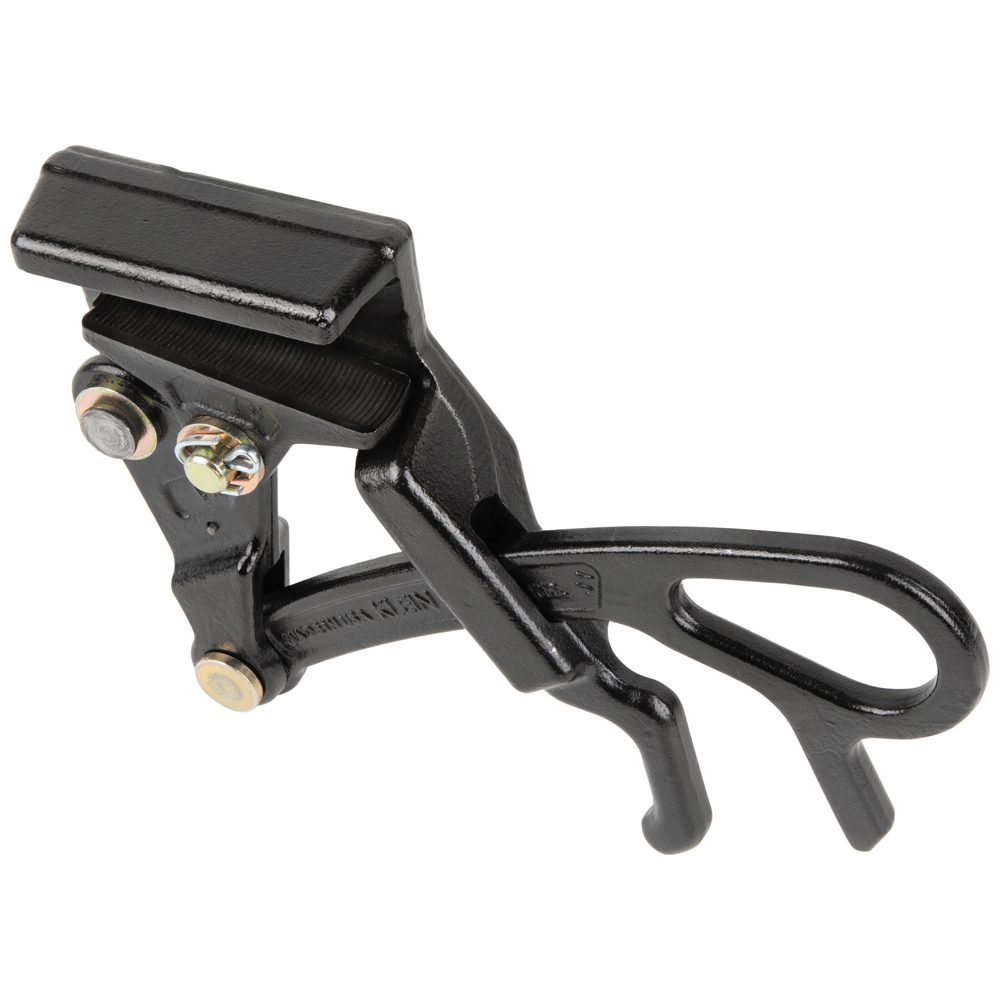

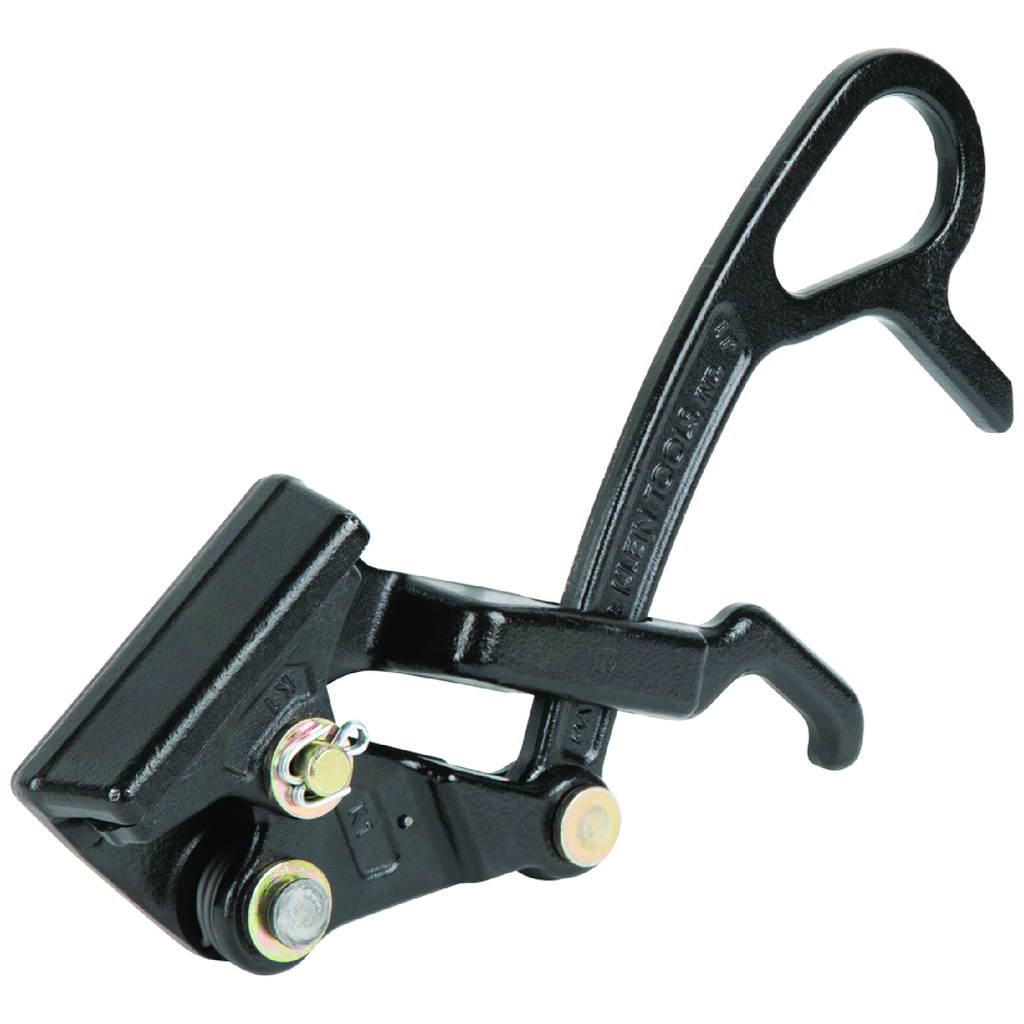

Klein Tools, 16455, Service Grip, Maximum Safe Load 2000 lb, Cable Diameter 0.100 in to 0.654 in, One-Handed Design

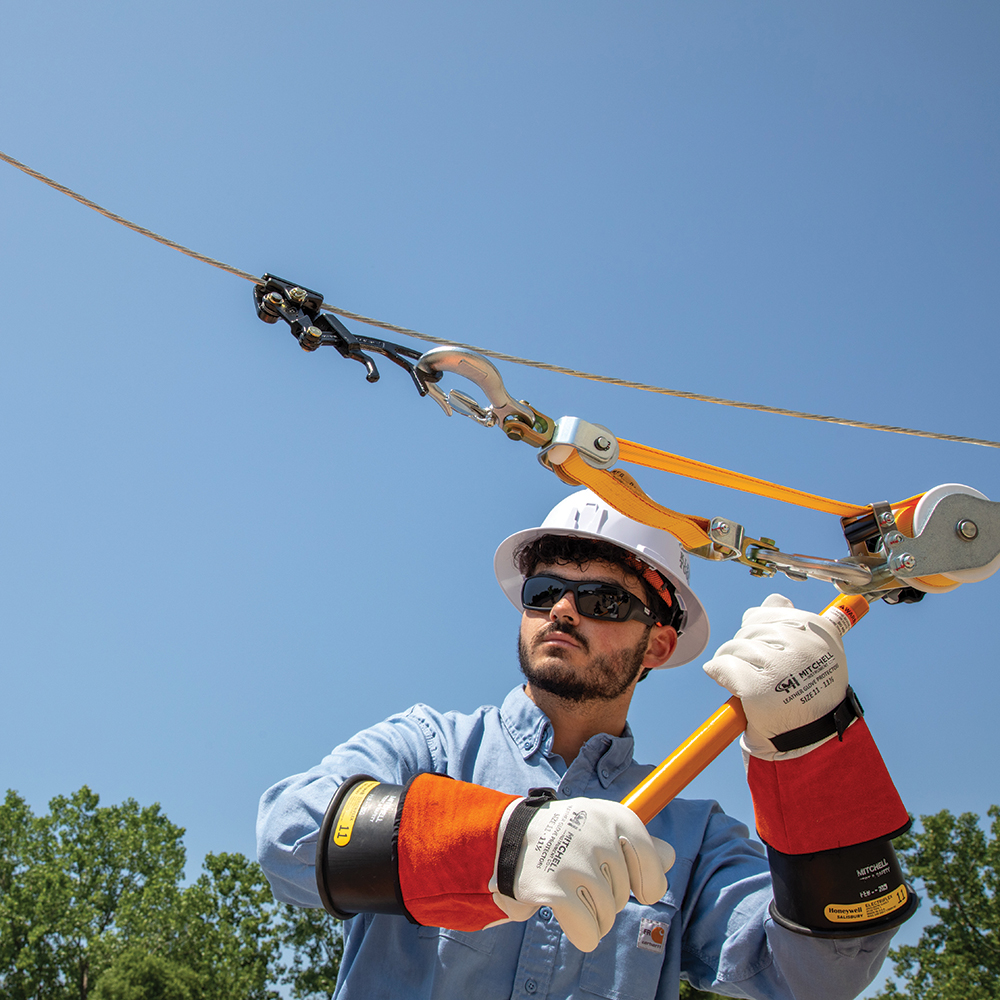

The Klein Tools Wide Range Service Grip is a versatile, one-handed grip designed to securely pull steel, ACSR, AAC, and Copper wires. Holds a wide range of common cable sizes from #6 to 4/0. This grip has a 2000-Pound maximum safe load.

Warnings

• When used on/or near energized lines, ground, insulate, or isolate grip before pulling.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Do not exceed rated capacity.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.

Features

• Large opening in the handle accommodates a wide variety of hooks on hoists, winches, and tackle blocks
• Wide Range Service Grip securely pulls steel, ACSR, AAC, and Copper wires
• Grip holds a wide wide range of cable sizes reducing the number of grips needed

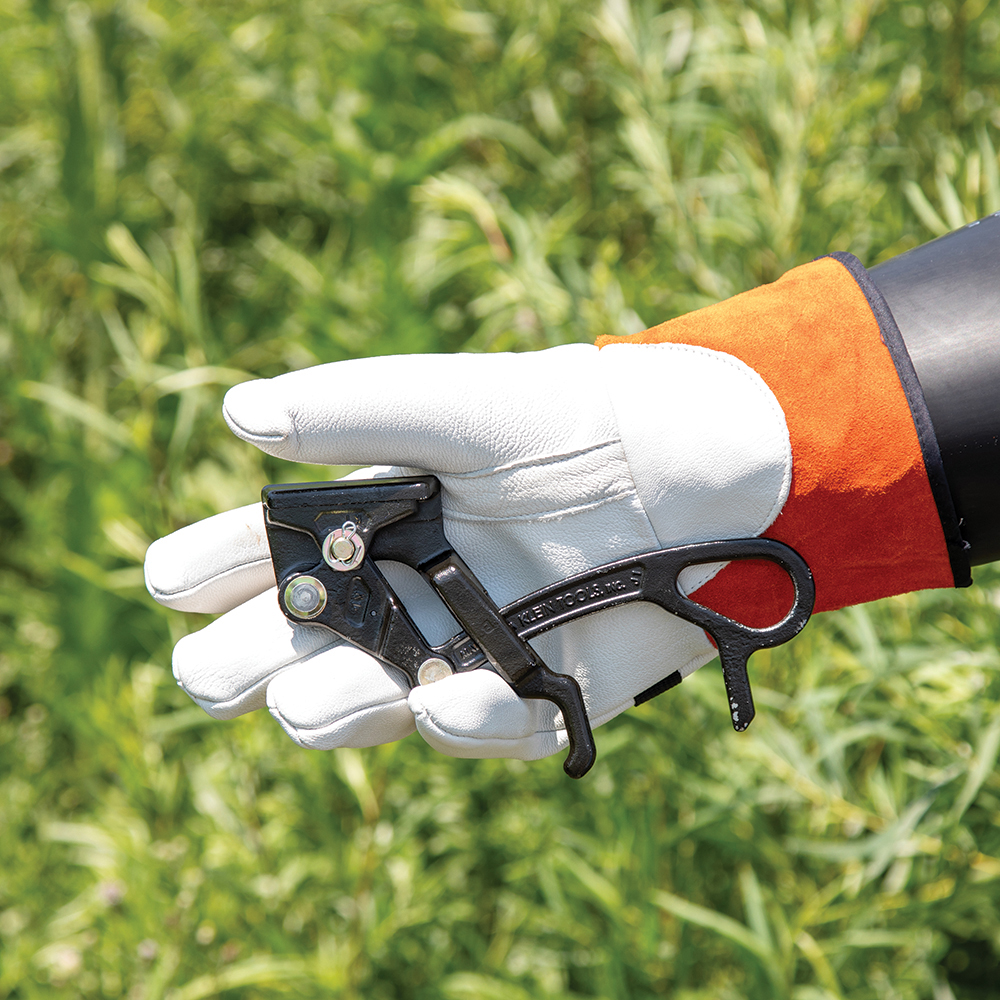

• One-Handed design makes for easier actuation
• Compatible with cable sizes from #6 to 4/0 (0.100-Inch to 0.654-Inch)
• One-Handed Grip
• Made in the USA

• Maximum Safe Load: 2000 lb
• Cable Diameter: 0.100" to 0.654" (0.25 to 1.7 cm)
• Overall Length: 7.32" (18.6 cm)
• Overall Height: 4.5" (11.4 cm)
• Overall Width: 1.24" (3.15 cm)
• Jaw Length: 2.18" (5.54 cm)
• Teeth Type: Coarse
• Jaw Type: Round
• Type: Parallel Jaw Grip
• Spring: Yes
• Material: Steel
• Cable Type: ACSR, AAC, Copper, Messenger, Guy Strand
• Weight: 1.41 lbs
• Application: Wire Pulling
