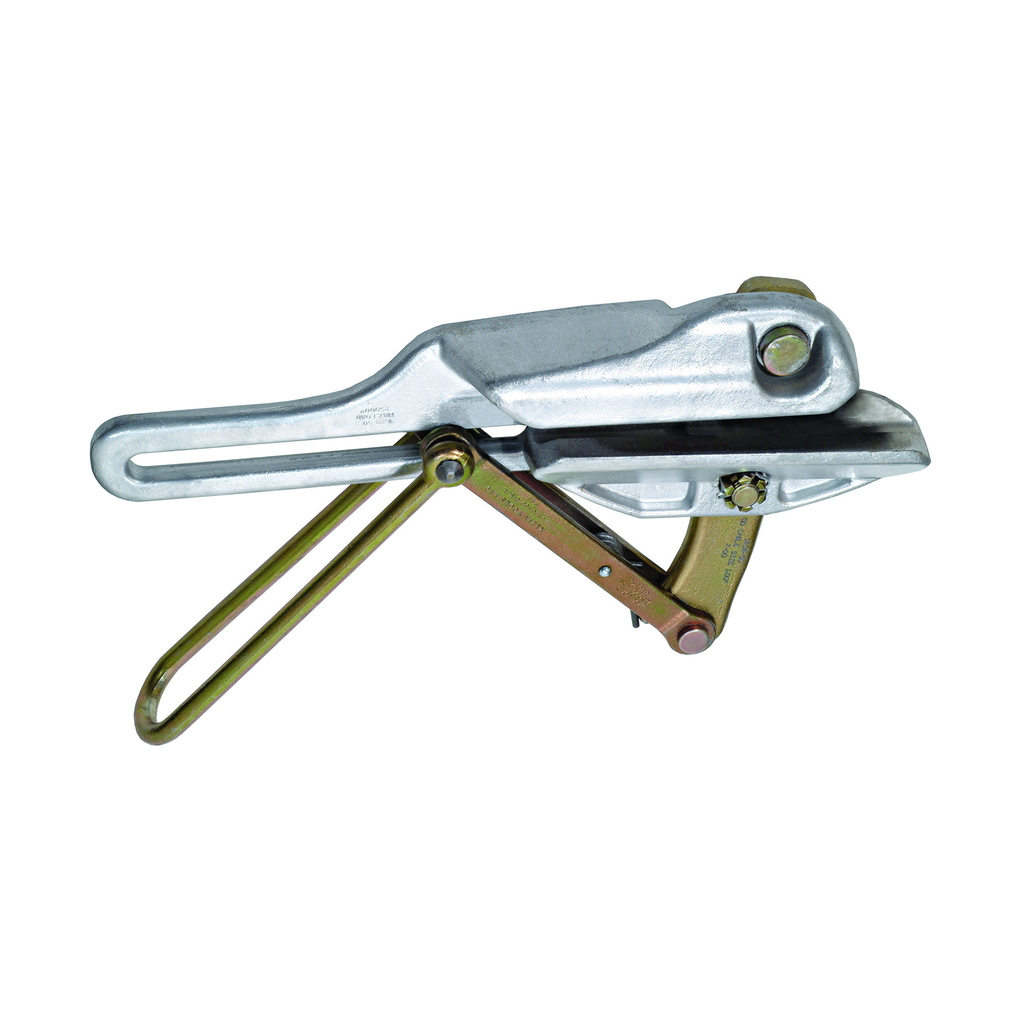

Klein Tools, 1628-50, Chicago Grip, 25,000 lb max load; 0.95 in to 1.89 in cable dia; Round jaw; 31 in overall length

This Chicago® Grip is specifically made for ACSR, AAC and copper cabling with larger diameters. These non-returnable grips are special order only. When ordering, please specify exact outside cable diameter, circular mills with strand combination, or the manufacturer's code. Please allow 30 days for delivery.

Warnings

• Do not exceed rated capacity.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Always match proper size and type of grip to application.

Features

• Round jaws are provide maximum contact with the cable minimizing deformation
• Orders must specify exact outside diameter of cables, circular mills with strand combination, or manufacturer's code.
• These grips are special order only, please allow 30 days for delivery, not returnable -- Removable floating jaw held in place by a bolt swaged into the lever arm of the grip, secured by a nut and cotter pin -- Jaw must be removed to insert cable
• Jaw must be removed to insert cable
• Removable jaw allows for installation of cable
• Removable floating jaw held in place by a bolt swaged into the lever arm of the grip, secured by a nut and cotter pin
• These Made in USA grips are special order only. Please allow 30 days for delivery. These are not returnable.

• Maximum Safe Load: 25,000 lb (11,340 kg)
• Cable Diameter: 0.95 in to 1.89 in (24.13 to 48 mm)
• Overall Length: 31 in (78.7 cm)
• Jaw Length: 10.75 in (27.3 cm)
• Overall Height: 9.19 in (23.3 cm)
• Overall Width: 3.12 in (7.9 cm)
• Width: 8.55 in
• Depth: 17.55 in
• Height: 2.93 in
• Material: Steel
• Hot Latch: No
• Locking Handle: Yes
• Swing Latch: No
• Spring: Yes
• Type: Chicago Grip
• Teeth Type: Smooth
• Cable Type: ACSR, ACSS, ACSS-TW, AAC
• Jaw Type: Round
• Application: Wire Pulling
• Weight: 29.03 lb
