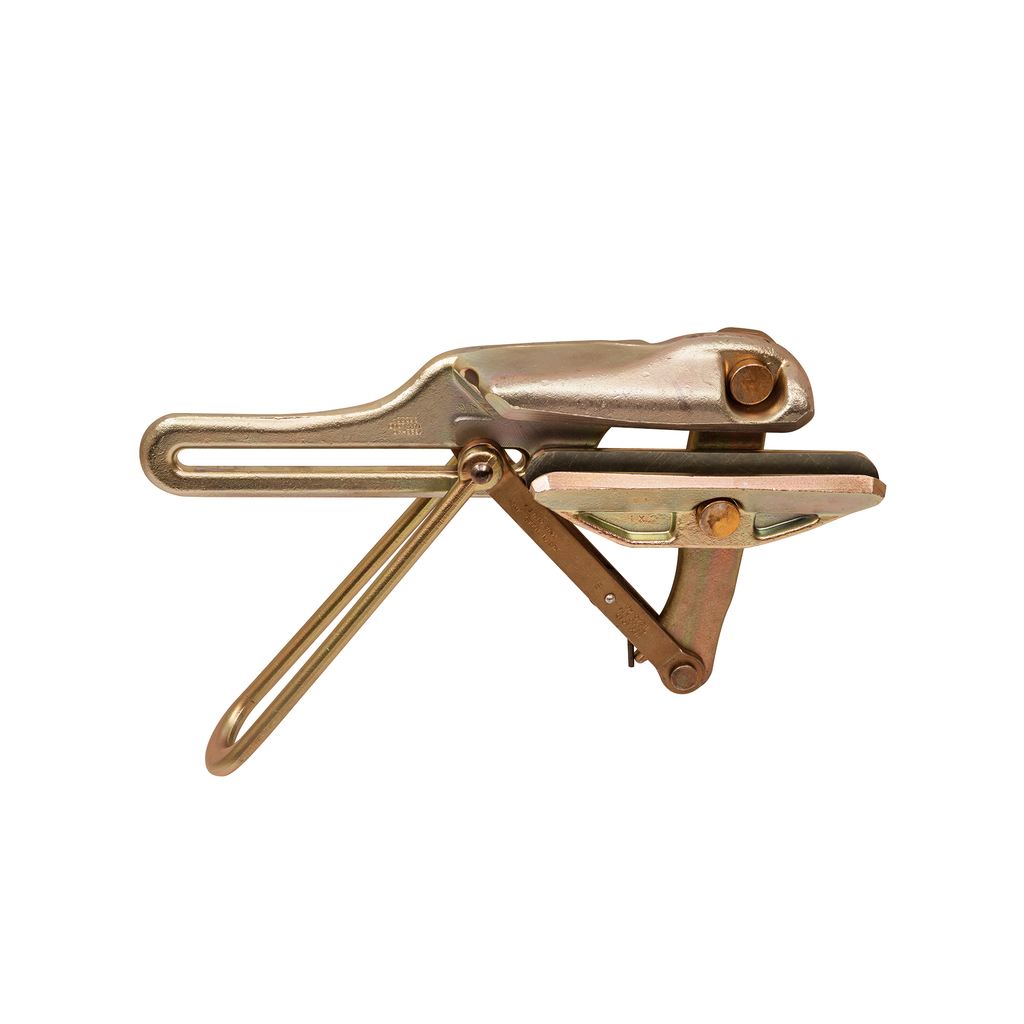

Klein Tools, 1628-40VR, Chicago Grip, 15,000 lb; 0.95 in to 1.27 in, Round Jaws, Wire Pulling

The Klein Tools Chicago® Grip - Dual Conductor Trans is designed specifically for VR2® (vibration-resistant) and TransPowr® T-2® dual conductor twisted pair cables. The machined upper and lower jaws eliminate scoring or damage to second conductor by contouring to second conductor. The round jaws are shaped to provide maximum contact with circumference of cable and prevent cable deformation.

Features

• Made in USA and designed specifically for VR2® (vibration-resistant) and TransPowr® T-2® dual conductor twisted pair cables
• Grips maintain temporary tension until the wire or cable can be permanently terminated
• Round jaws shaped to provide maximum contact with circumference of cable and prevent cable deformation
• Supplied with spring and locking loop handles, allows jaws to be held in open position for easier placement on cable
• Machined upper and lower jaws eliminate scoring or damage to second conductor by contouring to second conductor
• TransPowr and T-2 are registered trademarks of General Cable Technologies Corporation.
• VR2 is a registered trademark of Southwire Company
• Specially milled jaws for the Vibration Resistant twin conductor
• Orders must specify exact outside diameter of cables, circular mills with strand combination, or manufacturer's code

Warnings

• Do not exceed rated capacity.
• Grips are to be used for temporary installation, not for permanent anchorage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Always match proper size and type of grip to application.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.

• Maximum Safe Load: 15,000 lb (6803 kg)
• Cable Diameter: 0.95 in to 1.27 in (24.13 to 32.3 mm)
• Type: Chicago Grip
• Application: Wire Pulling
• Cable Type: ACSR, AAC
• Jaw Type: Round
• Width: 10.08 in
• Height: 3.15 in
• Depth: 15.84 in
• Weight: 30.285 lbs
• Material: Steel
• Spring: No
• Locking Handle: No
• Swing Latch: No
• Hot Latch: No
