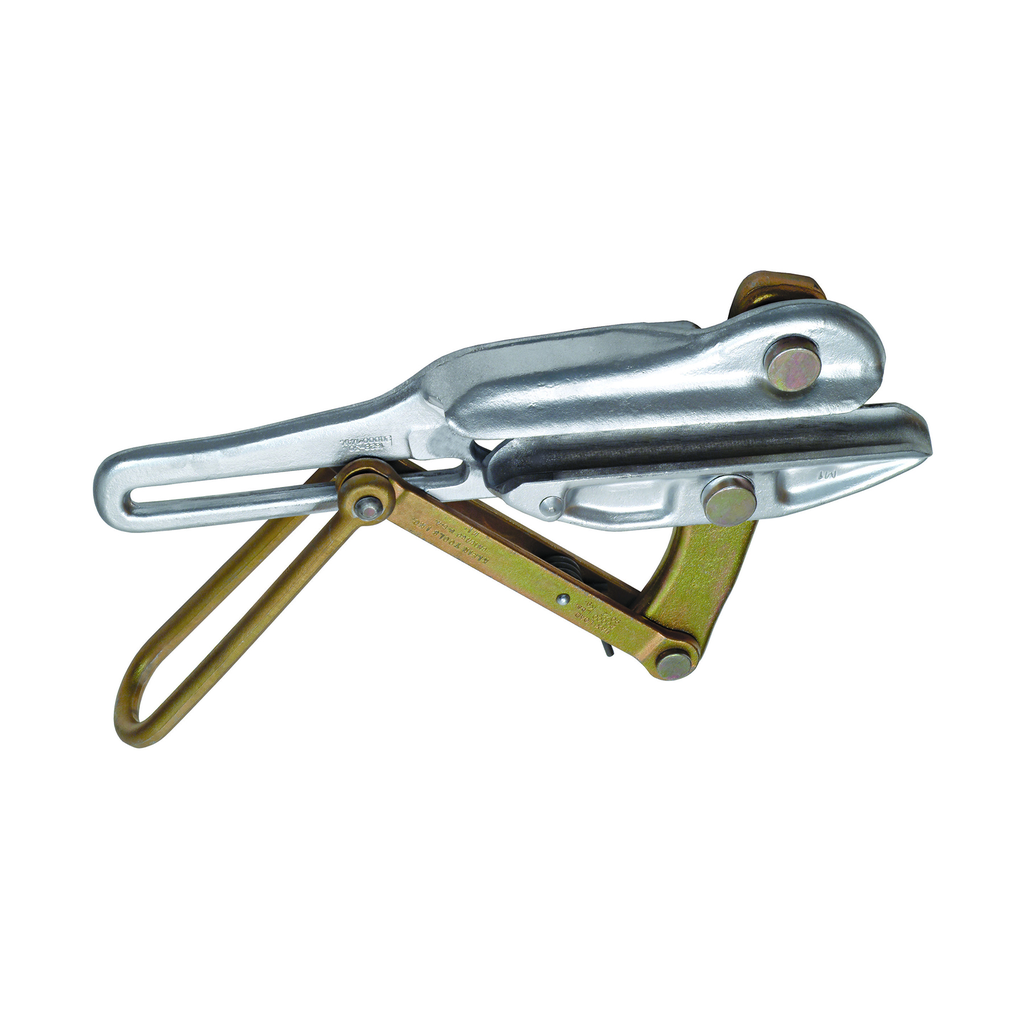

Klein Tools, 1628-40, Chicago Grip, 25,000 lb, Round Jaw, 31 in, ACSR/AAC, Wire Pulling

Klein Tools' 1628 Series Chicago Grips have a round inside jaw contour designed to hold weatherproof strand and solid coated wire. They also have a notched jaw to provide a firm grip on insulation. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Warnings

• Grips are to be used for temporary installation, not for permanent anchorage.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Do not exceed rated capacity.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Always match proper size and type of grip to application.

Features

• These grips are special order only, please allow 30 days for delivery, not returnable -- Orders must specify exact outside diameter of cables, circular mills with strand combination, or manufacturer's code
• Round jaws are shaped to provide maximum contact with the cable, virtually eliminating conductor damage.
• These grips are special order only. Please allow 30 days for delivery. These are not returnable.
• Made in USA
• Orders must specify exact outside diameter of cables, circular mills with strand combination, or manufacturer's code.
• Manufactured from drop-forged, heat-treated steel for excellent durability

• Maximum Safe Load: 25,000 lb (11,340 kg)
• Type: Chicago Grip
• Application: Wire Pulling
• Cable Type: ACSR, AAC
• Overall Length: 31 in (78.7 cm)
• Jaw Length: 10.75 in (27.3 cm)
• Overall Height: 9.19 in (23.3 cm)
• Overall Width: 3.12 in (7.9 cm)
• Width: 10.08 in
• Depth: 15.84 in
• Height: 3.15 in
• Weight: 30.285 lbs
• Material: Steel
• Jaw Type: Round
• Teeth Type: Smooth
• Cable Diameter: 1.2 to 1.58 in (30.48 to 40.13 mm)
• Locking Handle: Yes
• Swing Latch: No
• Hot Latch: No
• Spring: No
