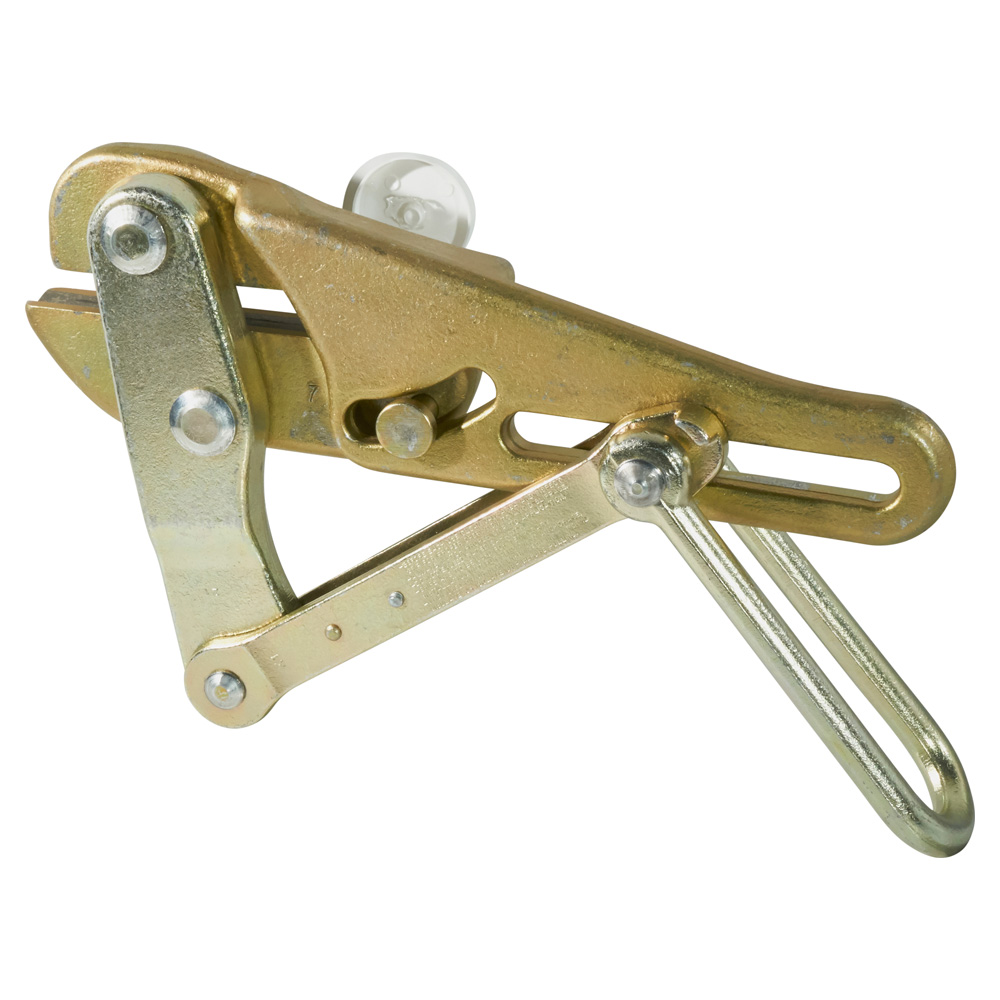

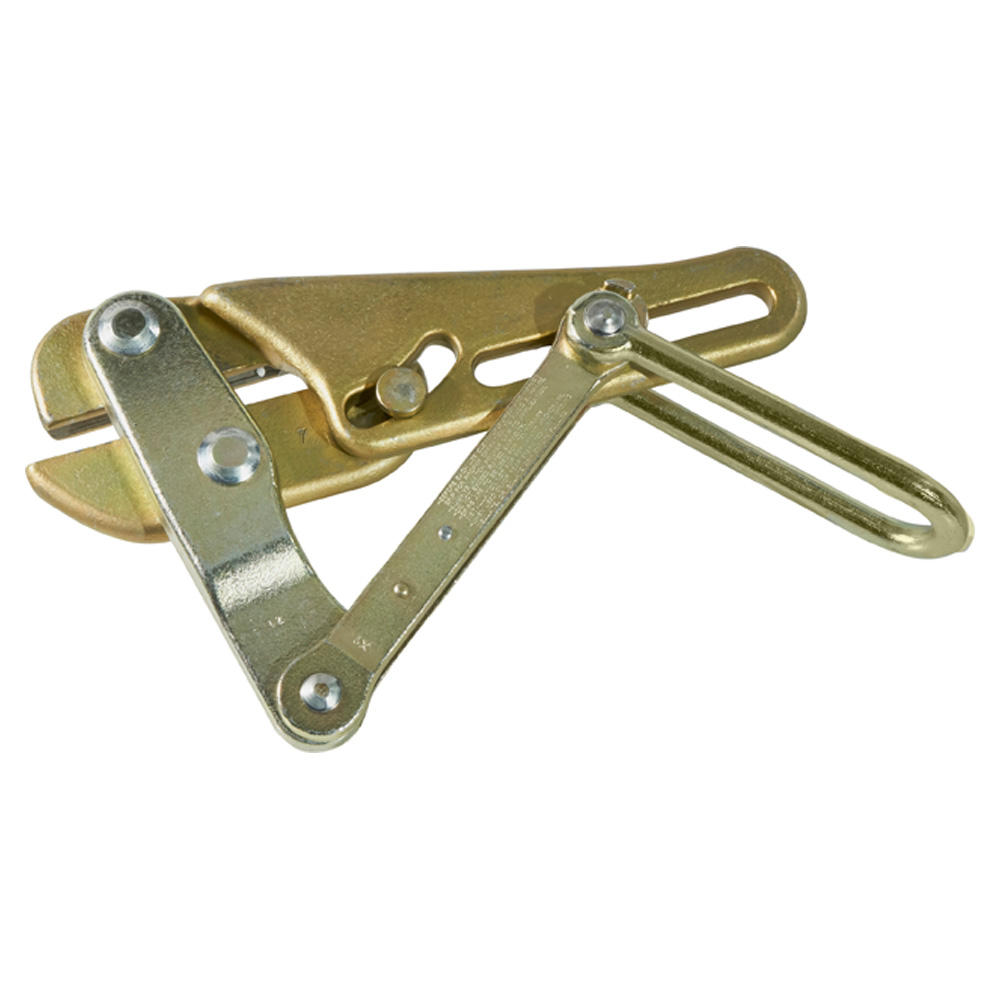

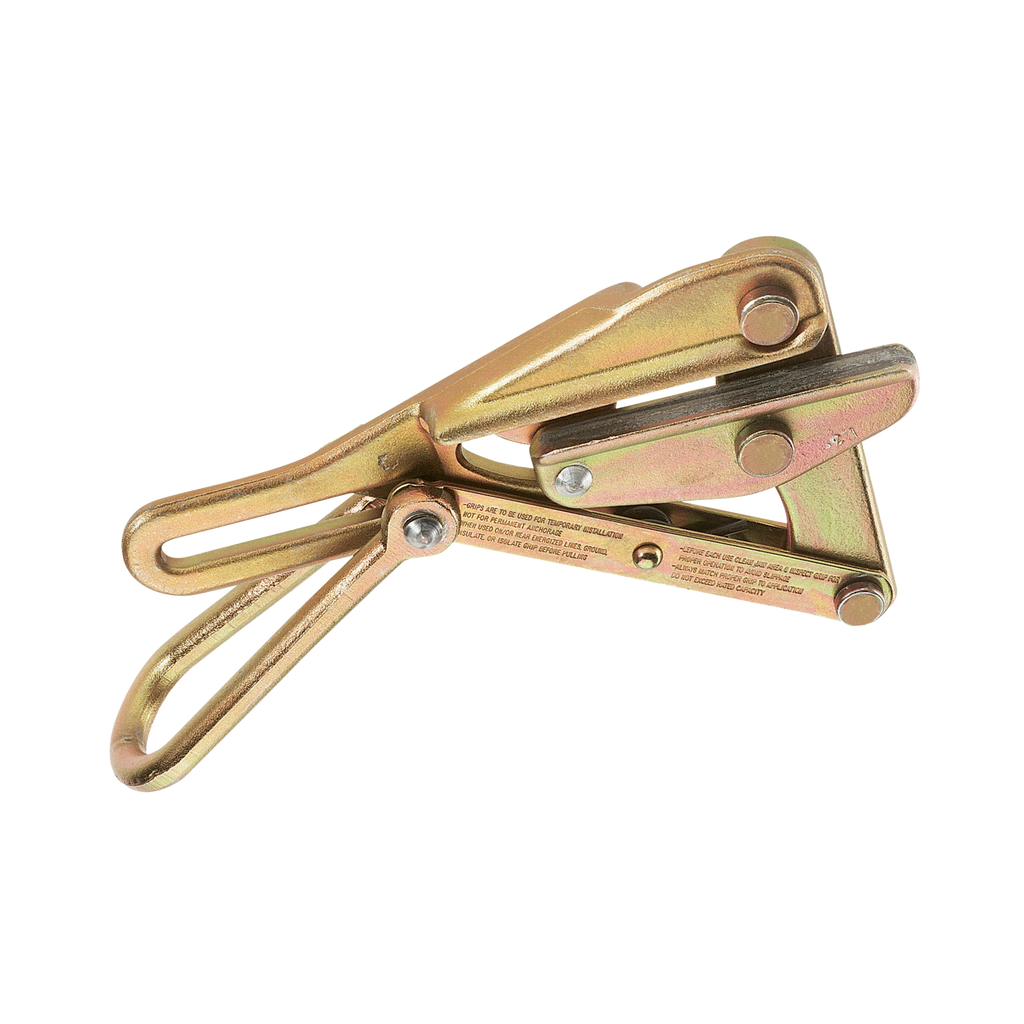

Klein Tools, 1628-17, Chicago Grip, 15,000 lb Max Load, 0.5 to 0.75 in Cable Diameter, Double V Jaw

The Klein Tools 1628-17 Chicago Grip is designed for EHS, Messenger, and Guy Strand cable. The double V grooves provide four-point contact, which reduces chances of slipping and also provides proper alignment of wire and cable. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Features

• Made in USA
• Locking handle keeps jaw open while grip is placed on cable with a hot stick
• For larger conductors, see our grips with round inside-jaw contour
• Designed for 0.50 to 0.75-Inch (12.7 to 19.05 mm) diameter cable sizes with max safe load of 15,000-Pound (6803 kg)
• Used for Aircraft, EHS, Messenger, Guy Strand cables
• Double ''V'' grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable

Warnings

• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Do not exceed rated capacity.
• Always match proper size and type of grip to application.

• Maximum Safe Load: 15,000 lb (6803 kg)
• Cable Diameter: 0.5 in to 0.75 in (12.7 to 19.05 mm)
• Jaw Type: Double V
• Jaw Length: 7.25 in (18.4 cm)
• Height: 2.7 in
• Depth: 12.6 in
• Width: 6.3 in
• Weight: 14.625 lbs
• Locking Handle: Yes
• Swing Latch: No
• Hot Latch: No
• Spring: No
• Teeth Type: Smooth
• Cable Type: Aircraft, EHS, Messenger, Guy Strand
• Application: Wire Pulling
• Material: Steel, Drop-forged
• Type: Chicago Grip
• Origin: United States
