Klein Tools, 1628-16AT, Chicago Grip, Max Safe Load 15,000 lb, Cable Diameter 0.31" to 0.62", Jaw Length 7.25"

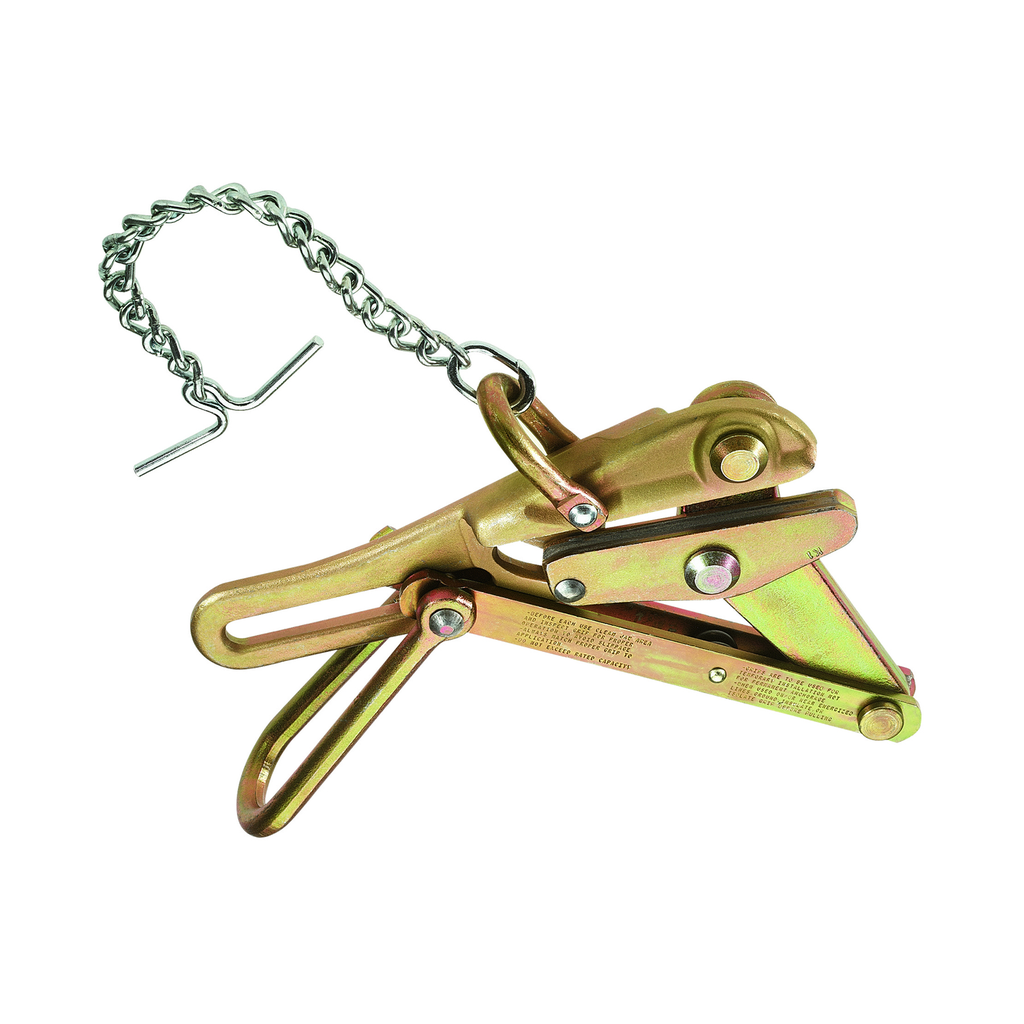

The Klein Tools 1628-16AT Chicago Grip is identical to a Bell-System type H Strand Puller. It is equipped with a chain, toggle and shackle to keep the grip from falling off the cable. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Warnings

• Always match proper size and type of grip to application.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Do not exceed rated capacity.

Features

• Equipped with chain, toggle and shackle
• For support wire 0.134 and larger, refer to 1659 series
• "H" Strand Puller -- Equipped with a Chain, Toggle and Shackle
• Made in USA
• Outside diameter of support wire includes thickness of polyethylene coating
• Identical to Bell-System type ''H'' strand puller, with max safe load of 15,000-Pound (6803 kg)

• Maximum Safe Load: 15,000 lb (6803 kg)
• Cable Diameter: 0.31" to 0.62" (7.87 to 15.75 mm)
• Jaw Length: 7.25" (18.4 cm)
• Width: 7.00 in
• Depth: 13.75 in
• Height: 2.50 in
• Material: Steel
• Type: Chicago Grip
• Application: Wire Pulling
• Spring: Yes
• Locking Handle: Yes
• Jaw Type: Double V
• Teeth Type: Smooth
• Cable Type: Aircraft, EHS, Messenger, Guy Strand
• Hot Latch: No
• Swing Latch: No
• Weight: 0.1000 lbs
