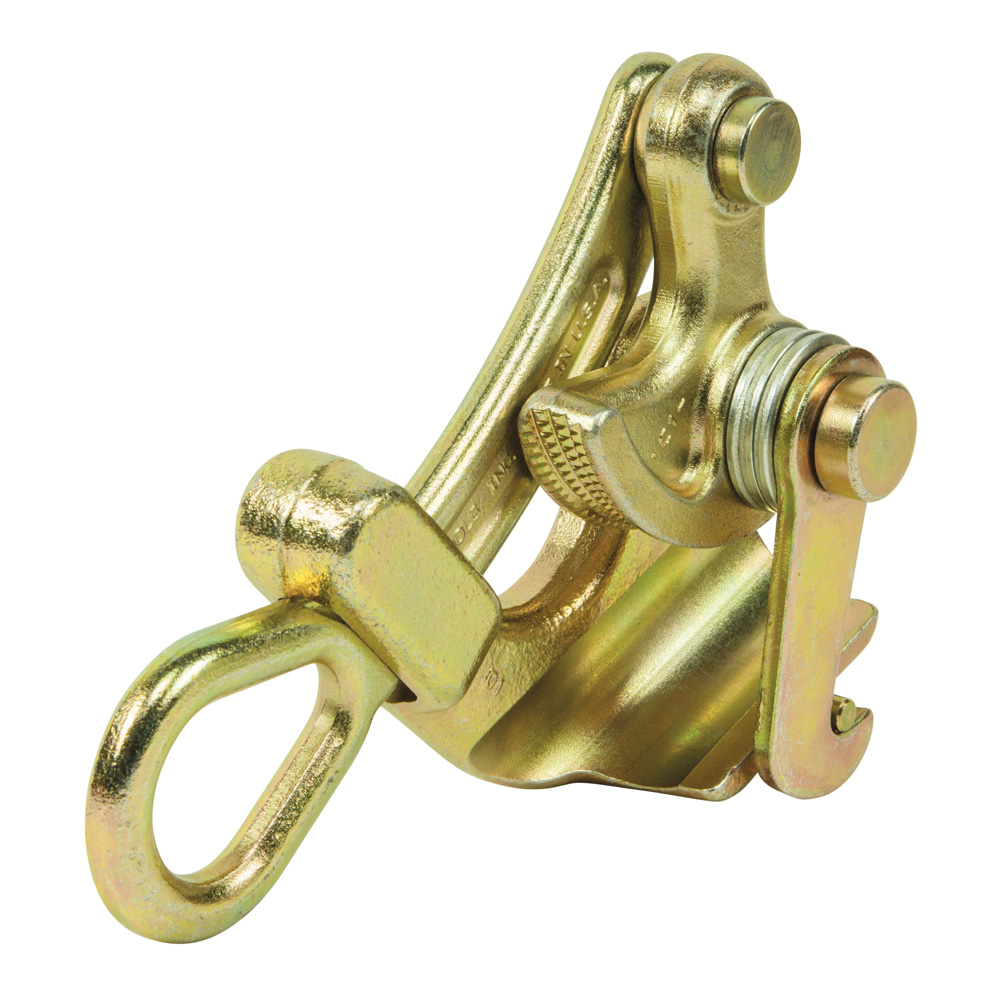

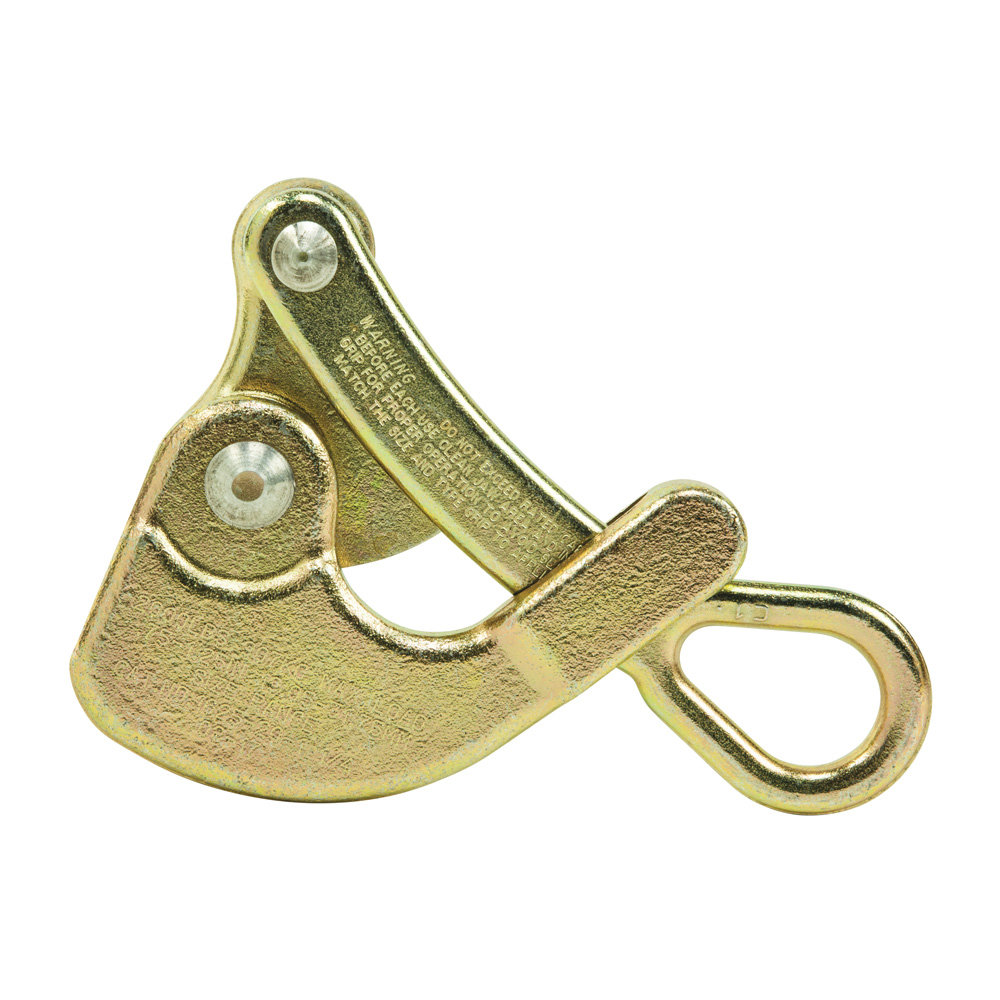

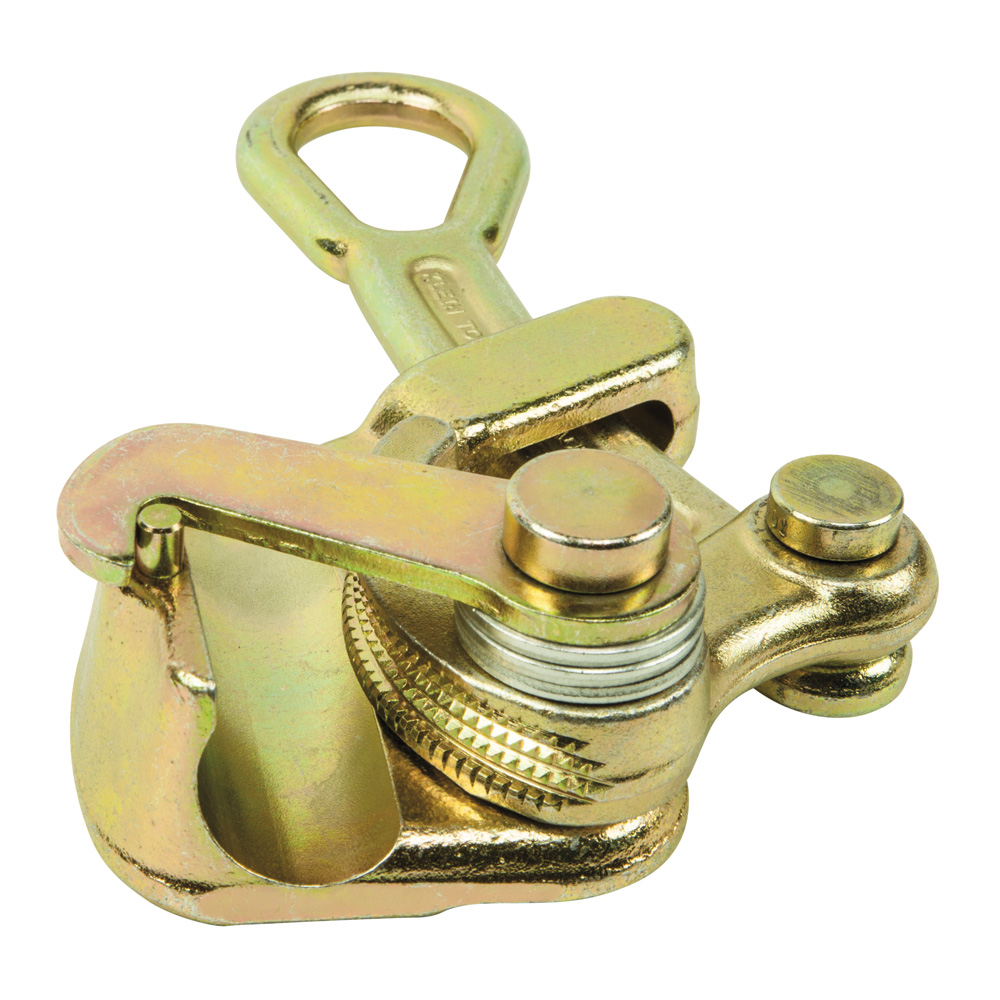

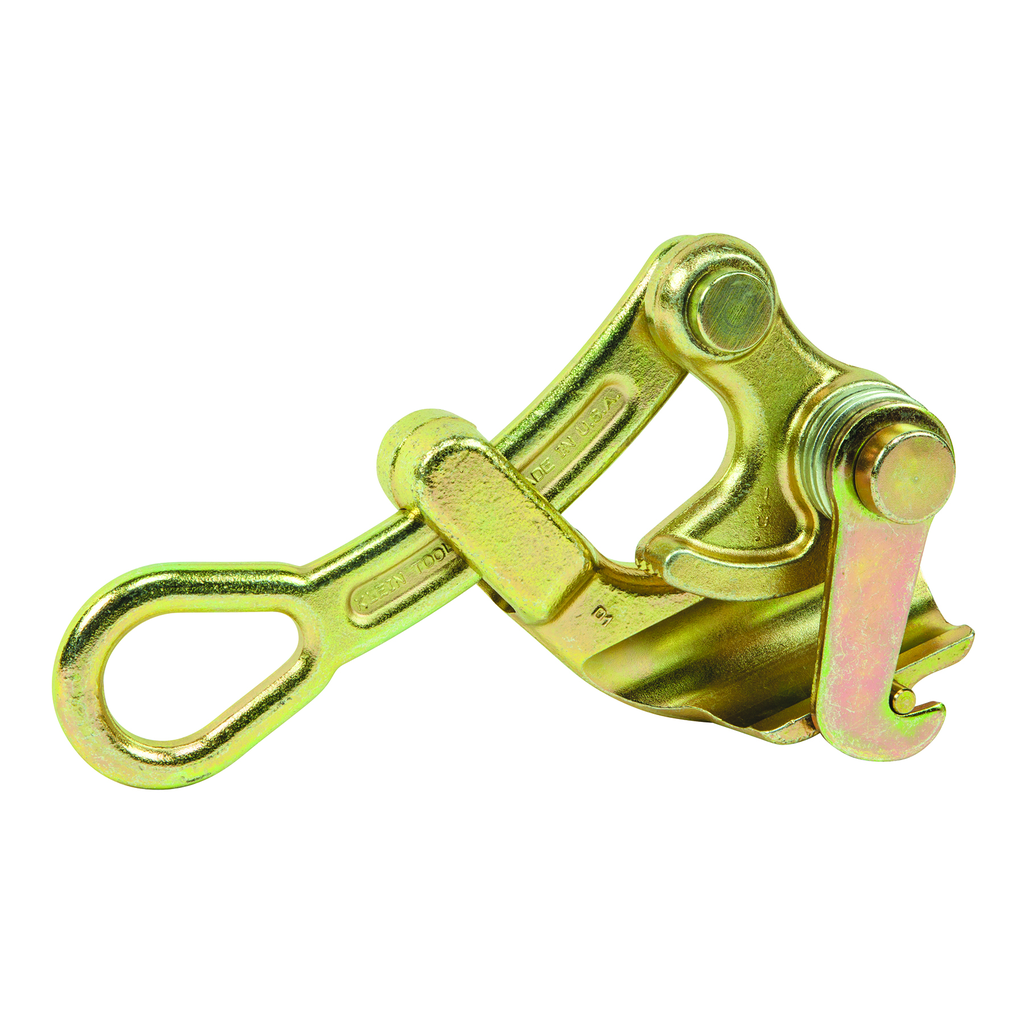

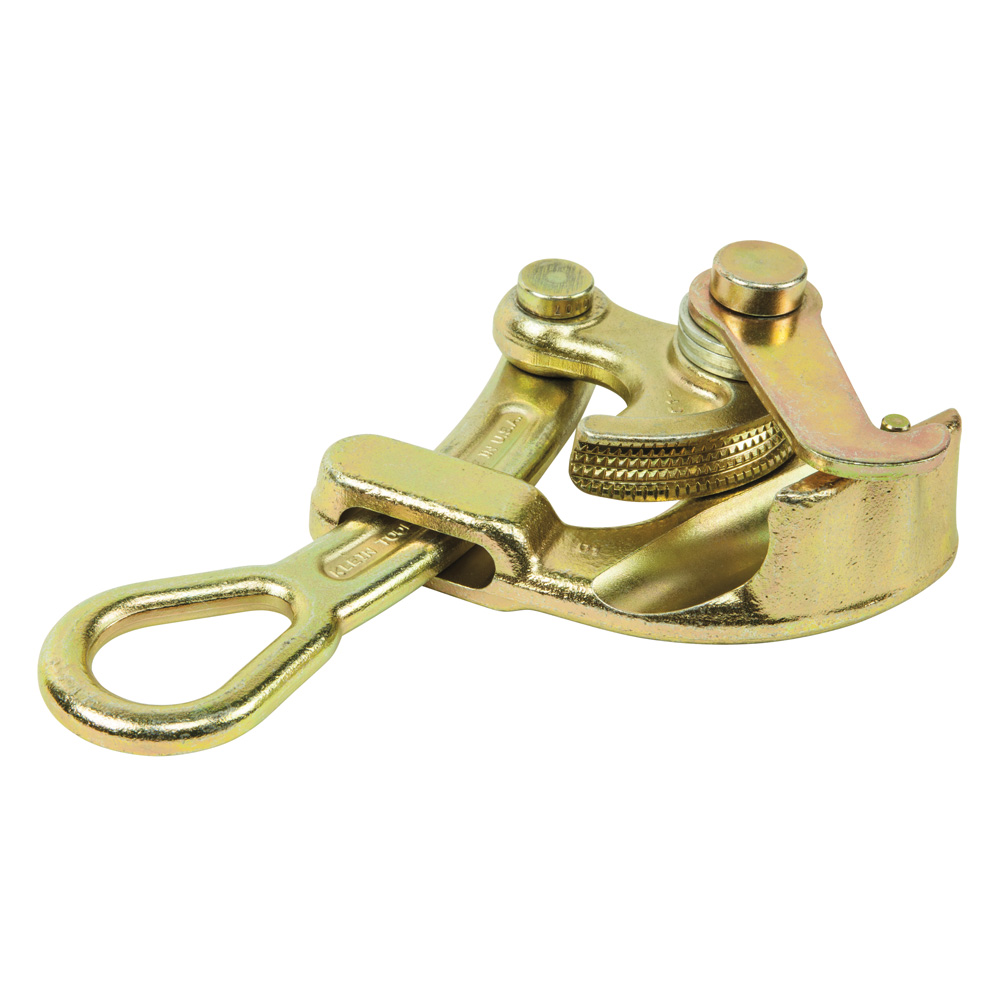

Klein Tools, 162520-114, Haven's Grip Wire Pulling Tool, 2000 lb Max Load, 0.75 to 1.25 in Cable Diameter, Steel

The Klein Tools 1625 Series Wire Rope Haven's® Grips are designed for use when a light, compact grip is desired and where cable deformation is not a factor. Available with a swing latch to help hold cable in the jaw. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Features

• Gripping pressure of the knurled jaw is applied to 1/4-Inch (6.4 mm) cable area
• Works with 0.75-Inch to 1.25-Inch (19.05 to 31.8 mm) cable diameter range with 2000-Pound (907 kg) maximum safe load
• Swing latch helps hold cable in the jaw
• Ideal for light, compact grip work where conductor damage is not a factor
• Every grip is inspected by hand and actuated to insure proper function
• Made from extremely durable forged and heat treated steel
• Made in USA

Warnings

• Do not exceed rated capacity.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Always match proper size and type of grip to application.
• Grips are to be used for temporary installation, not for permanent anchorage.

• Maximum Safe Load: 2000 lb (907 kg)
• Cable Diameter: 0.75 in to 1.25 in (1.90 to 3.17 cm)
• Overall Length: 6.86 in (16.9 cm)
• Overall Width: 4.05 in (10.3 cm)
• Overall Height: 2.20 in (5.6 cm)
• Weight: 3.36 lb
• Material: Steel
• Type: Haven's Grip
• Application: Wire Pulling
• Jaw Length: 0.25 in (6.4 mm)
• Swing Latch: Yes
• Teeth Type: Aggressive
• Jaw Type: Curved
• Cable Type: EHS, Guy Strand, Messenger
• Spring: No
• Locking Handle: No
• Depth: 6.87 in
• Hot Latch: No
