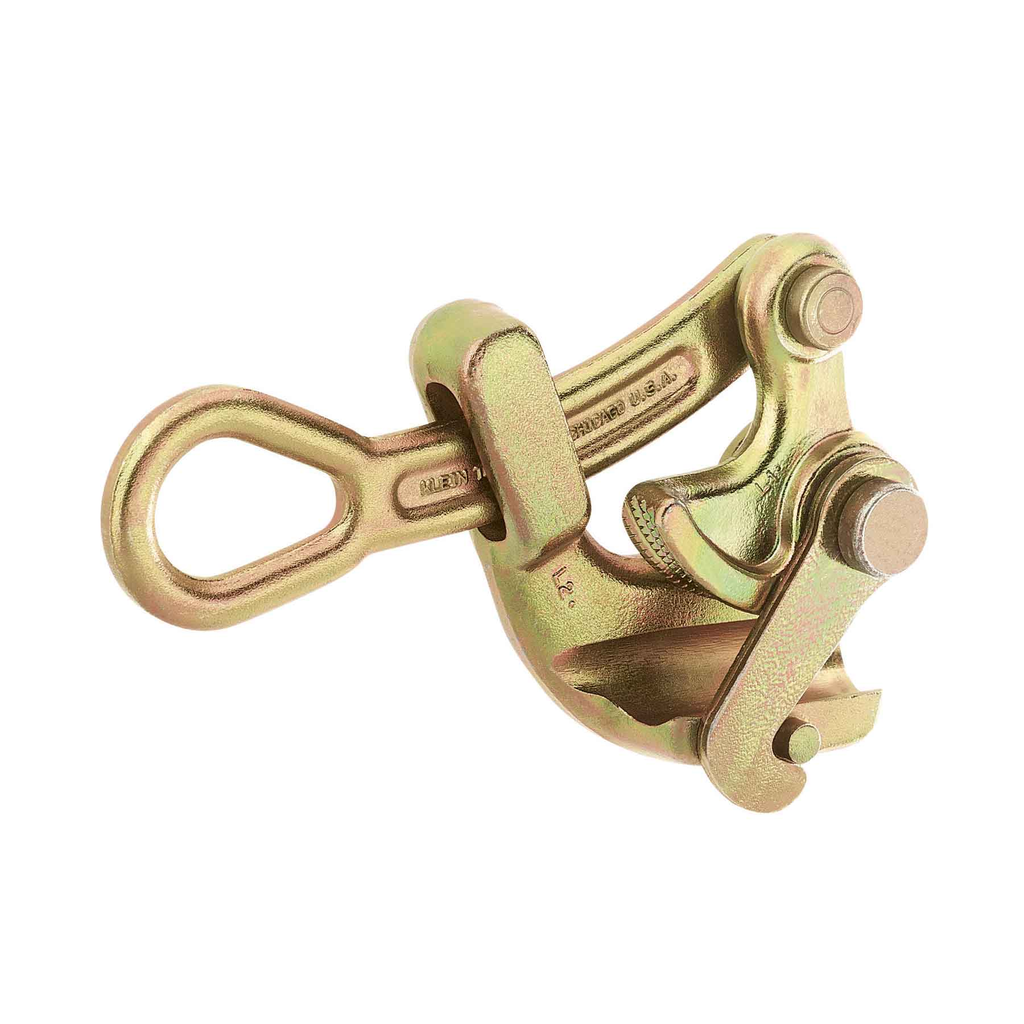

Klein Tools, 162520-1, Haven's Grip, 8,000 lb Max Load, 0.5 to 1 in. Cable Diameter, Curved Jaw

The Klein Tools 1625 Series Wire Rope Haven's® Grips are designed for use when a light, compact grip is desired and where cable deformation is not a factor. Available with a swing latch to help hold cable in the jaw. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Features

• Made in USA
• Designed for use when light, compact grip is desired and where conductor damage is not a factor
• Works on 0.50 to 1.00-Inch (12.70 to 25.40 mm) wire rope cable diameters with max safe load of 8000 lb (3629 kg)
• Manufactured from drop-forged, heat-treated steel for excellent durability
• Gripping pressure of the knurled jaw is applied to 1/4-Inch (6.35 mm) cable area

Warnings

• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Always match proper size and type of grip to application.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Do not exceed rated capacity.

• Maximum Safe Load: 8,000 lb (3,629 kg)
• Cable Diameter: 0.5 to 1 in. (12.7 to 25.4 mm)
• Jaw Length: 0.25 in. (6.4 mm)
• Jaw Type: Curved
• Cable Type: EHS, Guy Strand, Messenger
• Width: 4.05 in.
• Height: 1.917 in.
• Depth: 6.867 in.
• Material: Drop-forged, heat-treated steel
• Swing Latch: Yes
• Locking Handle: No
• Hot Latch: No
• Spring: No
• Teeth Type: Aggressive
• Application: Wire Pulling
• Weight: 3.366 lbs
• Type: Haven's Grip
