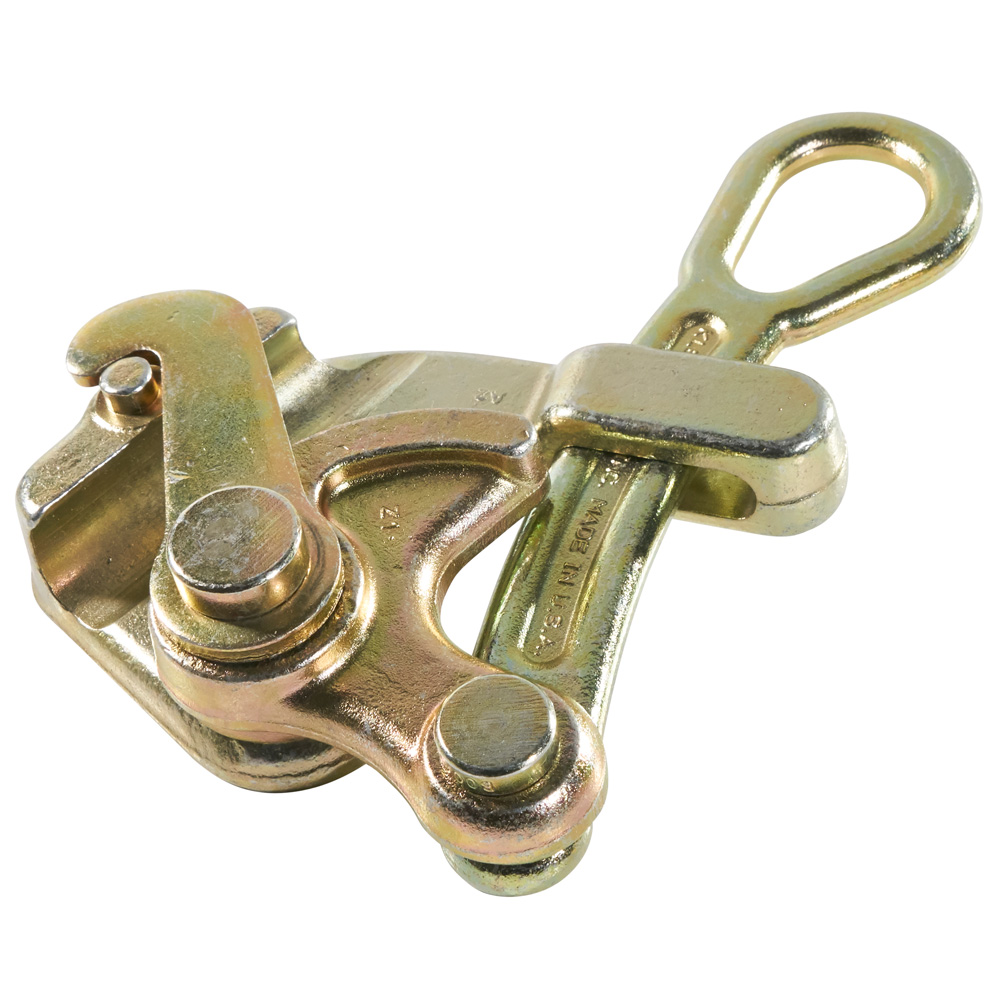

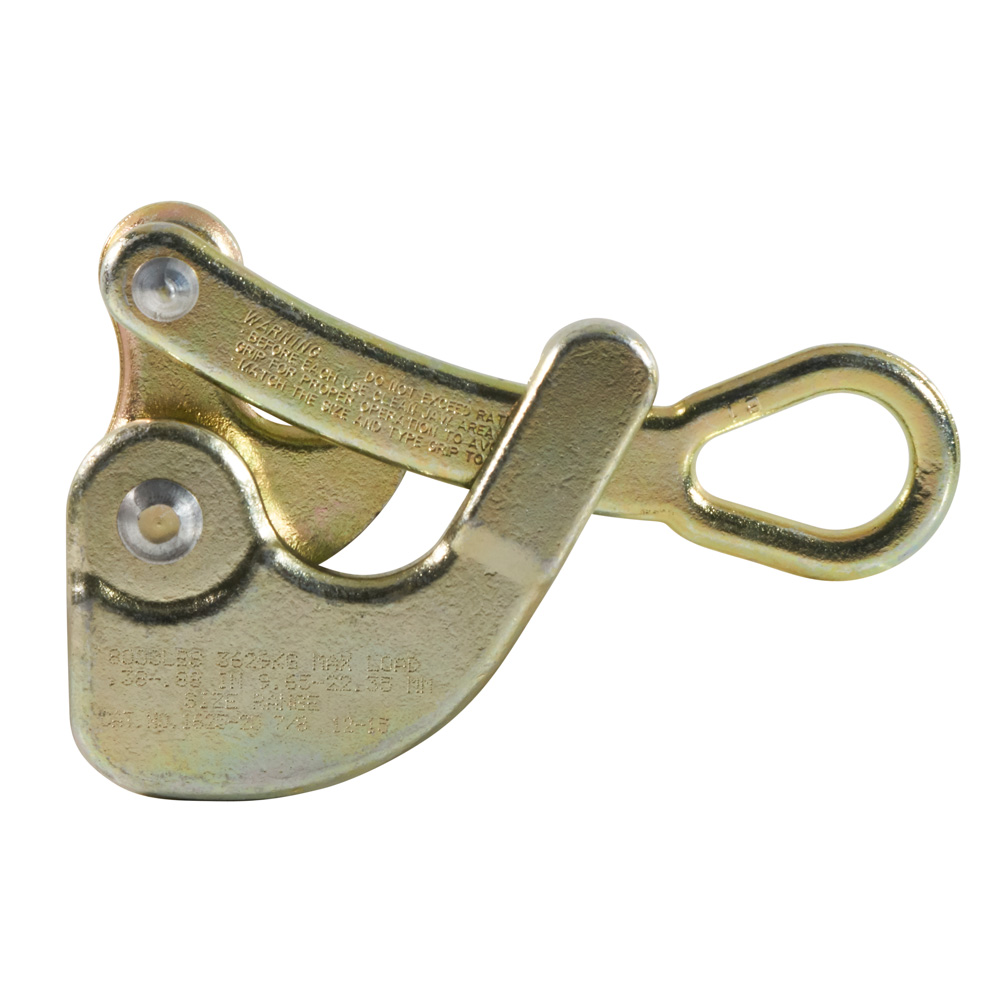

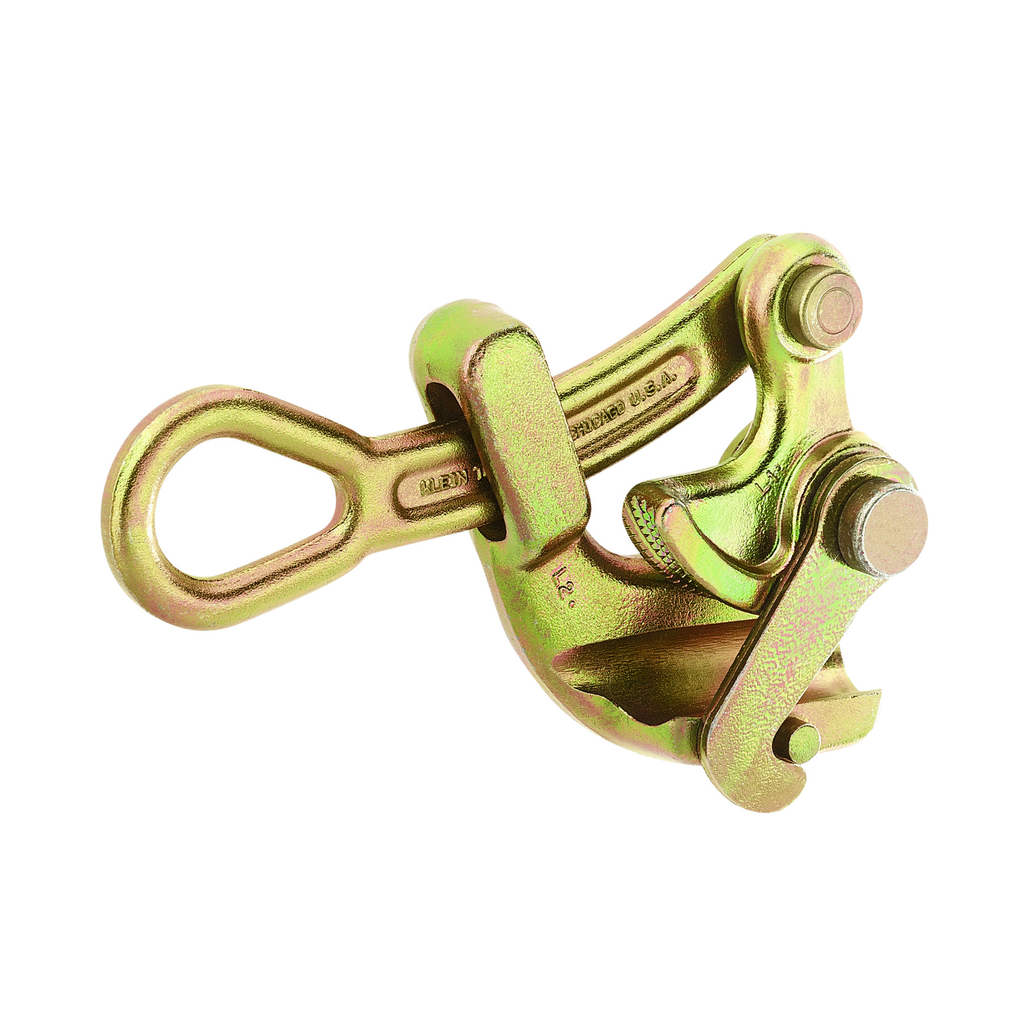

Klein Tools, 1625-20, Haven's Grip, Max Safe Load 8000 lb, Cable Diameter 0.28 in to 0.75 in, Curved Jaw

The Klein Tools 1625 Series Wire Rope Haven's® Grips are designed for use when a light, compact grip is desired and where cable deformation is not a factor. This grip also comes with a swing latch to help hold cable in the jaw. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Warnings

• Grips are to be used for temporary installation, not for permanent anchorage.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Always match proper size and type of grip to application.
• Do not exceed rated capacity.

Features

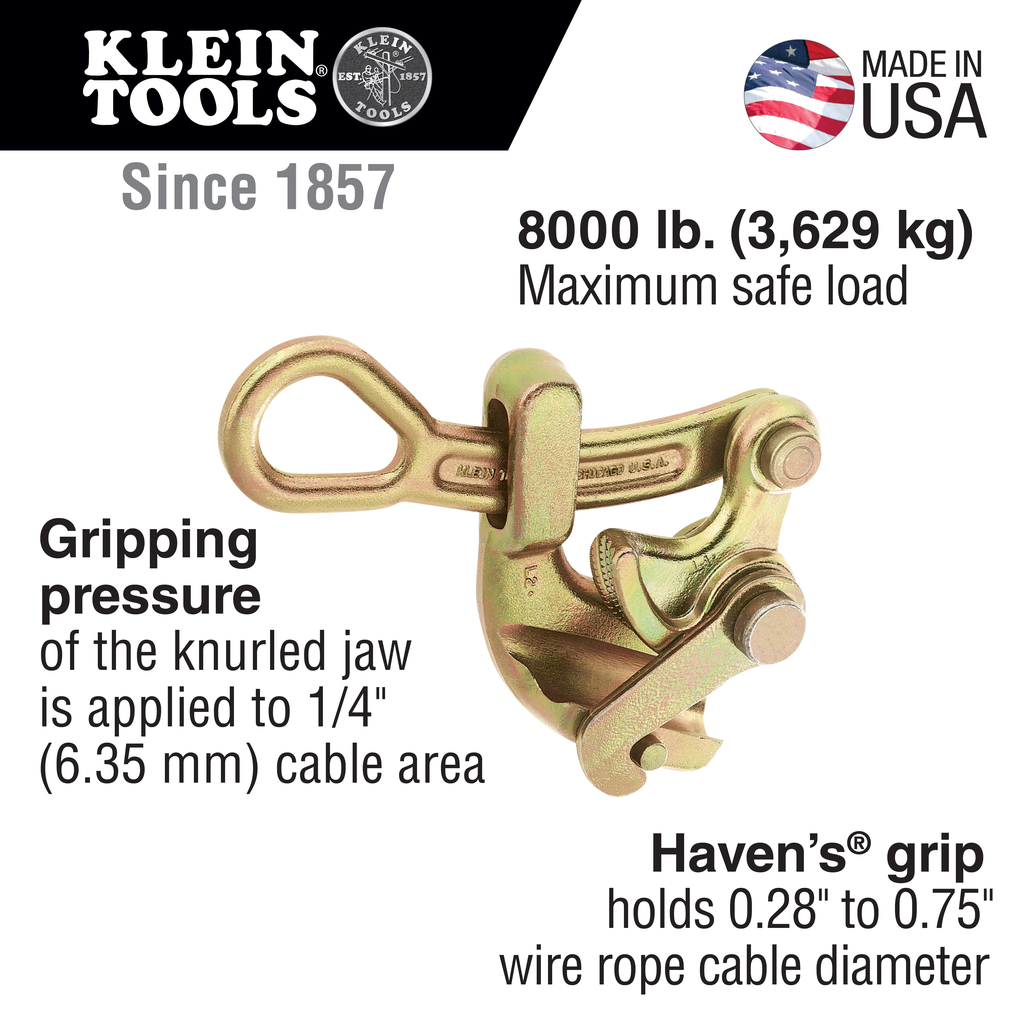

• Max Safe Load of 8000-Pound (3629 kg)

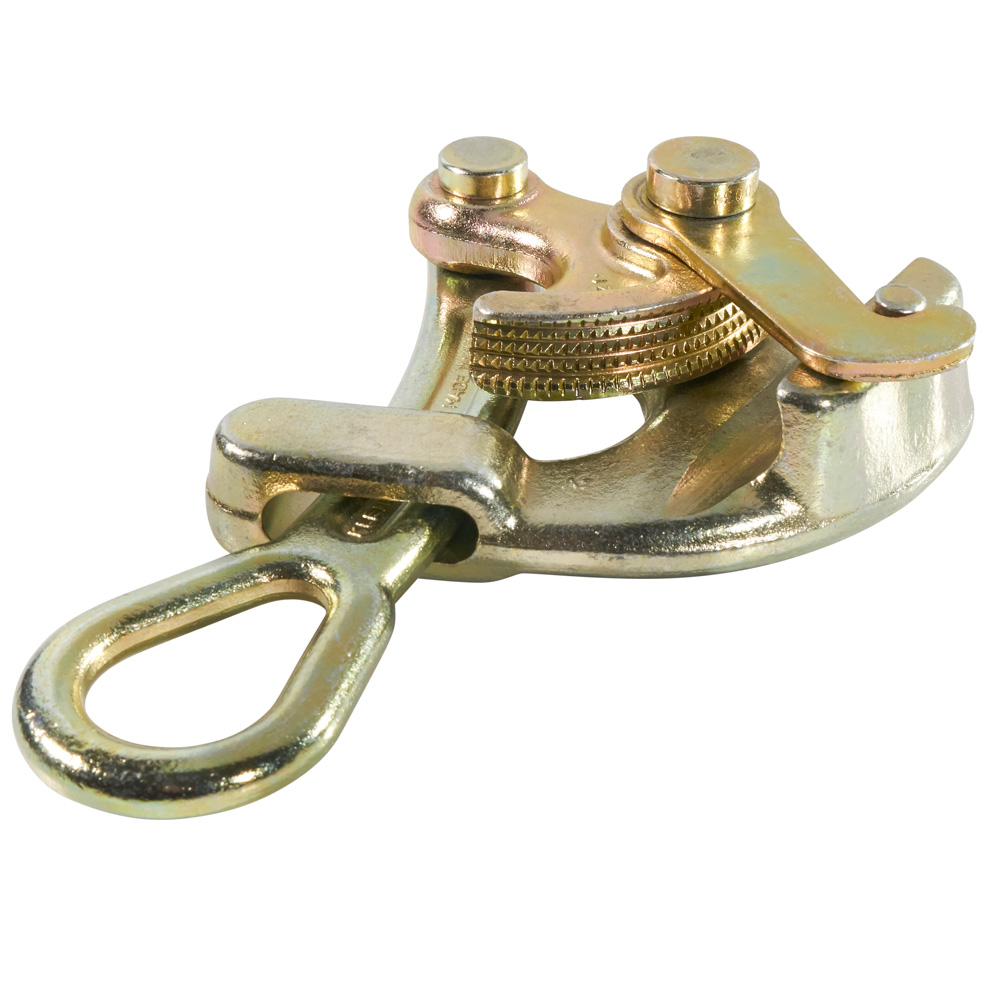

• Gripping pressure of the knurled jaw is applied to 1/4-Inch (6.35 mm) cable area
• Designed for use when light, compact grip is desired and where conductor damage is not a factor
• Made in USA
• Manufactured from drop-forged, heat-treated steel for excellent durability

• Maximum Safe Load: 8000 lb (3629 kg)
• Cable Diameter: 0.28 in to 0.75 in (7.11 to 19.05 mm)
• Jaw Length: 0.25 in (6.4 mm)
• Width: 3.825 in
• Height: 1.8 in
• Depth: 6.075 in
• Material: Steel
• Jaw Type: Curved
• Teeth Type: Aggressive
• Application: Wire Pulling
• Weight: 3.492 lb
• Cable Type: EHS, Guy Strand, Messenger
• Swing Latch: No
• Hot Latch: No
• Spring: No
• Locking Handle: No
• Type: Haven's Grip
