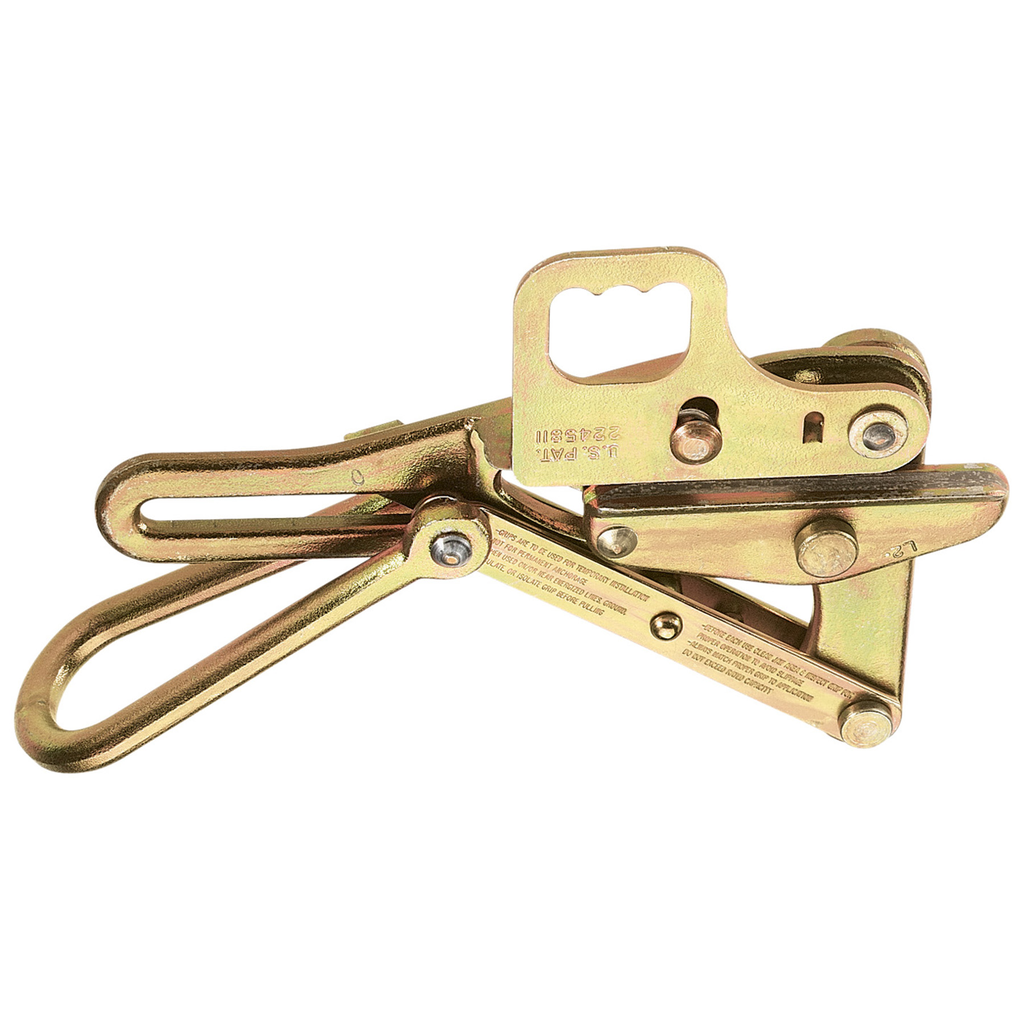

Klein Tools, 161335H, Chicago Grip, Max Load 4500 lb, Wire Size #6 to #8 AWG, Single V Groove, Copper

Finding the best grip to pull small copper can be challenging. Copper stretches over time becoming too thin for some grips which may cause slippage. Some smaller grips are harder to manipulate when wearing rubber gloves and are not hot latch compatible. Using a grip that's too big, too strong or too aggressive could damage the cable. Klein Tools' 1613 Series Bare Wire Chicago Grip is big enough to work with gloves but small enough to pull #6 and #8 copper without damaging it. It's just right for the job.

Features

• Single V groove jaw
• Lightweight, cost-effective grip pulls #8 to #6 AWG bare copper wire
• Locking loop handles allow the jaws to be held in an open position for easy placement on wire or cable
• Max Safe Load of 4500-Pound (2100 kg)
• Made in USA

Warnings

• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Do not exceed rated capacity.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.

• Maximum Safe Load: 4500 lb (2041 kg)
• Overall Length: 12.6 in (32 cm)
• Overall Width: 2.12 in (5.4 cm)
• Overall Height: 6 in (15.2 cm)
• Weight: 2.844 lbs
• Cable Diameter: 0.1285 to 0.162 in (3.3 to 4.06 mm)
• Jaw Type: Single V groove
• Material: Steel, Copper, ACSR
• Hot Latch: Yes
• Spring: Yes
• Swing Latch: No
• Locking Handle: Yes
• Cable Type: Copper, ACSR
• Teeth Type: Smooth
• Depth: 7.425 in
• Jaw Length: 4.188 in (10.6 cm)
• Wire Size: #6 to #8 AWG
• Application: Wire Pulling
• Type: Chicago Grip
• Compliance: Made in USA
