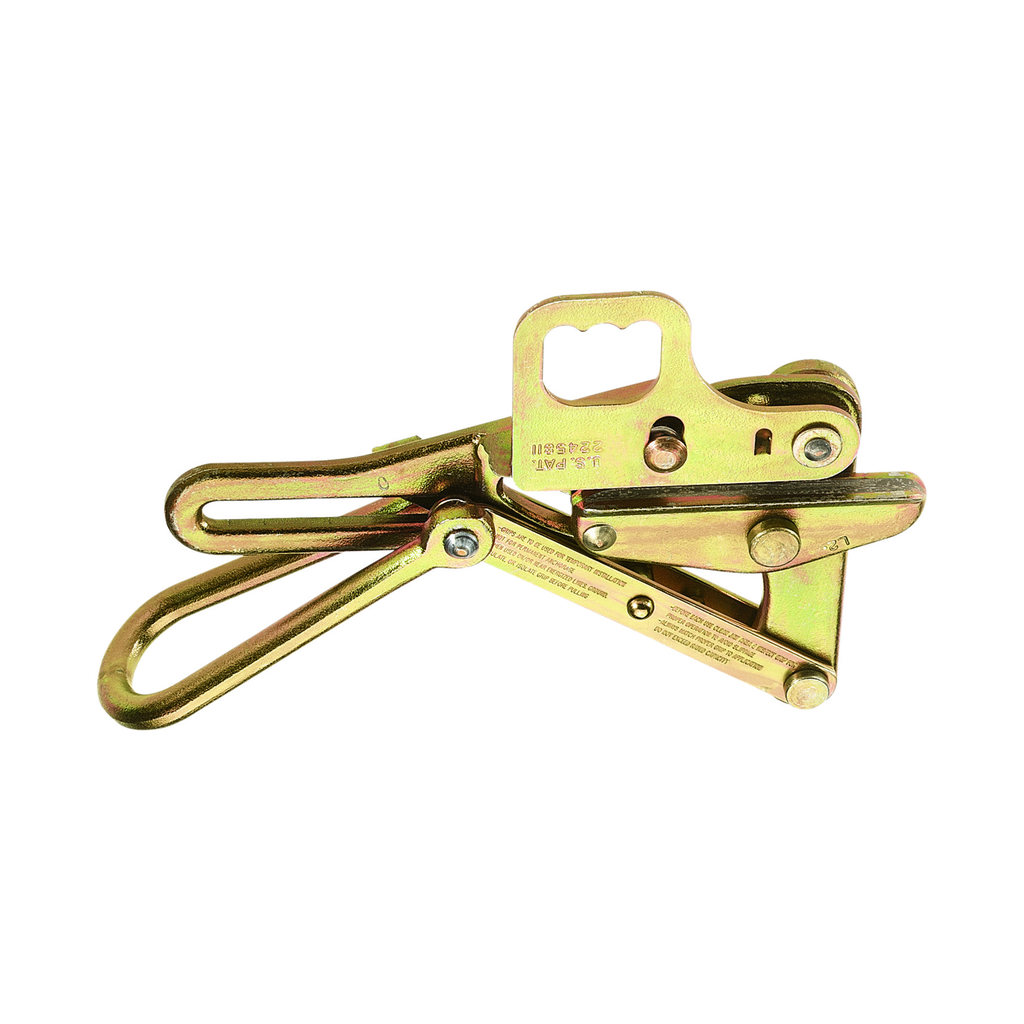

Klein Tools, 1613-40H, Chicago Grip, 0.12 to 0.37 in; 4500 lb, Steel, Locking Handle

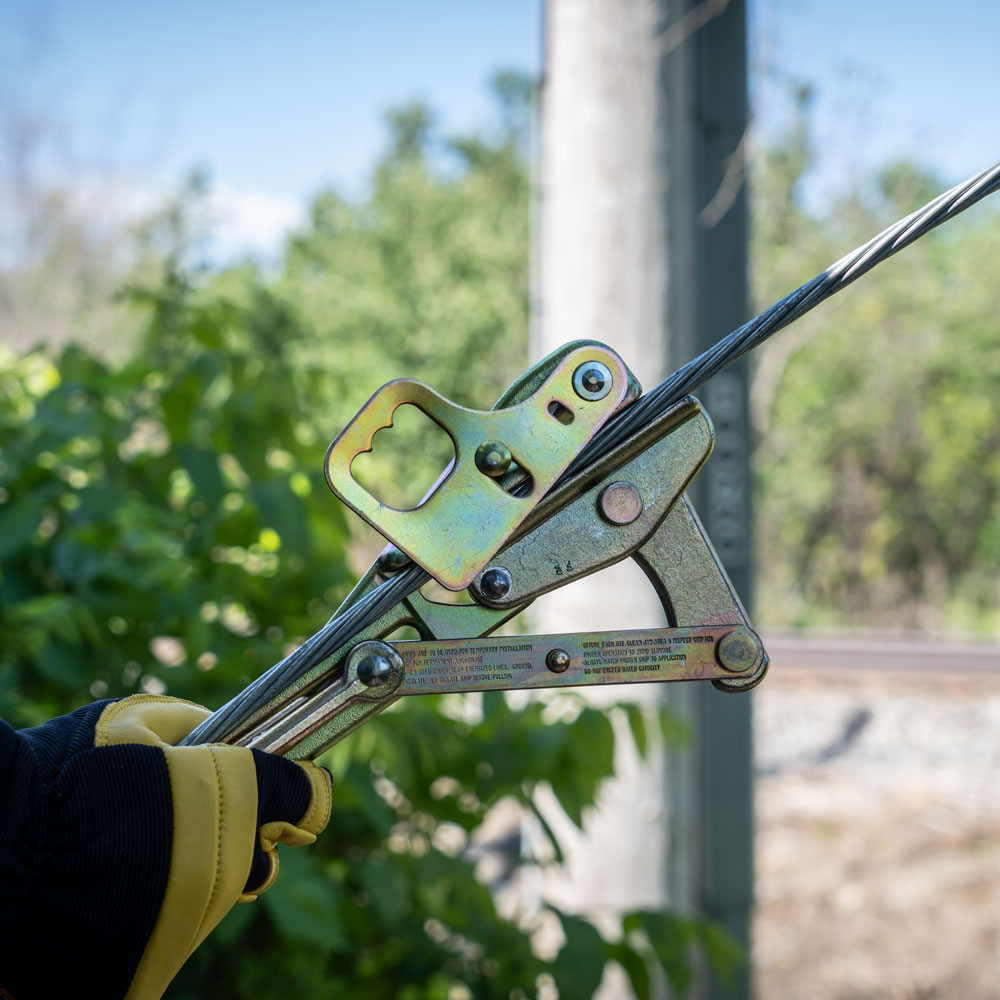

The Klein Tools 1613-40H Chicago Grip is designed for EHS, Messenger and Guy Strand cable. It comes with a hot-line latch for bare conductors, which allows you to place this grip on a cable with a hot-line stick. When the stick is removed, the latch closes automatically to guard against grips accidentally disengaging from the wire. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Grips are rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Warnings

• Grips are to be used for temporary installation, not for permanent anchorage.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Do not exceed rated capacity.
• Always match proper size and type of grip to application.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.

Features

• Designed for cable sizes from 0.12 to 0.37-Inch (3.05 to 9.40 mm) with maximum safe load of 4500-Pound (2041 kg)
• Double V grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
• Made in USA
• For larger conductors, see our grips with round inside-jaw contour

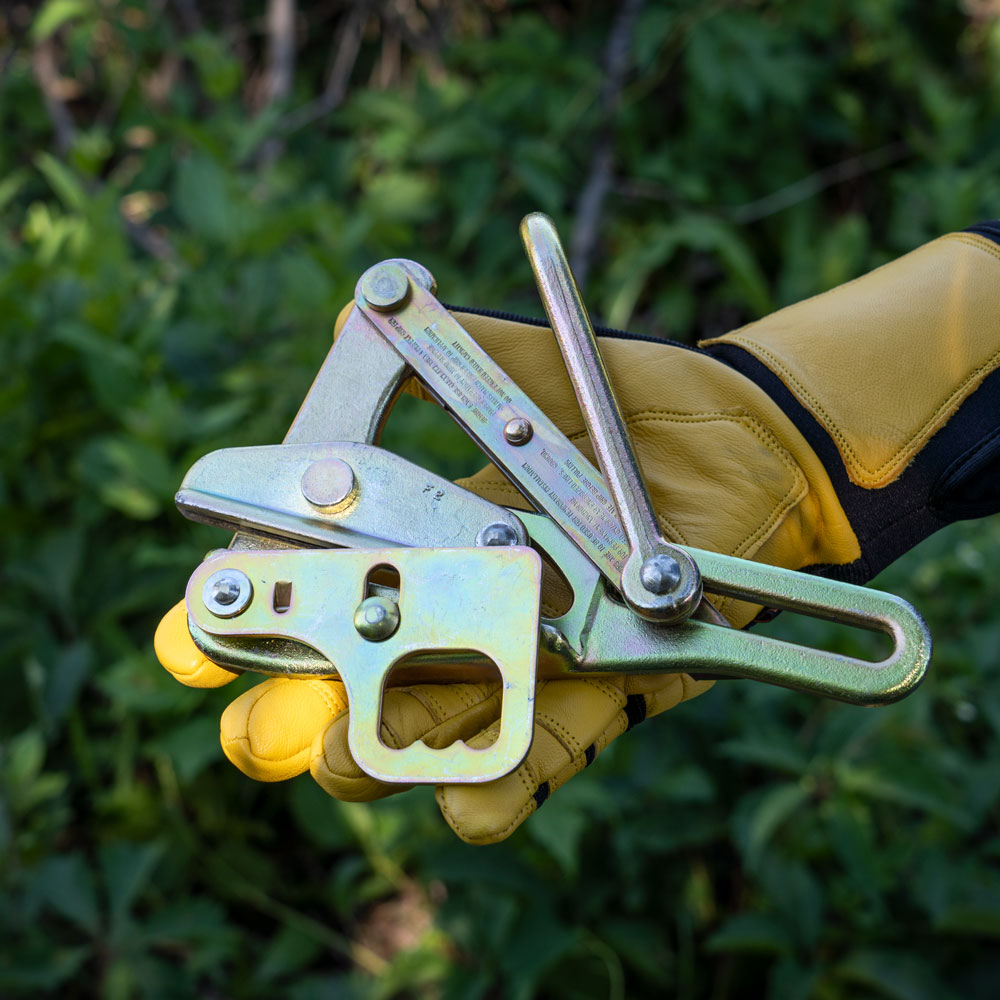

• Locking handle keeps jaw open while grip is placed on cable with a hot stick
• Works with aircraft, EHS, messenger and guy strand cable

• Maximum Safe Load: 4500 lb (2041 kg)
• Cable Diameter: 0.12 to 0.37 in (3.05 to 9.4 mm)
• Jaw Length: 4.188 in (10.6 cm)
• Height: 1.8 in
• Width: 5 in
• Depth: 8 in
• Weight: 0.1 lb
• Jaw Type: Double V
• Teeth Type: Smooth
• Material: Steel, Drop-forged
• Type: Chicago Grip
• Locking Handle: Yes
• Hot Latch: Yes
• Swing Latch: No
• Spring: No
• Cable Type: Aircraft, EHS, Messenger, Guy Strand
• Application: Wire Pulling
• Country of Origin: USA
