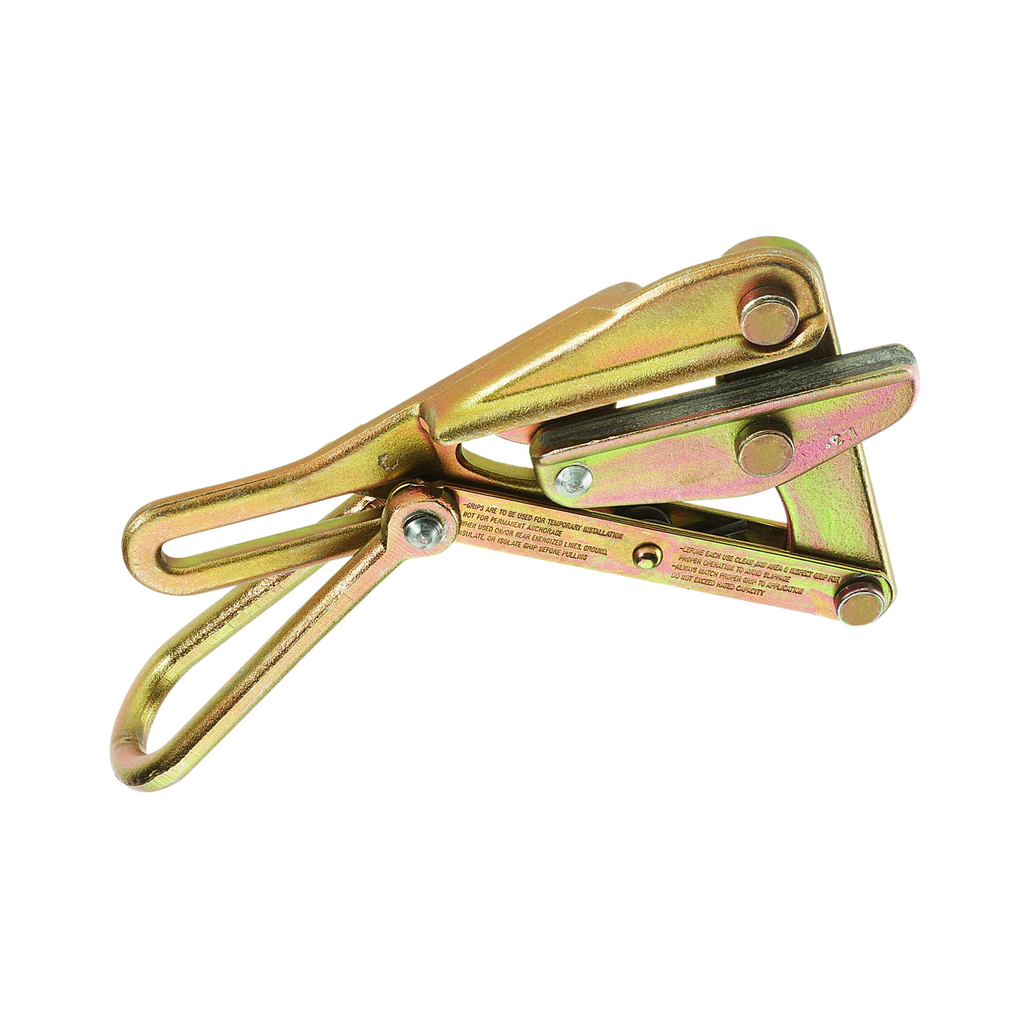

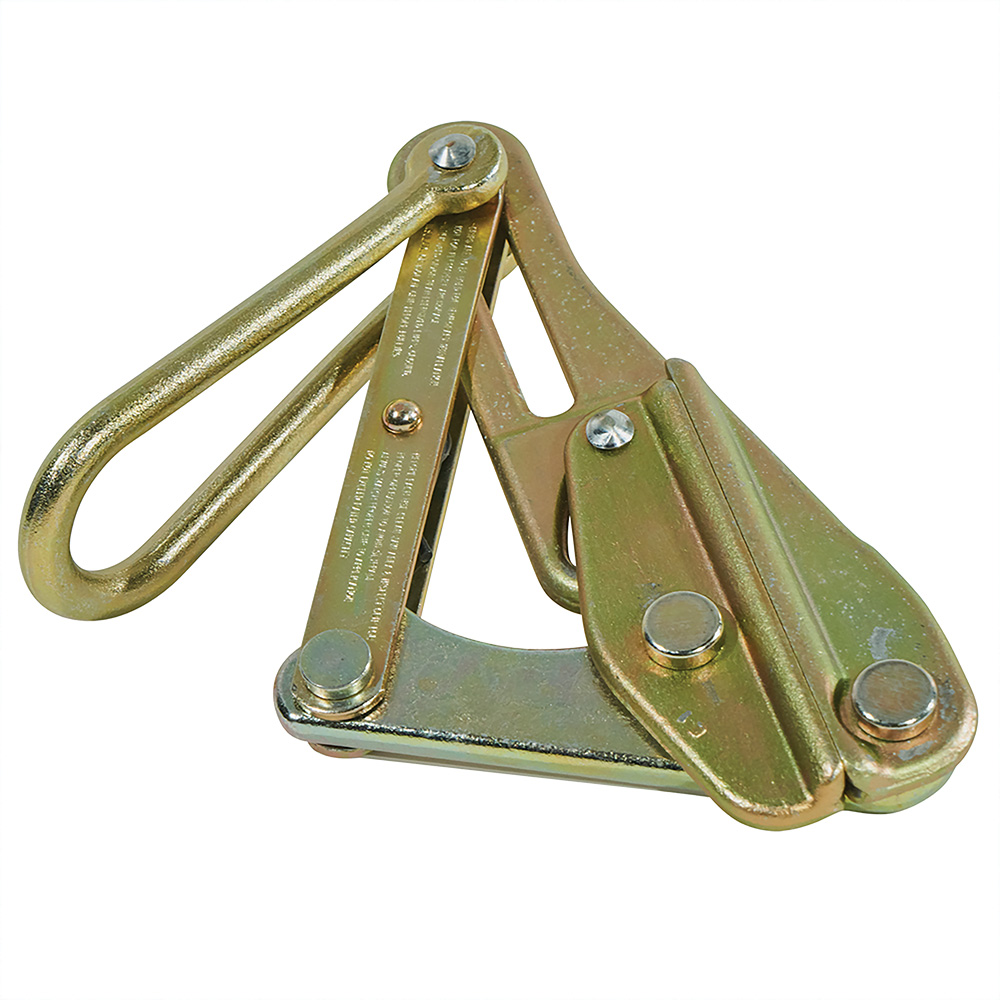

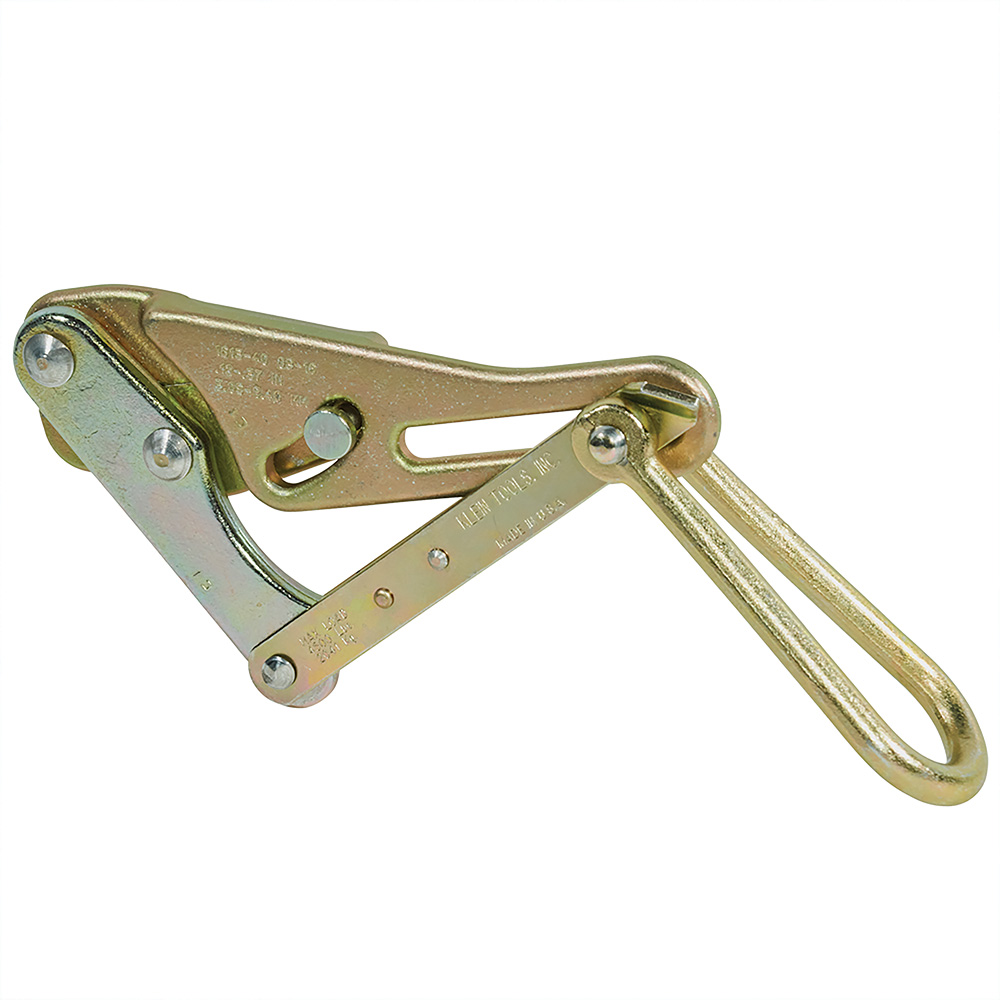

Klein Tools, 1613-40, Chicago Grip, 4500 lb Max Load, 0.12 in to 0.37 in Cable Diameter, Double V Grooves

This Klein Tools 1613-40 Chicago Grip is designed for EHS, Messenger, and Guy Strand cable. The double V grooves provide four-point contact, which reduces chances of slipping and also provides proper alignment of wire and cable. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Features

• Made in USA
• Double ''V'' grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
• Designed for cable sizes from 0.12 to 0.37-Inch (3.05 to 9.40 mm) and has max safe load of 4500-Pound (2041 kg)
• For larger conductors, see our grips with round inside-jaw contour
• Works with aircraft, EHS, messenger and guy strand cable

Warnings

• Grips are to be used for temporary installation, not for permanent anchorage.
• Always match proper size and type of grip to application.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Do not exceed rated capacity.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.

• Maximum Safe Load: 4500 lb (2041 kg)
• Cable Diameter: 0.12 in to 0.37 in (3.05 to 9.4 mm)
• Type: Chicago Grip
• Jaw Type: Double V grooves, four-point contact
• Jaw Length: 4.188 in (10.6 cm)
• Height: 2.025 in
• Width: 4.275 in
• Depth: 7.425 in
• Material: Steel, custom drop-forged
• Locking Handle: Yes
• Teeth Type: Smooth
• Spring: No
• Swing Latch: No
• Hot Latch: No
• Cable Type: Aircraft, EHS, Messenger, Guy Strand
• Weight: 2.664 lb
• Application: Wire Pulling
• Compliance: Made in USA
